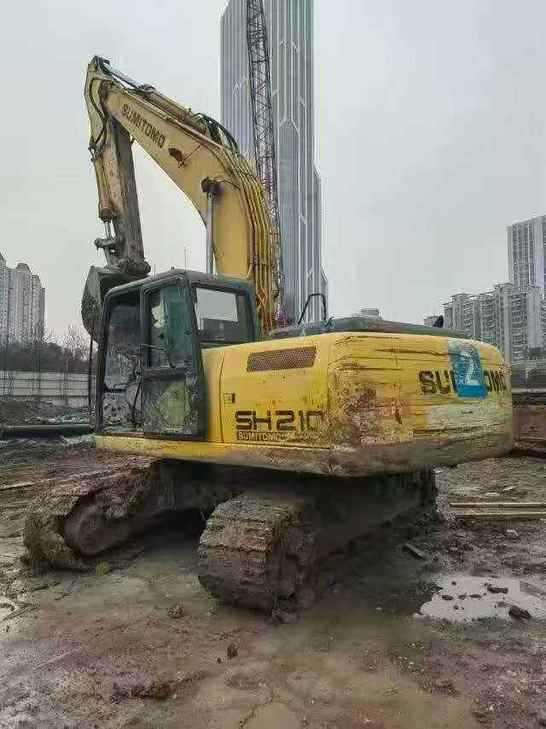

2015 Sumitomo SH210-5

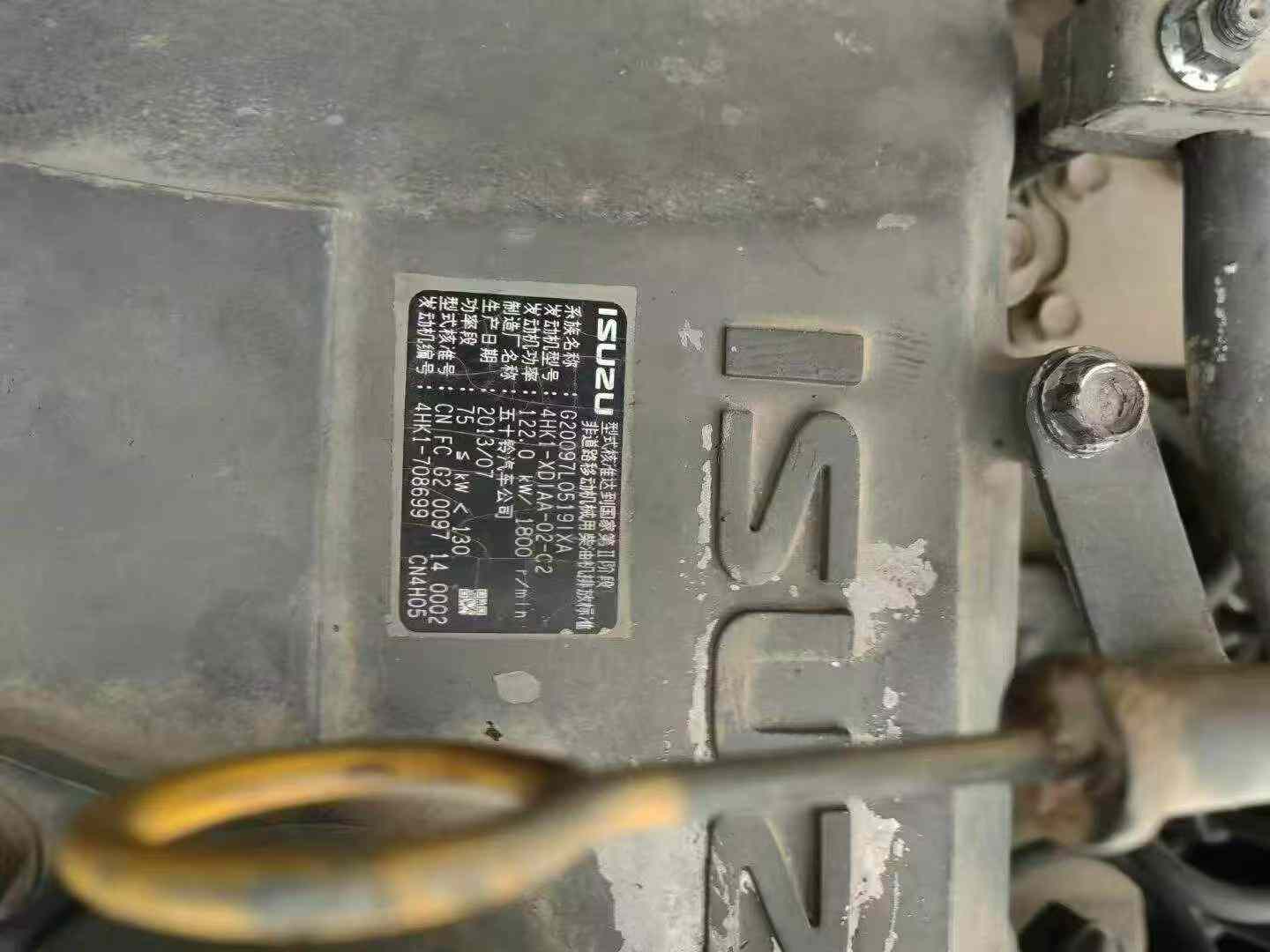

Engineered with precision by Sumitomo's joint venture manufacturing standards, this 2015 SH210-5 excavator delivers 117.3 kW of rated power at 1800 rpm through a robust 5.193L four-cylinder engine. Hydraulic performance stands at the core of this 21-ton machine, featuring a variable axial piston motor and maximum main pump flow of 422 l/min, enabling bucket digging force of 142 kN and rod digging force of 103 kN for demanding excavation tasks.

Operating at 20,600 kg working weight, the SH210-5 combines a 5700mm boom with a 2900mm arm to achieve a maximum digging radius of 9900mm and excavation depth of 6650mm. The 0.9-1.0 m³ backhoe bucket capacity suits high-volume earthmoving applications, while the 70% climbing ability and dual travel speeds (3.4/5.6 km/h) ensure jobsite versatility. With 410L fuel capacity and 240L hydraulic system volume, this Luzhou, Sichuan-based unit maintains extended operational intervals. Ground-specific pressure of 45 kPa and 600mm track plates minimize surface impact across varied terrain conditions.
