Product Description
Powered by a robust 117.3 kW engine delivering peak torque at 1,800 rpm, this 2020 Sumitomo SH210-5 excavator represents proven joint-venture engineering built for demanding excavation work. The 21-ton machine combines a high-capacity 422 l/min main pump with variable axial piston travel motors, ensuring responsive hydraulic performance across all functions. Operating weight of 20,600 kg provides exceptional stability during heavy digging cycles.
Equipped with a 5,700 mm boom and 2,900 mm arm configuration, the SH210-5 delivers impressive working dimensions: 9,900 mm maximum reach, 6,650 mm digging depth, and 9,610 mm maximum dig height. Bucket digging force reaches 142 kN, while arm force peaks at 103 kN—specifications that translate to productive material handling in rock, clay, and dense soil conditions. The 0.9-1.0 m³ backhoe bucket matches perfectly with the machine's power class.
Key Technical Specifications:

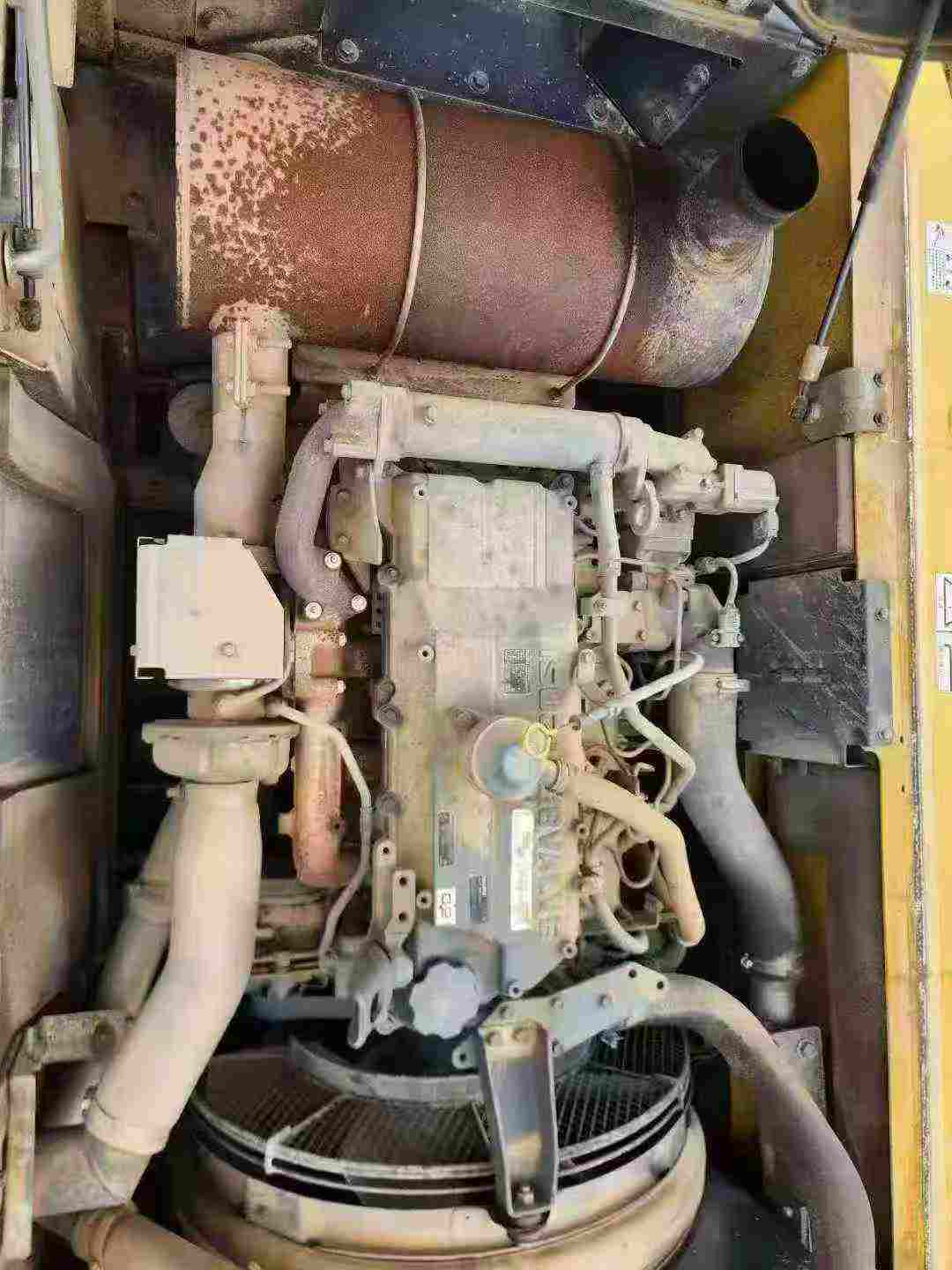

- 4-cylinder engine, 5.193L displacement, 115 × 125 mm bore × stroke
- Dual-speed travel: 3.4/5.6 km/h with 70% gradeability
- 410L fuel capacity, 240L hydraulic system volume
- Currently located in Huizhou, Guangdong—ready for international shipping
| Specifications | Value |
|---|---|
| No. | 1024148 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
