2020 Sumitomo SH210-5

1/5

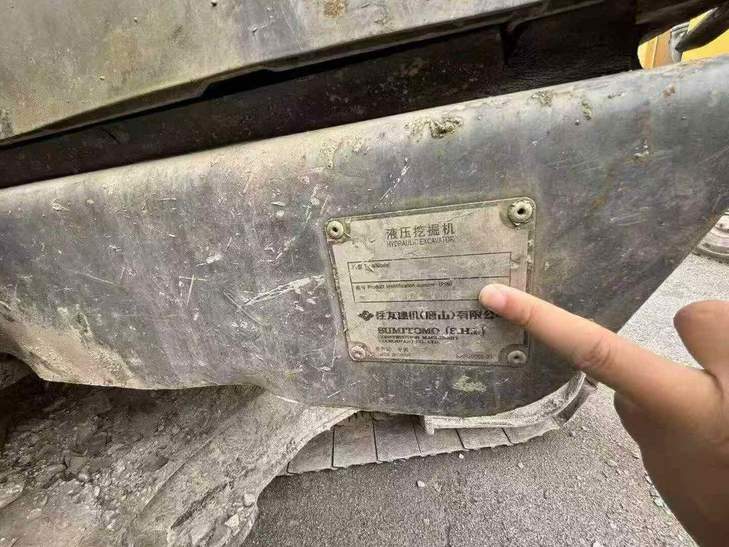

Buy Sumitomo SH210-5 Used Excavator / 1
Buy Sumitomo SH210-5 Used Excavator / 2
Buy Sumitomo SH210-5 Used Excavator / 3

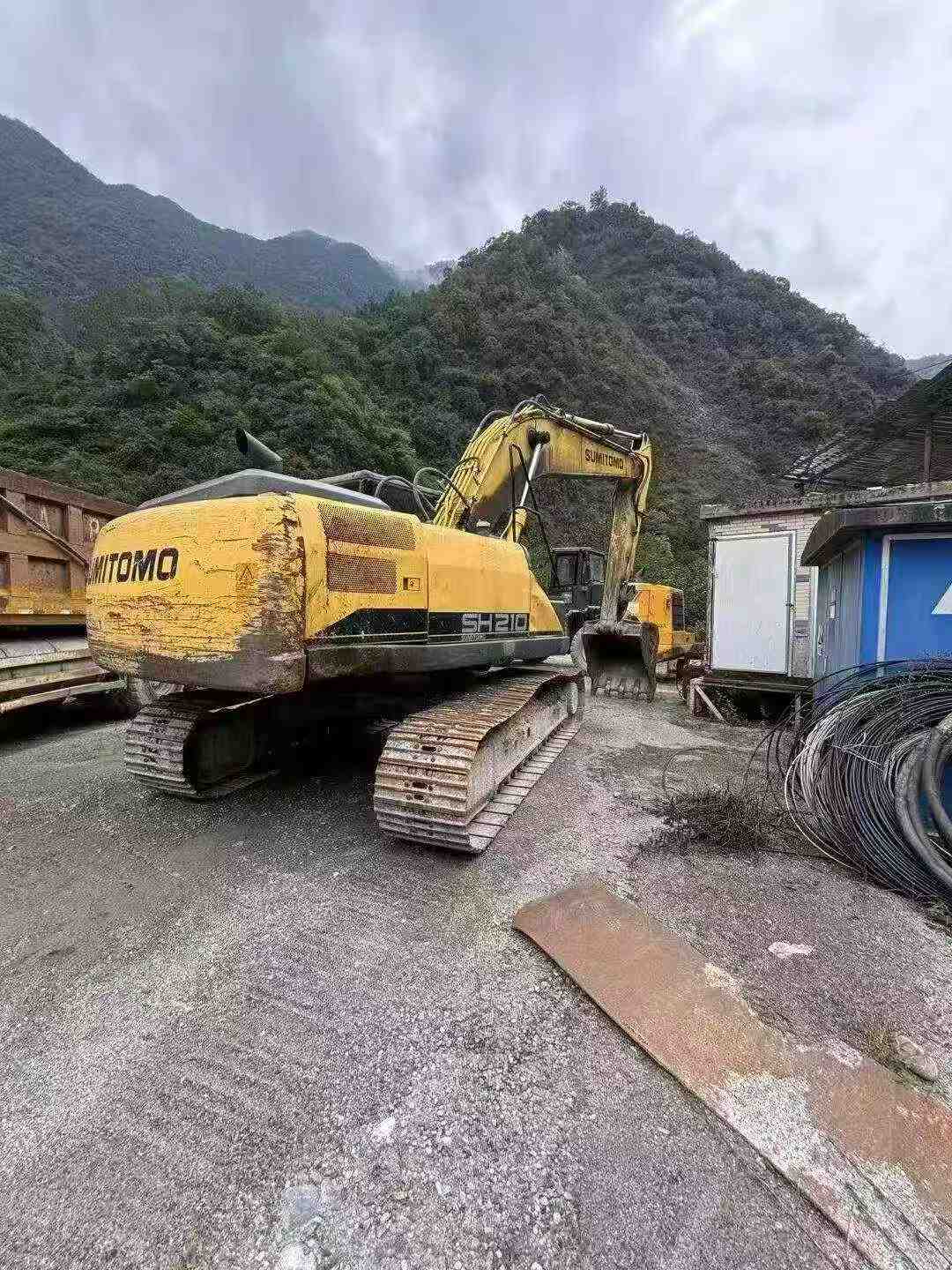

Buy Sumitomo SH210-5 Used Excavator / 4
Buy Sumitomo SH210-5 Used Excavator / 5

Product Description

This 2020 Sumitomo SH210-5 hydraulic excavator represents a well-maintained unit from a trusted Japanese manufacturer. Currently located in Sichuan, China, this machine offers reliable performance for mid-range excavation, earthmoving, and construction applications. The SH210-5 series is known for its durable build quality and efficient fuel consumption, making it a cost-effective choice for contractors seeking dependable equipment.

  • Year of Manufacture: 2020
  • Model: Sumitomo SH210-5
  • Operating Weight Class: Approximately 21 tons
  • Current Location: Sichuan Province, China
  • Condition: Used, original configuration maintained
  • Competitive pricing for immediate acquisition

This excavator is available for inspection and ready for deployment. Suitable for infrastructure projects, site development, and general excavation work. Contact us for detailed machine history, operating hours, and export documentation assistance.

SpecificationsValue
No.1162820
Tonnage (tons)21
Working weight (kg)20600
Bucket capacity (m³)0.9-1.0
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142
Rod digging force (kN)103
Travel speed (km/h)3.4/5.6
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1460
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)410
Hydraulic Tank (L)147
Engine Oil changes (L)23.1
Coolant (L)26
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
see more

Overview

No.1162820

Brand Name:

Sumitomo

Model Number:

SH210-5

Year:

2020

Location:

Sichuan China

Pub Date:
