2020 Sumitomo SH210-5

1/9
Buy Sumitomo SH210-5 Used Excavator / 1

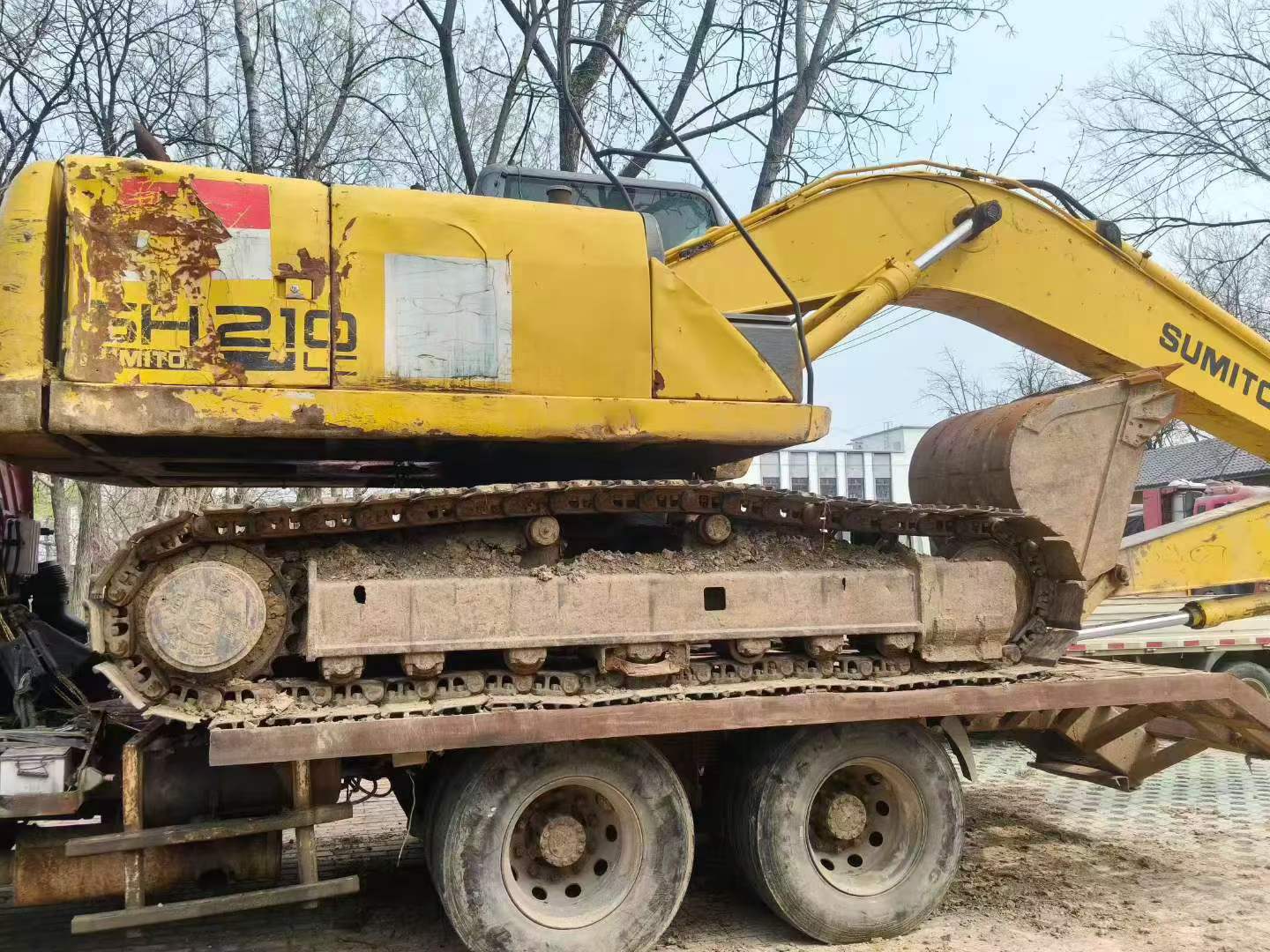

Buy Sumitomo SH210-5 Used Excavator / 2

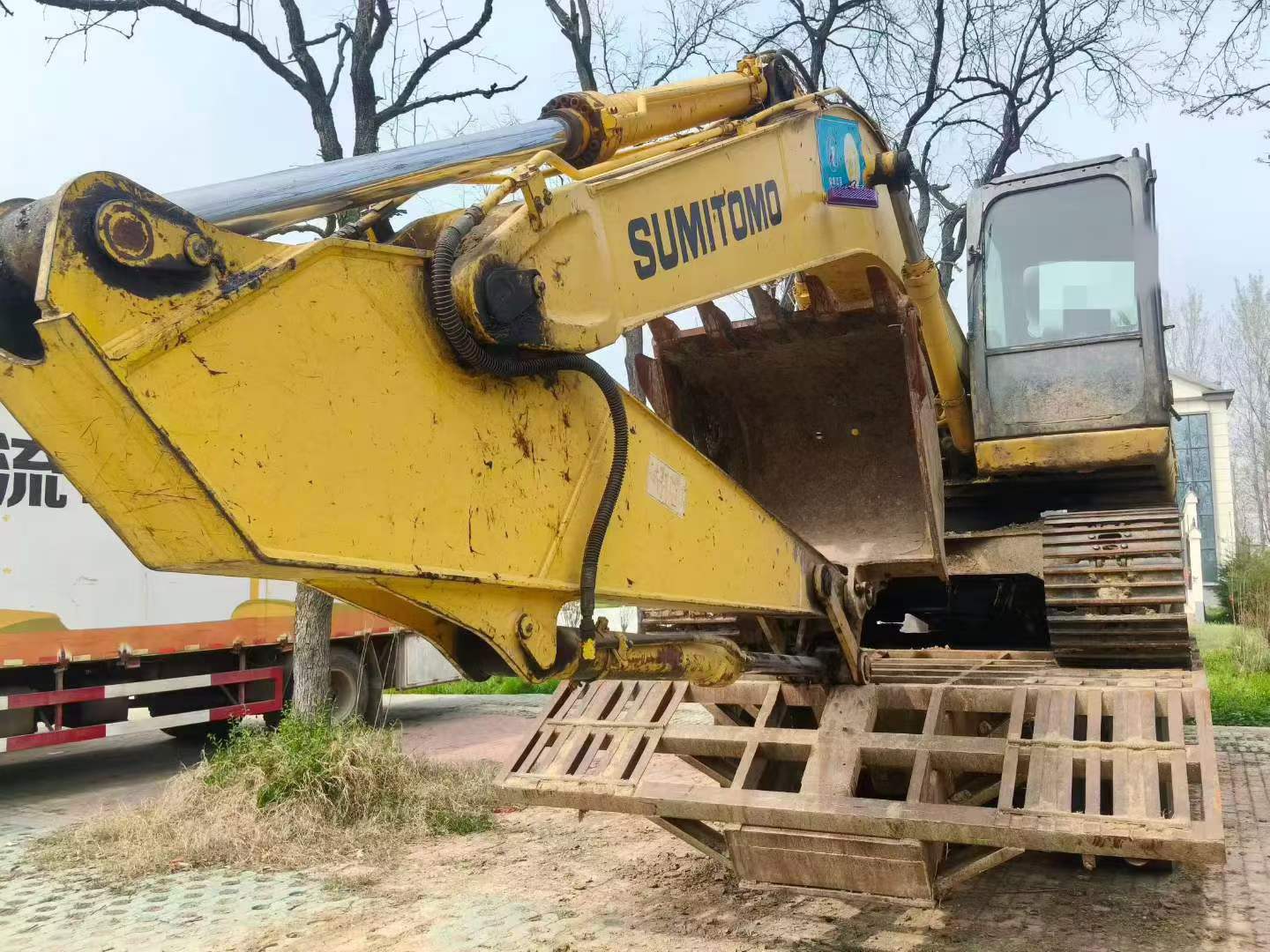

Buy Sumitomo SH210-5 Used Excavator / 3

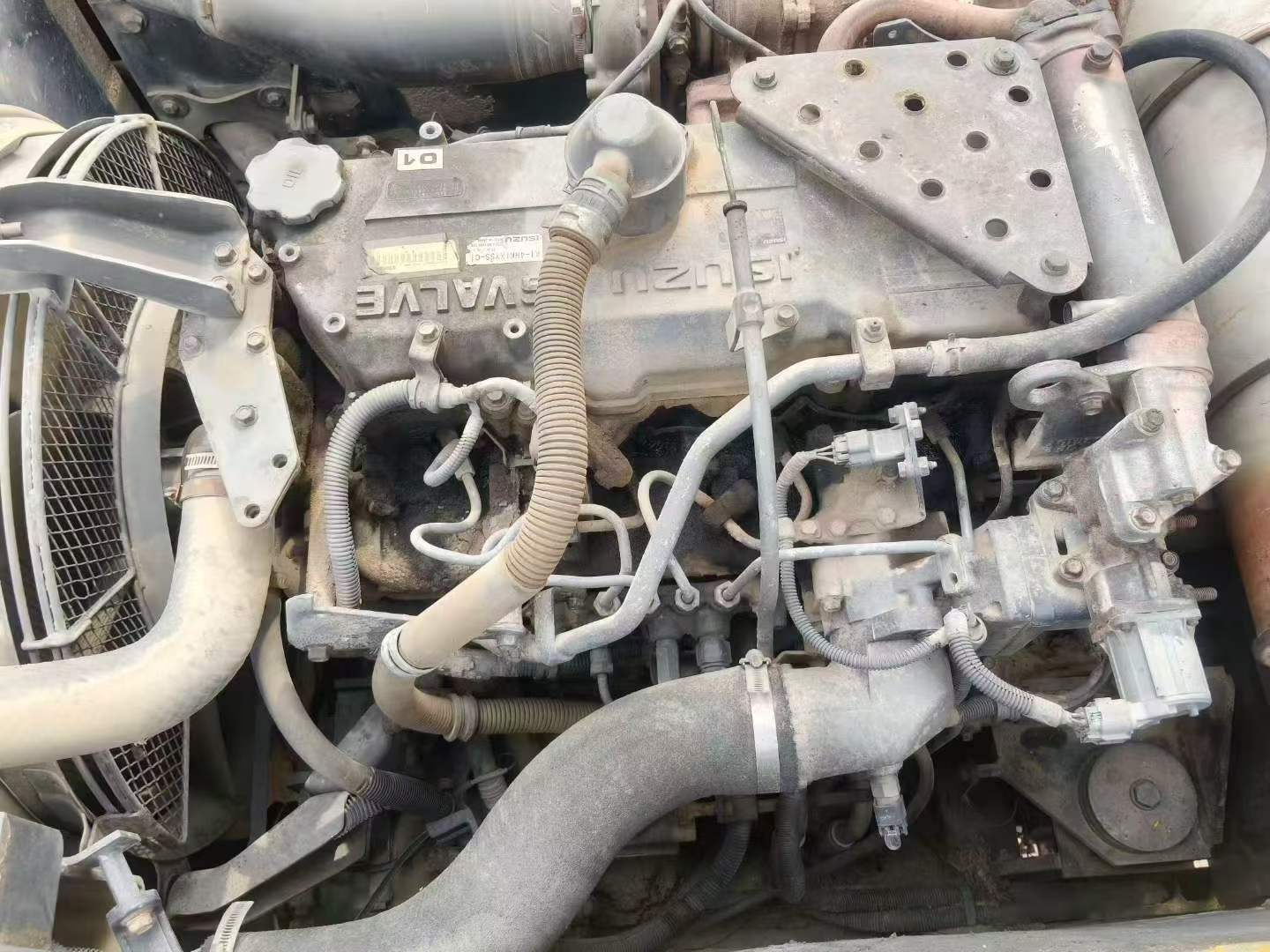

Buy Sumitomo SH210-5 Used Excavator / 4

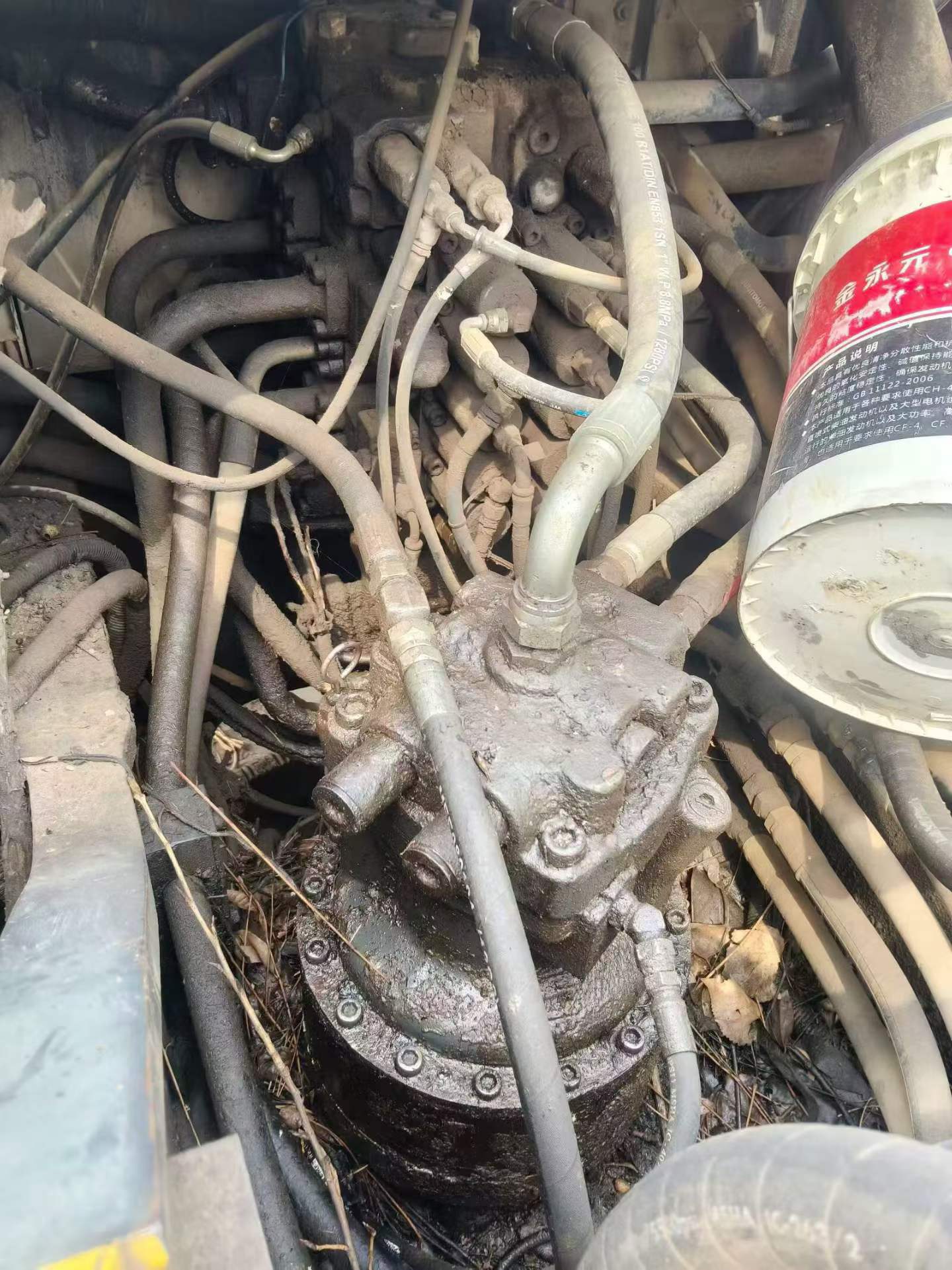

Buy Sumitomo SH210-5 Used Excavator / 5

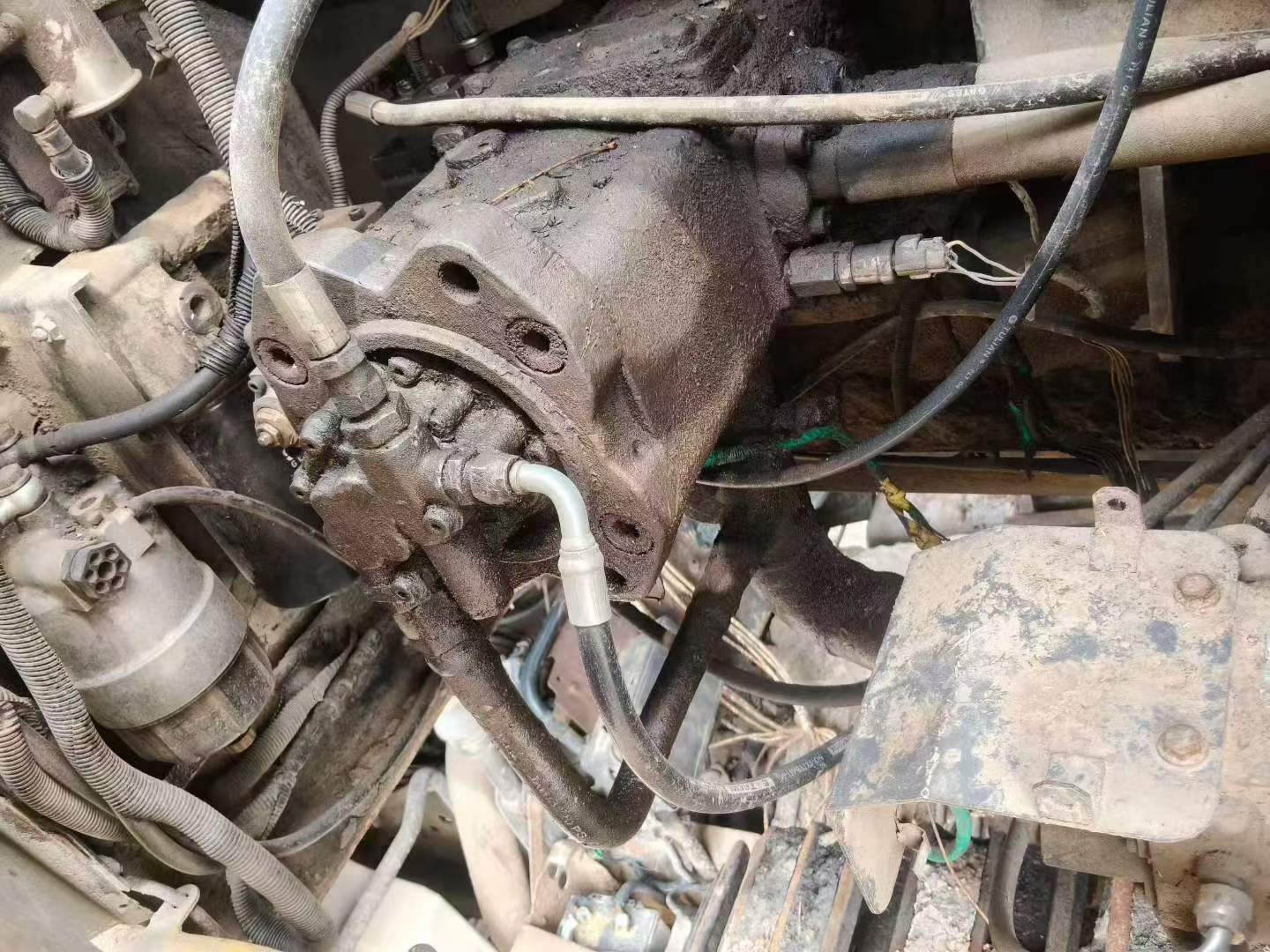

Buy Sumitomo SH210-5 Used Excavator / 6

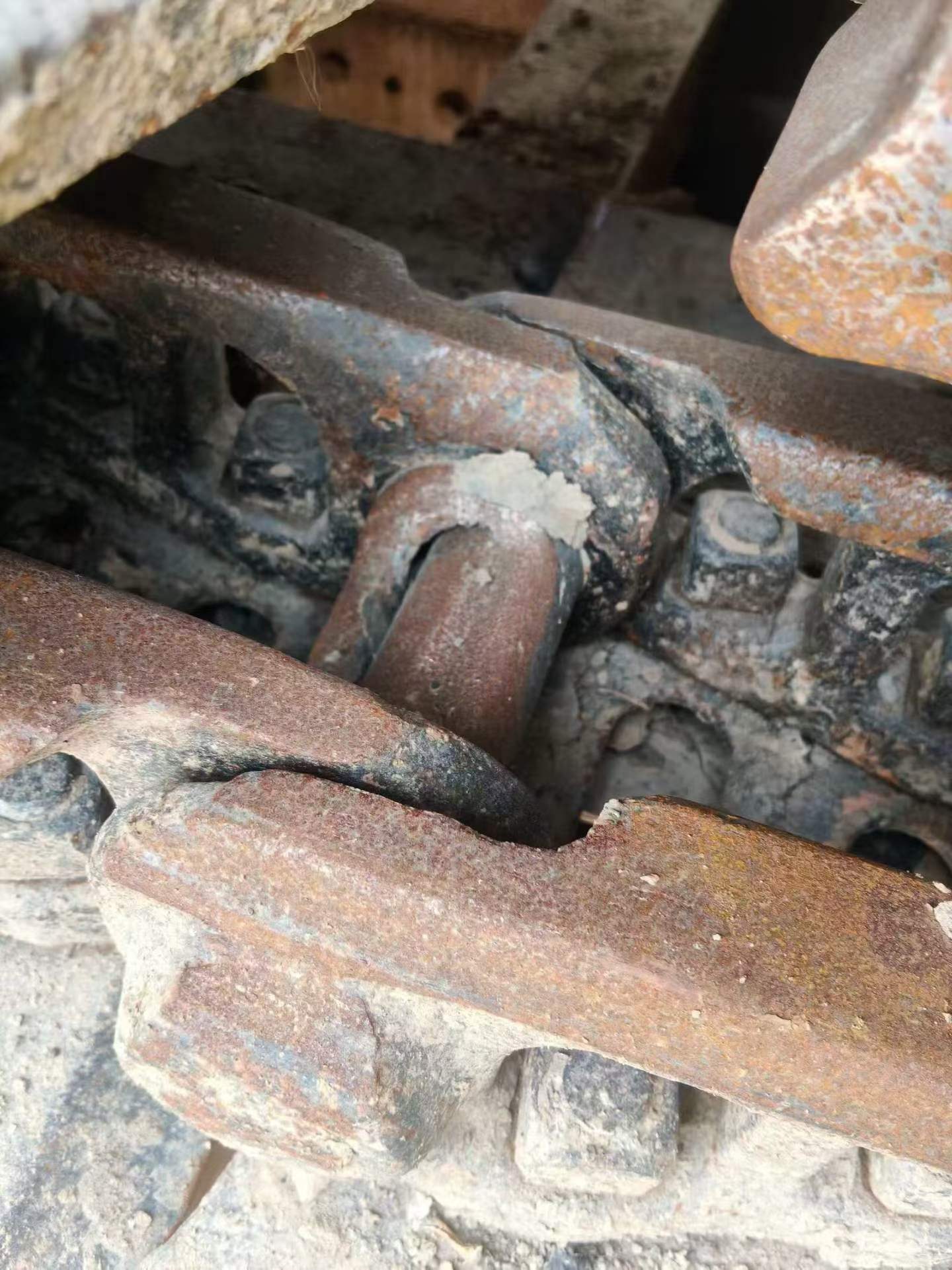

Buy Sumitomo SH210-5 Used Excavator / 7

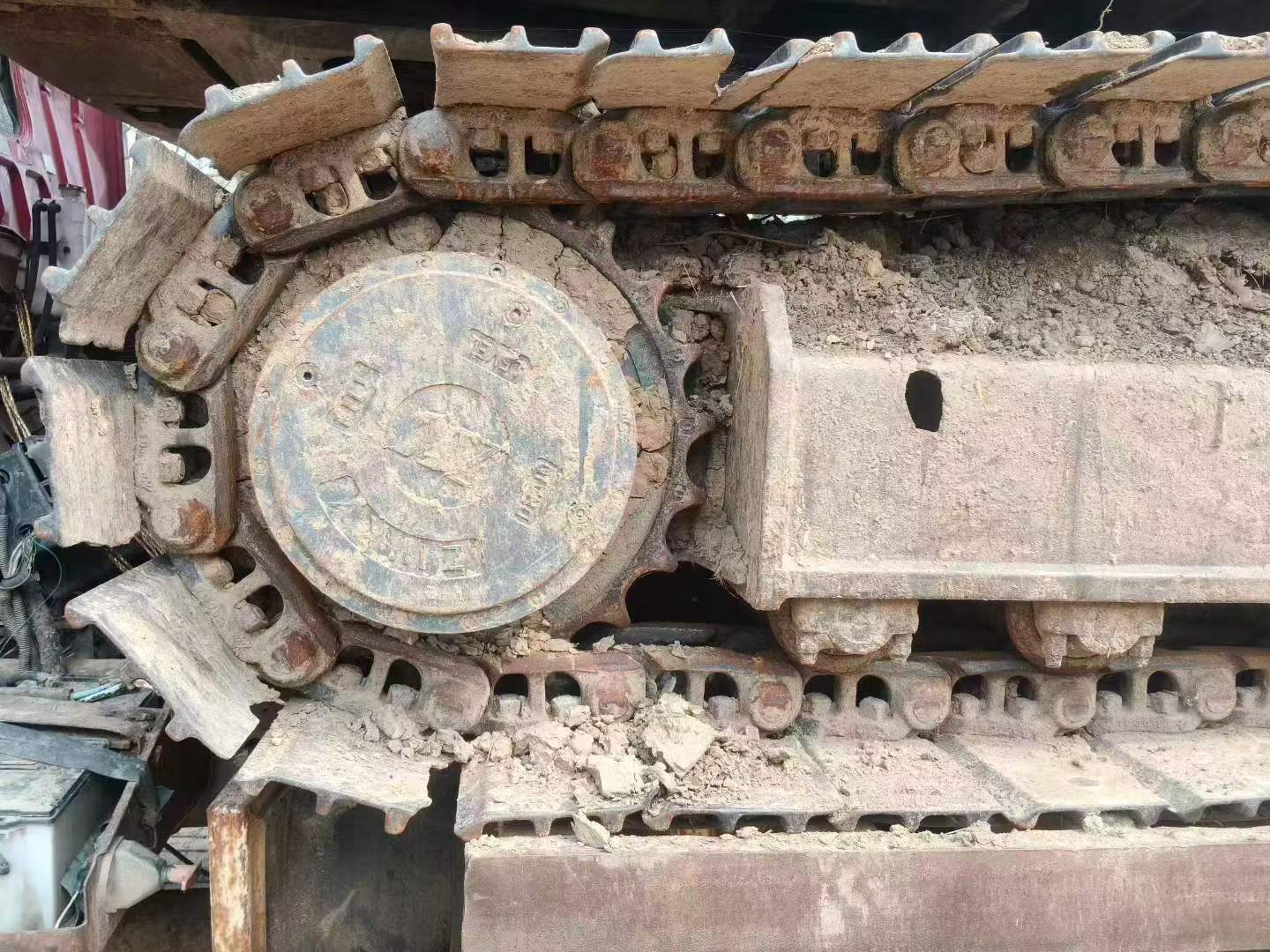

Buy Sumitomo SH210-5 Used Excavator / 8

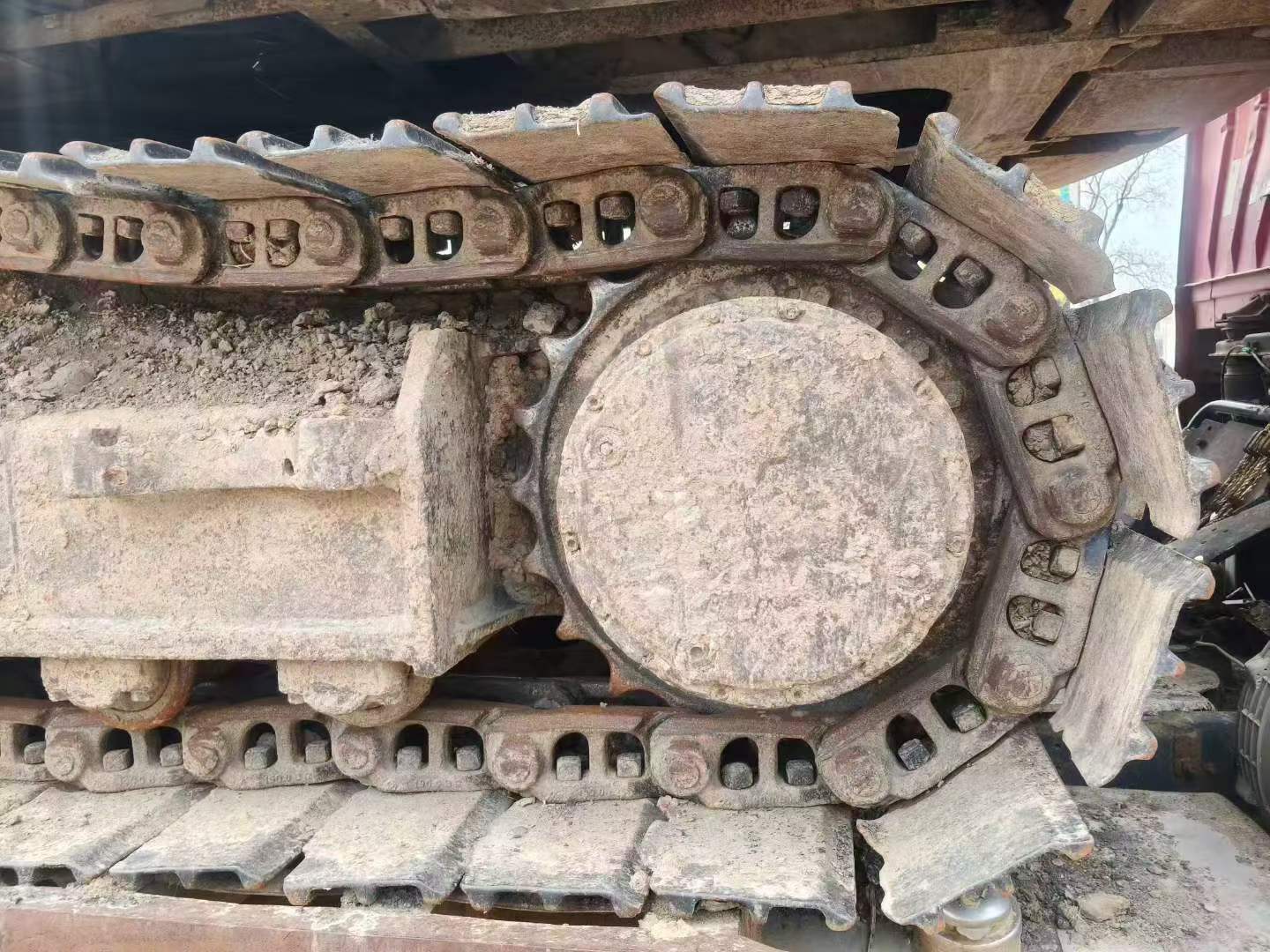

Buy Sumitomo SH210-5 Used Excavator / 9

Product Description

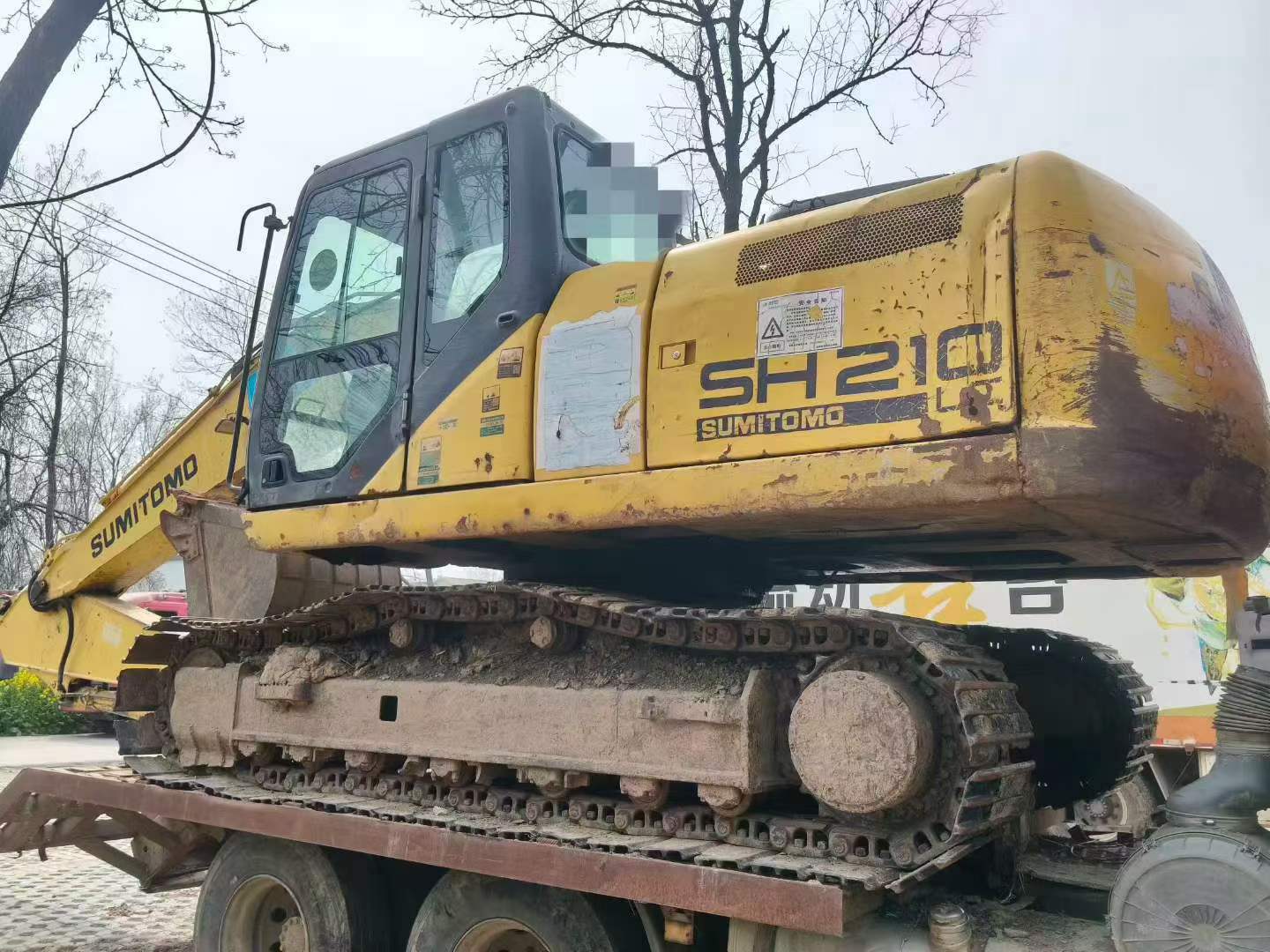

This 2020 Sumitomo SH210-5 hydraulic excavator offers reliable performance for demanding excavation and earthmoving applications. With accumulated operating hours reflecting moderate field use, this machine from Sumitomo's proven SH-5 series combines robust construction with efficient hydraulics. The 21-ton class excavator features Sumitomo's durable undercarriage and responsive control systems, making it suitable for construction sites, quarries, and infrastructure projects.

Currently located in Zhejiang, China, this unit is available for inspection. The SH210-5 is known for:

  • Reliable Isuzu engine technology
  • Fuel-efficient hydraulic system
  • Stable working platform for diverse terrain
  • Straightforward maintenance access
  • Proven track record in Asian markets

Ideal for contractors and equipment fleet operators seeking dependable mid-sized excavation capacity. Contact us for detailed specifications, current condition assessment, and export documentation assistance.

SpecificationsValue
No.1172741
Tonnage (tons)21
Working weight (kg)20600
Bucket capacity (m³)0.9-1.0
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142
Rod digging force (kN)103
Travel speed (km/h)3.4/5.6
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1460
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)410
Hydraulic Tank (L)147
Engine Oil changes (L)23.1
Coolant (L)26
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
see more

Overview

No.1172741

Brand Name:

Sumitomo

Model Number:

SH210-5

Year:

2020

Location:

Zhejiang China

Pub Date:
