2021 Sumitomo SH210-5

1/9

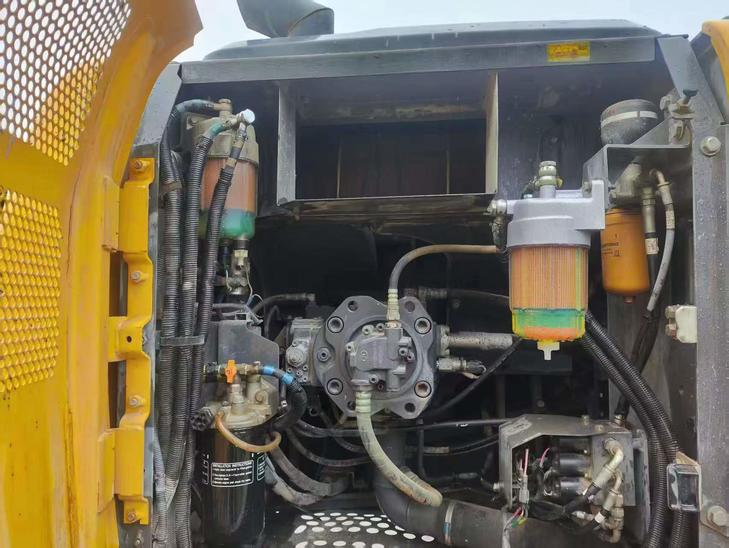

Buy Sumitomo SH210-5 Used Excavator / 1
Buy Sumitomo SH210-5 Used Excavator / 2
Buy Sumitomo SH210-5 Used Excavator / 3
Buy Sumitomo SH210-5 Used Excavator / 4
Buy Sumitomo SH210-5 Used Excavator / 5
Buy Sumitomo SH210-5 Used Excavator / 6
Buy Sumitomo SH210-5 Used Excavator / 7
Buy Sumitomo SH210-5 Used Excavator / 8
Buy Sumitomo SH210-5 Used Excavator / 9

Product Description

This 2021 Sumitomo SH210-5 hydraulic excavator offers reliable performance for demanding earthmoving and construction applications. Manufactured by one of Japan's most respected heavy equipment brands, this 21-ton class machine combines proven durability with efficient fuel consumption. The SH210-5 features a robust undercarriage, powerful digging force, and comfortable operator station designed for extended work cycles.

Currently located in Zhejiang, China, this unit represents an excellent opportunity to acquire late-model Japanese engineering at competitive pricing. The SH210-5 series is known for:

  • Dependable Isuzu diesel engine
  • Smooth hydraulic system for precise control
  • Reinforced boom and arm structure
  • Versatile applications in excavation, loading, and grading

Ideal for contractors seeking a productive mid-size excavator with strong resale value and readily available parts support throughout global markets.

SpecificationsValue
No.1173397
Tonnage (tons)21
Working weight (kg)20600
Bucket capacity (m³)0.9-1.0
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142
Rod digging force (kN)103
Travel speed (km/h)3.4/5.6
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1460
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)410
Hydraulic Tank (L)147
Engine Oil changes (L)23.1
Coolant (L)26
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
see more

Overview

No.1173397

Brand Name:

Sumitomo

Model Number:

SH210-5

Year:

2021

Location:

Zhejiang China

Pub Date:
