2017 Sumitomo SH210-6

1/9
Buy Sumitomo SH210-6 Used Excavator / 1

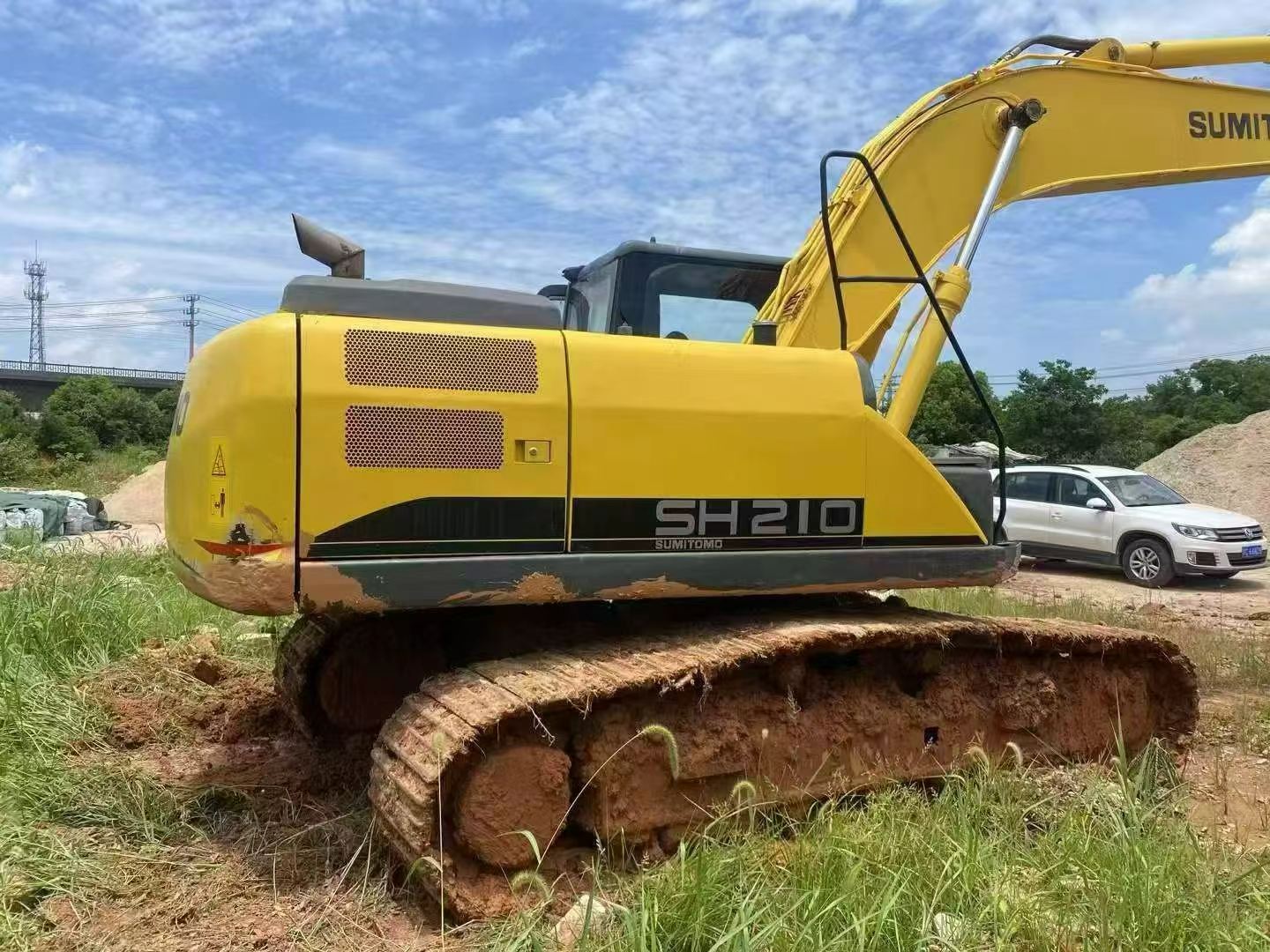

Buy Sumitomo SH210-6 Used Excavator / 2

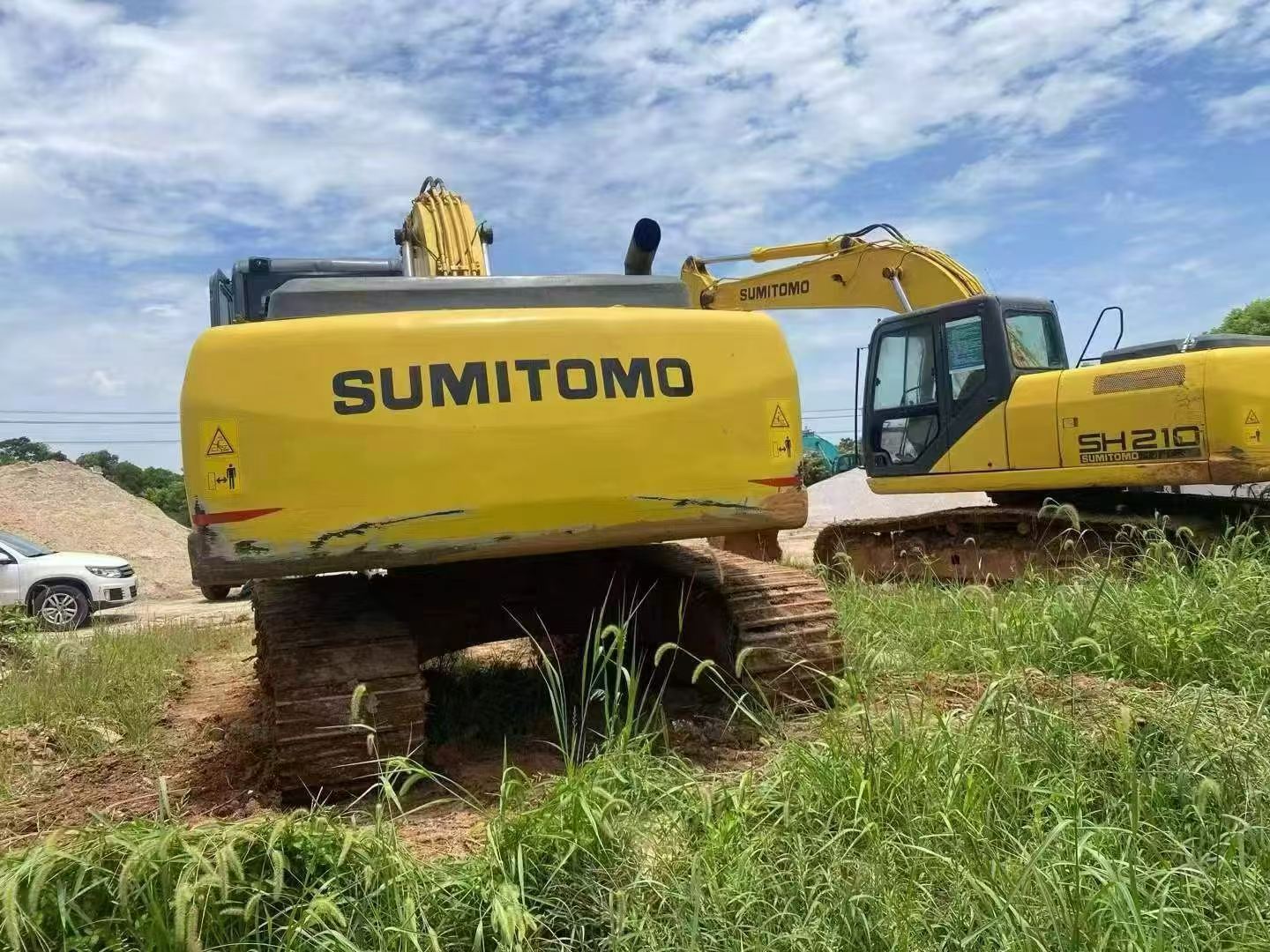

Buy Sumitomo SH210-6 Used Excavator / 3

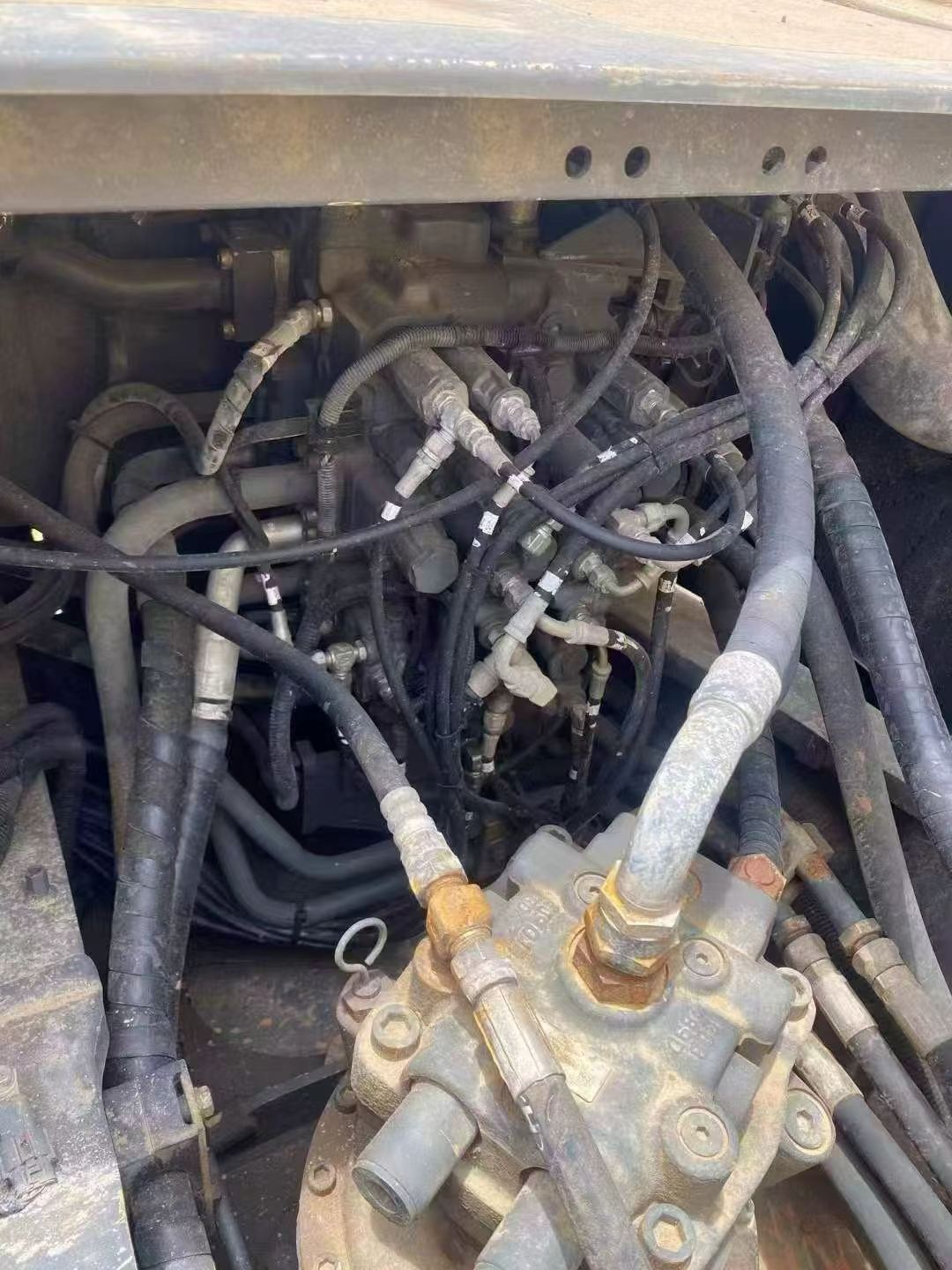

Buy Sumitomo SH210-6 Used Excavator / 4

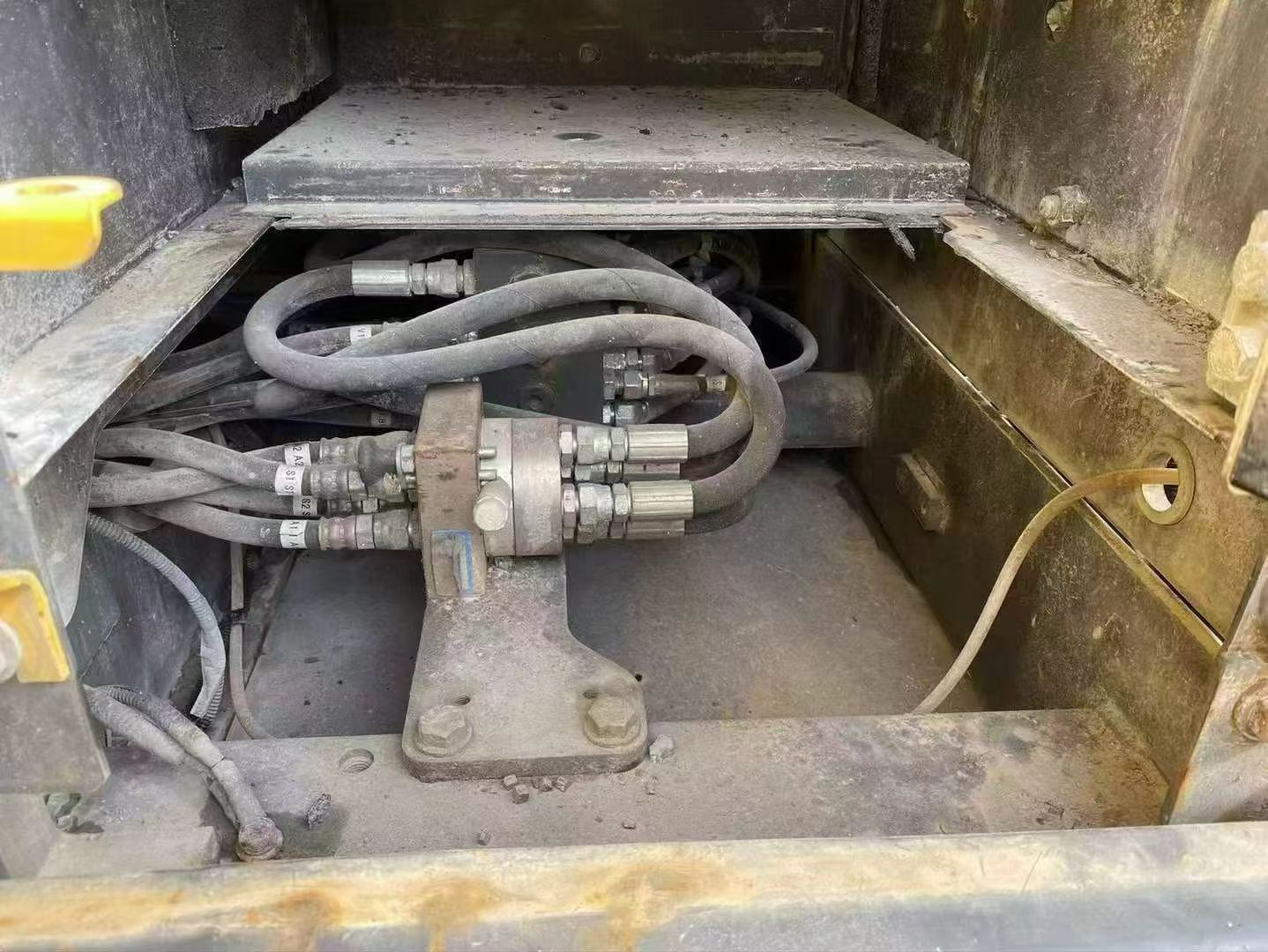

Buy Sumitomo SH210-6 Used Excavator / 5

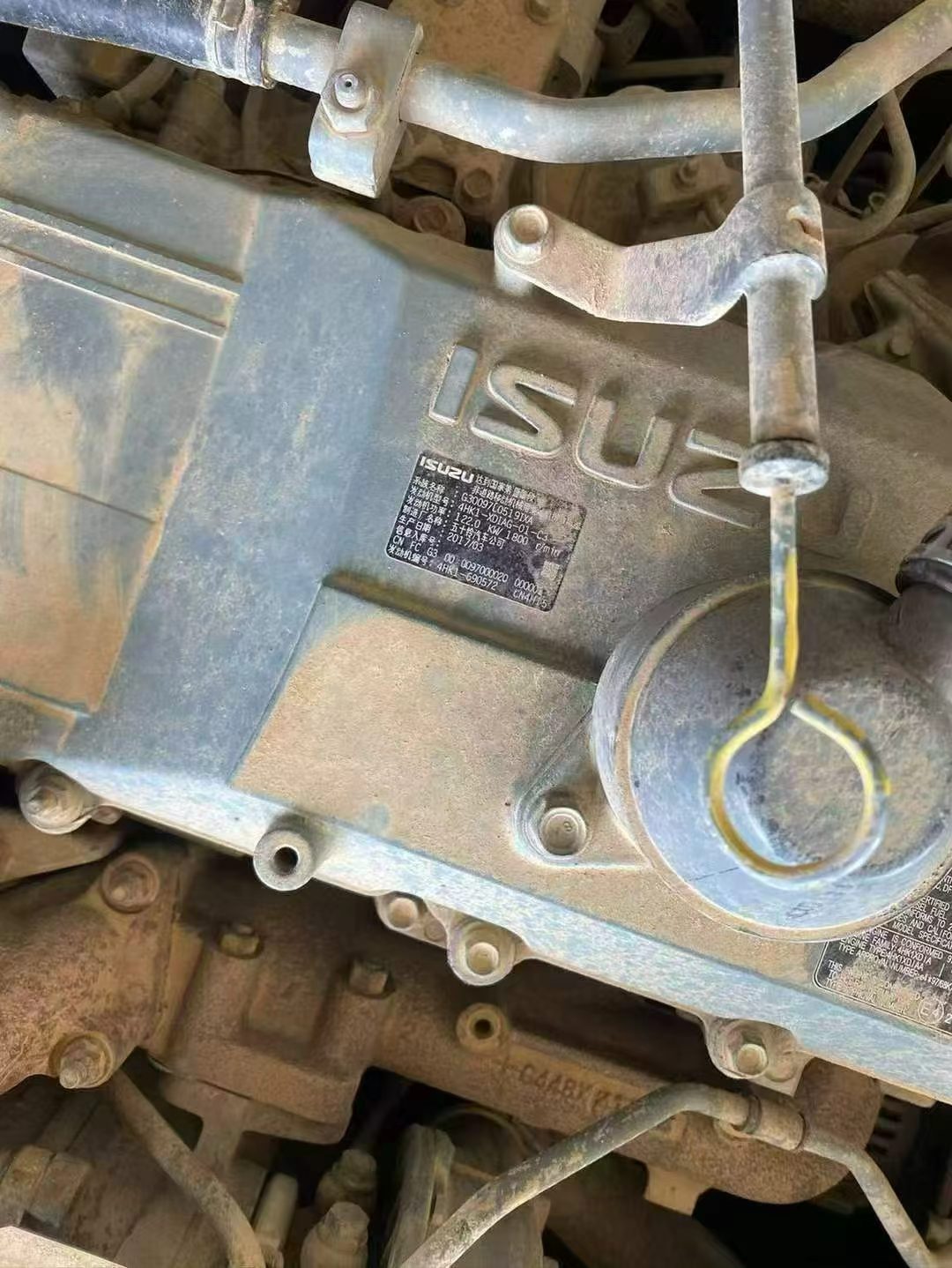

Buy Sumitomo SH210-6 Used Excavator / 6

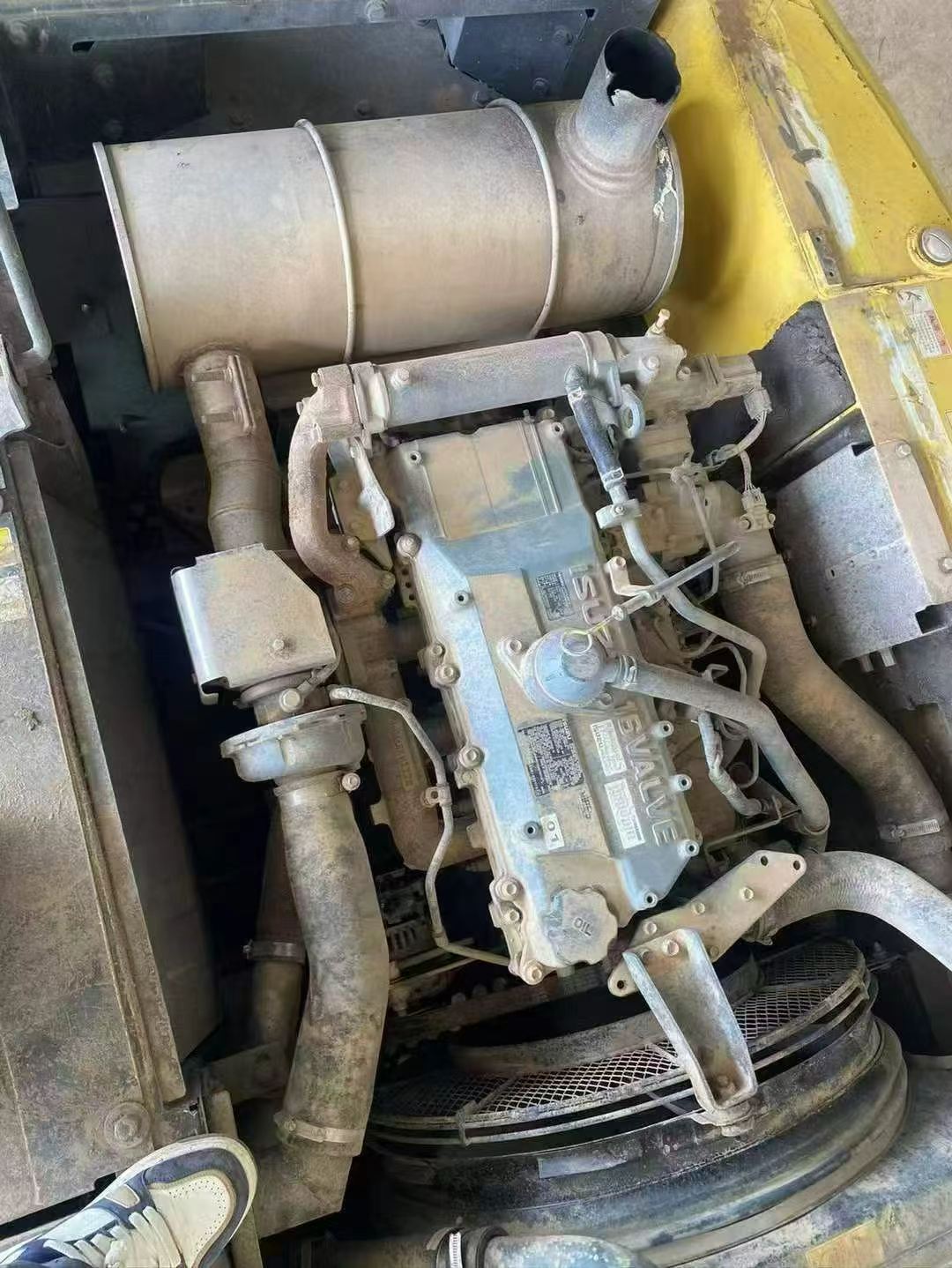

Buy Sumitomo SH210-6 Used Excavator / 7

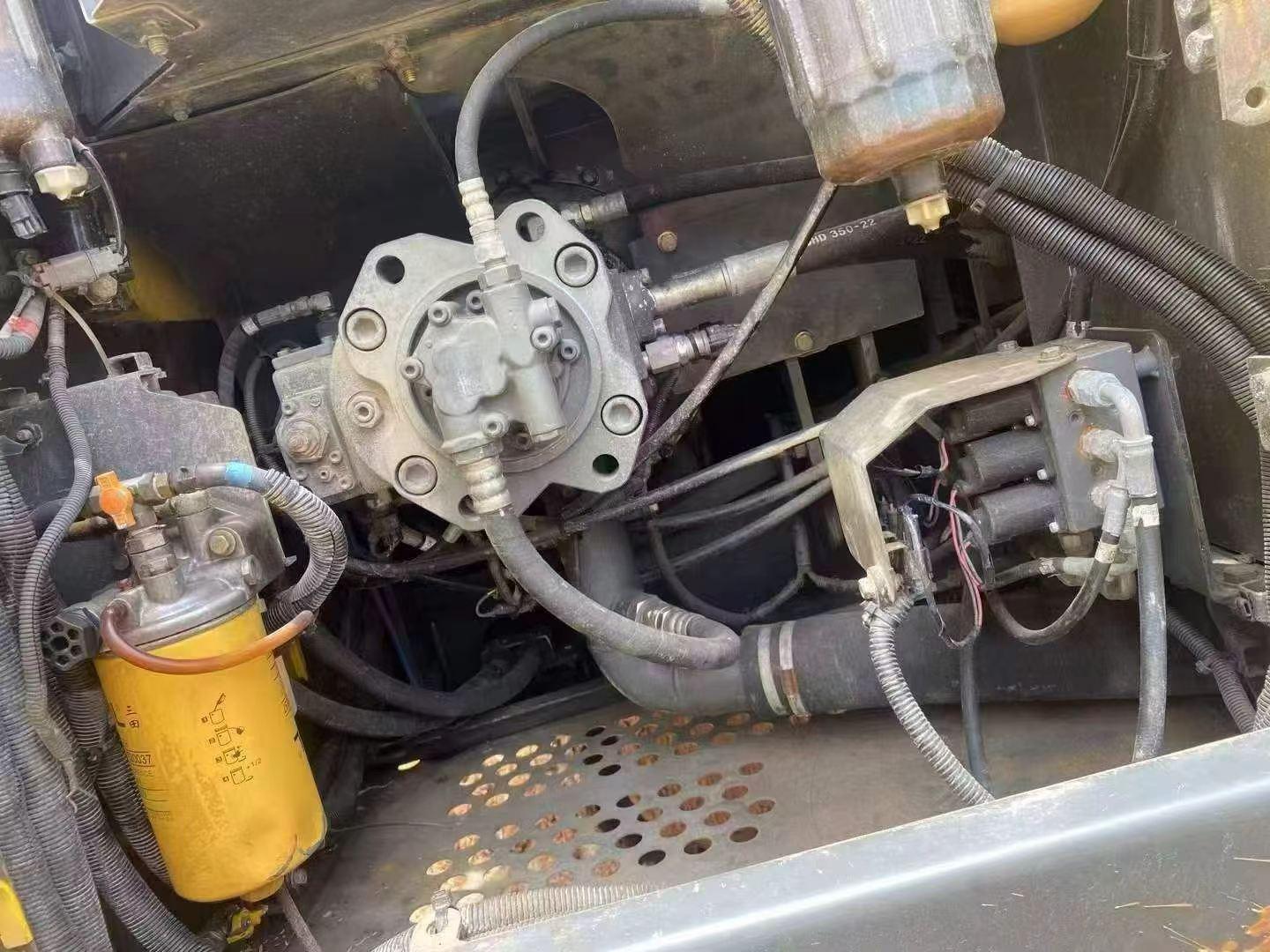

Buy Sumitomo SH210-6 Used Excavator / 8
Buy Sumitomo SH210-6 Used Excavator / 9

Product Description

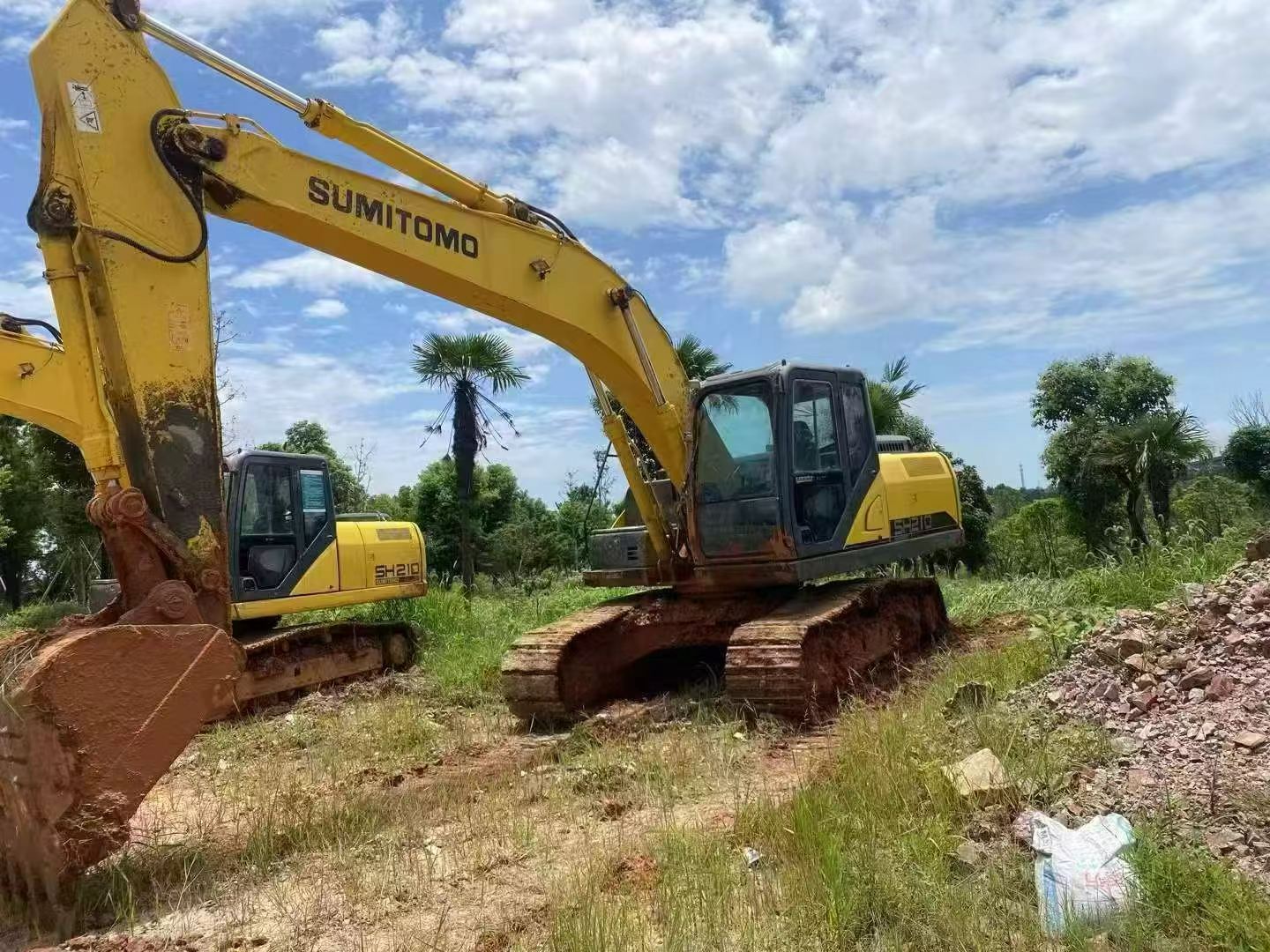

This 2017 Sumitomo SH210-6 hydraulic excavator represents a reliable mid-size solution for contractors and earthmoving operations. Manufactured by Sumitomo Heavy Industries, this 21-ton class machine combines proven Japanese engineering with practical performance for demanding job sites.

Currently located in Jiangxi, China, this unit offers:

  • Established track record in the 21-ton excavator segment
  • Sumitomo's hydraulic system known for fuel efficiency and smooth operation
  • Suitable for general excavation, site preparation, and material handling
  • Seven years of service since factory delivery

The SH210-6 series is recognized for durability in construction and infrastructure projects. This machine provides a cost-effective option for operations requiring proven performance without premium pricing. Inspection and verification of operational condition recommended prior to purchase.

SpecificationsValue
No.1139115
Tonnage (tons)21
Working weight (kg)21000
Bucket capacity (m³)0.85~1.0
Boom length (mm)5700
Rod length (mm)2900 / 2400
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Displacement (L)5.193
Ground specific pressure (Kpa)47 / 36
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142 / 152
Rod digging force (kN)103 / 110
Travel speed (km/h)5.6 / 3.4
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3 / 36.8
Fuel Tank (L)410
Hydraulic Tank (L)147
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2750
Total track length (mm)4180
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900/9420
Maximum digging depth (mm)6650/6110
Maximum excavation height (mm)9610/9410
Maximum unloading height (mm)6810/6590
Maximum vertical digging depth (mm)5960/5500
see more

Overview

No.1139115

Brand Name:

Sumitomo

Model Number:

SH210-6

Year:

2017

Location:

Jiangxi China

Pub Date
