2020 Sumitomo SH210-6

1/5

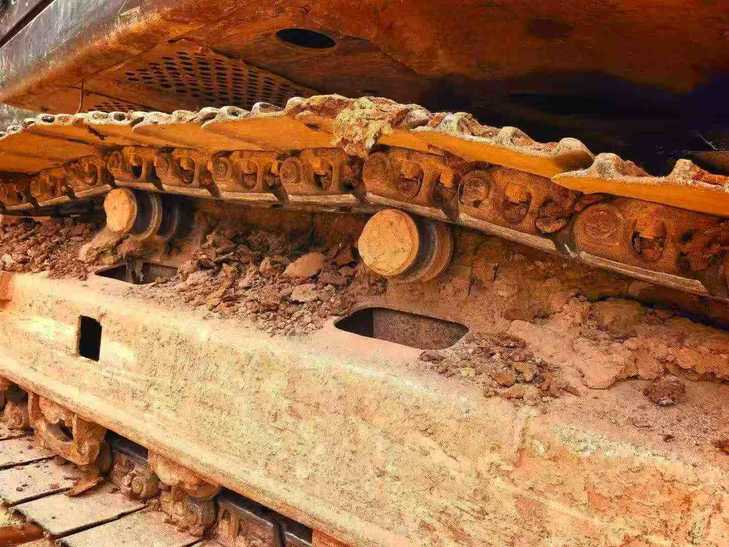

Buy Sumitomo SH210-6 Used Excavator / 1
Buy Sumitomo SH210-6 Used Excavator / 2
Buy Sumitomo SH210-6 Used Excavator / 3
Buy Sumitomo SH210-6 Used Excavator / 4
Buy Sumitomo SH210-6 Used Excavator / 5

Product Description

This 2020 Sumitomo SH210-6 hydraulic excavator offers reliable performance for medium to heavy-duty applications. Currently located in Sichuan, China, this unit represents a cost-effective solution for contractors and operators seeking proven Japanese engineering at competitive pricing.

The SH210-6 features Sumitomo's renowned hydraulic system, delivering efficient digging force and smooth operation across diverse job sites. With its 21-ton operating weight class, this excavator balances power and maneuverability for earthmoving, trenching, and general construction work.

  • Year of Manufacture: 2020
  • Model: SH210-6
  • Location: Sichuan, China
  • Condition: Used

Ideal for infrastructure projects, site development, and material handling operations. Contact us for detailed specifications, current machine hours, and availability for inspection.

SpecificationsValue
No.1162859
Tonnage (tons)21
Working weight (kg)21000
Bucket capacity (m³)0.85~1.0
Boom length (mm)5700
Rod length (mm)2900 / 2400
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Displacement (L)5.193
Ground specific pressure (Kpa)47 / 36
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142 / 152
Rod digging force (kN)103 / 110
Travel speed (km/h)5.6 / 3.4
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3 / 36.8
Fuel Tank (L)410
Hydraulic Tank (L)147
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2750
Total track length (mm)4180
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900/9420
Maximum digging depth (mm)6650/6110
Maximum excavation height (mm)9610/9410
Maximum unloading height (mm)6810/6590
Maximum vertical digging depth (mm)5960/5500
see more

Overview

No.1162859

Brand Name:

Sumitomo

Model Number:

SH210-6

Year:

2020

Location:

Sichuan China

Pub Date:
