Product Description

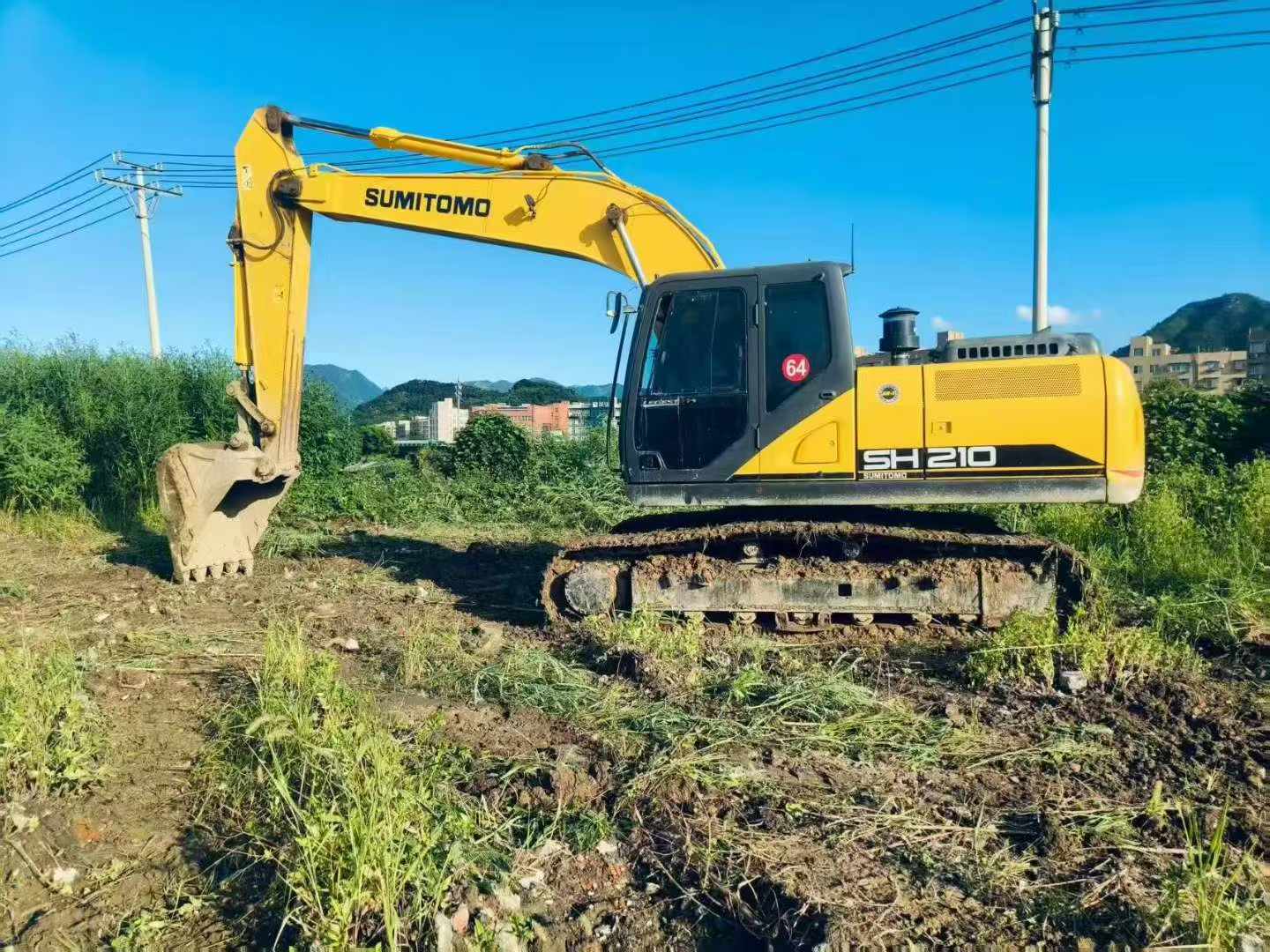

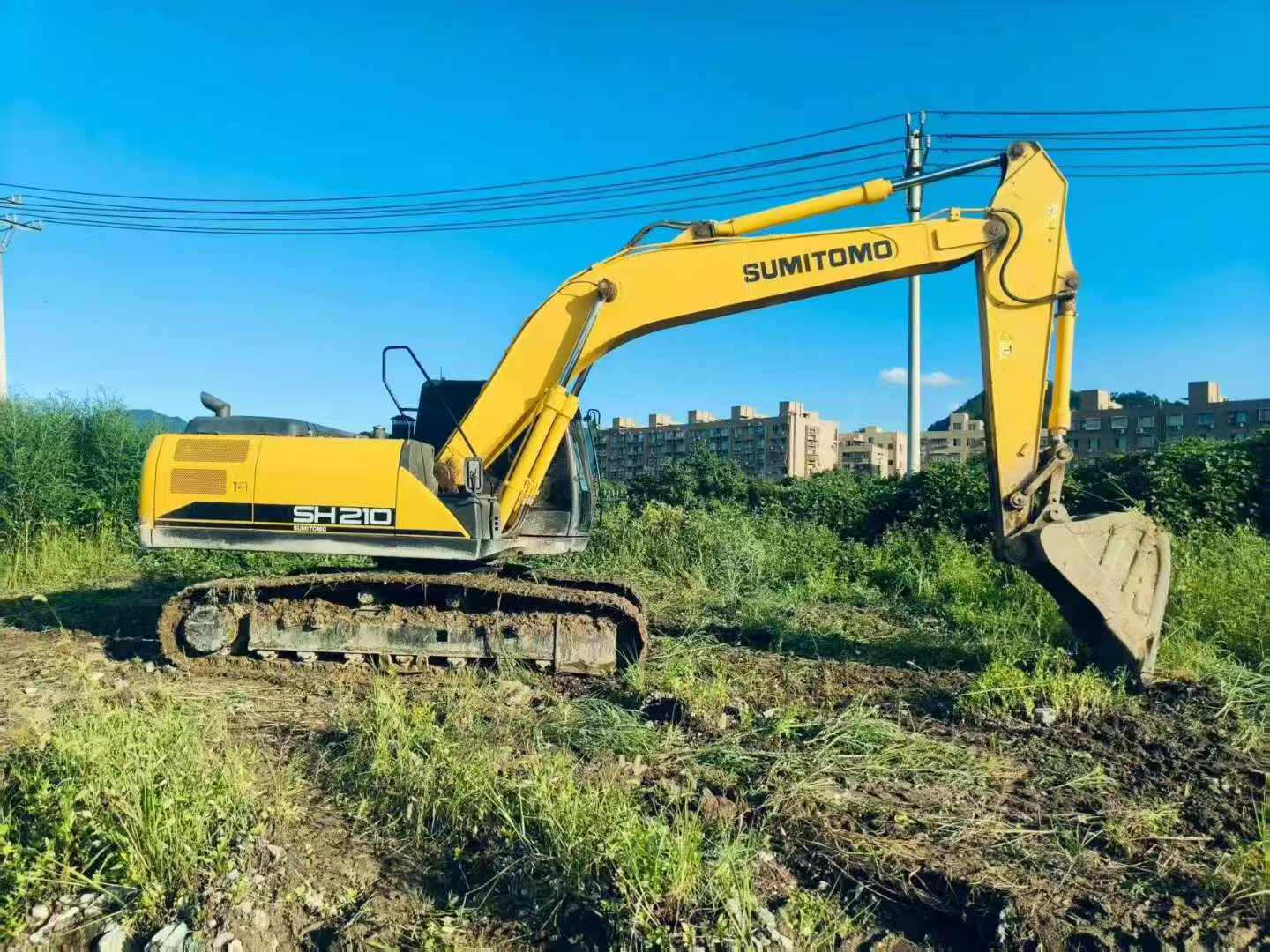

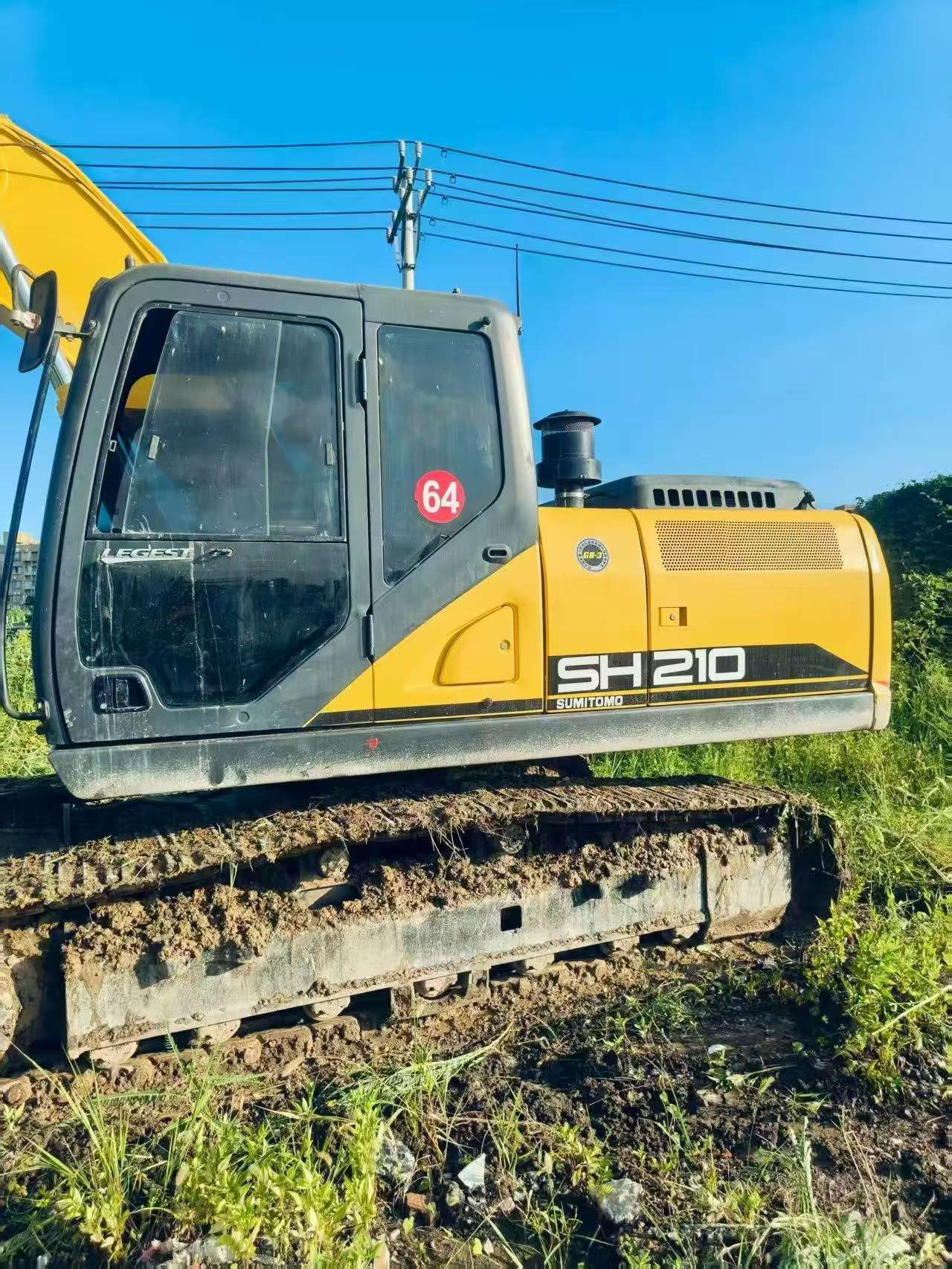

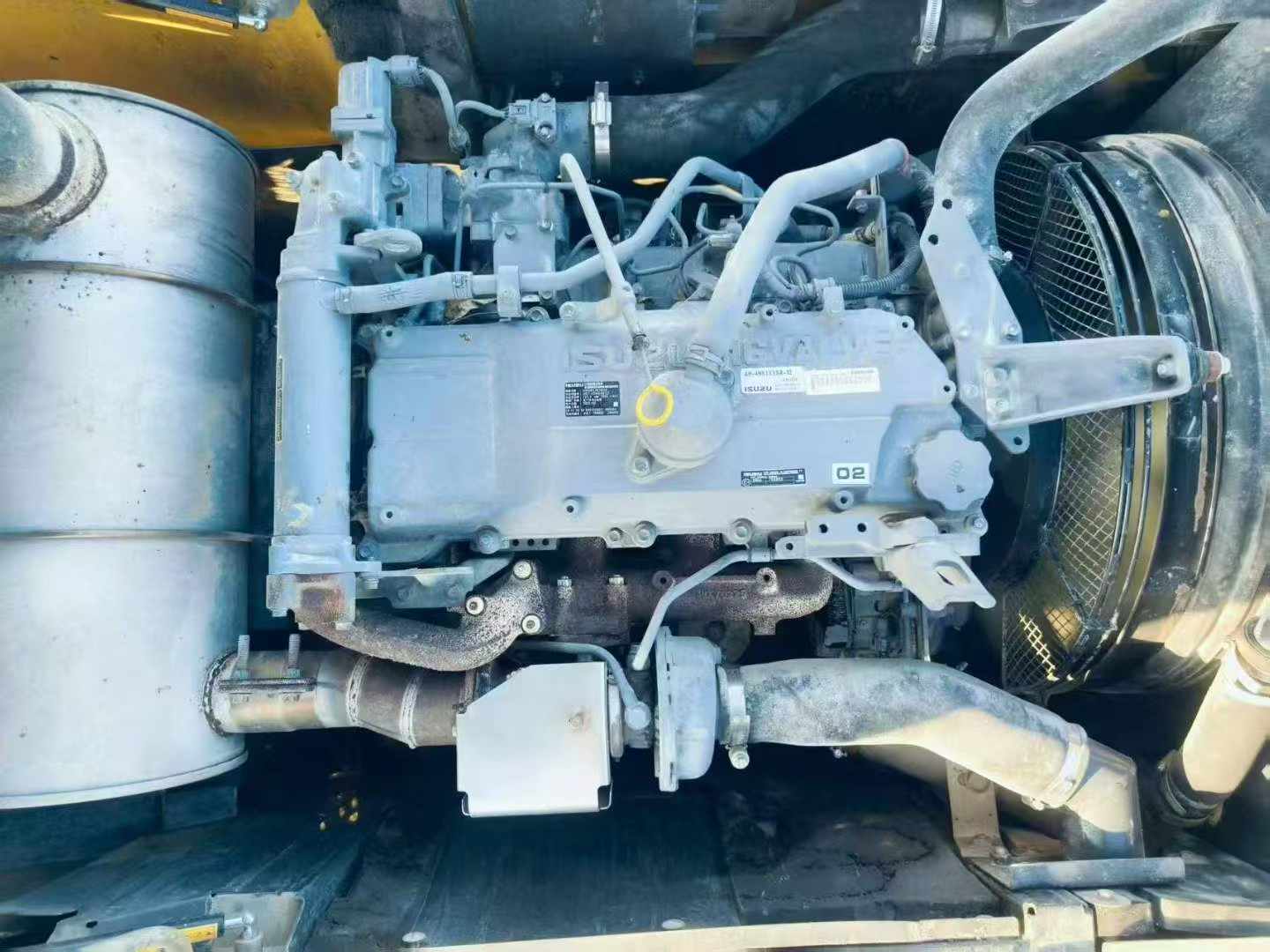

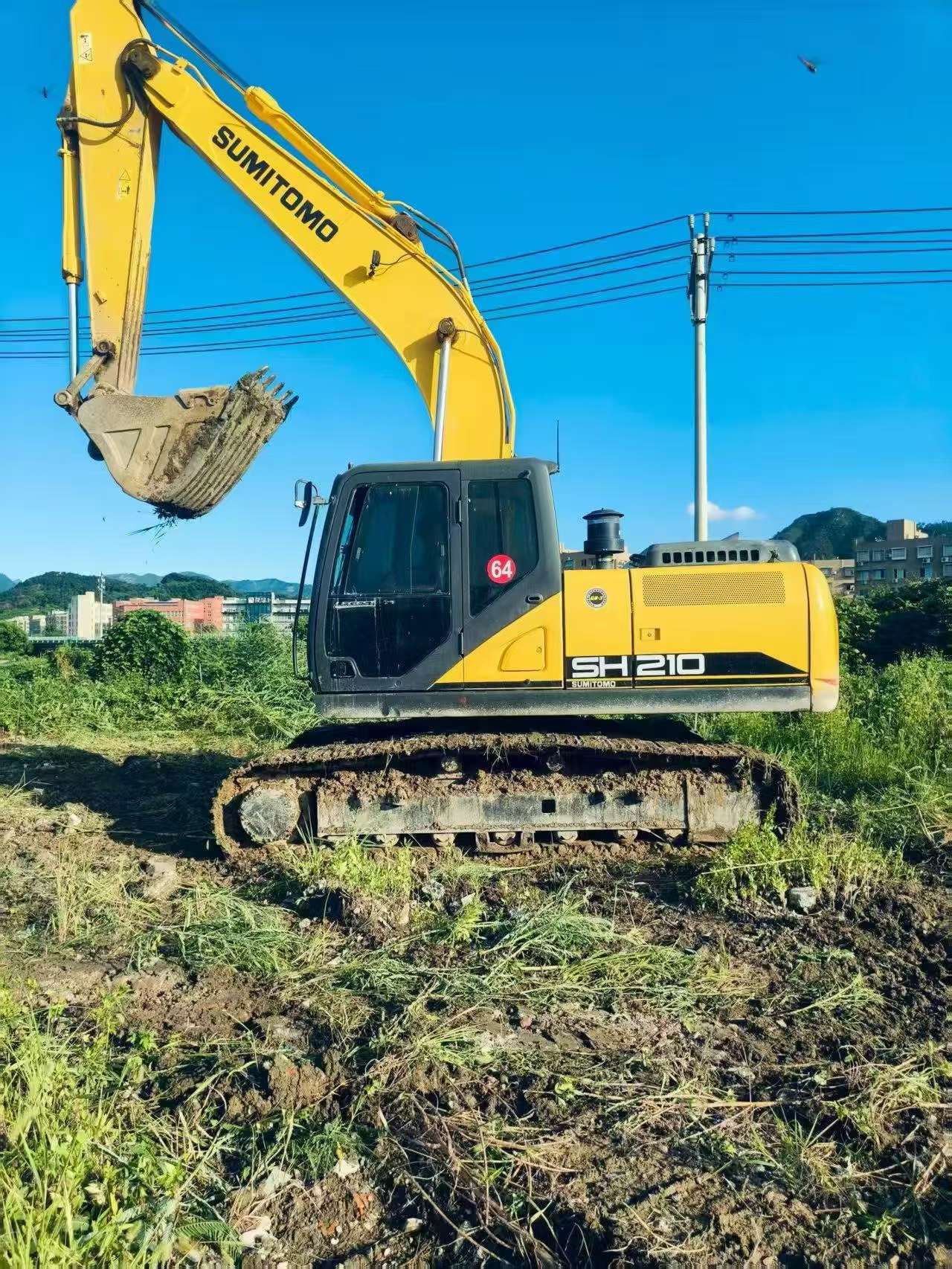

Engineered with precision by Sumitomo's joint venture manufacturing, this 2022 SH210-6 delivers 117.3 kW of rated power at 1800 rpm through a robust 5.193L displacement engine. Hydraulic performance stands at the core: a 34.3/36.8 MPa working circuit powers bucket digging forces up to 152 kN and rod forces reaching 110 kN, ensuring penetration through demanding materials. Operating at 21 tons with a 0.85-1.0 m³ bucket capacity, this excavator combines a 5700mm boom and 2900/2400mm rod configuration for a maximum digging reach of 9900mm and depth capabilities extending to 6650mm.
- Variable capacity piston pump walking motor for precise mobility control
- 410L fuel tank and 240L hydraulic system capacity supporting extended operation cycles
- 11.5 rpm rotation speed with 2750mm rear turning radius optimizing site maneuverability
- 70% climbing ability and 47/36 kPa ground pressure minimizing surface disruption
- Compact transport dimensions: 9400×2800×2970mm for logistical efficiency
Currently located in Zhejiang, this backhoe excavator represents Sumitomo's proven SH-6 series engineering—built for contractors requiring reliable performance in infrastructure, mining, and civil co
| Specifications | Value |
|---|---|
| No. | 1041524 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21000 |
| Bucket capacity (m³) | 0.85~1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 / 2400 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 47 / 36 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 / 152 |
| Rod digging force (kN) | 103 / 110 |
| Travel speed (km/h) | 5.6 / 3.4 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 / 36.8 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4180 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900/9420 |
| Maximum digging depth (mm) | 6650/6110 |
| Maximum excavation height (mm) | 9610/9410 |
| Maximum unloading height (mm) | 6810/6590 |
| Maximum vertical digging depth (mm) | 5960/5500 |
