Product Description

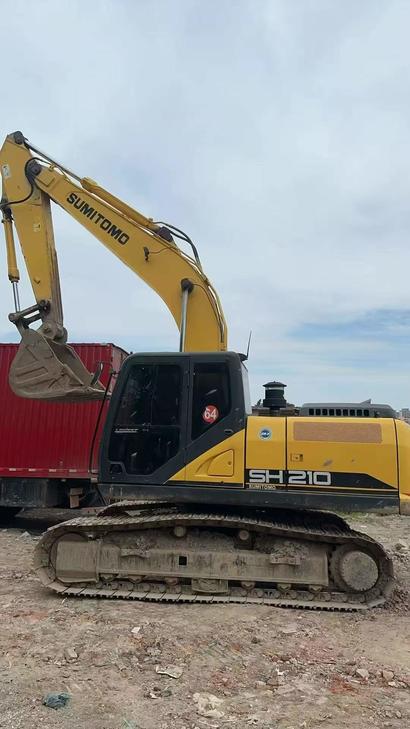

Discover the 2022 Sumitomo SH210-6, a robust and reliable excavator designed for high-performance in various construction and excavation tasks. Located in Zhejiang, China, this used machine is ready to meet the demands of your next project with its durable build and efficient operation. The SH210-6 model is known for its versatility and power, making it an excellent choice for contractors and industrial operators who require a dependable piece of equipment.
- Year: 2022
- Brand: Sumitomo
- Model: SH210-6
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1073586 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21000 |
| Bucket capacity (m³) | 0.85~1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 / 2400 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 47 / 36 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 / 152 |
| Rod digging force (kN) | 103 / 110 |
| Travel speed (km/h) | 5.6 / 3.4 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 / 36.8 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4180 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900/9420 |
| Maximum digging depth (mm) | 6650/6110 |
| Maximum excavation height (mm) | 9610/9410 |
| Maximum unloading height (mm) | 6810/6590 |
| Maximum vertical digging depth (mm) | 5960/5500 |
