Product Description

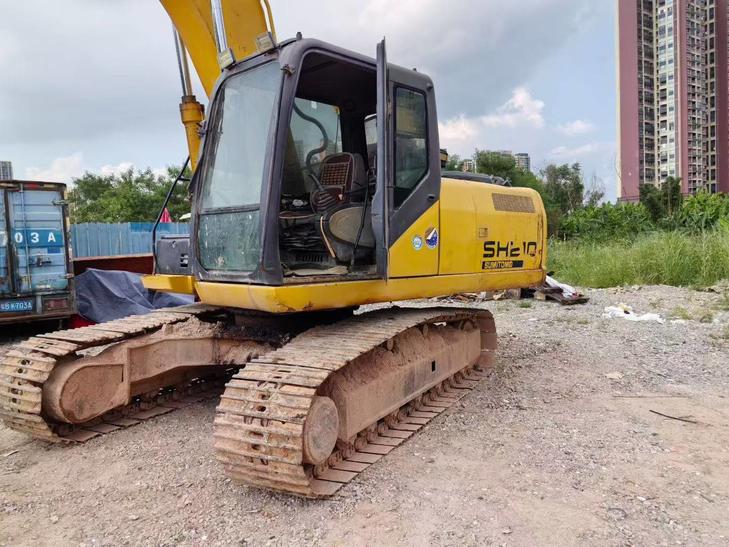

This 2020 Sumitomo SH210A5 hydraulic excavator offers reliable performance for medium to heavy-duty earthmoving operations. With Sumitomo's proven engineering and build quality, this 21-ton class machine delivers efficient digging force and fuel economy. The SH210A5 features a robust undercarriage, spacious operator cab with excellent visibility, and hydraulic systems designed for responsive control in demanding applications.
Currently located in Guangdong, China, this unit represents excellent value for contractors and equipment dealers seeking dependable used machinery. The SH210A5 is well-suited for excavation, trenching, material handling, and site development projects.
- Year of Manufacture: 2020
- Operating Weight: Approximately 21 tonnes
- Engine: Isuzu diesel engine
- Hydraulic system with optimized flow control
- Standard excavator boom and arm configuration
- Location: Guangdong Province, China
Contact us for current pricing, inspection arrangements, and shipping solutions to your location.
| Specifications | Value |
|---|---|
| No. | 1170298 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.5-1.1 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AI-4HK1X (Tier 3) |
| Rated power (kw/rpm) | 117.3/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.4/5.6 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.4 |
| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 36.8 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120-1010 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140-1460 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120-1255 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 2940 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9730 |
| Maximum effective digging depth (mm) | 6470 |
