Product Description

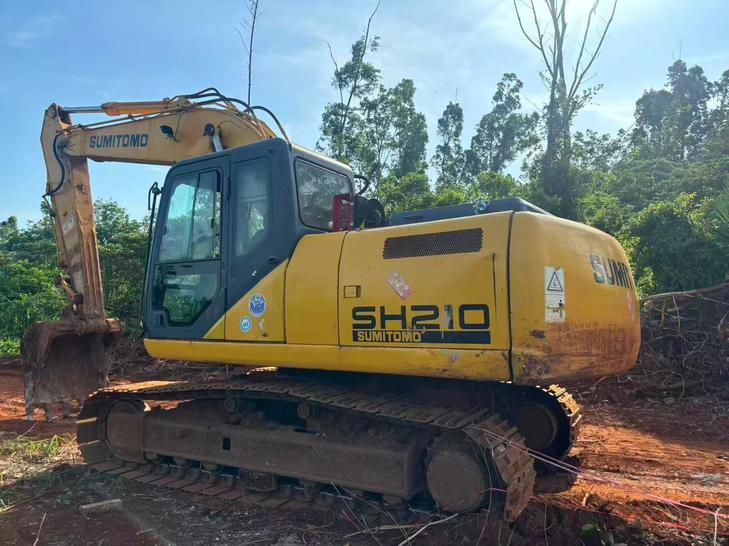

This 2020 Sumitomo SH210A5 hydraulic excavator delivers reliable performance for demanding earthmoving operations. With approximately 21 metric tons operating weight and powered by a fuel-efficient engine, this model offers excellent digging force and cycle times for medium to heavy-duty applications. The machine shows well-maintained condition with low operating hours, making it an outstanding value for contractors seeking proven Japanese engineering quality.
- Year: 2020
- Model: Sumitomo SH210A5
- Operating Weight: Approx. 21,000 kg
- Bucket Capacity: Standard configuration
- Hydraulic System: Advanced flow control
- Location: Guangdong, China
- Condition: Well-maintained, low hours
Ideal for construction sites, infrastructure projects, and material handling operations. This excavator combines durability with operational efficiency, backed by Sumitomo's reputation for long service life. Available for immediate inspection and delivery. Contact us for detailed specifications, inspection reports, and competitive export pricing.
| Specifications | Value |
|---|---|
| No. | 1173594 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.5-1.1 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AI-4HK1X (Tier 3) |
| Rated power (kw/rpm) | 117.3/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.4/5.6 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.4 |
| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 36.8 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120-1010 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140-1460 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120-1255 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 2940 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9730 |
| Maximum effective digging depth (mm) | 6470 |
