Product Description

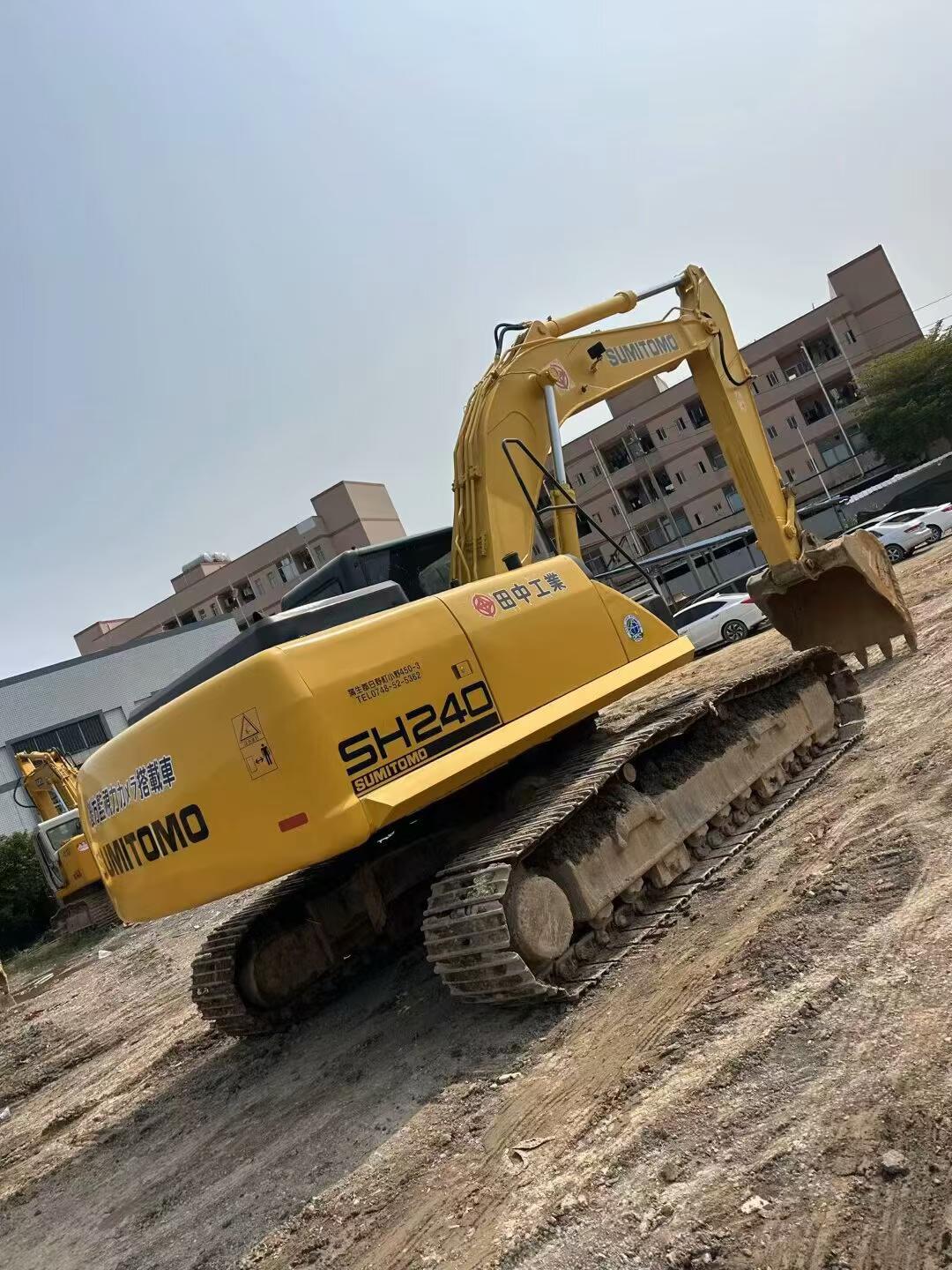

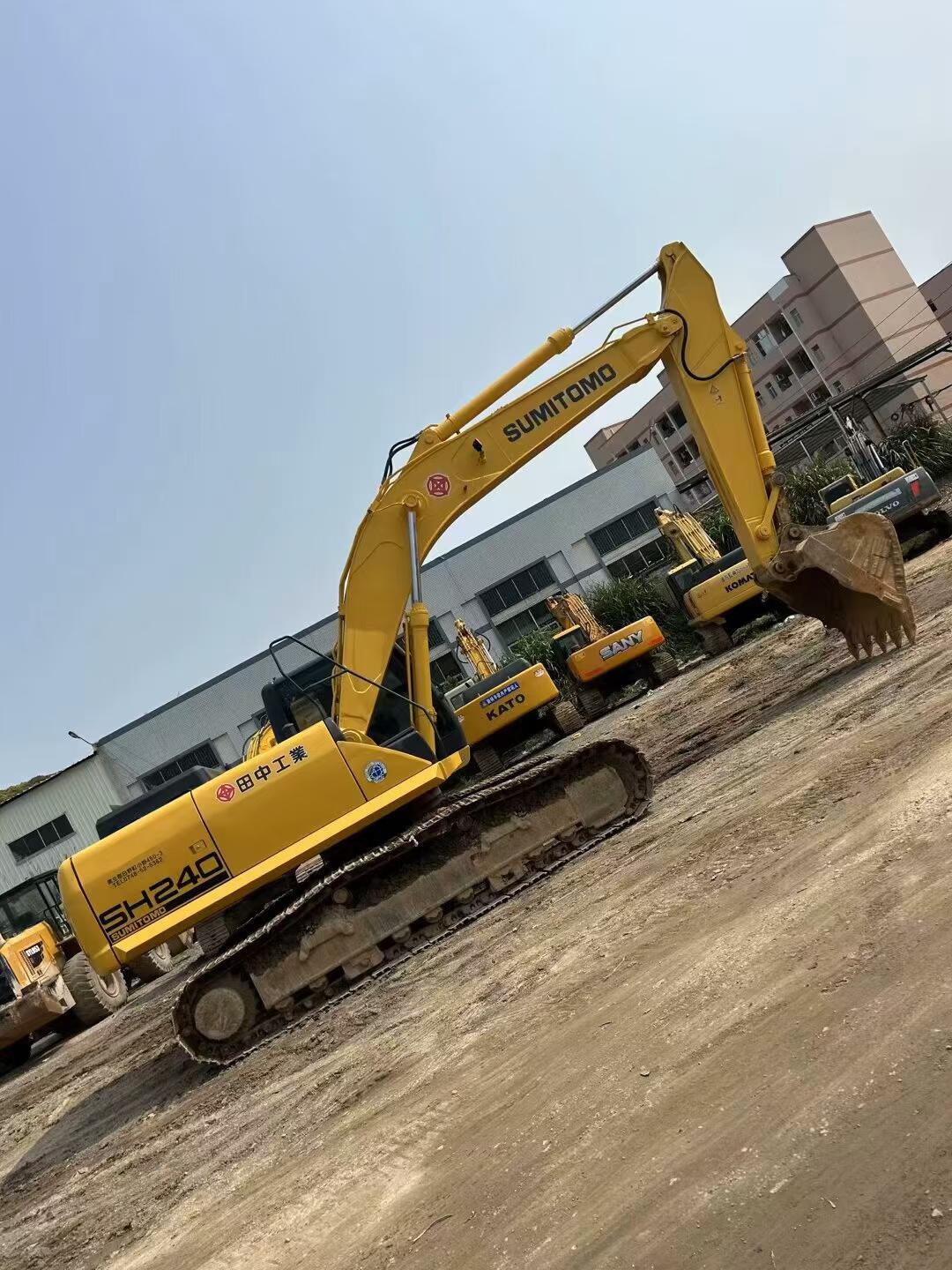

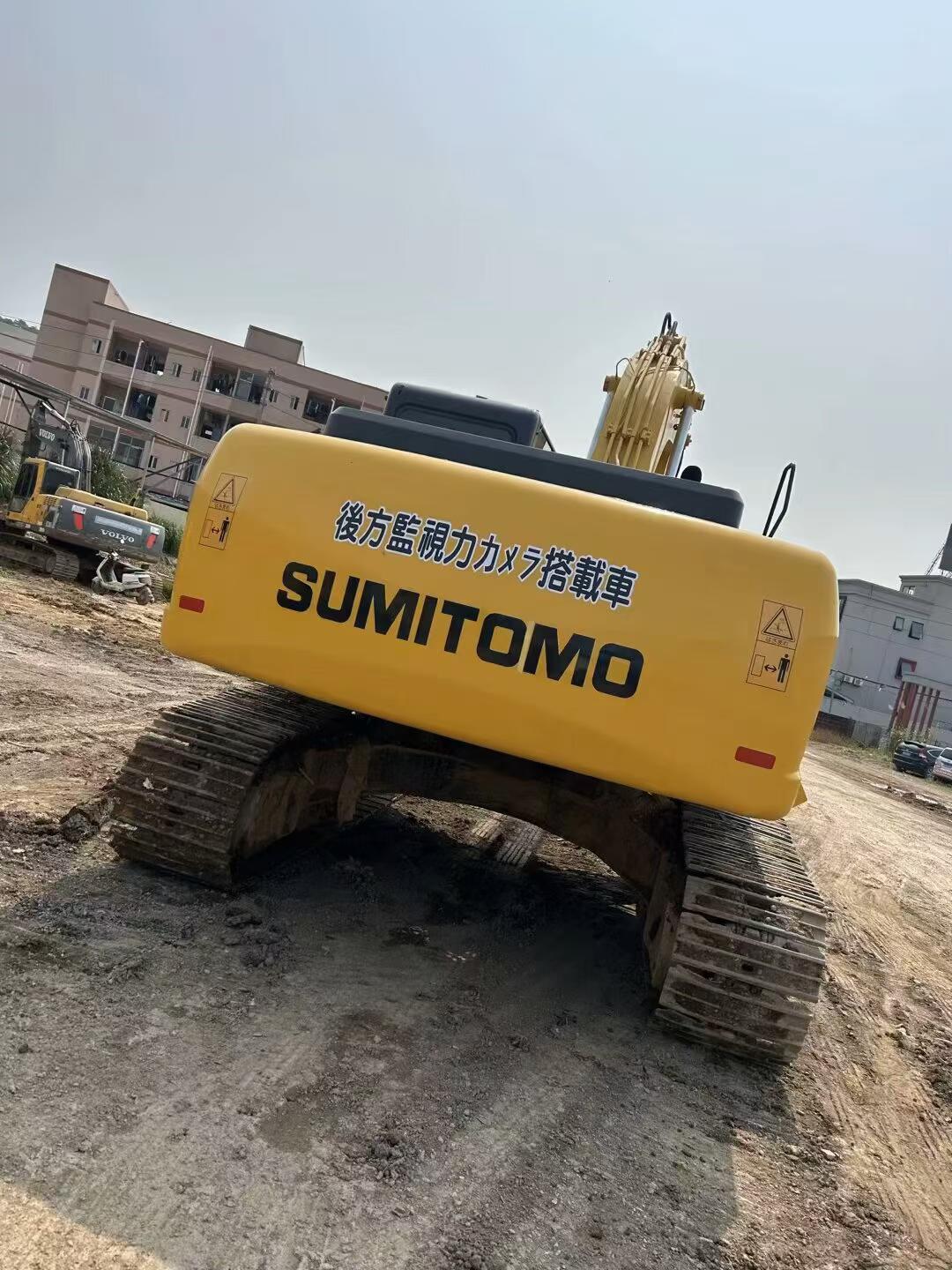

Discover the reliability and efficiency of the 2020 Sumitomo SH240-3, now available in Guangdong, China. This used excavator is known for its robust performance, making it an ideal choice for construction sites that demand high productivity and durability. Ready to be deployed immediately, this machine has been maintained to ensure optimal operation, allowing you to integrate it into your fleet without delay. Offering a cost-effective solution, the SH240-3 delivers the performance you need at a price that fits your budget.
- Year: 2020
- Brand: Sumitomo
- Model: SH240-3
- Location: Guangdong, China
- Condition: Ready for immediate use on site
- Cost: Economically priced for quick acquisition
| Specifications | Value |
|---|---|
| No. | 1127744 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.1 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

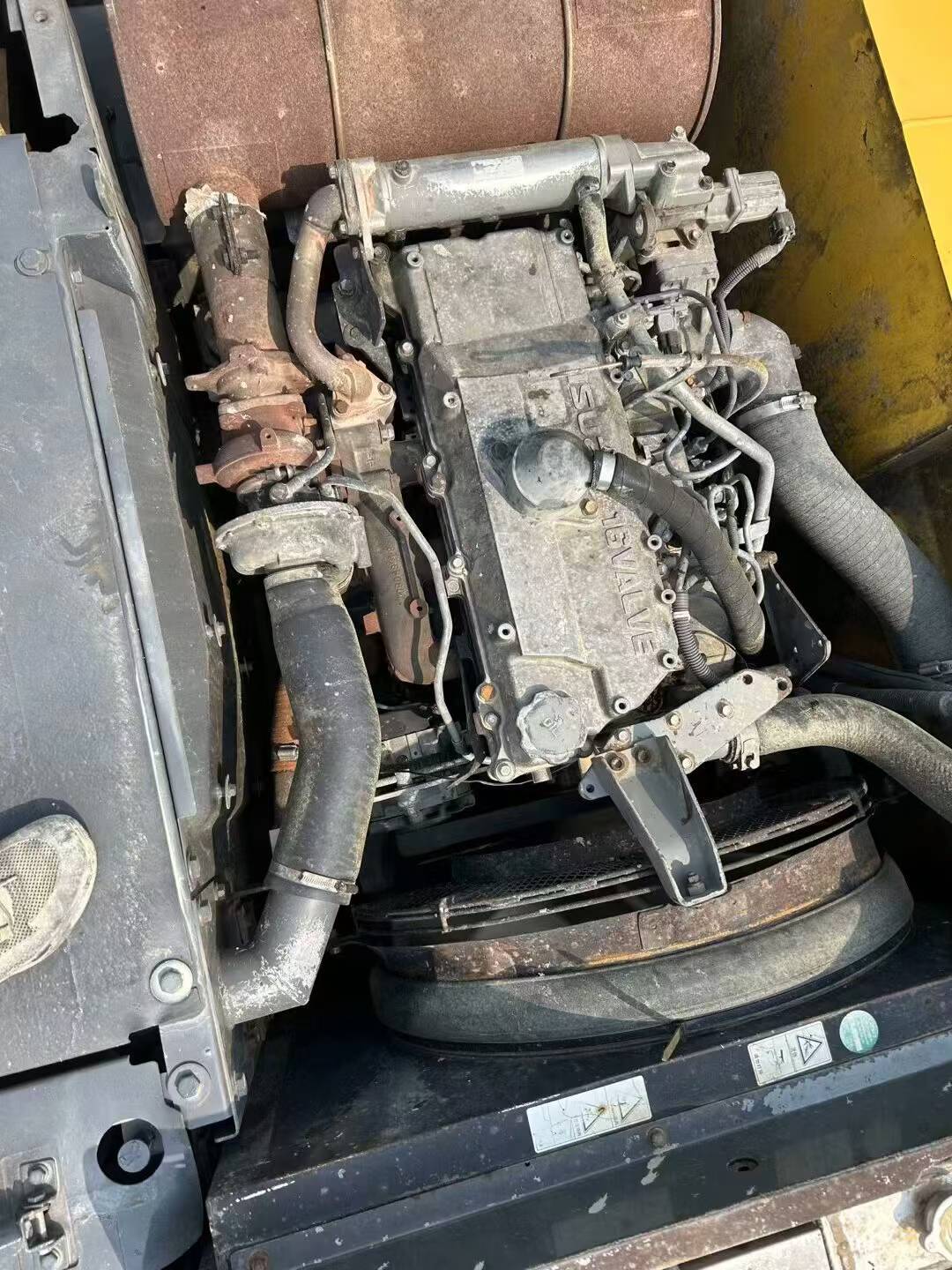

| Engine type | ISUZU BB-6BG1T |
| Rated power (kw/rpm) | 121/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.494 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 10.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 160/173 |
| Rod digging force (kN) | 115/125 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |

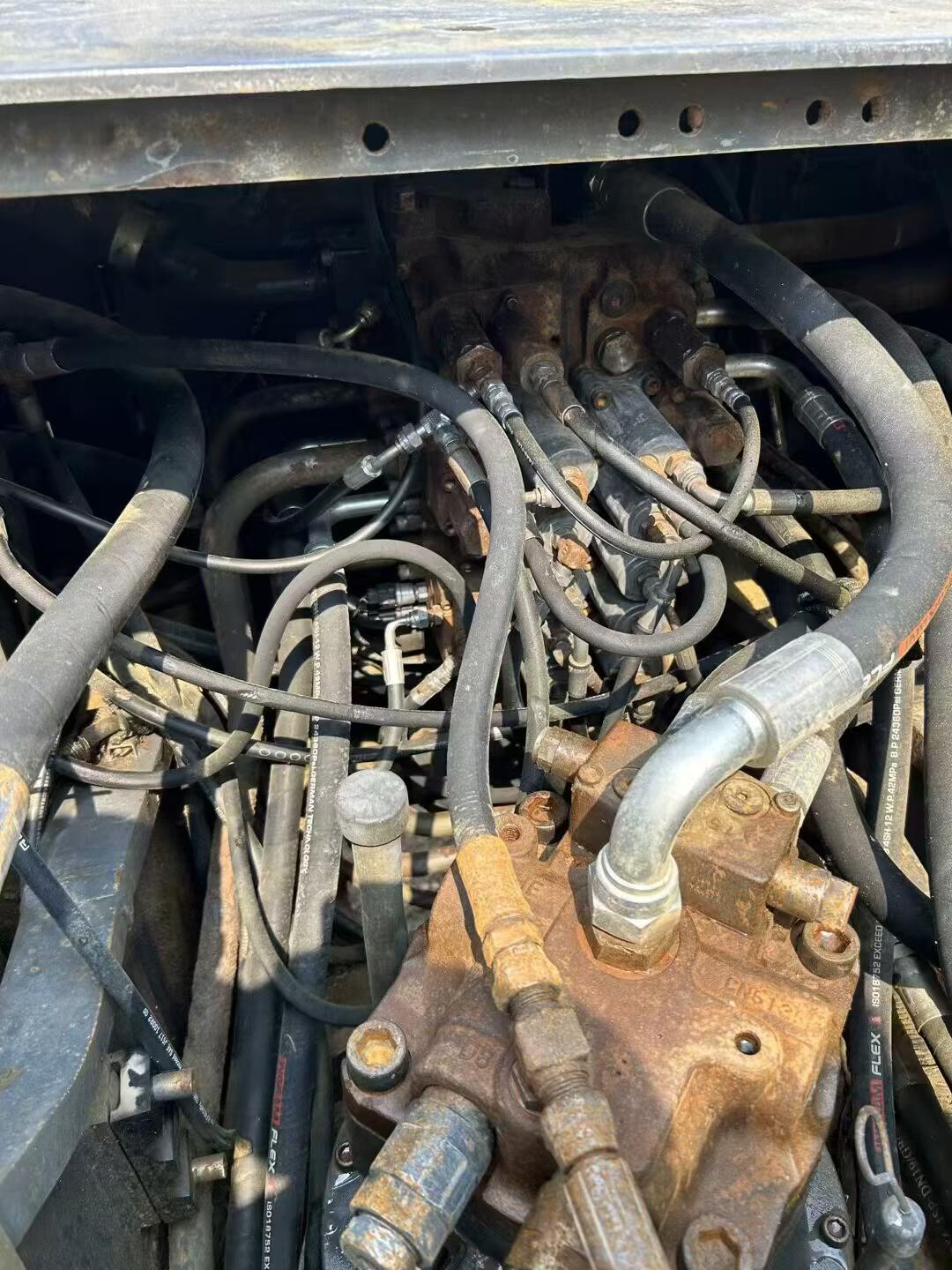

| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 468 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 225 |
| Total transport length (mm) | 9880 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3080 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3870 |
| Back end turning radius (mm) | 2910 |

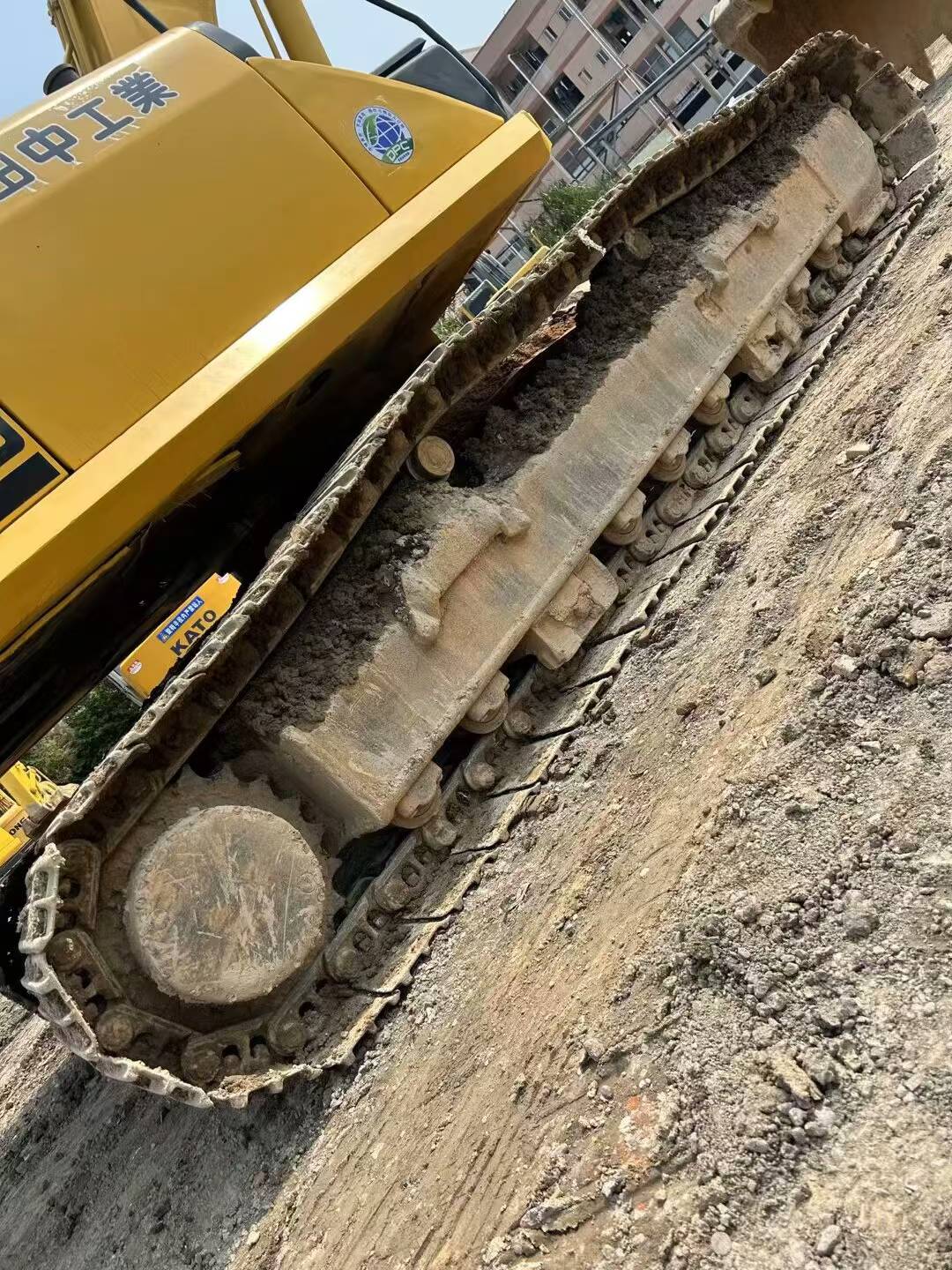

| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10420 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6210 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
