HOME>>Sumitomo>>Sumitomo SH240-3

2020 Sumitomo SH240-3

1/6
Buy Sumitomo SH240-3 Used Excavator / 1
Buy Sumitomo SH240-3 Used Excavator / 2
Buy Sumitomo SH240-3 Used Excavator / 3
Buy Sumitomo SH240-3 Used Excavator / 4
Buy Sumitomo SH240-3 Used Excavator / 5
Buy Sumitomo SH240-3 Used Excavator / 6

Product Description

This 2020 Sumitomo SH240-3 hydraulic excavator is available in Fujian, China. With moderate operating hours, this mid-size crawler excavator offers reliable performance for construction, earthmoving, and demolition applications. The SH240 series is known for its fuel efficiency and responsive hydraulic system, making it suitable for demanding jobsites.

Key features include:

  • Operating weight approximately 24 tons
  • Robust undercarriage for stability on varied terrain

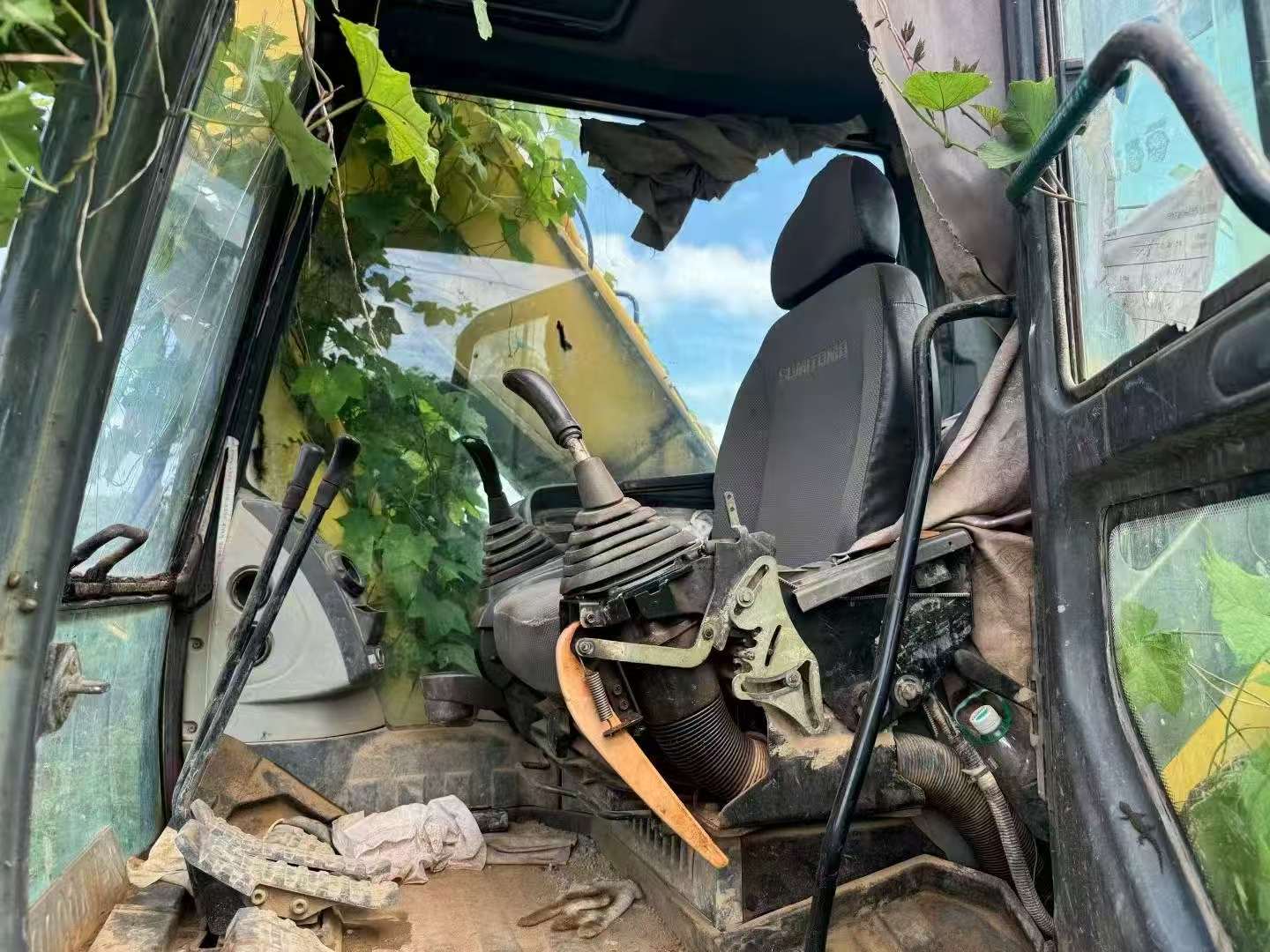

  • Spacious operator cab with good visibility
  • Proven Sumitomo build quality and serviceability

This used machine represents a cost-effective solution for contractors seeking dependable excavation capacity. Inspection and verification of current condition are recommended prior to purchase. Contact us for detailed specifications, availability, and shipping arrangements.

SpecificationsValue
No.1157269
Tonnage (tons)24
Working weight (kg)23300
Bucket capacity (m³)1.1
Country of originXiamen (in Fujian Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

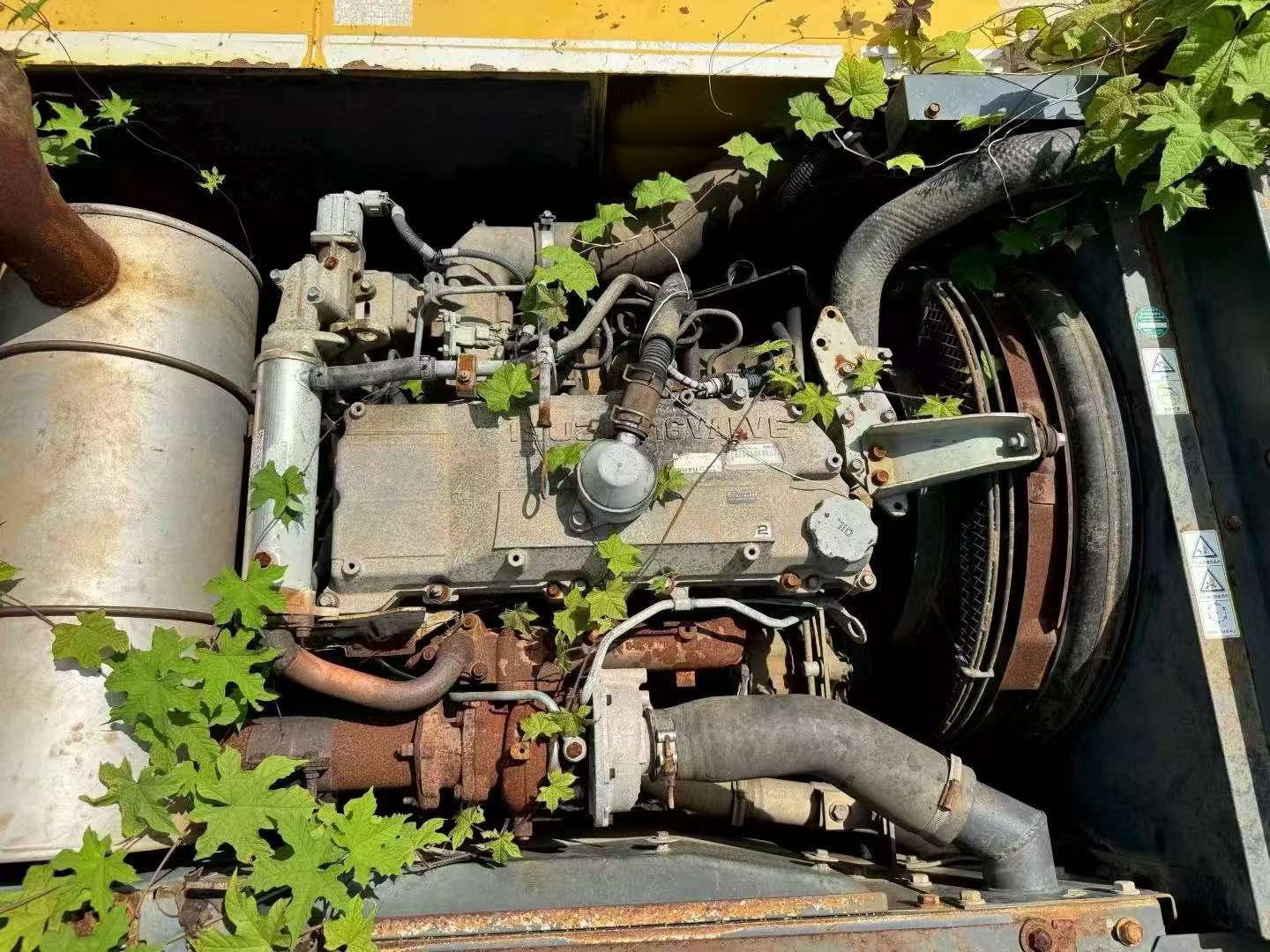

Engine typeISUZU BB-6BG1T
Rated power (kw/rpm)121/2150
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)6.494
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)10.4
Climbing ability (%)70/35 °
Bucket digging force (kN)160/173
Rod digging force (kN)115/125
Travel speed (km/h)3.4/5.5
Main overflow set pressure (Mpa)34.3/37.3
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor ×2

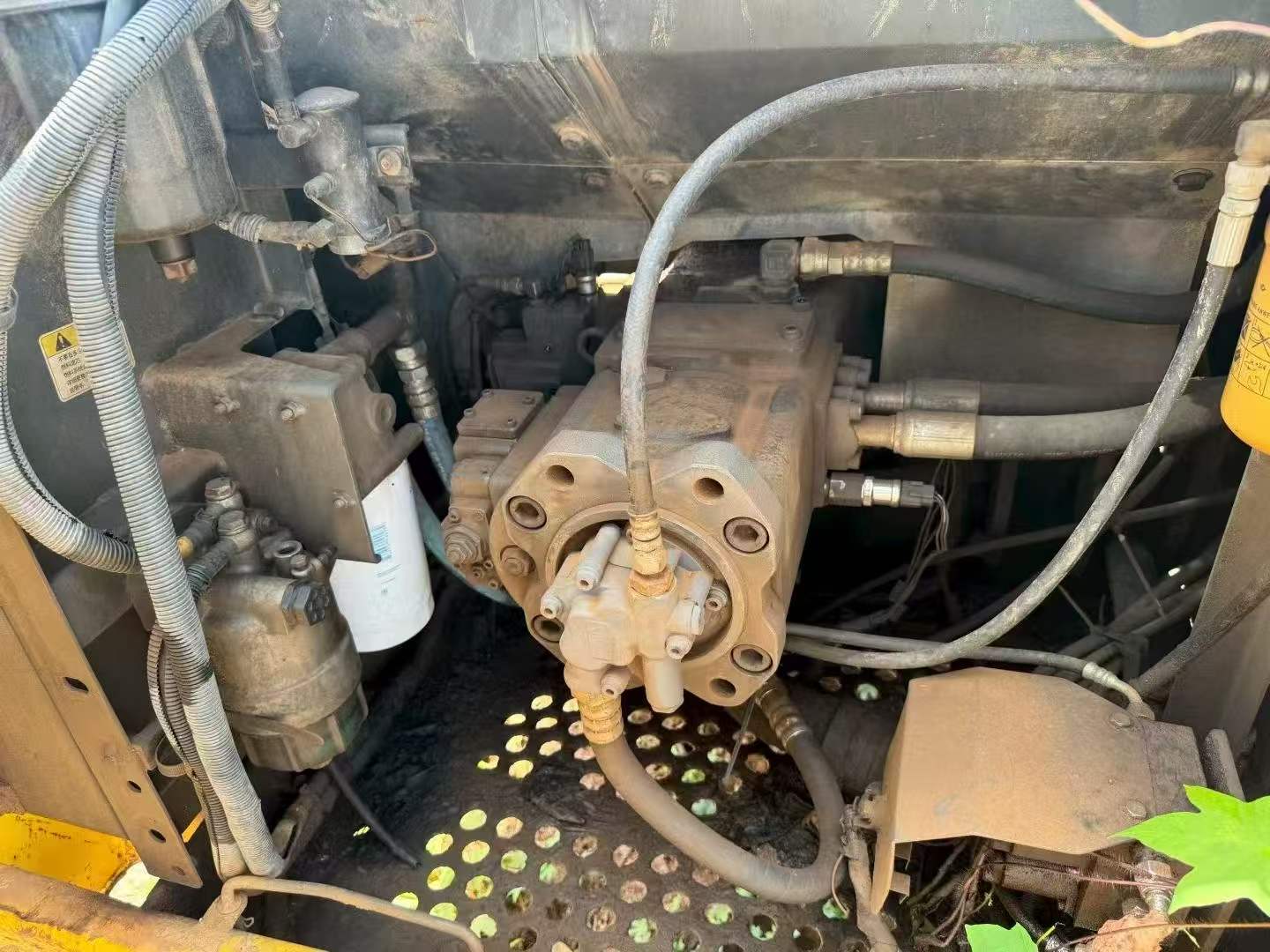

Maximum flow of main pump (l/min)468
Hydraulic crushing pipeline is standardno
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)340
Hydraulic Tank (L)225
Total transport length (mm)9880
Total transport width (mm)3190
Total transport height (mm)3080
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3870
Back end turning radius (mm)2910
Total track length (mm)4640
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3190
Maximum digging radius (mm)10420
Maximum digging depth (mm)6970
Maximum excavation height (mm)9810
Maximum unloading height (mm)6760
Maximum vertical digging depth (mm)6210
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
see more

Overview

No.1157269

Brand Name:

Sumitomo

Model Number:

SH240-3

Year:

2020

Location:

Fujian China

Pub Date:
