Product Description

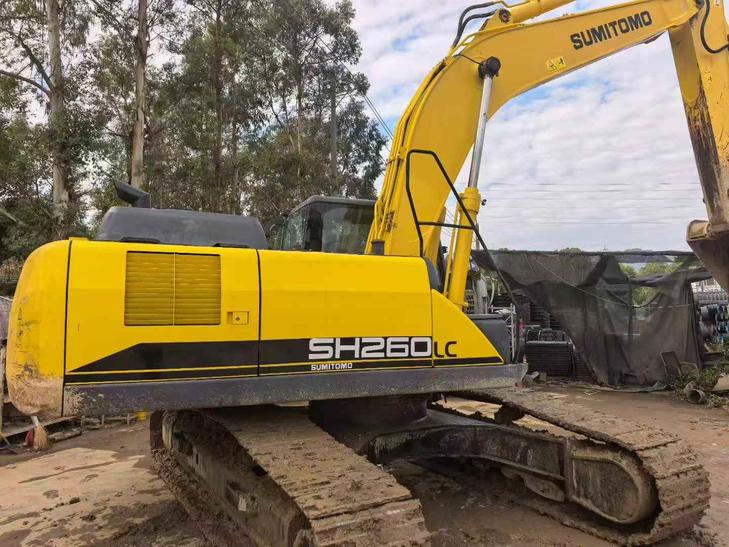

Available now from Zhejiang, China — skip the factory lead times and get this 2021 Sumitomo SH260LC-6 working on your site fast. Built for demanding excavation projects, this 26-ton machine ships ready to perform with zero waiting on new-unit production queues. Fast deployment means your project timeline stays intact.
Engineered for precision and power, the SH260LC-6 delivers a bucket digging force of 162/174 kN and a maximum digging depth of 6,900 mm — built to handle heavy-duty earthmoving, trenching, and site preparation with confidence.
- Working Weight: 25,500 kg | Bucket Capacity: 1.3 m³
- Rated Power: 132.1 kW @ 2,000 rpm | Displacement: 5.193 L
- Max Digging Radius: 10,280 mm | Max Digging Depth: 6,900 mm
- Max Excavation Height: 9,760 mm | Max Unloading Height: 6,760 mm
- Travel Speed: 5.5 / 3.5 km/h | Climbing Ability: 70%
- Fuel Tank: 410 L | Hydraulic System: 250 L
- Track Plate Width: 600 mm | Ground Pressure: 50 kPa
Positioned in Zhejiang for efficient port access and export logistics, this unit is ready for immediate inspection and dispatch. Contact us today to confirm availability and arrange shipping to your destination.
| Specifications | Value |
|---|---|
| No. | 1097420 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 132.1/2000 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 50 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 162/174 |
| Rod digging force (kN) | 120/129 |
| Travel speed (km/h) | 5.5/3.5 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/36.8 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Hydraulic System (L) | 250 |
| Total transport length (mm) | 9930 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3950 |
| Back end turning radius (mm) | 2950 |
| Total track length (mm) | 4650 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6140 |
