Product Description

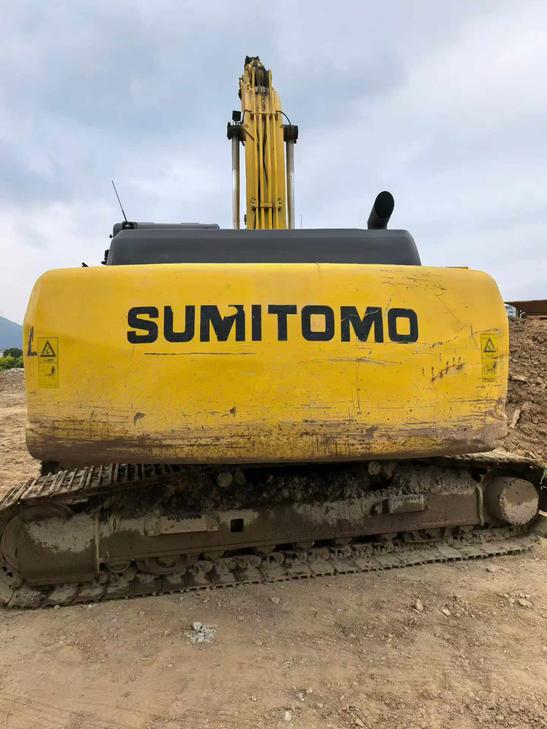

This 2021 Sumitomo SH260LC-6 hydraulic excavator represents a well-maintained example of Sumitomo's proven LC-6 series design. With minimal operational hours since manufacture, this 26-ton class machine delivers reliable performance for medium to heavy-duty excavation, demolition, and material handling applications.
The SH260LC-6 features Sumitomo's fuel-efficient engine technology and advanced hydraulic systems designed for responsive control and reduced cycle times. Currently located in Zhejiang, China, this unit is available for immediate inspection and export preparation.
- Operating weight: Approximately 26 tons
- Low hours for model year
- Long-reach configuration (LC)
- Suitable for construction, mining, and infrastructure projects
- Export documentation support available
Ideal for contractors and equipment dealers seeking dependable excavation capacity with established parts availability and service network support.
| Specifications | Value |
|---|---|
| No. | 1173449 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 132.1/2000 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 50 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 162/174 |
| Rod digging force (kN) | 120/129 |
| Travel speed (km/h) | 5.5/3.5 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/36.8 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Hydraulic System (L) | 250 |
| Total transport length (mm) | 9930 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3950 |
| Back end turning radius (mm) | 2950 |
| Total track length (mm) | 4650 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6140 |
