Product Description

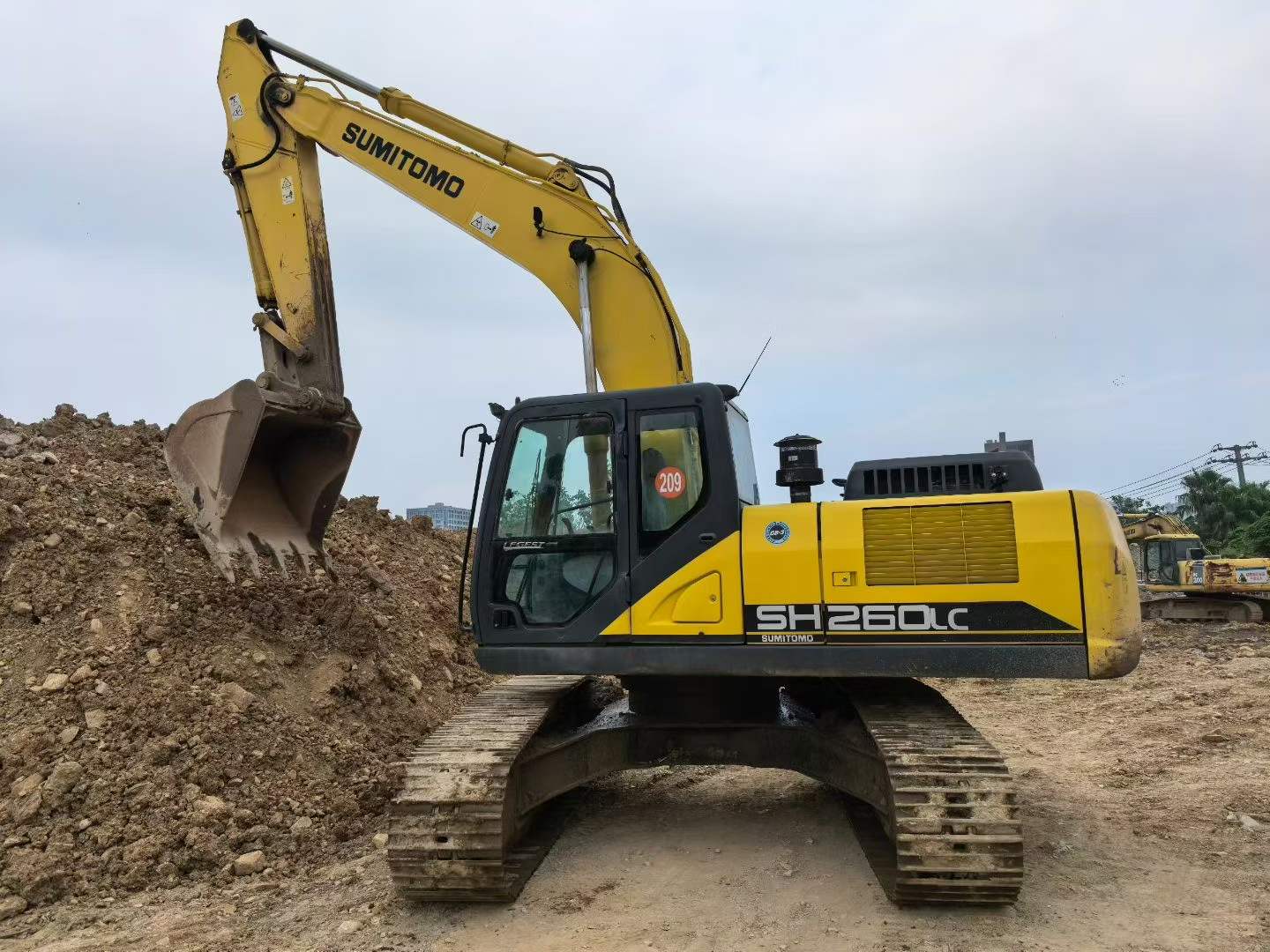

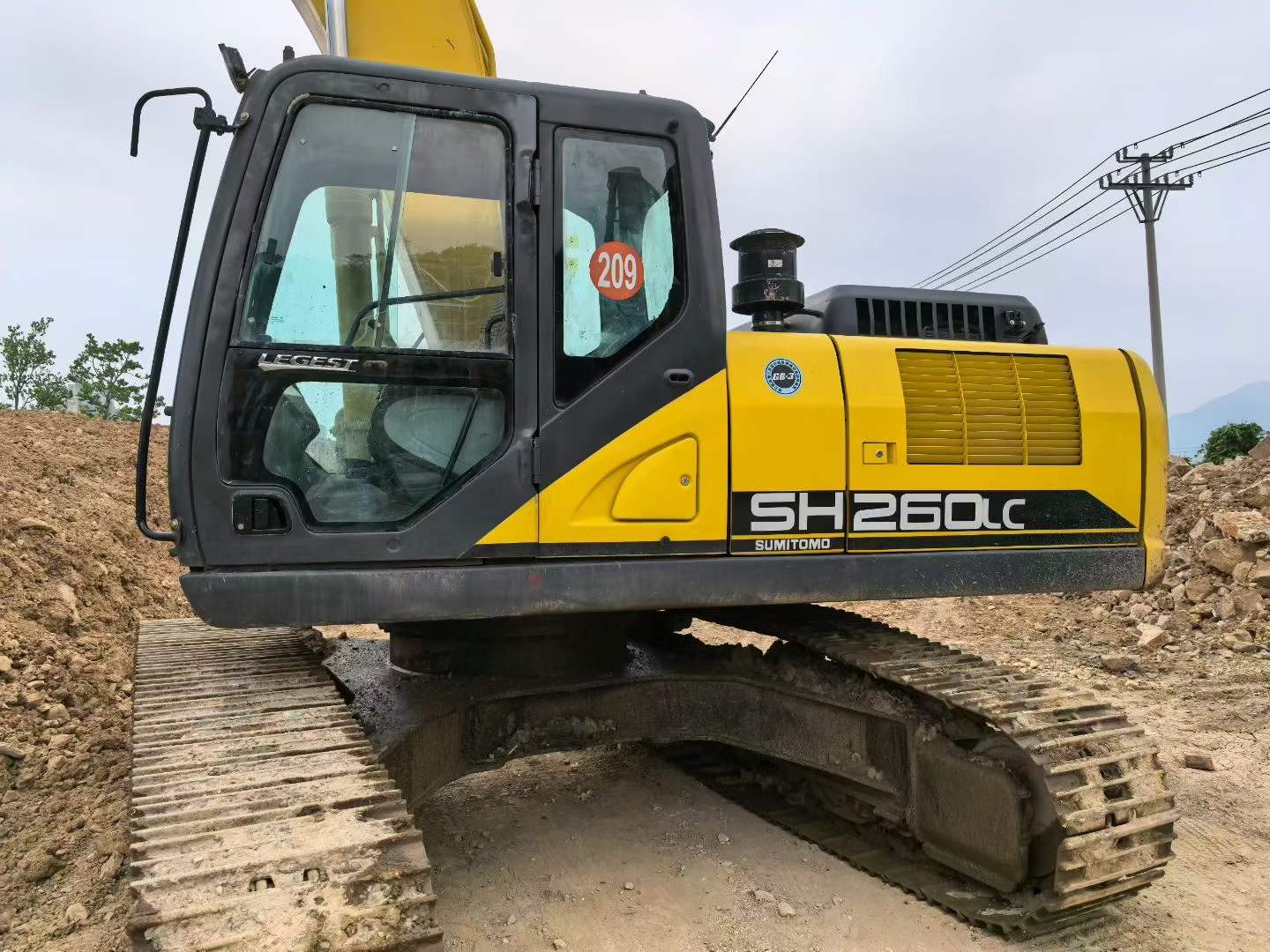

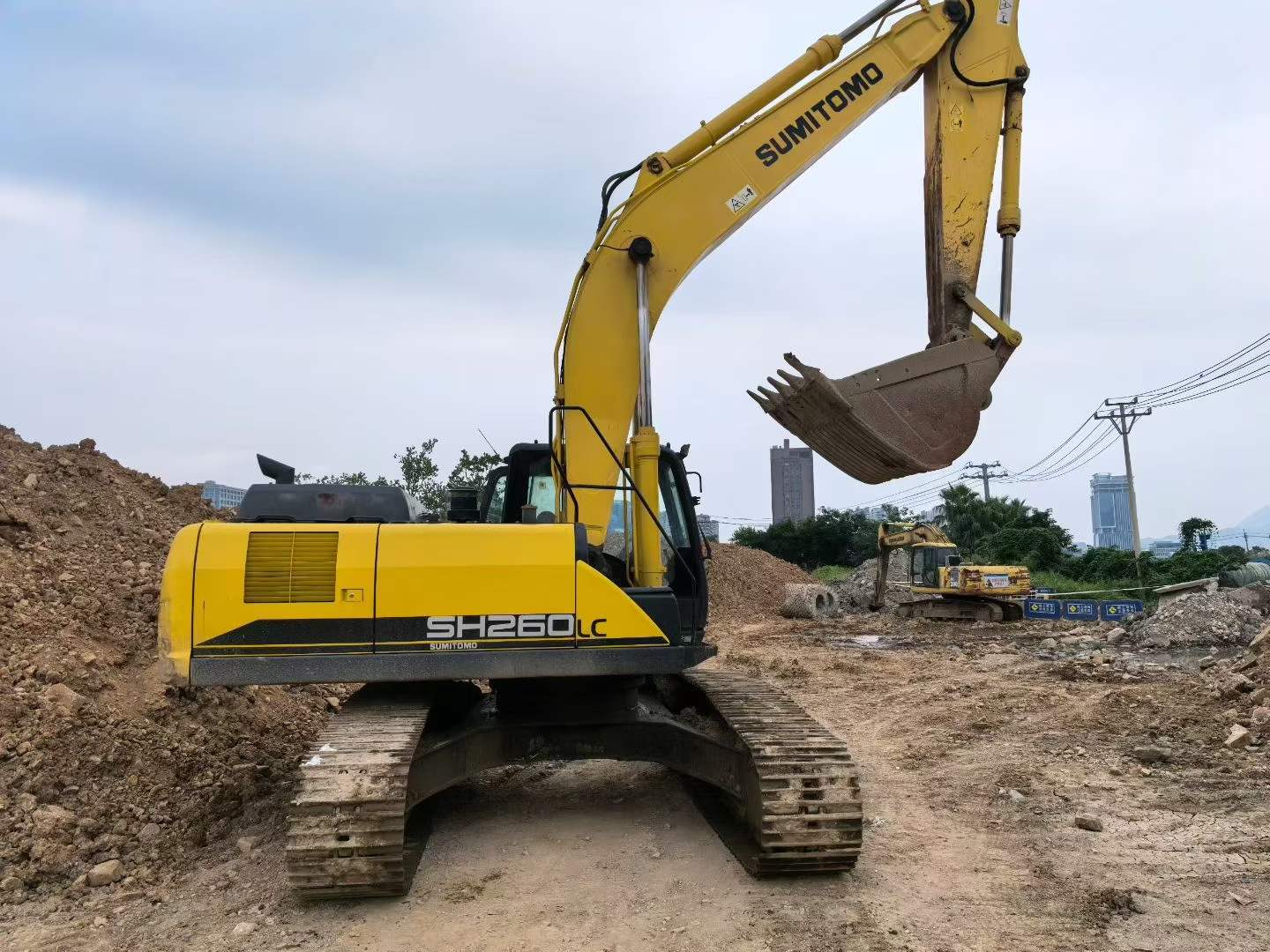

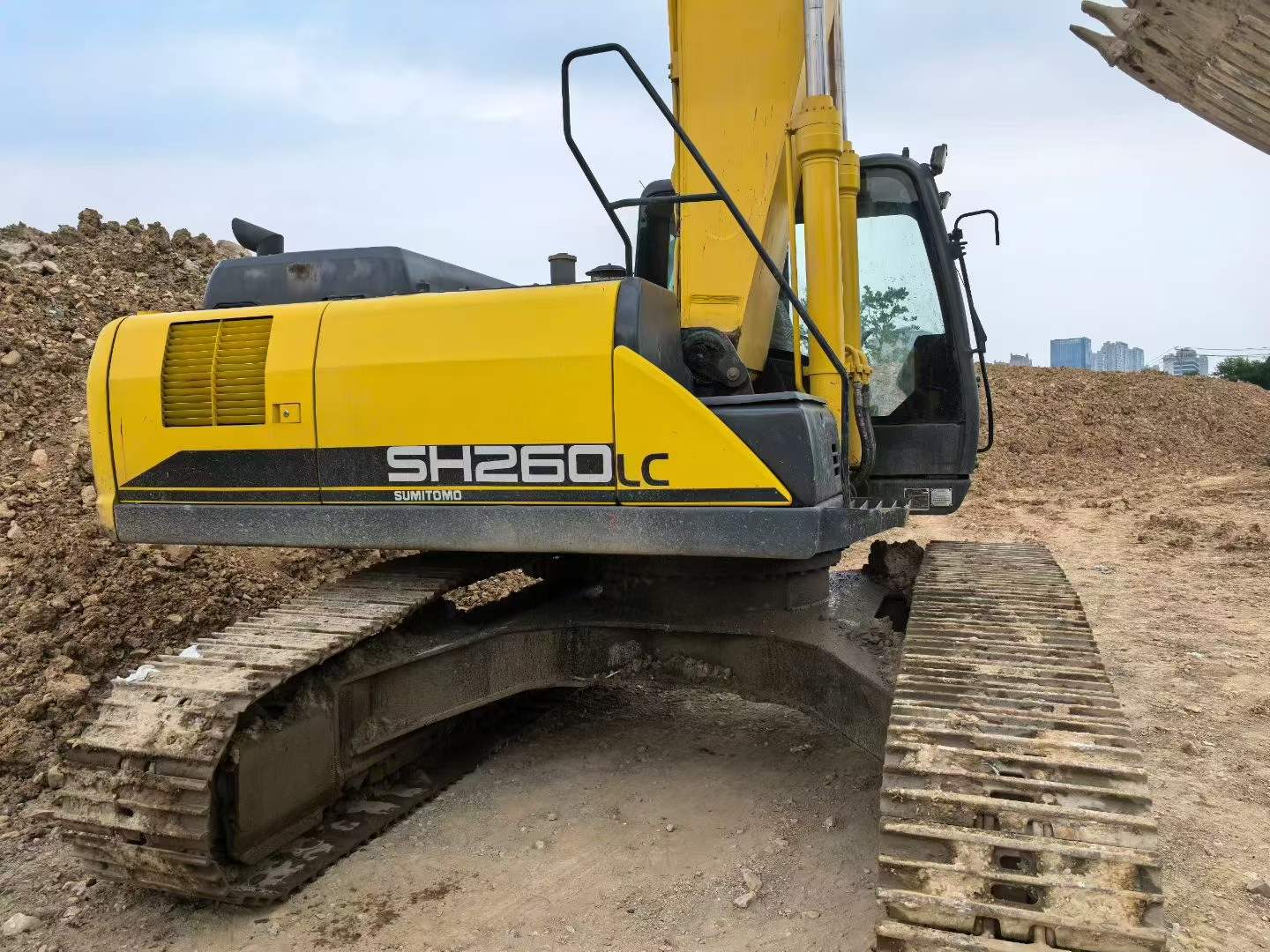

This 2021 Sumitomo SH260LC-6 hydraulic excavator represents reliable Japanese engineering in the 26-ton class. Manufactured by Sumitomo Construction Machinery, this crawler excavator combines proven performance with fuel-efficient operation. The SH260LC-6 features an extended long-reach configuration suitable for deep excavation, foundation work, and general earthmoving applications.
Currently located in Zhejiang, China, this unit offers contractors and equipment dealers access to Sumitomo's quality construction at competitive pre-owned pricing.
- Operating weight: Approximately 26 tonnes

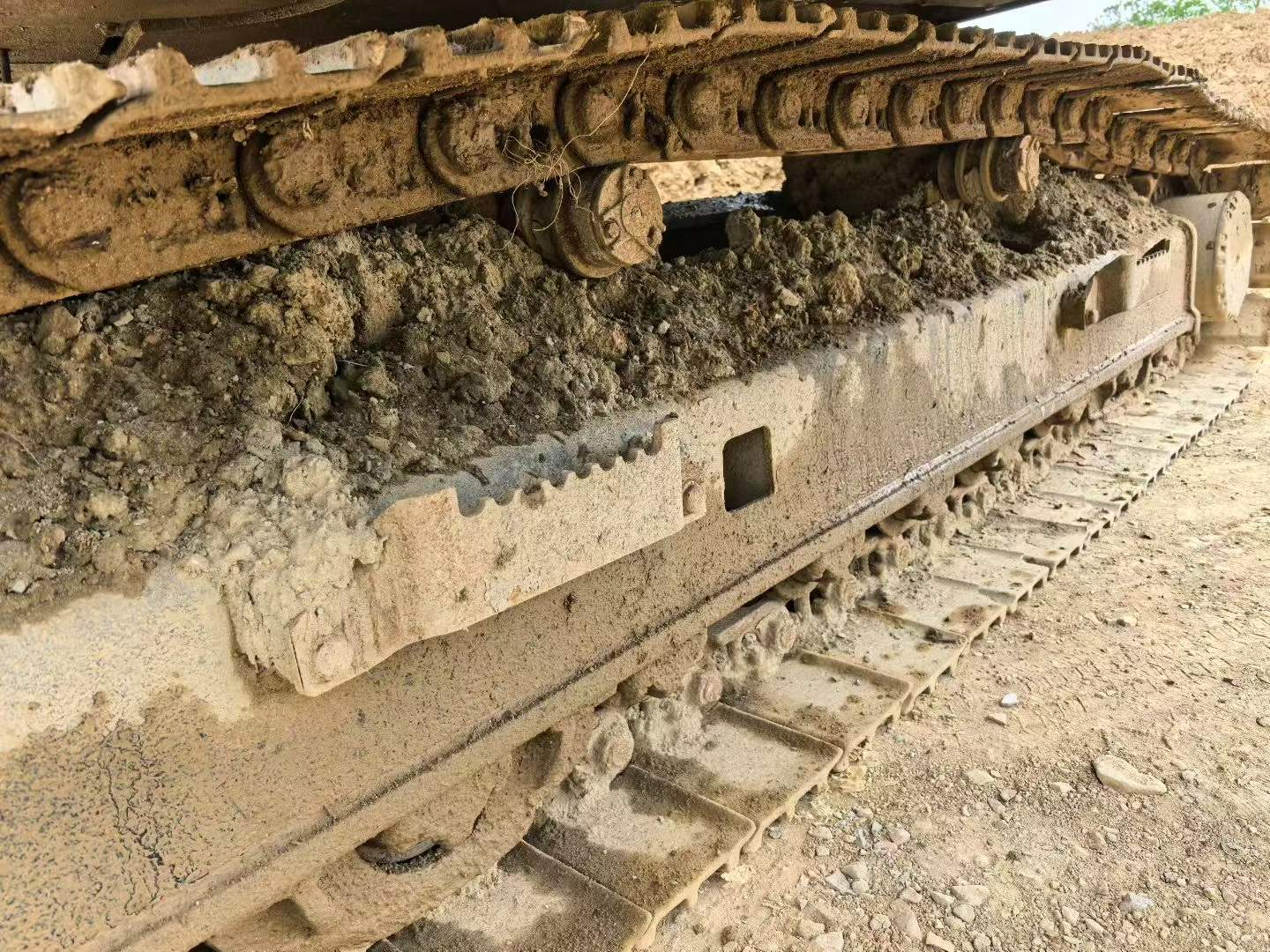

- Hydraulic excavator with crawler undercarriage
- Long-reach boom configuration (LC designation)
- Sixth-generation Sumitomo design
- Suitable for demolition, excavation, and material handling
Ideal for construction companies seeking dependable used equipment with established OEM support networks across Asia-Pacific markets.
| Specifications | Value |
|---|---|
| No. | 1173537 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 132.1/2000 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 50 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 162/174 |
| Rod digging force (kN) | 120/129 |
| Travel speed (km/h) | 5.5/3.5 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/36.8 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Hydraulic System (L) | 250 |
| Total transport length (mm) | 9930 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3950 |
| Back end turning radius (mm) | 2950 |
| Total track length (mm) | 4650 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6140 |
