Product Description

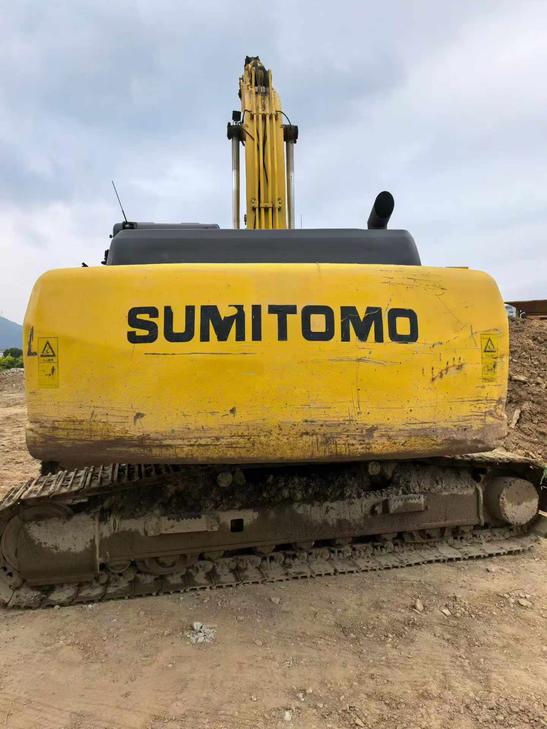

This 2021 Sumitomo SH260LC-6 hydraulic excavator offers reliable performance for demanding earthmoving and excavation applications. Manufactured by Sumitomo, a respected name in construction equipment, this 26-ton class crawler excavator combines proven hydraulic technology with operator-focused design. Currently located in Zhejiang, China, the machine represents an opportunity to acquire late-model Japanese engineering at competitive used equipment pricing.
Key features of the SH260LC-6 include:
- 26-ton operating weight class suitable for general construction and infrastructure projects
- Long-reach crawler configuration for extended digging radius
- Fuel-efficient engine meeting modern emission standards
- Spacious operator cabin with ergonomic controls
- Durable undercarriage designed for varied terrain conditions
With minimal operating hours relative to its model year, this excavator is positioned for immediate deployment in your fleet. Inspection and export assistance available upon request.
| Specifications | Value |
|---|---|
| No. | 1174086 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 132.1/2000 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 50 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 162/174 |
| Rod digging force (kN) | 120/129 |
| Travel speed (km/h) | 5.5/3.5 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/36.8 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Hydraulic System (L) | 250 |
| Total transport length (mm) | 9930 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3950 |
| Back end turning radius (mm) | 2950 |
| Total track length (mm) | 4650 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6140 |
