Product Description

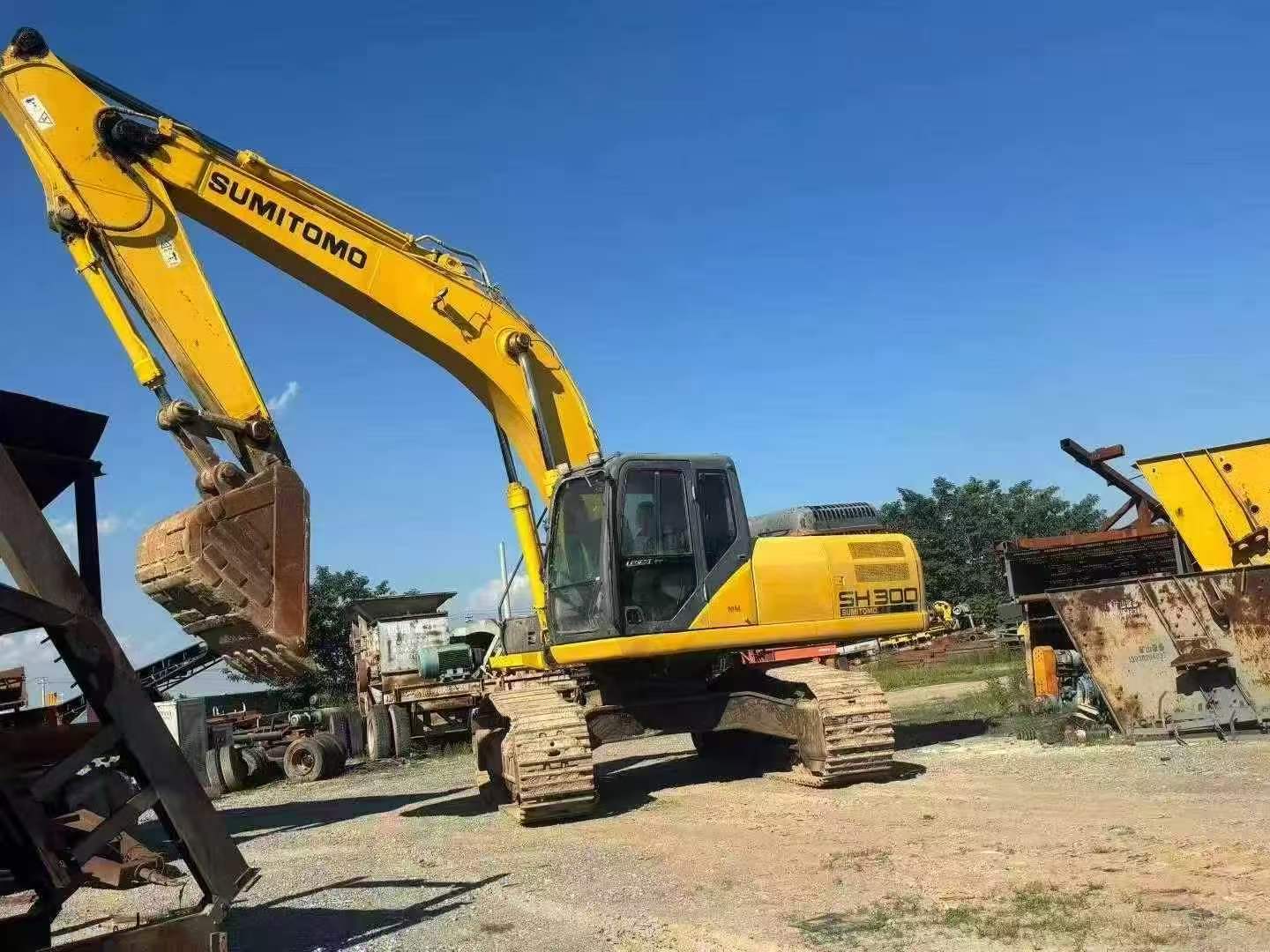

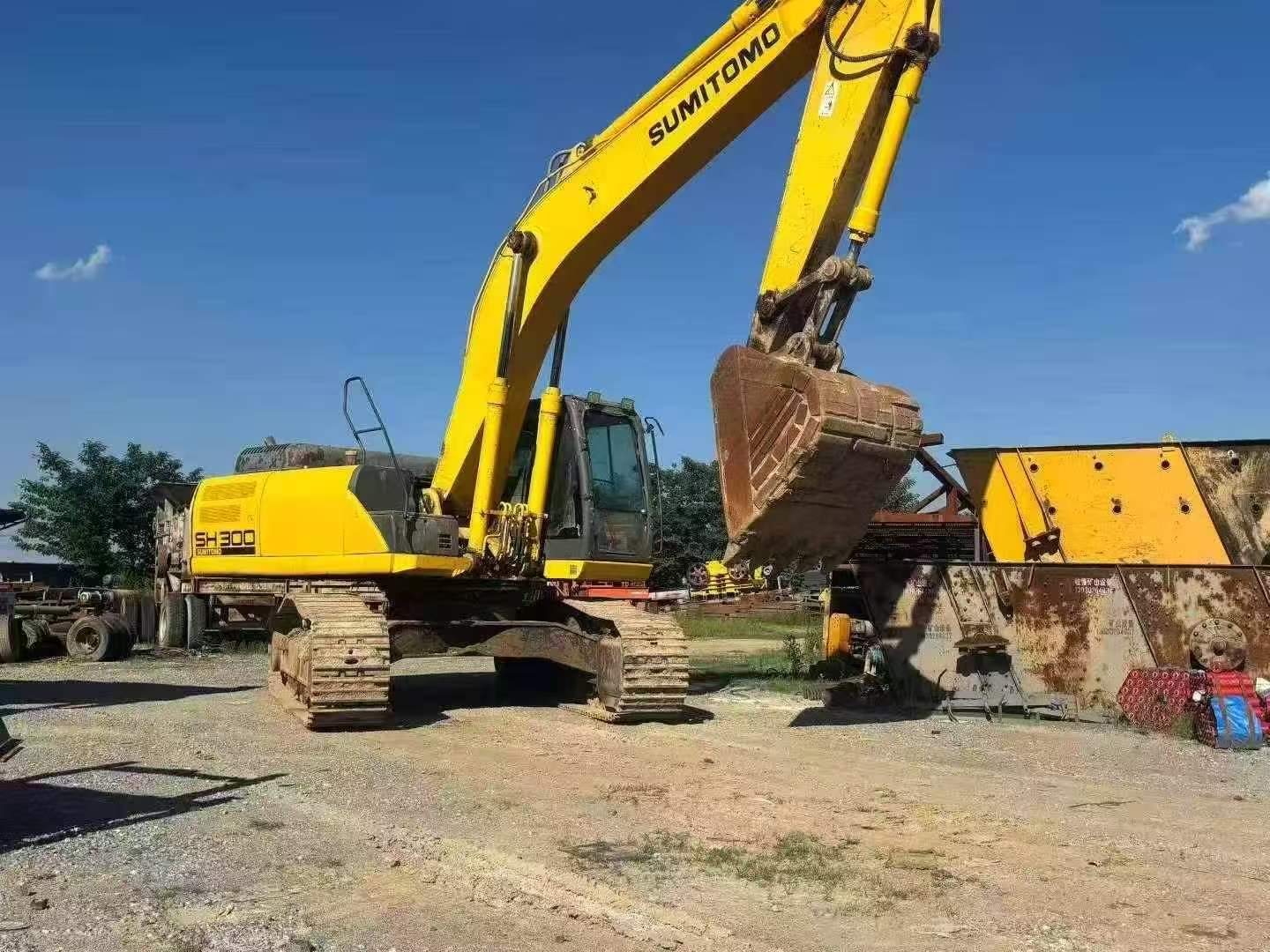

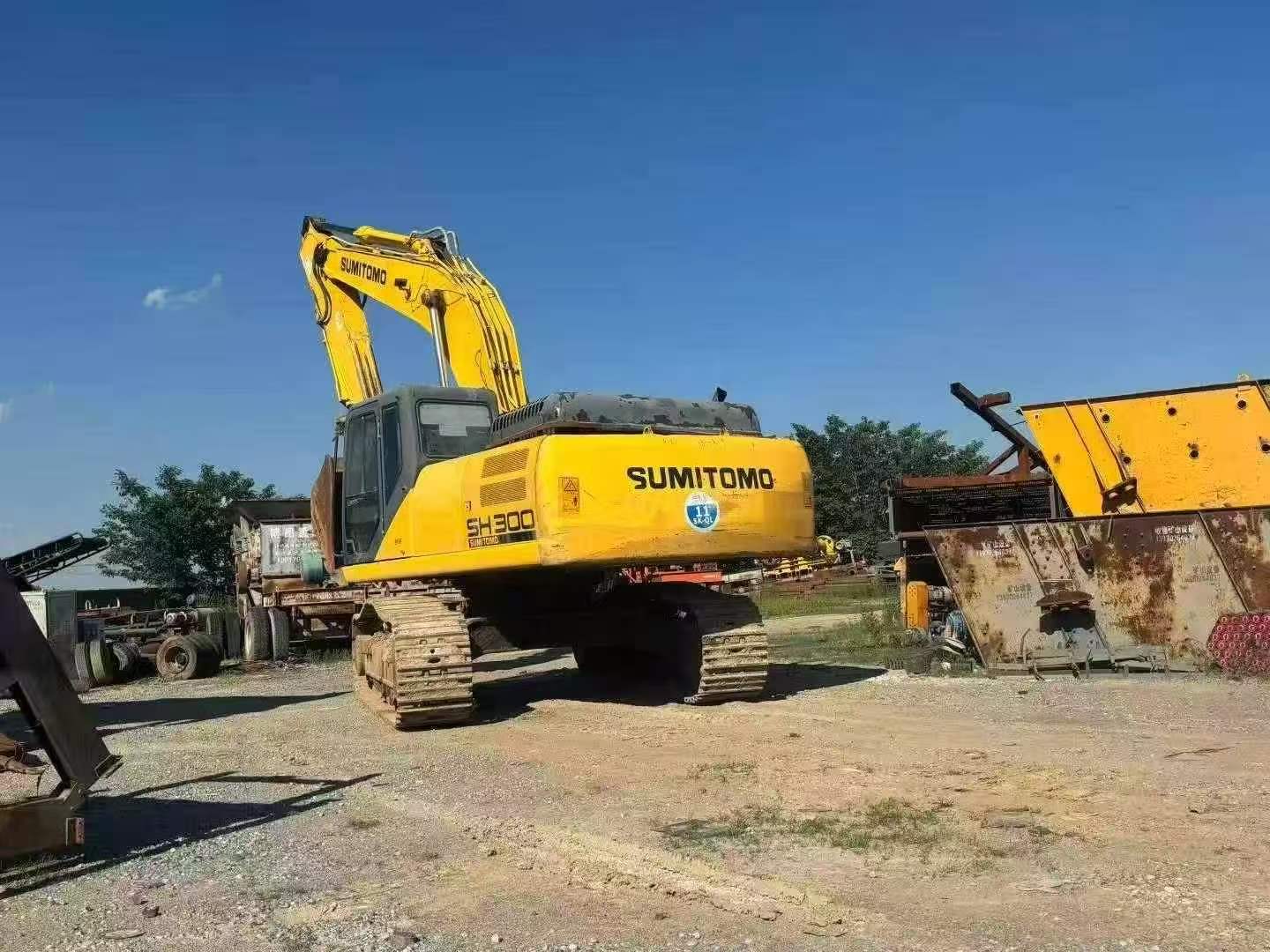

This 2013 Sumitomo SH300-5 hydraulic excavator represents excellent value for contractors seeking reliable heavy-duty performance. Sourced from Beijing, China, this machine showcases the renowned build quality Sumitomo is known for in the 30-ton class.

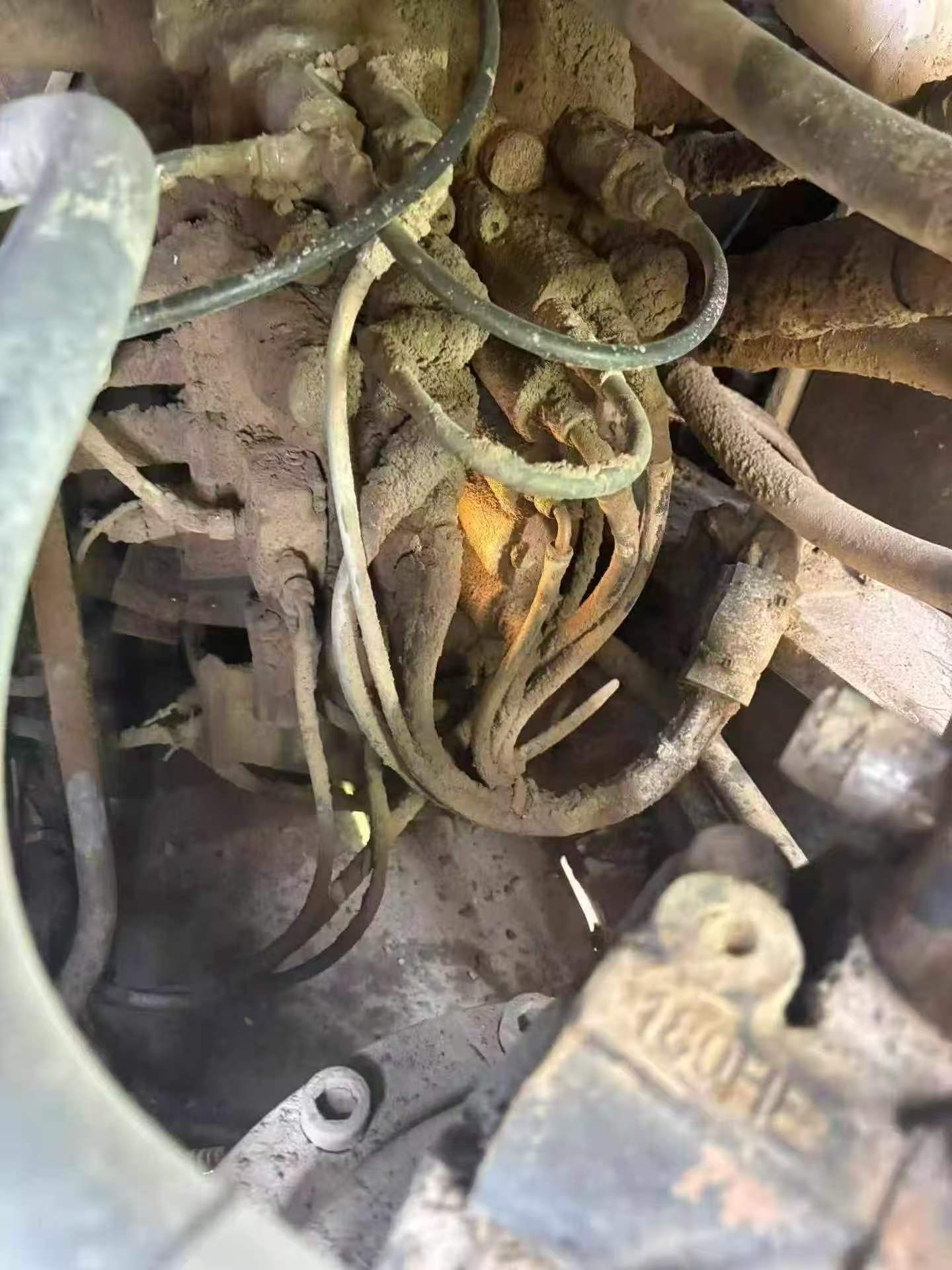

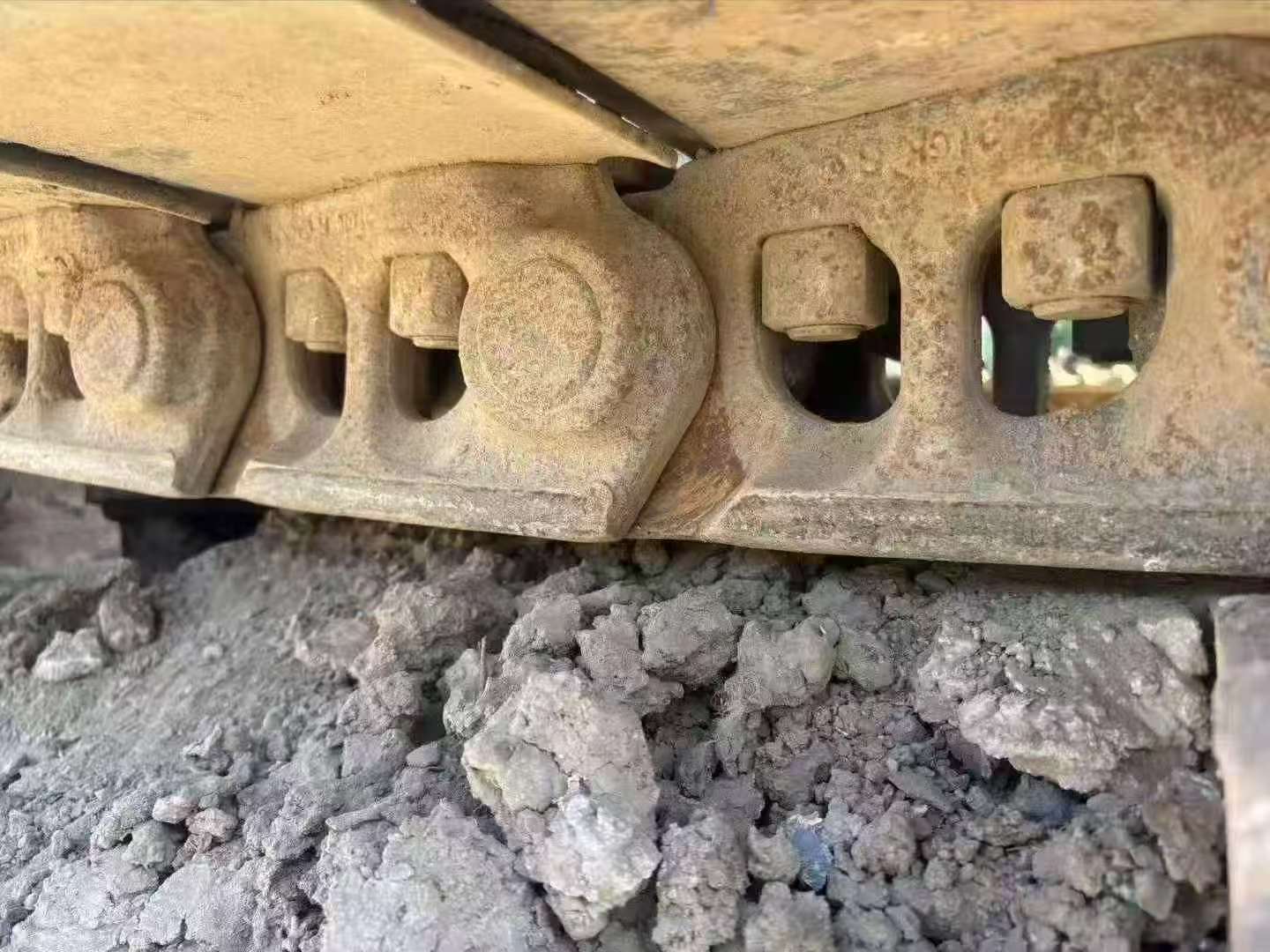

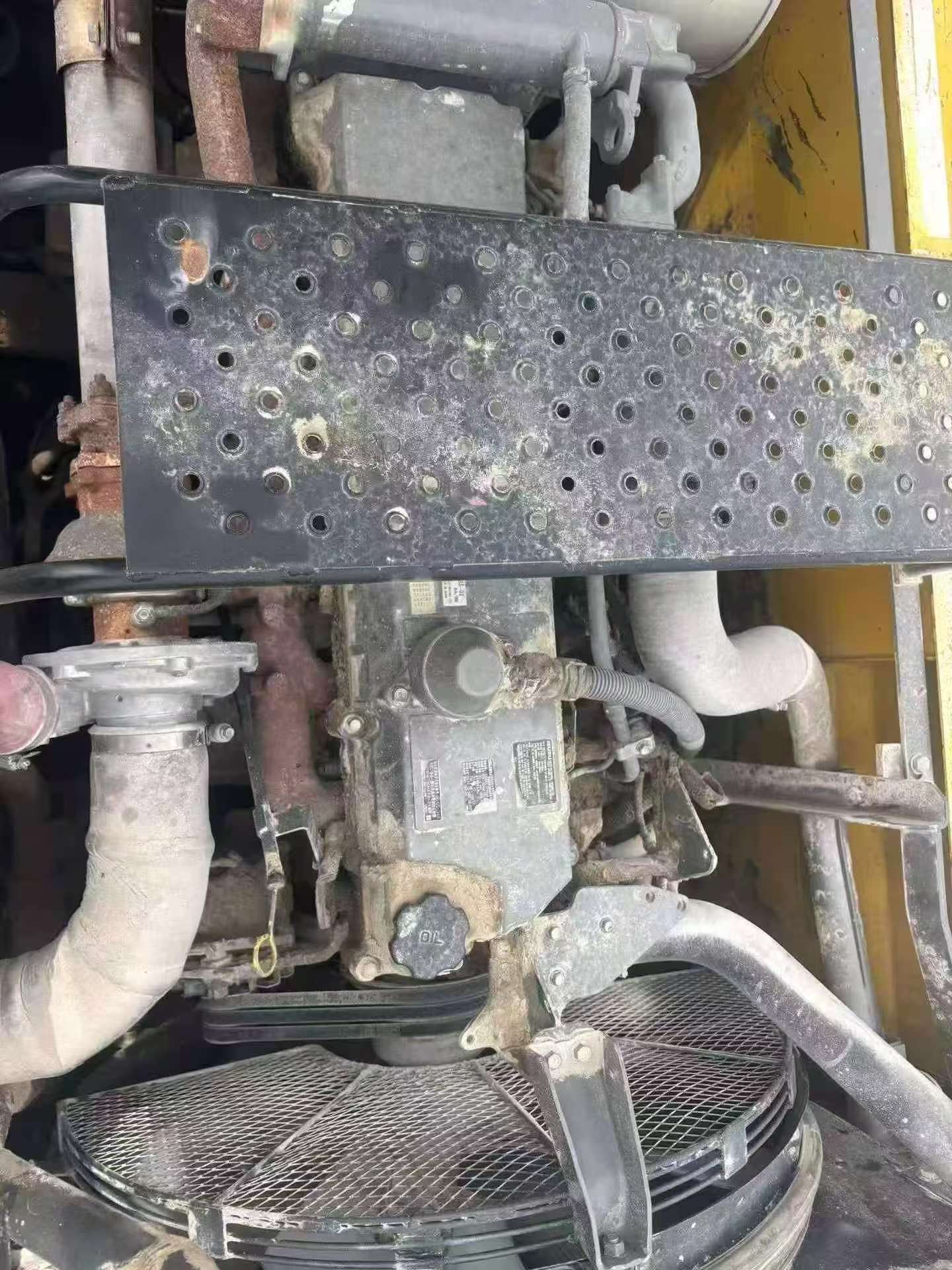

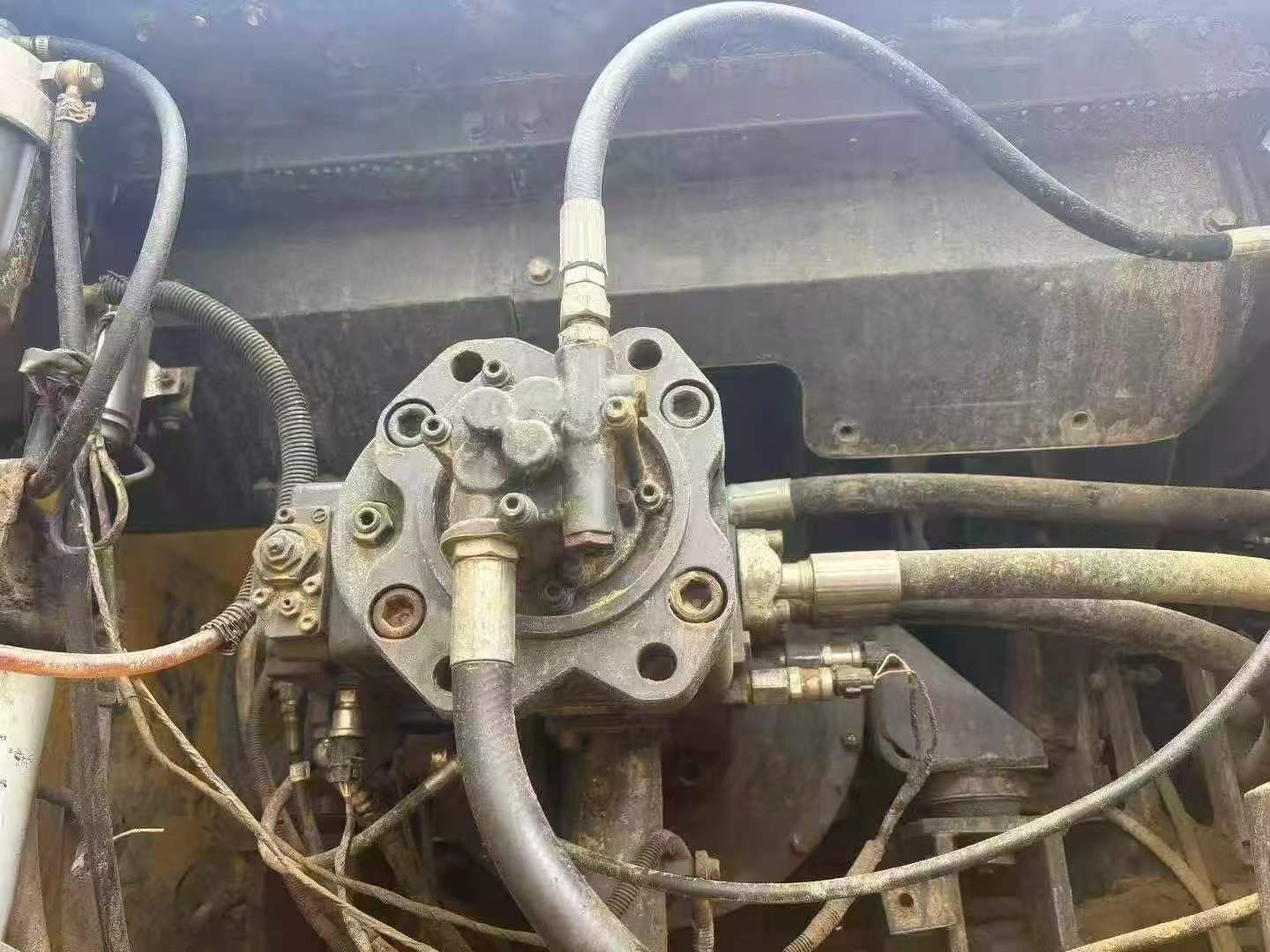

The excavator is in exceptional operational condition, requiring no pre-purchase inspection concerns. Critical components including the engine, hydraulic pumps, and swing motor show no leaks or seepage—a testament to proper maintenance throughout its service life. The undercarriage retains its original track shoes and plates, indicating careful operation and minimal wear.
- Operating weight: Approximately 30 tonnes
- Original equipment track assembly
- All major components sealed and leak-free
- Ready for immediate deployment
Ideal for earthmoving, excavation, and general construction applications. Currently located in Beijing with documentation available for international export.
| Specifications | Value |
|---|---|
| No. | 1173438 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30500 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3100 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 154/1800 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 182 / 197 |
| Rod digging force (kN) | 131/142 |
| Maximum tractive force (kN) | 266.8 |
| Travel speed (km/h) | 4.6/2.8 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 450 |
| Hydraulic Tank (L) | 147 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10520 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3490 |
| Back end turning radius (mm) | 3160 |
| Total track length (mm) | 4650 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum height at minimum turning radius (mm) | 4000 |
| Maximum digging radius (mm) | 10670 |
| Maximum digging depth (mm) | 7020 |
| Maximum excavation height (mm) | 10100 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6860 |
