Product Description

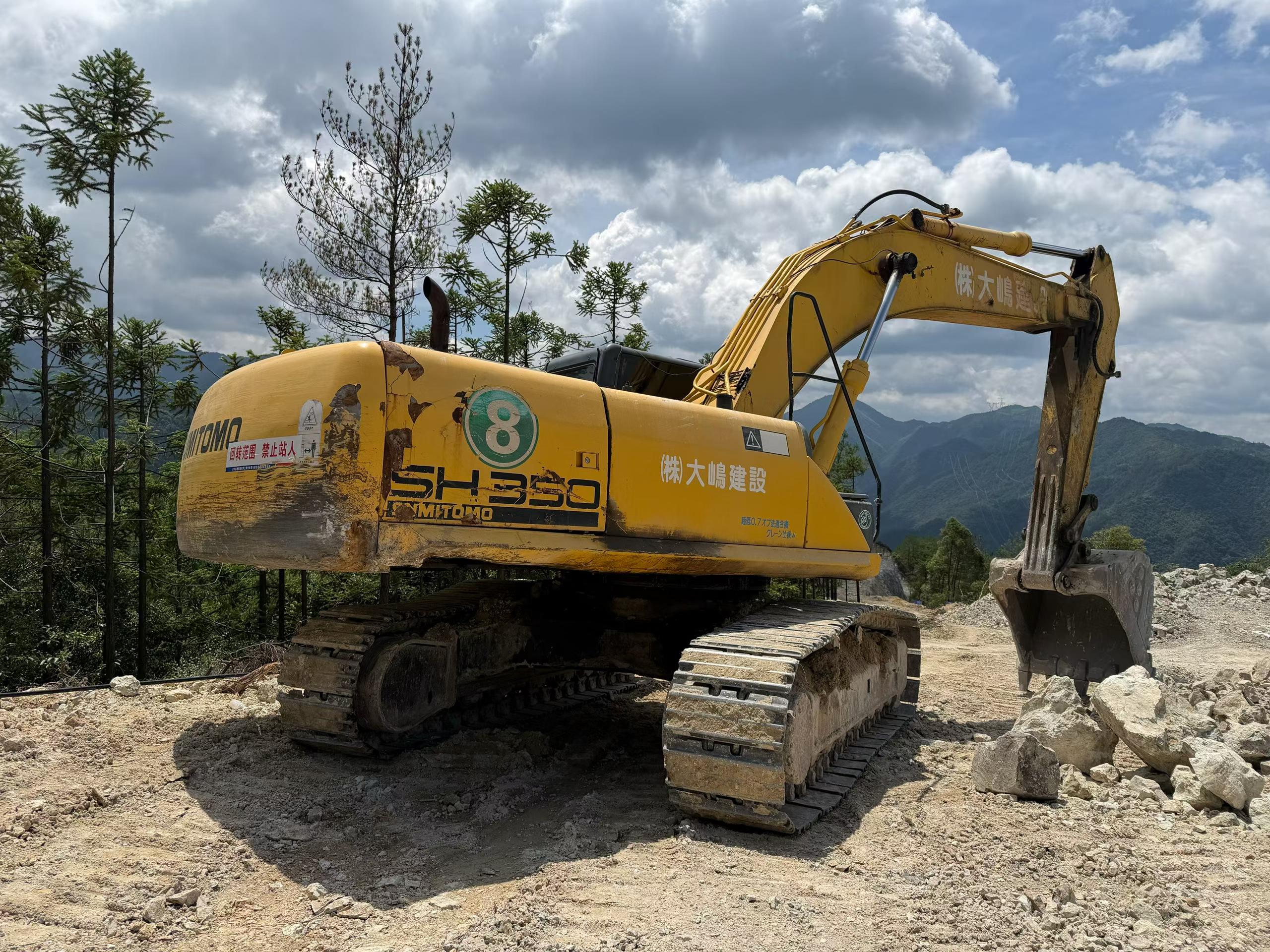

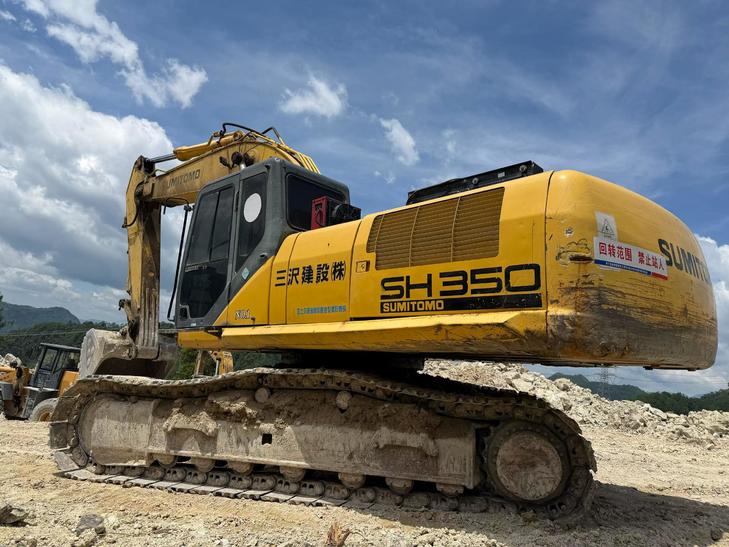

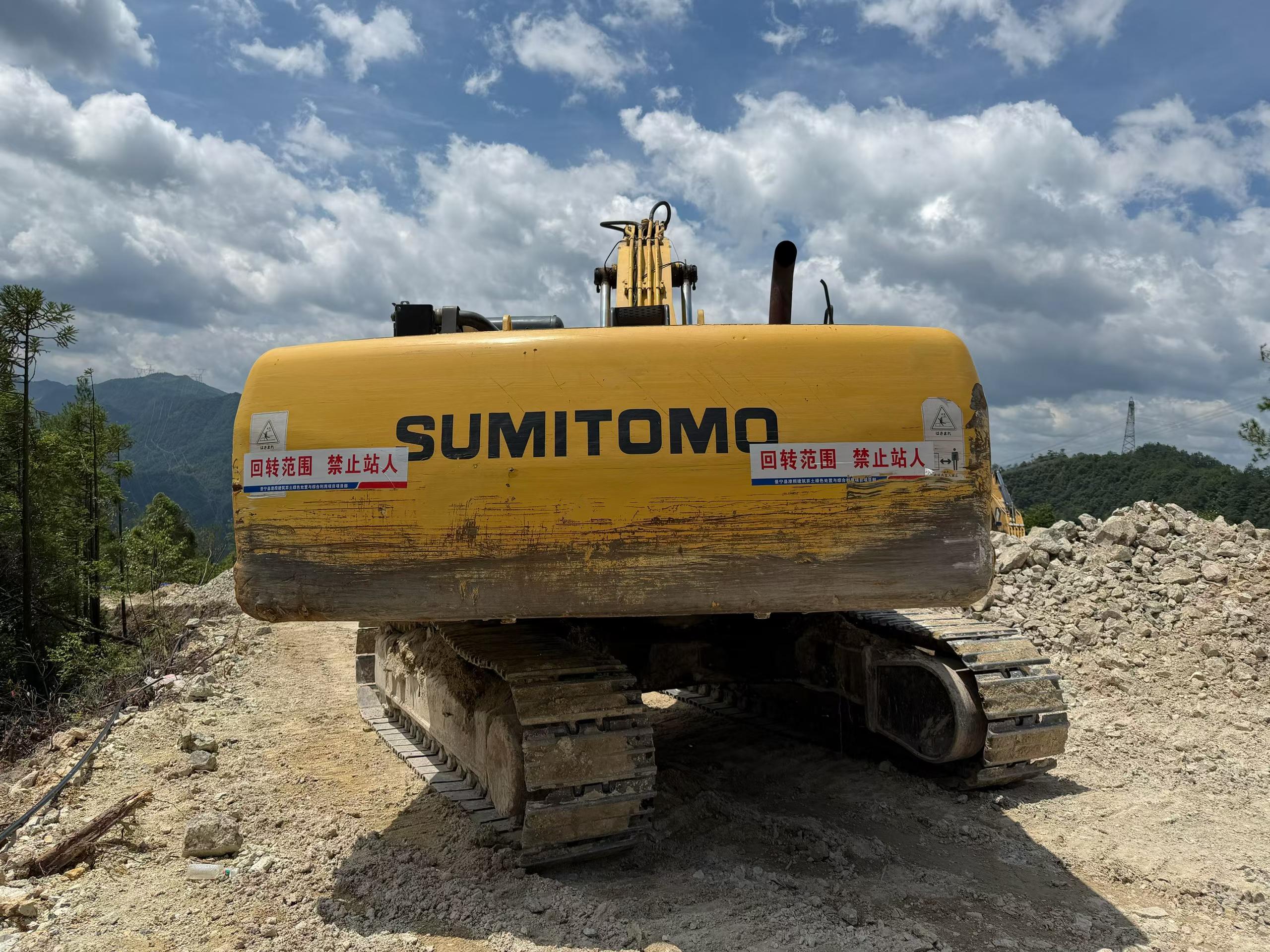

Available from our yard in Zhejiang, China: a 2015 Sumitomo SH350-5 tracked excavator, offered as a used working unit for contractors, plant hire firms and dealers who need dependable 35-tonne class digging and loading capacity.
- Year: 2015

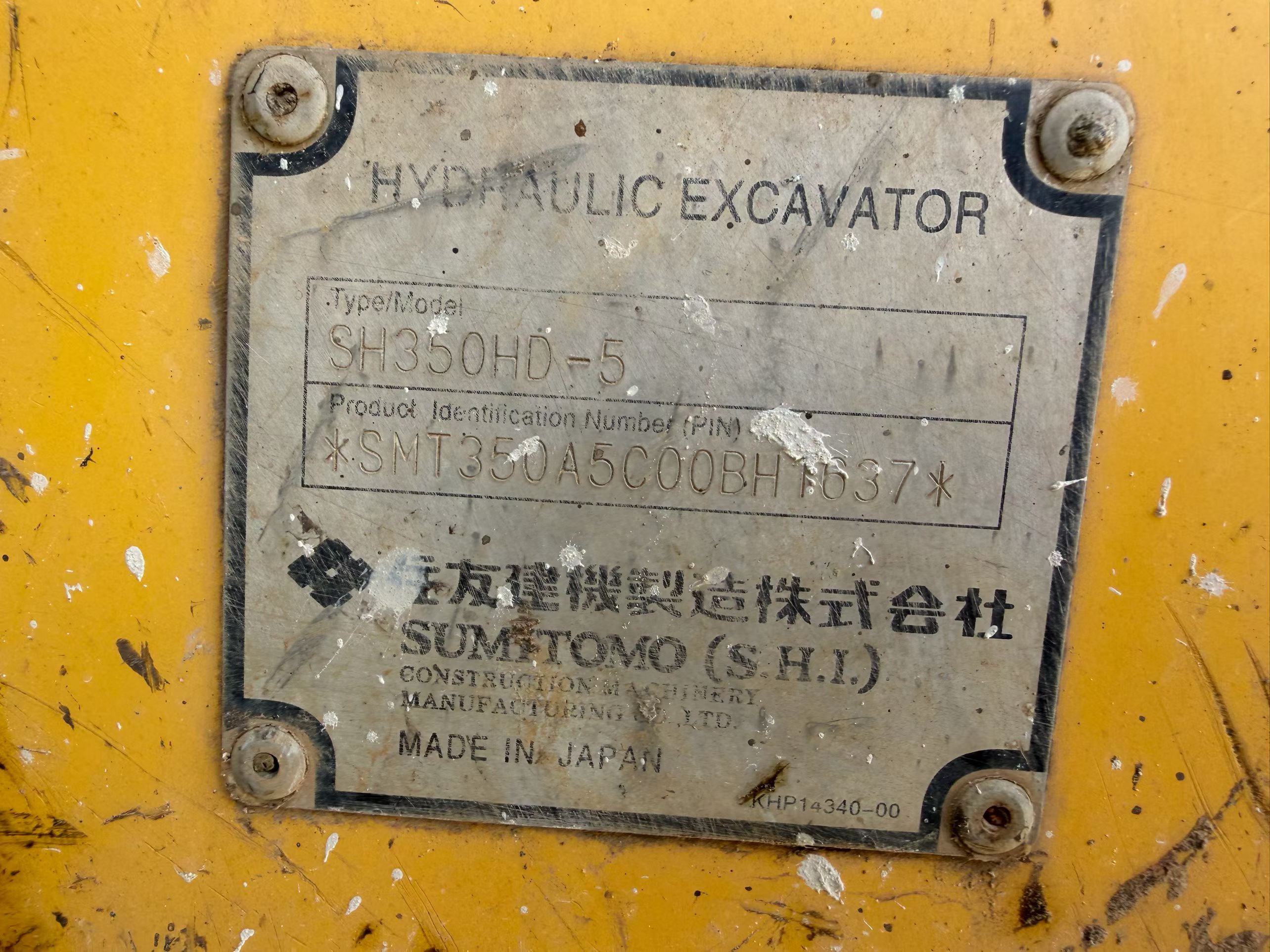

- Make and model: Sumitomo SH350-5
- Machine class: 35-tonne hydraulic excavator on a tracked undercarriage
- Condition: used, in working order
- Supporting material: detailed photographs and walkaround video available on request
- Location: Zhejiang, China
- Price: RMB 158,000 as listed
This size class is suited to bulk excavation, trenching, site preparation and truck loading, and the Sumitomo SH series is a common sight on earthmoving work throughout the region. The machine can be inspected at our Zhejiang yard, and we can assist with viewing, loading and export documentation for overseas buyers.
Send through your requirements and we will confirm availability and arrange inspection or shipping details.
| Specifications | Value |
|---|---|
| No. | 1155924 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
