Product Description

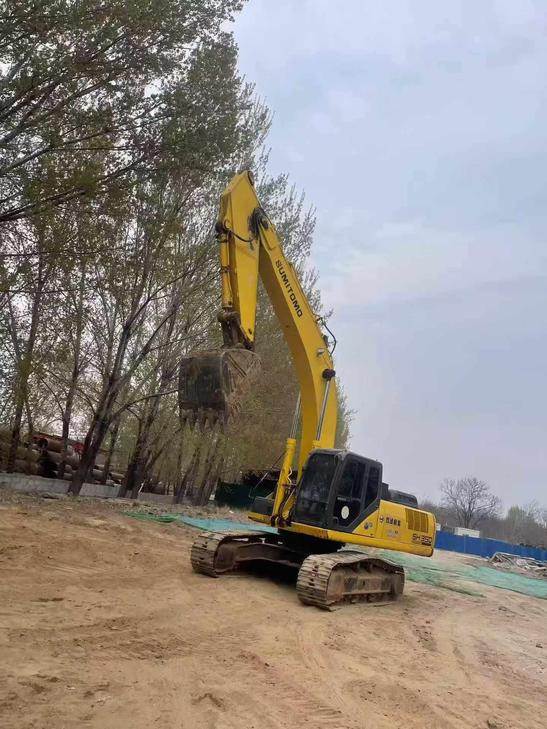

This 2020 Sumitomo SH350-5 hydraulic excavator represents a well-maintained mid-size machine currently located in Beijing, China. The unit has been primarily used for earthmoving applications without hammer attachment, preserving the hydraulic system and structural integrity. Operational performance remains strong with responsive digging force and efficient cycle times.
- Clean exhaust system with no visible smoke emissions
- Major components show minimal seepage with proper sealing maintained
- Undercarriage in excellent condition with even wear patterns
- Hydraulic system delivers consistent power and speed
- Structural frame and boom assembly show no deformation
- Detailed photographic documentation and operational video available upon request
Suitable for general excavation, site development, and material handling operations. Machine is available for inspection in Beijing with complete service records.
| Specifications | Value |
|---|---|
| No. | 1085330 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
