2020 Sumitomo SH350-5

1/5
Buy Sumitomo SH350-5 Used Excavator / 1

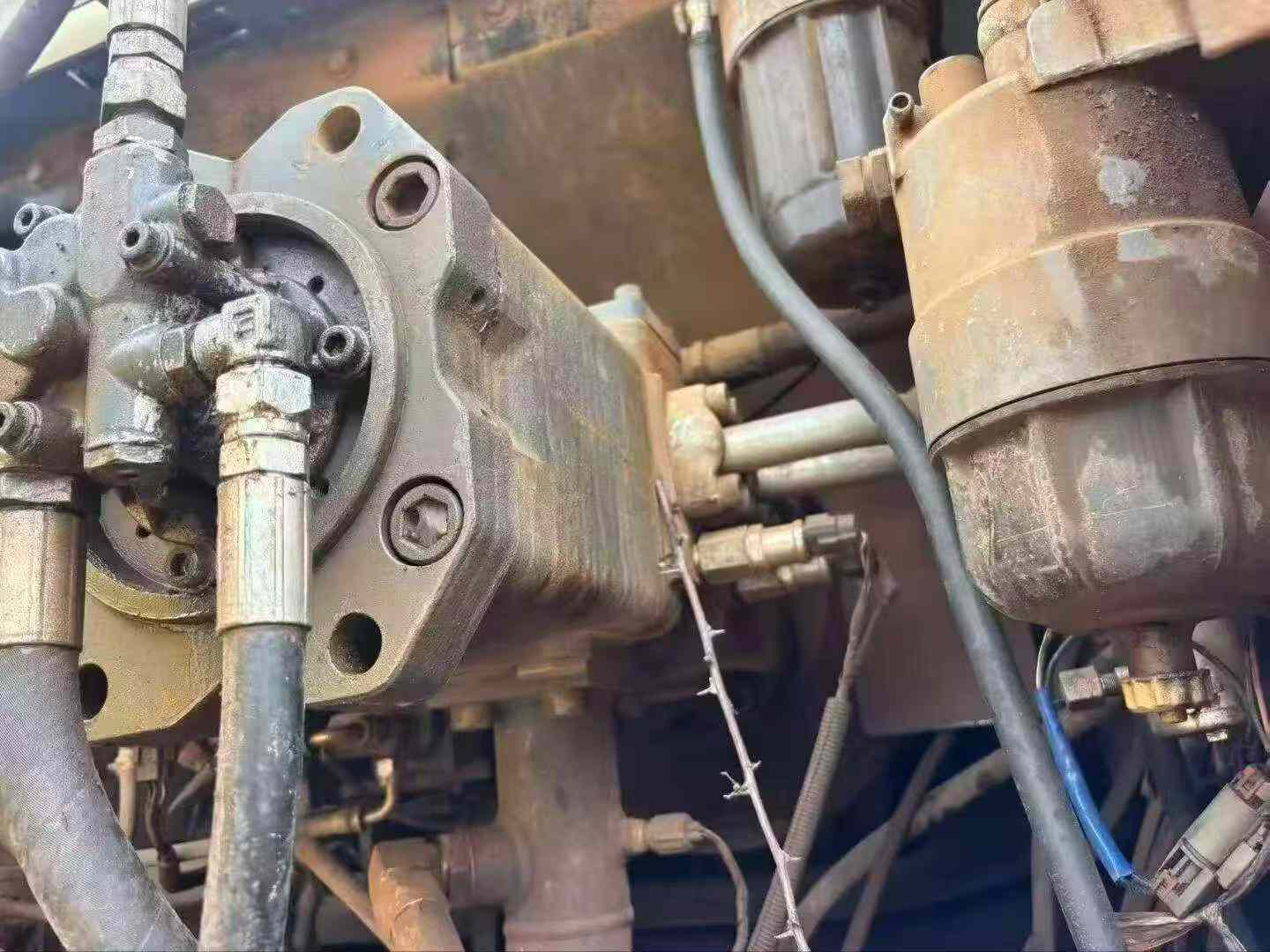

Buy Sumitomo SH350-5 Used Excavator / 2

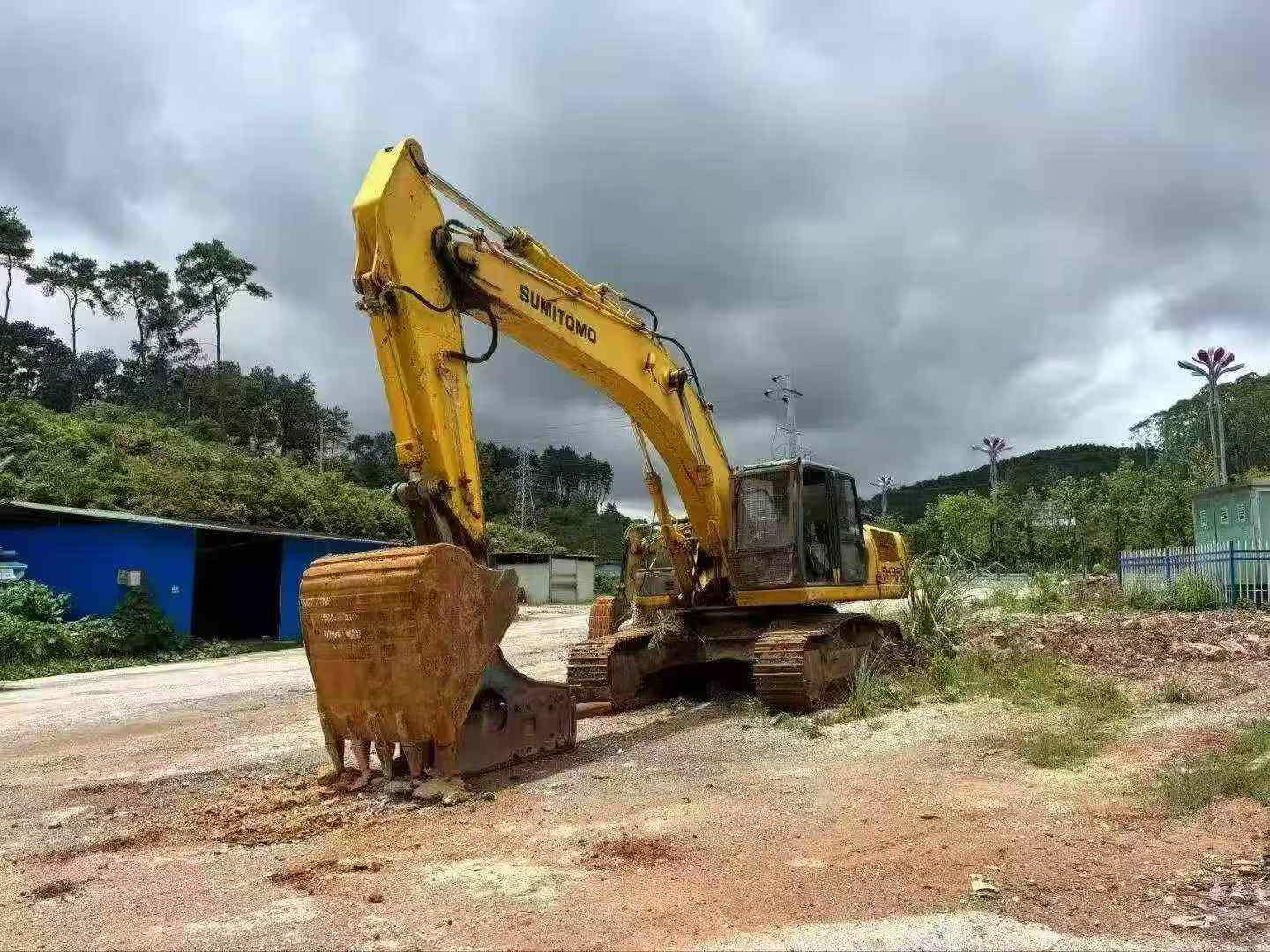

Buy Sumitomo SH350-5 Used Excavator / 3

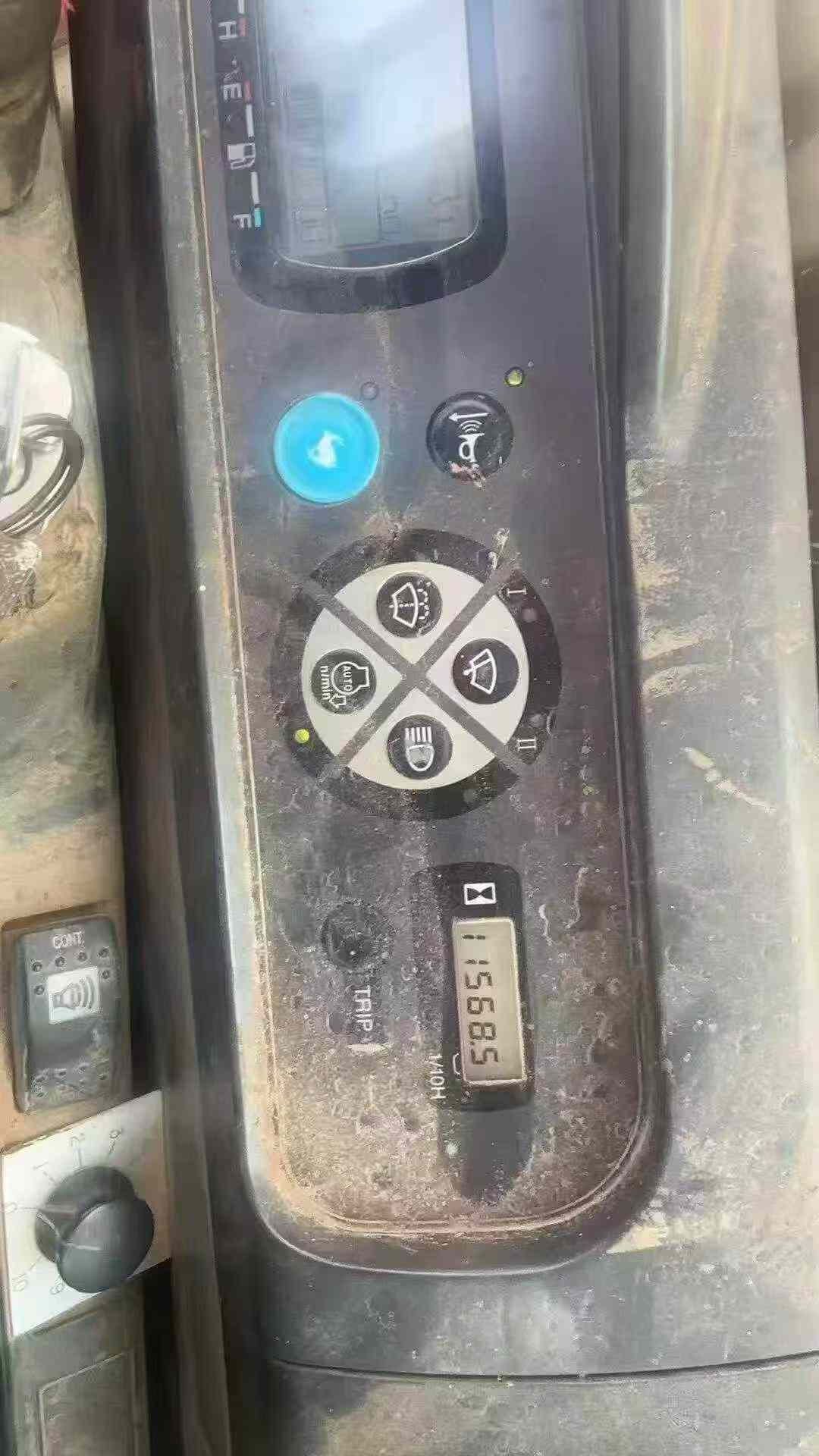

Buy Sumitomo SH350-5 Used Excavator / 4

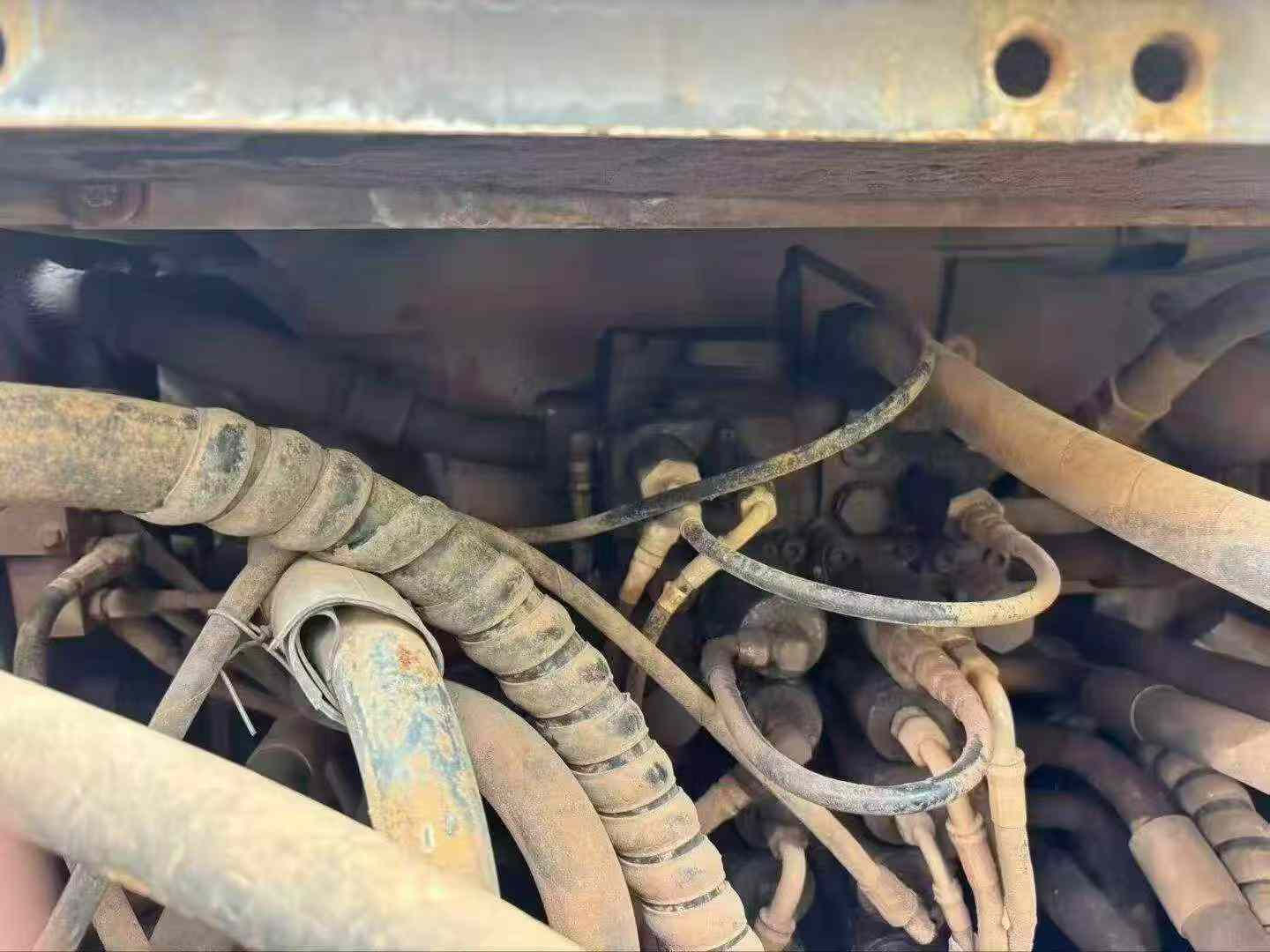

Buy Sumitomo SH350-5 Used Excavator / 5

Product Description

This 2020 Sumitomo SH350-5 hydraulic excavator represents excellent value in the used heavy equipment market. Currently located in Sichuan, China, this machine offers the reliability and performance that Sumitomo is known for in the construction and earthmoving sectors.

The SH350-5 is a mid-size excavator designed for demanding applications including site preparation, foundation work, and material handling. With approximately 4 years of operational history, this unit maintains the robust build quality characteristic of Japanese engineering.

Key features include:

  • 2020 model year with competitive pricing
  • Sumitomo's proven hydraulic system for efficient operation
  • Suitable for medium to heavy-duty applications
  • Currently available for inspection in Sichuan, China

This machine is ideal for contractors seeking dependable performance at a value-oriented price point. Contact us for detailed specifications, inspection arrangements, and shipping solutions worldwide.

SpecificationsValue
No.1095815
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1095815

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Sichuan China

Pub Date
