2020 Sumitomo SH350-5

1/9
Buy Sumitomo SH350-5 Used Excavator / 1

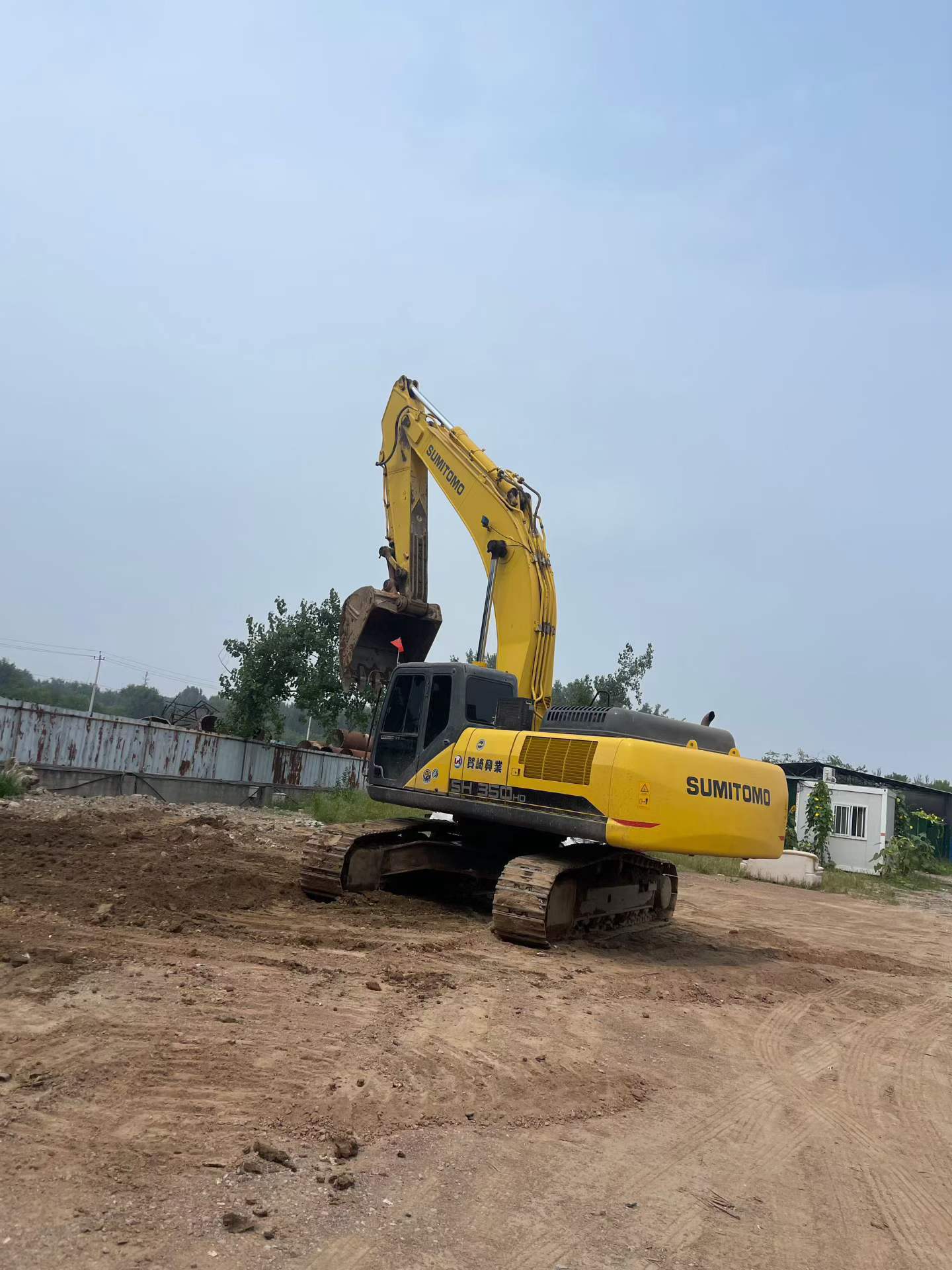

Buy Sumitomo SH350-5 Used Excavator / 2

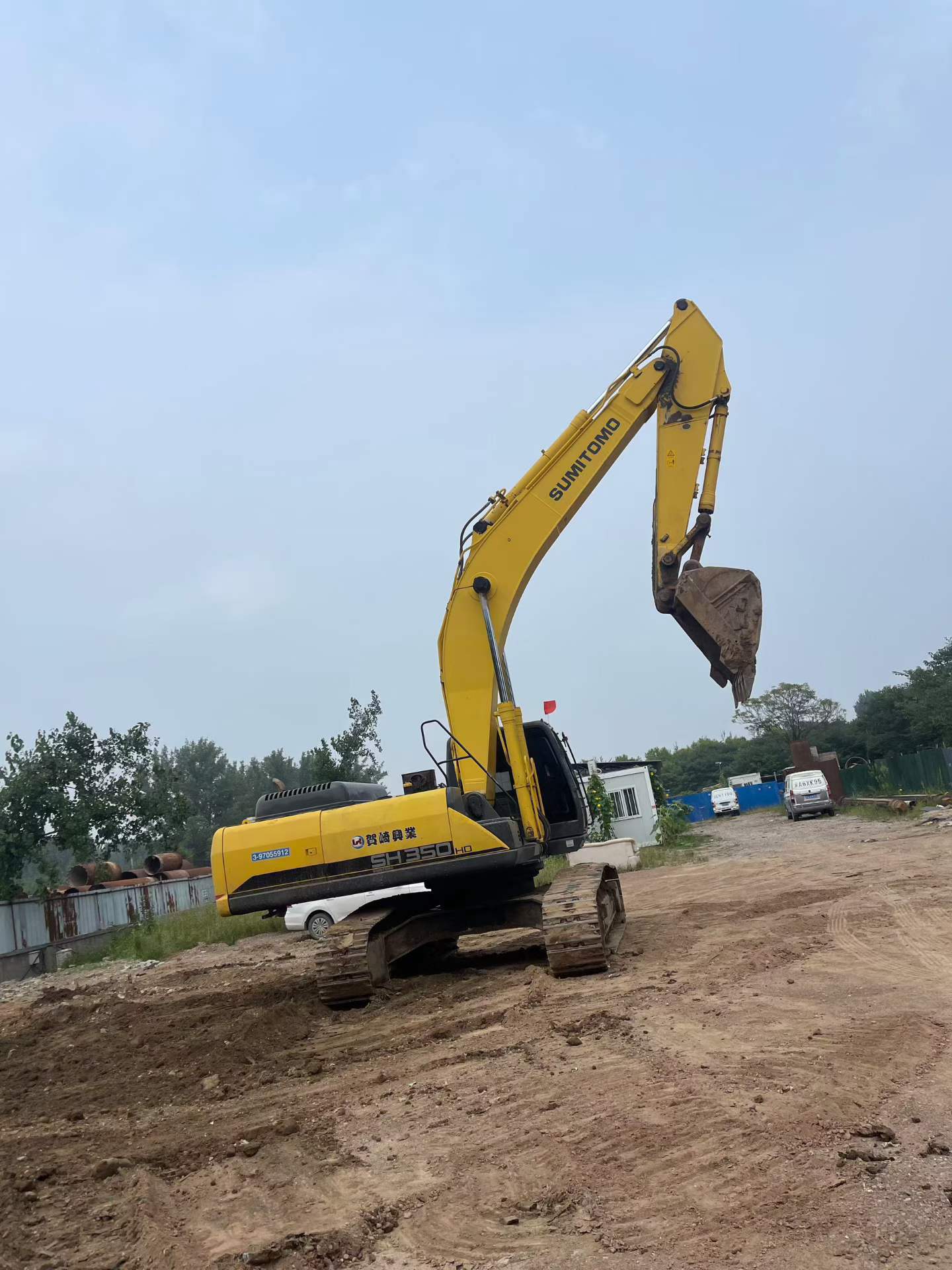

Buy Sumitomo SH350-5 Used Excavator / 3

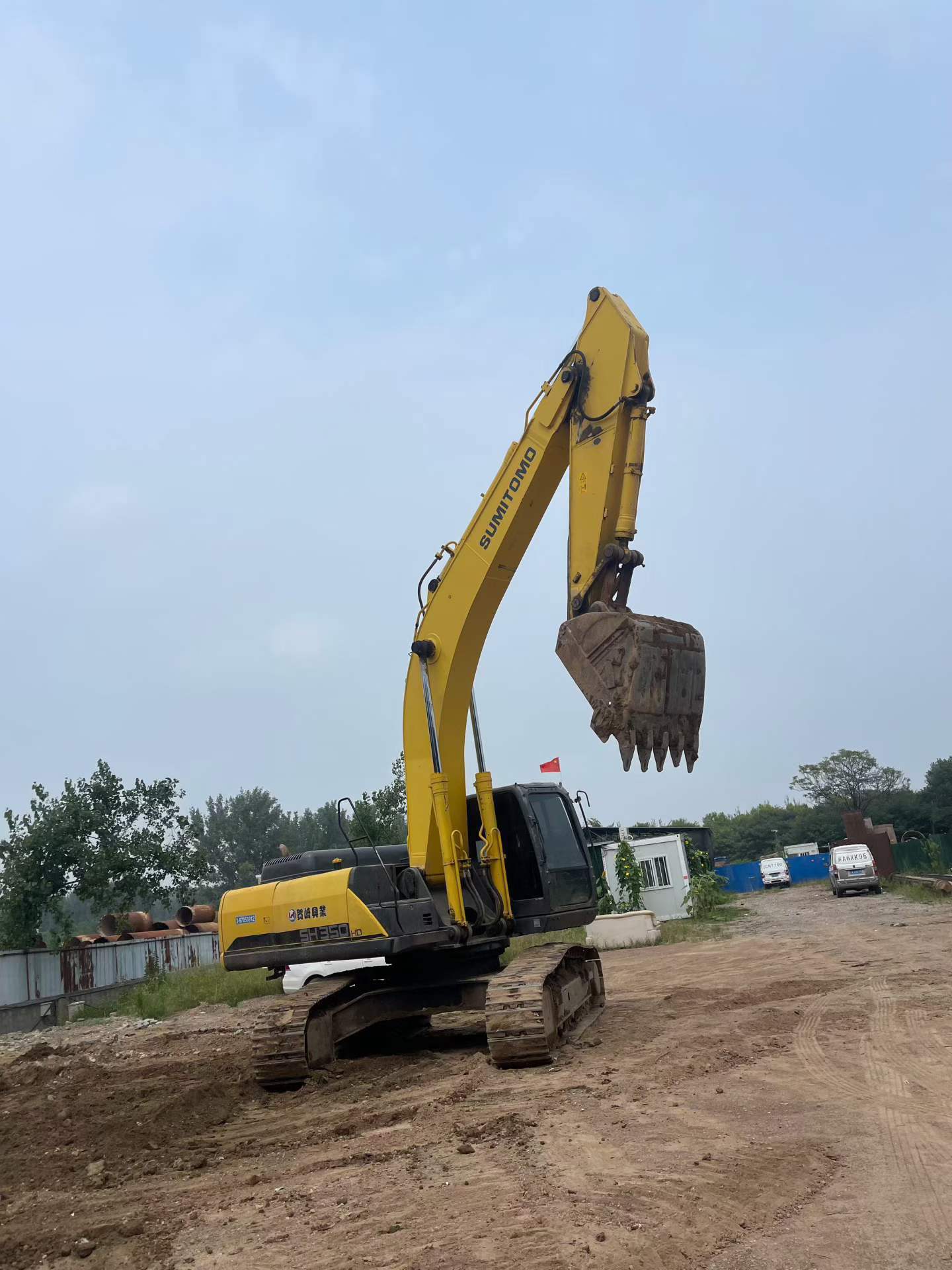

Buy Sumitomo SH350-5 Used Excavator / 4

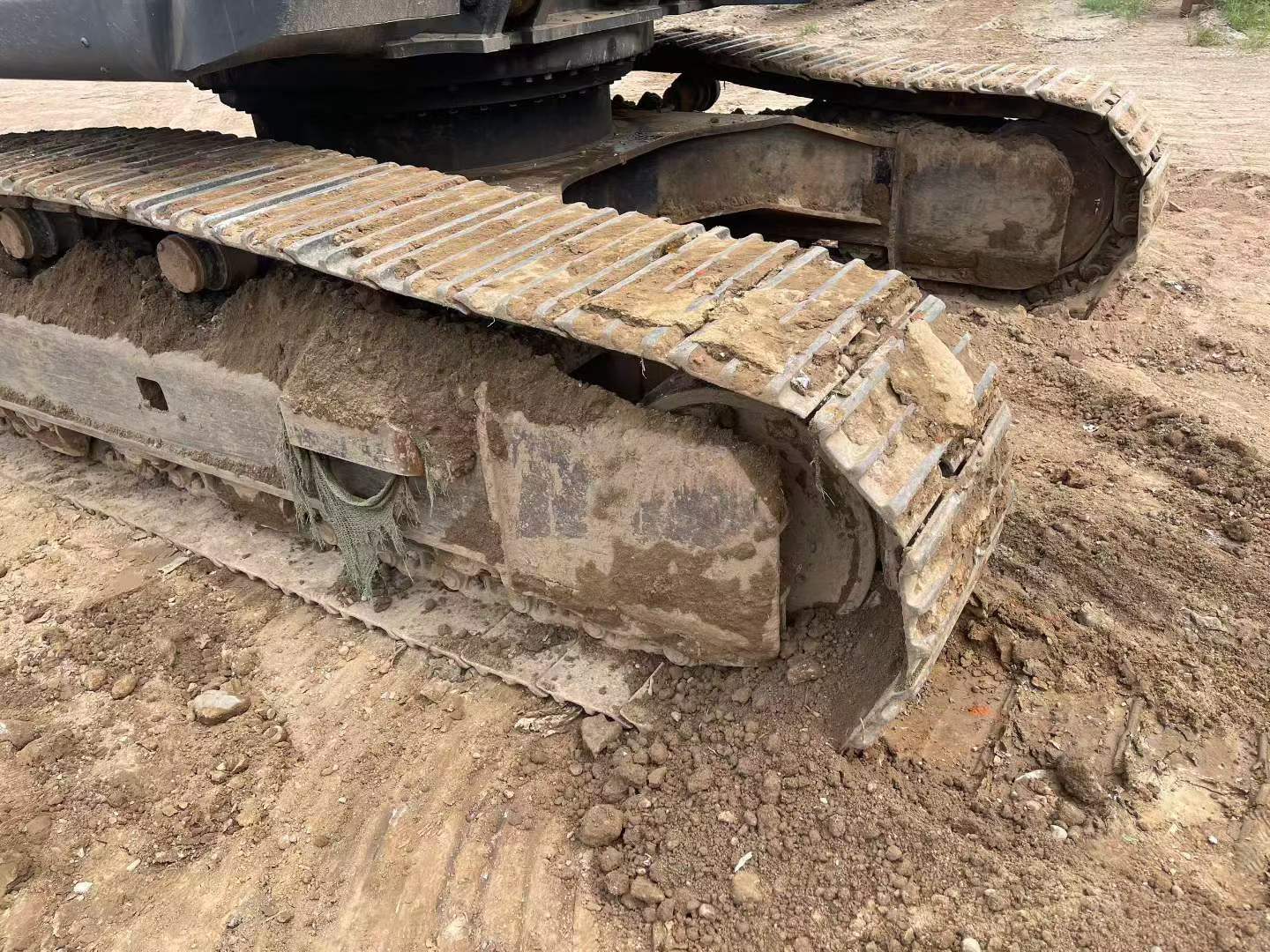

Buy Sumitomo SH350-5 Used Excavator / 5

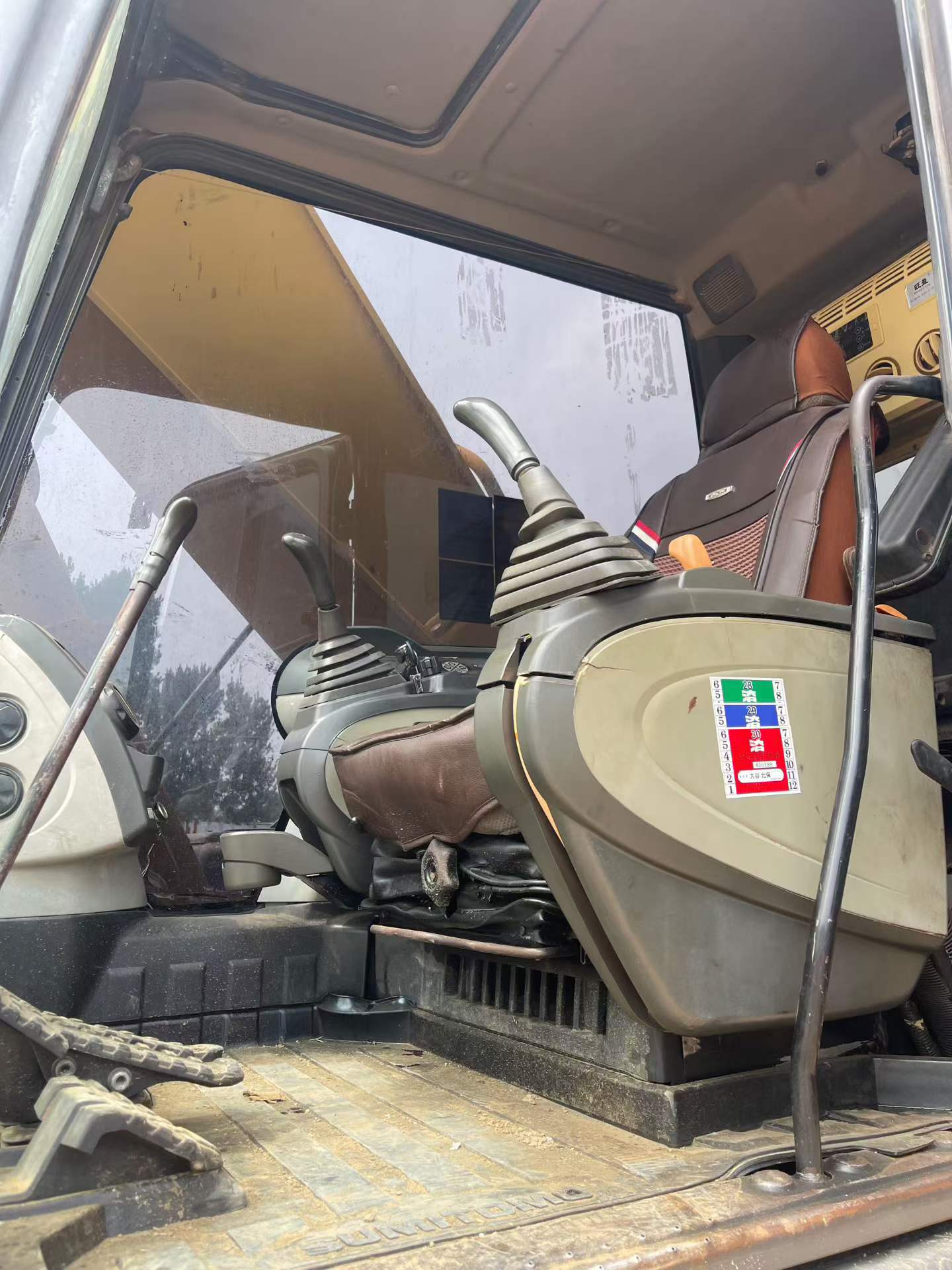

Buy Sumitomo SH350-5 Used Excavator / 6

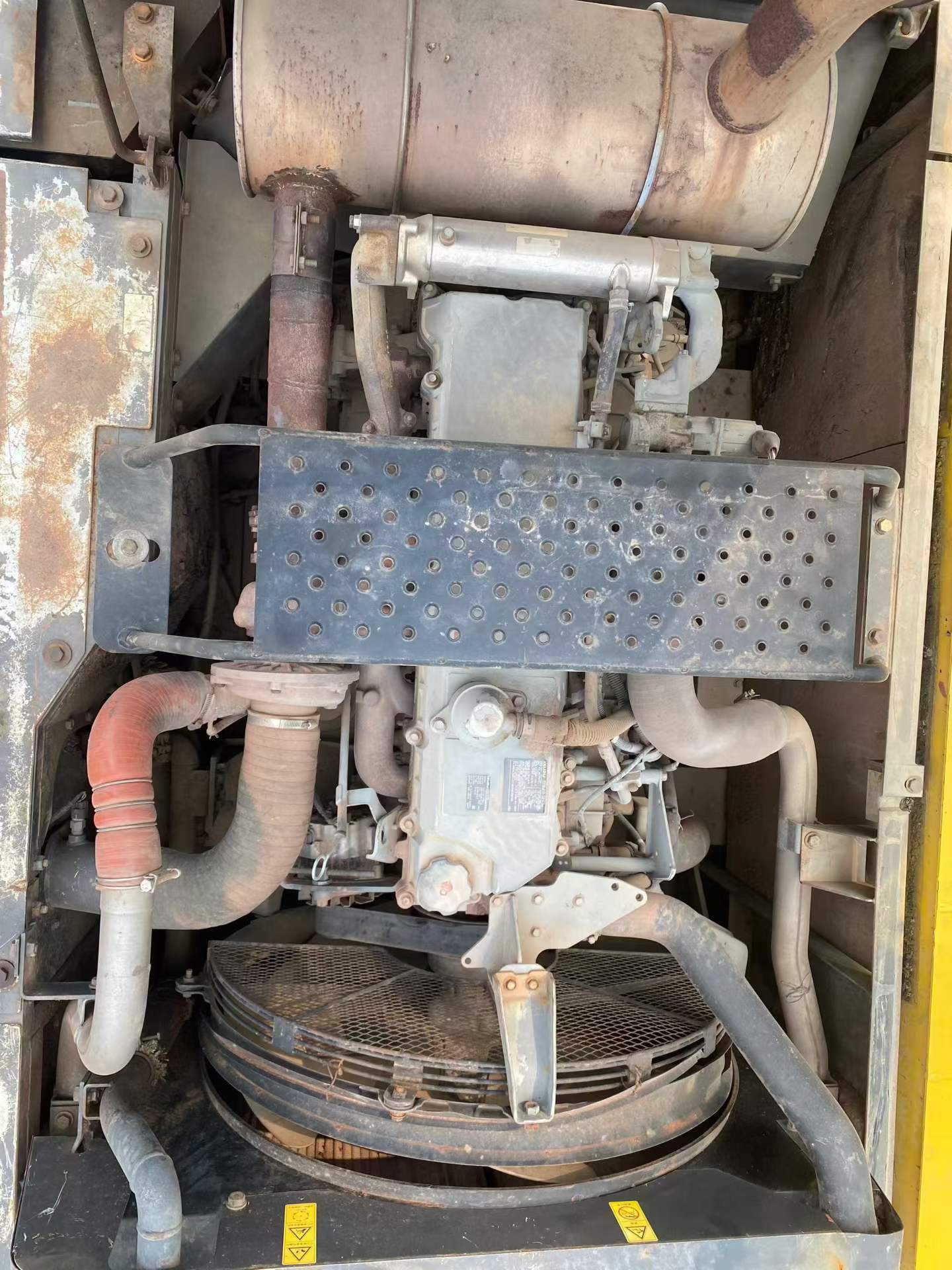

Buy Sumitomo SH350-5 Used Excavator / 7

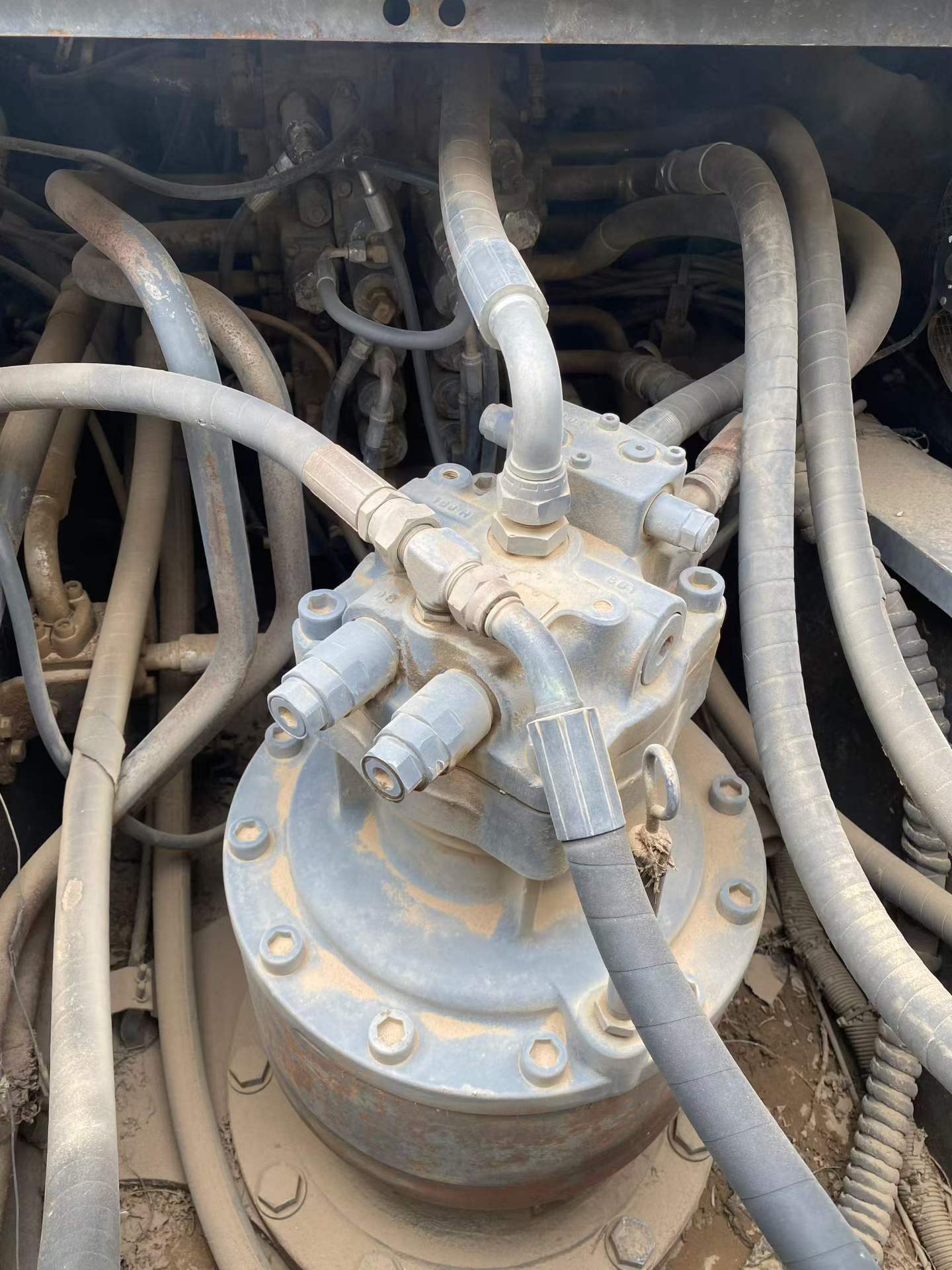

Buy Sumitomo SH350-5 Used Excavator / 8

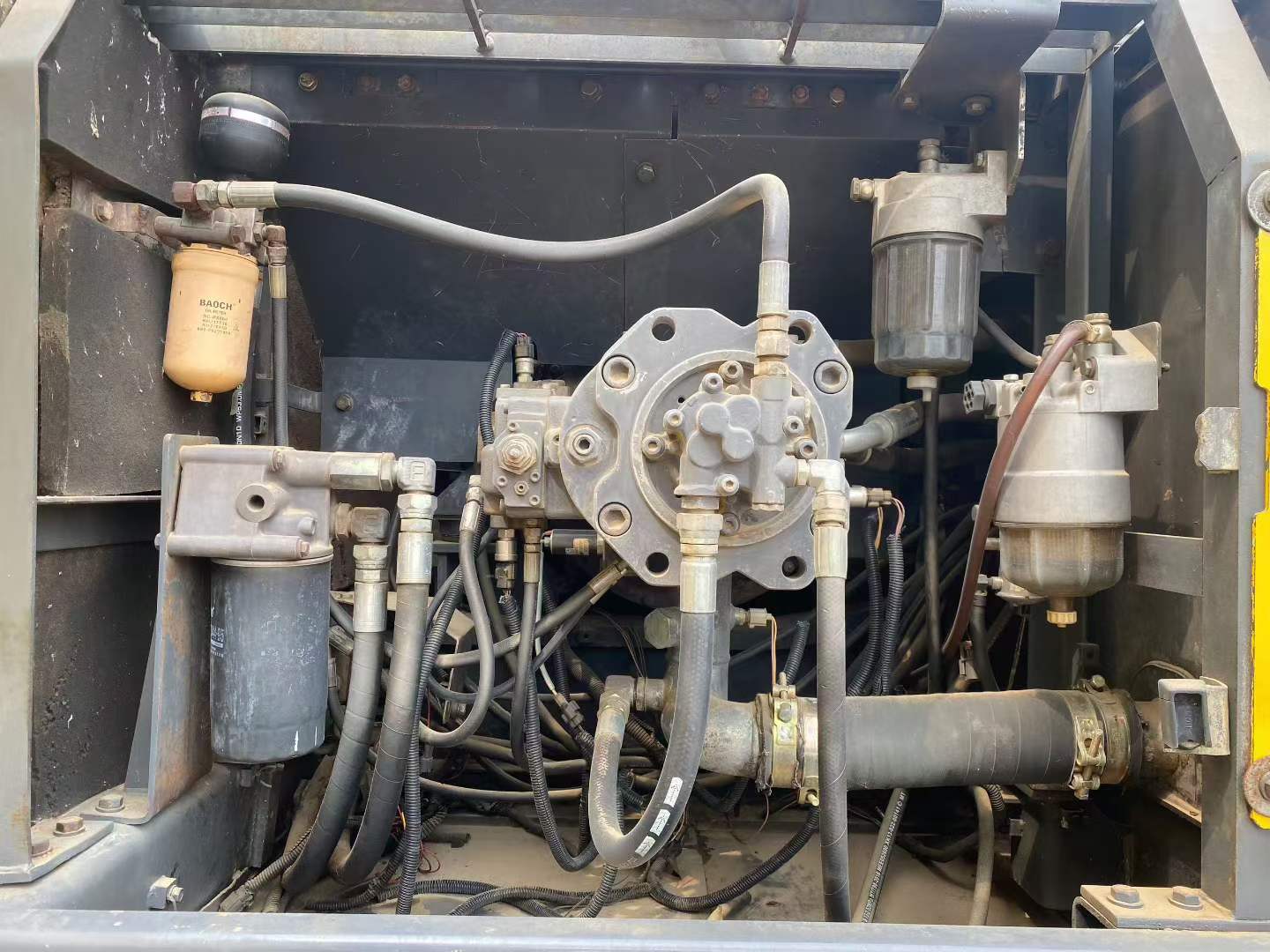

Buy Sumitomo SH350-5 Used Excavator / 9

Product Description

Discover the exceptional quality of the 2020 Sumitomo SH350-5, currently available in Peking, China. This machine has been meticulously maintained and is in prime condition, having been used exclusively for earthmoving without any hammer work, ensuring its structural integrity. Known for its robust performance, this excavator offers powerful digging capabilities and fast operational speeds, making it a reliable asset for any construction project. The SH350-5 is also notable for its well-maintained undercarriage, which is free from leaks, adding to its durability and efficiency. Detailed images and video footage are available upon request, providing a comprehensive view of its outstanding condition.

  • Year: 2020
  • Brand: Sumitomo
  • Model: SH350-5
  • Location: Peking, China
  • Condition: Excellent, with no hammer usage
  • Features: Strong performance, fast operation, leak-free major components, well-preserved undercarriage
SpecificationsValue
No.1133149
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1133149

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Peking China

Pub Date
