2020 Sumitomo SH350-5

1/3

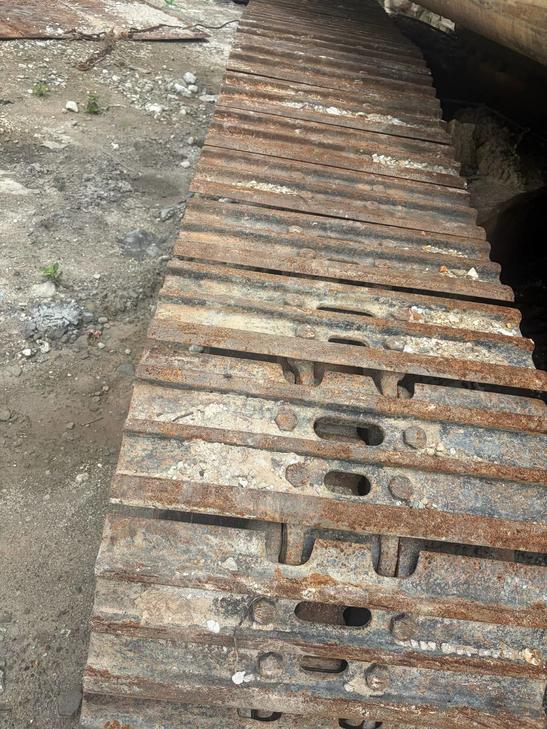

Buy Sumitomo SH350-5 Used Excavator / 1
Buy Sumitomo SH350-5 Used Excavator / 2
Buy Sumitomo SH350-5 Used Excavator / 3

Product Description

2020 Sumitomo SH350-5 hydraulic excavator available from Guangdong, China. This 35-ton class machine represents Sumitomo's fifth-generation design, engineered for demanding excavation and material handling applications in construction, mining, and infrastructure projects.

Key specifications:

  • Operating weight: approximately 35,000 kg
  • Bucket capacity range: 1.4 - 1.9 m³
  • Compatible with Kato 1430 original track chains (203 pitch)
  • Fuel-efficient engine meeting tier emissions standards
  • Robust undercarriage suitable for extended service life

The SH350-5 features durable construction with interchangeable components, including universal track chain compatibility with select Kato models. This machine offers reliable performance for medium to heavy-duty earthmoving operations. Inspection welcome in Guangdong province.

SpecificationsValue
No.1138795
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1138795

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Guangdong China

Pub Date
