2020 Sumitomo SH350-5

1/8
Buy Sumitomo SH350-5 Used Excavator / 1
Buy Sumitomo SH350-5 Used Excavator / 2
Buy Sumitomo SH350-5 Used Excavator / 3
Buy Sumitomo SH350-5 Used Excavator / 4
Buy Sumitomo SH350-5 Used Excavator / 5
Buy Sumitomo SH350-5 Used Excavator / 6
Buy Sumitomo SH350-5 Used Excavator / 7
Buy Sumitomo SH350-5 Used Excavator / 8

Product Description

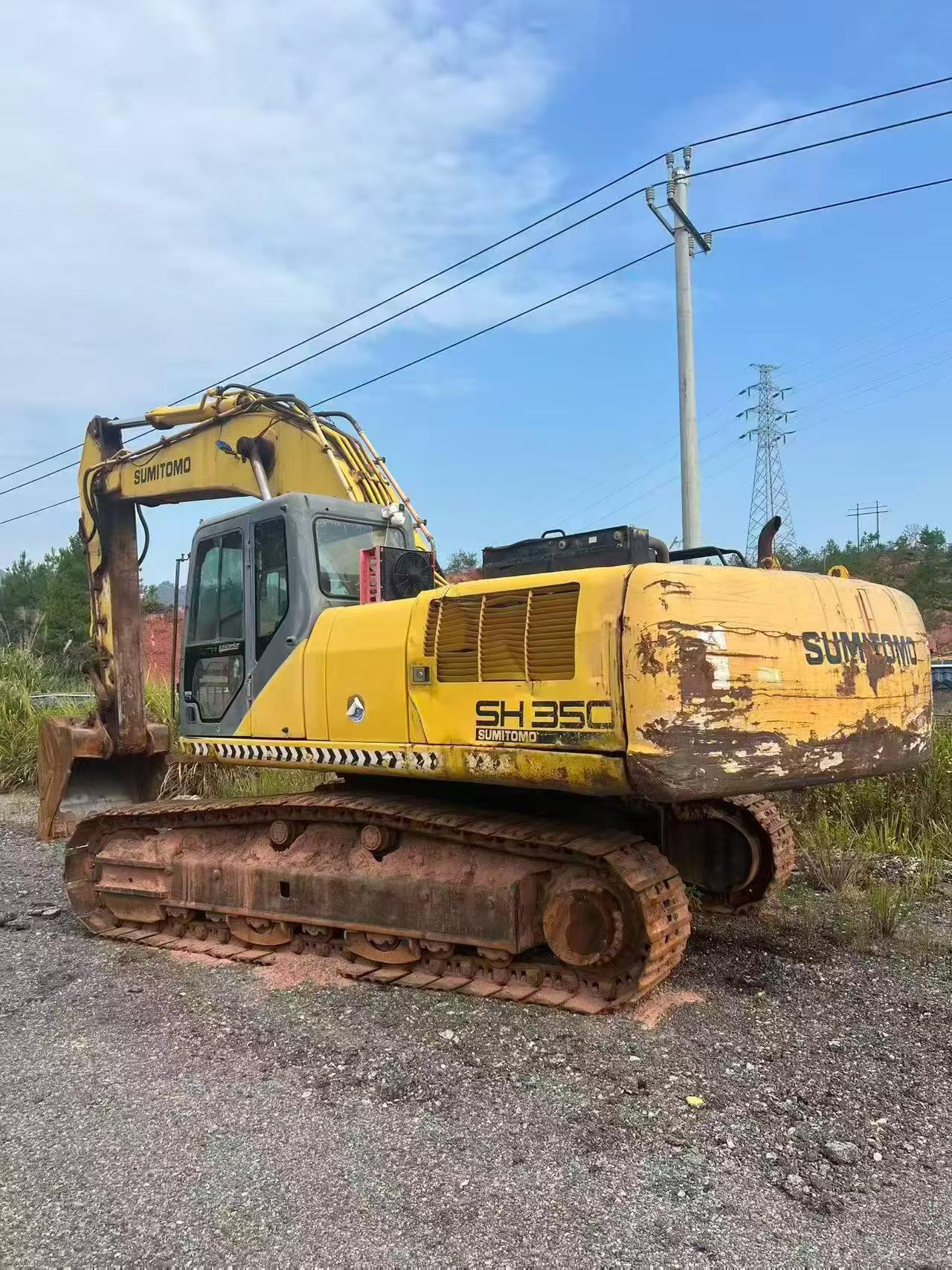

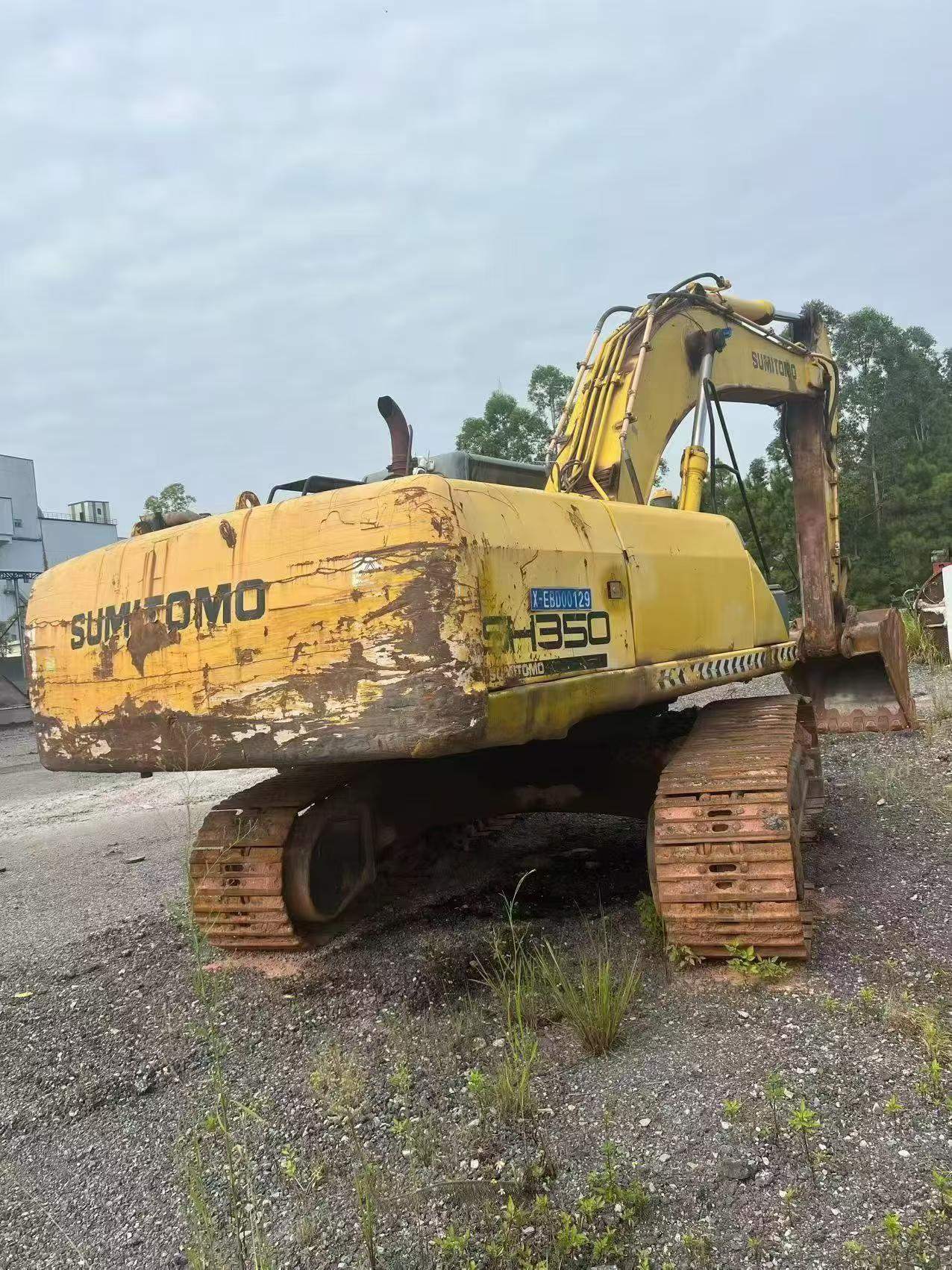

This 2020 Sumitomo SH350-5 hydraulic excavator is available from our Jiangxi, China location. With approximately 80,000 RMB in value, this machine represents a solid mid-life investment for contractors seeking proven Sumitomo reliability and performance in the 35-ton class.

The SH350-5 is built for demanding earthmoving, demolition, and heavy construction applications. Sumitomo's engineering delivers efficient hydraulic systems, robust undercarriage components, and operator-focused cab design. This model balances digging force with fuel economy, making it suitable for site development, quarry work, and infrastructure projects.

  • Operating weight class: approximately 35 tons
  • Sumitomo SH350-5 platform with proven durability
  • Located in Jiangxi Province, China
  • Suitable for medium to large-scale construction operations

Inspection recommended prior to purchase. Contact us for availability, current machine hours, and delivery options.

SpecificationsValue
No.1157693
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1157693

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Jiangxi China

Pub Date:
