2020 Sumitomo SH350-5

1/7

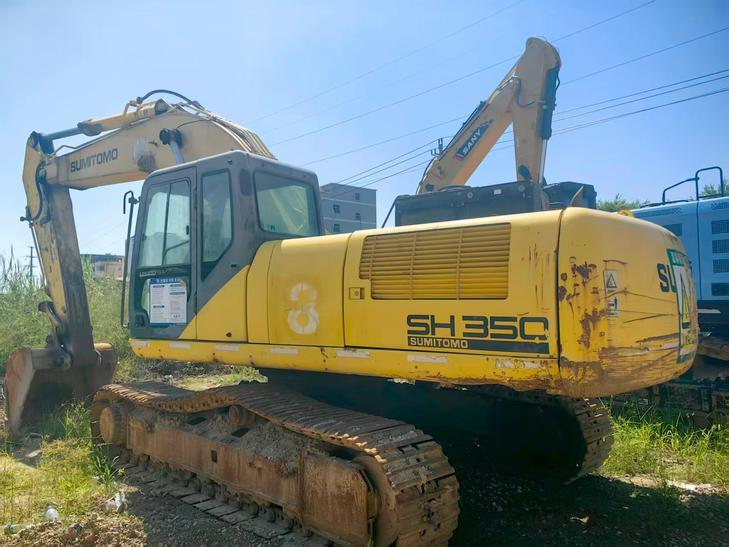

Buy Sumitomo SH350-5 Used Excavator / 1

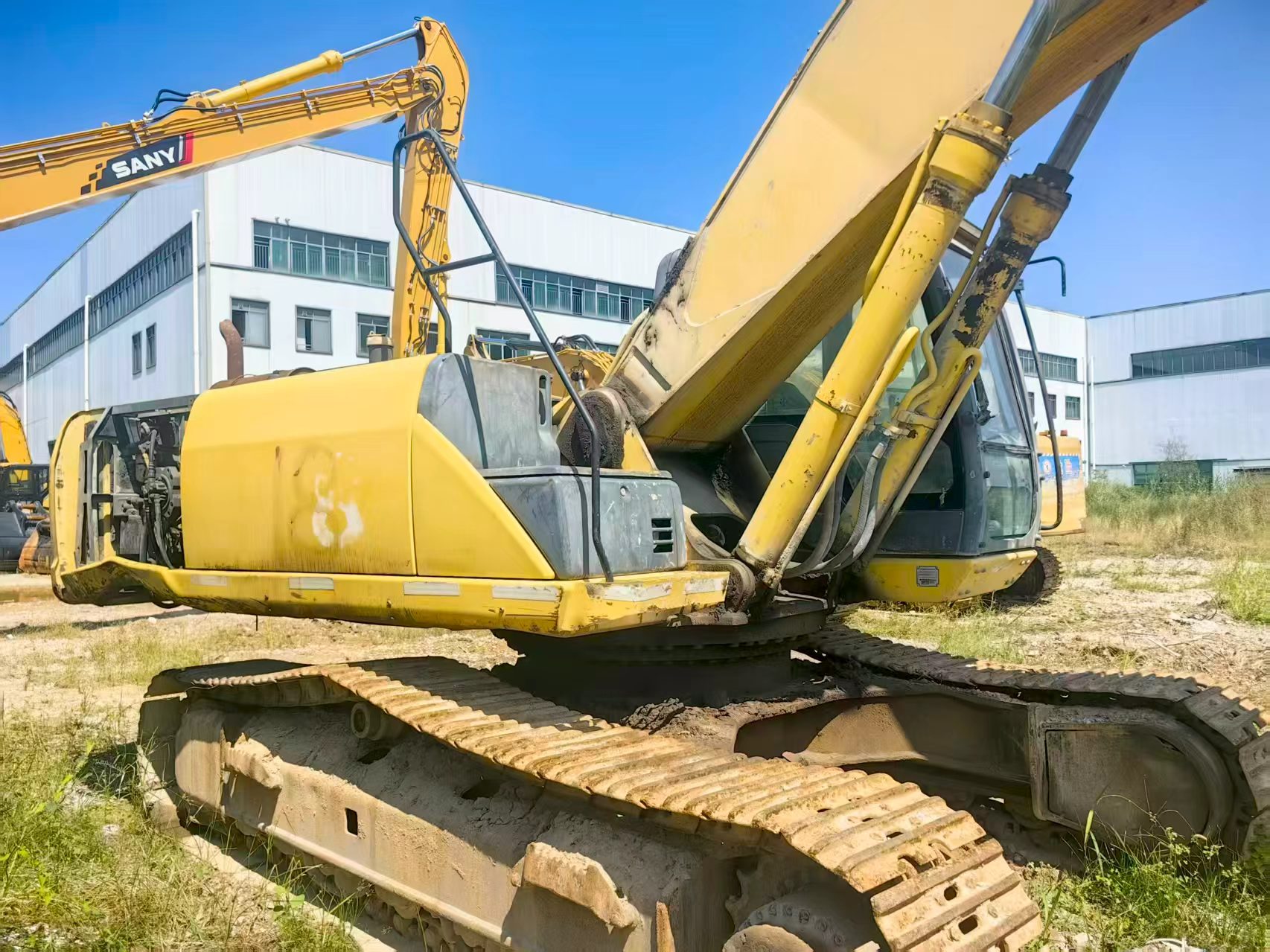

Buy Sumitomo SH350-5 Used Excavator / 2

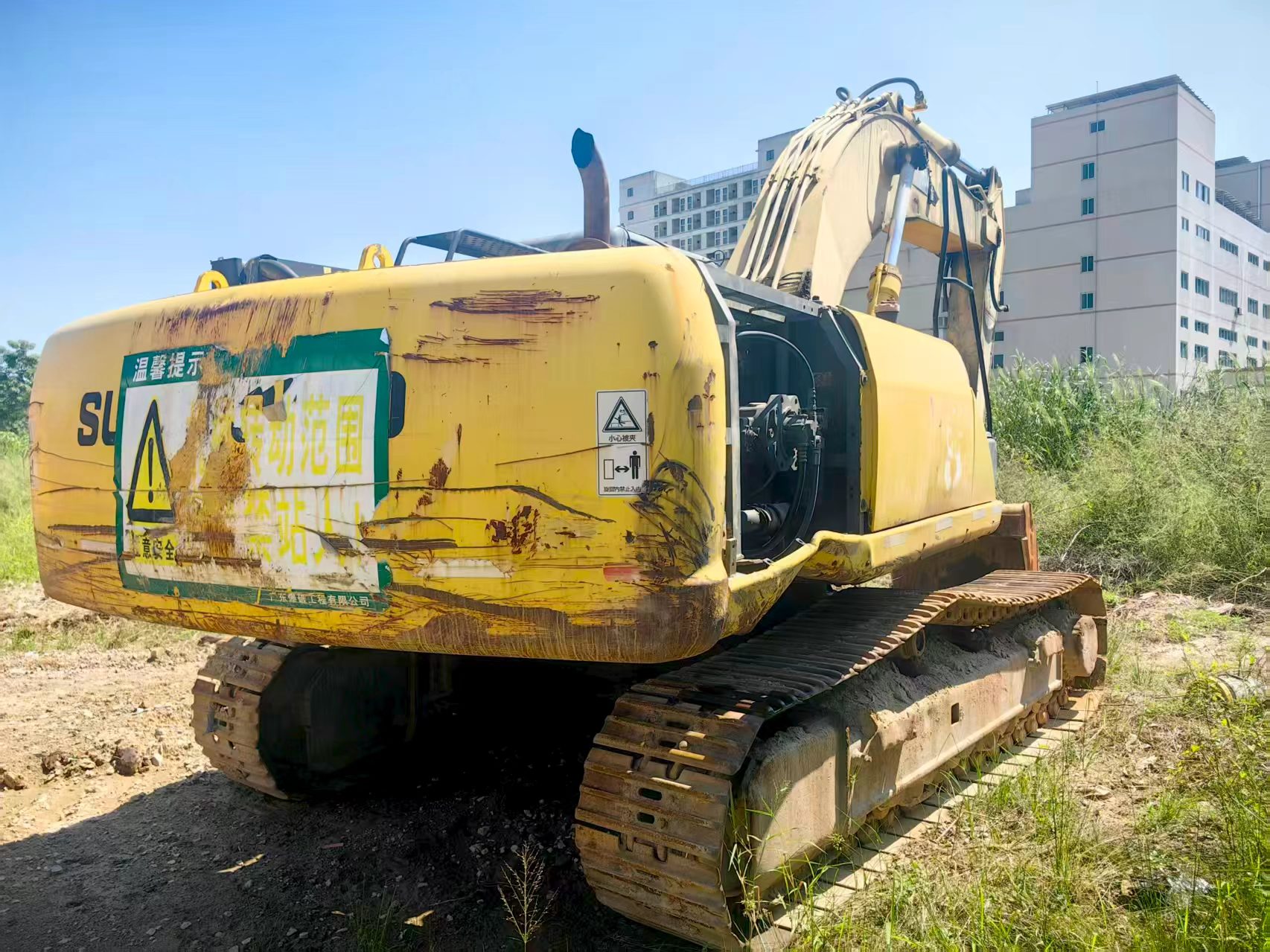

Buy Sumitomo SH350-5 Used Excavator / 3

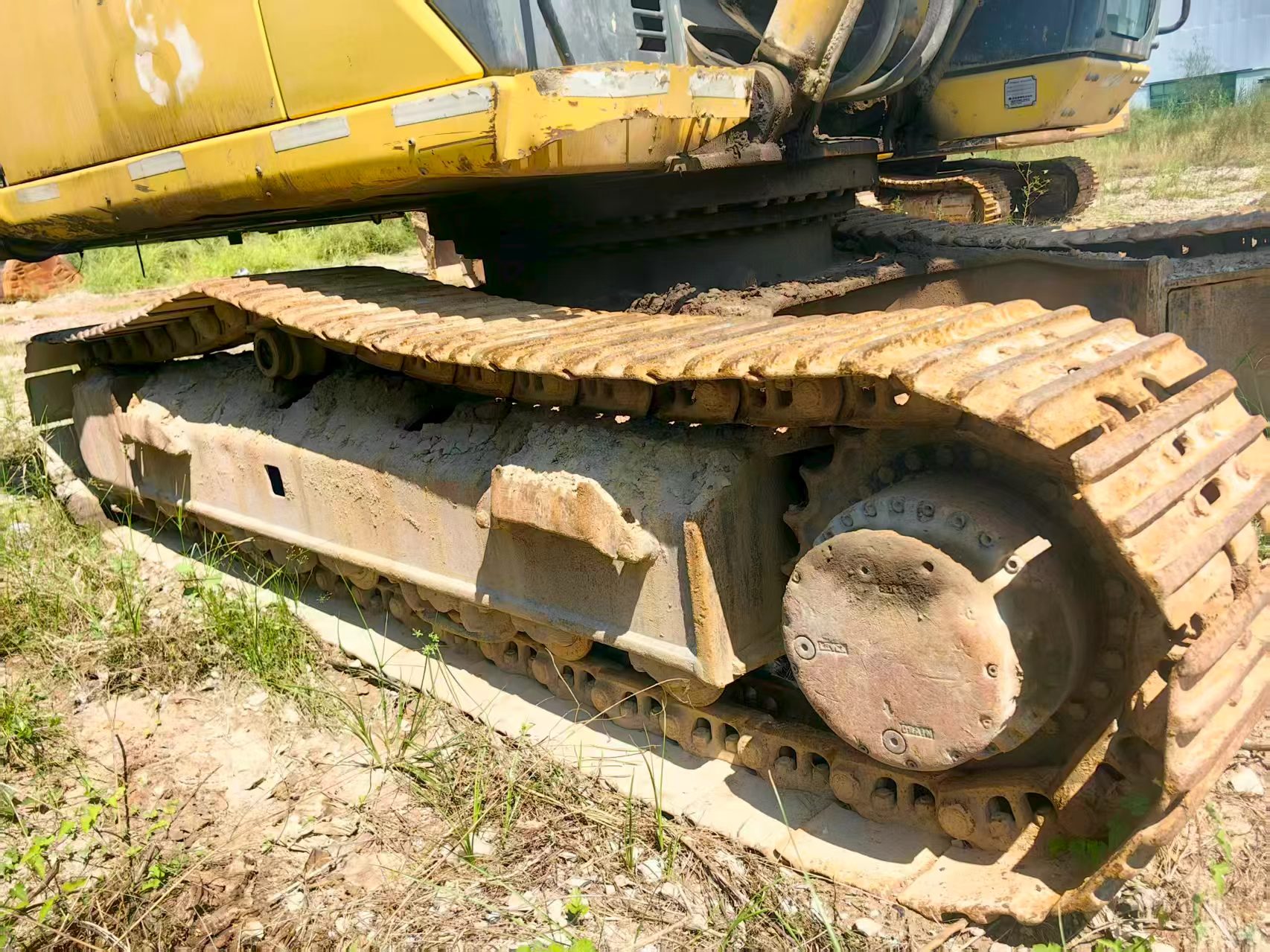

Buy Sumitomo SH350-5 Used Excavator / 4
Buy Sumitomo SH350-5 Used Excavator / 5

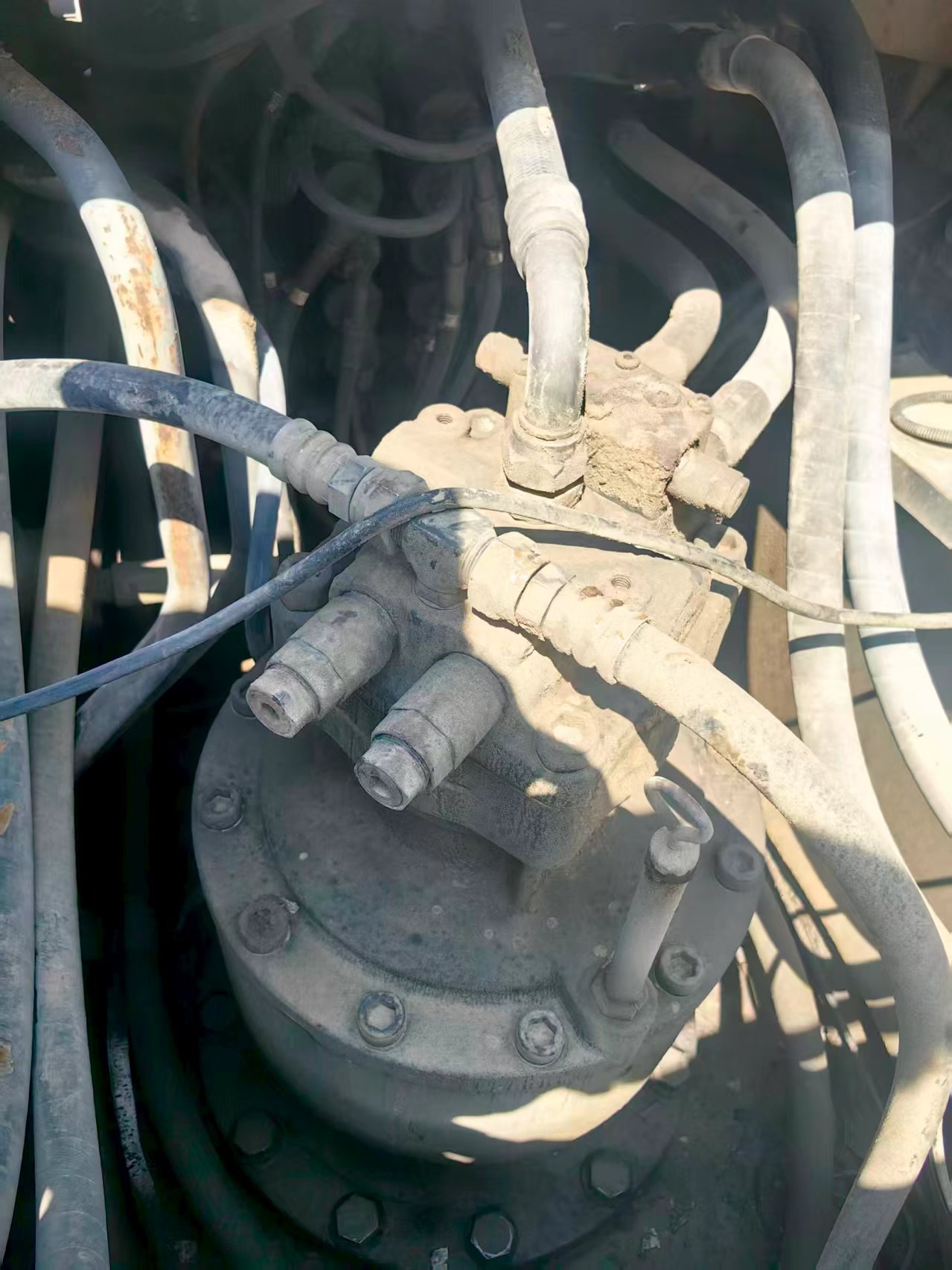

Buy Sumitomo SH350-5 Used Excavator / 6

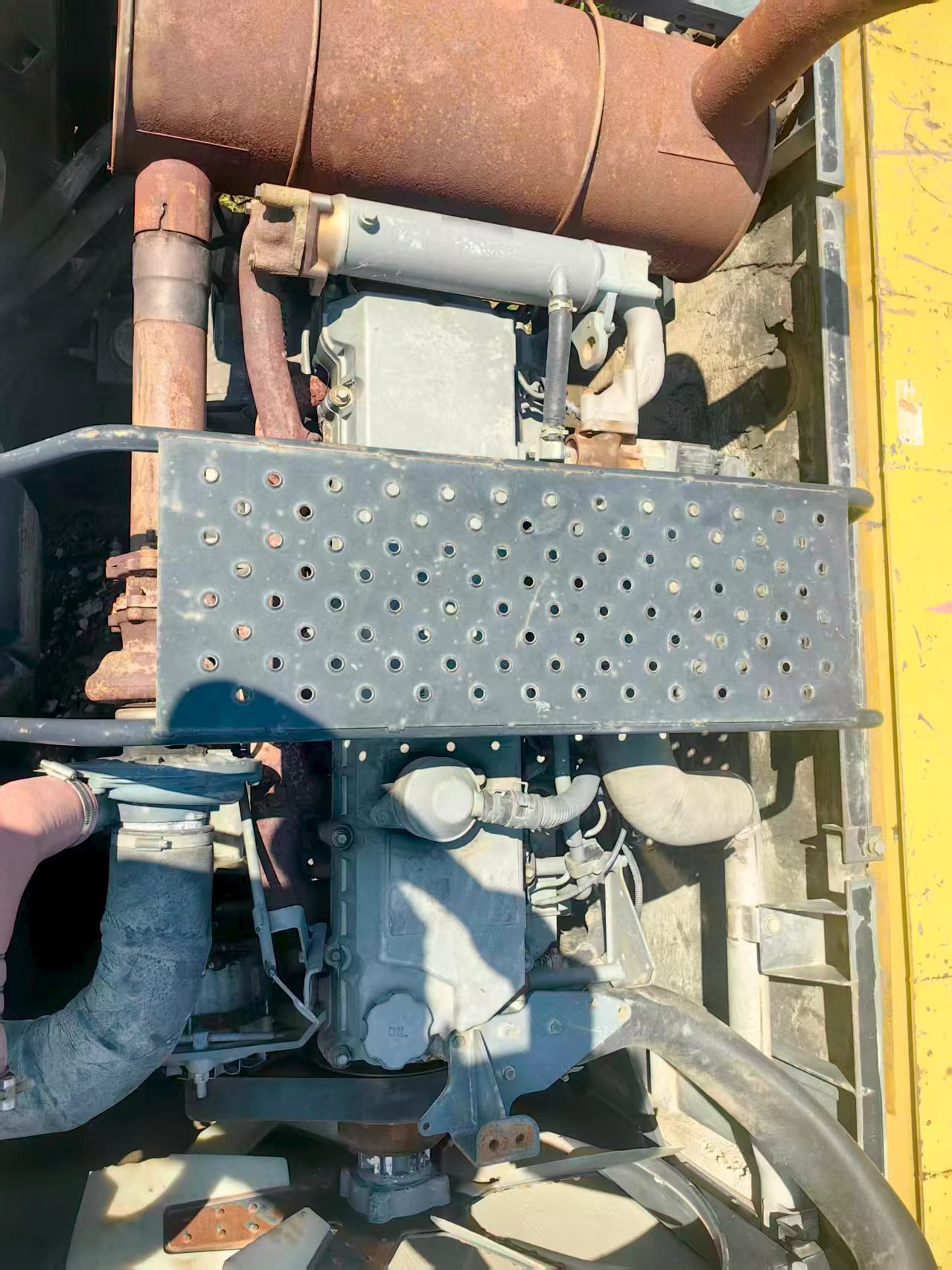

Buy Sumitomo SH350-5 Used Excavator / 7

Product Description

This 2020 Sumitomo SH350-5 hydraulic excavator offers reliable performance for demanding earthmoving and construction applications. With over 9 months of operational use, this machine represents proven Japanese engineering in the 35-ton class. The SH350-5 features Sumitomo's advanced hydraulic system for efficient fuel consumption and responsive control during digging, loading, and grading operations.

Currently located in Guangdong, China, this excavator is available for inspection and export. Key features include:

  • Sumitomo SH350-5 model with standard bucket configuration
  • 2020 manufacturing year with minimal operating hours
  • Suitable for mining, quarrying, and heavy construction work
  • Positioned for quick delivery within Asia-Pacific region

Contact FairTradeMachinery for detailed specifications, current condition assessment, and competitive export pricing.

SpecificationsValue
No.1157870
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1157870

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Guangdong China

Pub Date:
