Product Description
This 2020 Sumitomo SH350-5 hydraulic excavator offers reliable performance for demanding earthmoving and construction applications. Currently located in Yunnan, China, this machine features strong undercarriage components and proven operational capability. The SH350-5 represents Sumitomo's commitment to durable design and efficient hydraulic systems, making it suitable for quarrying, large-scale excavation, and heavy civil works.
- Year of Manufacture: 2020
- Model: Sumitomo SH350-5
- Operating Weight Class: 35-ton

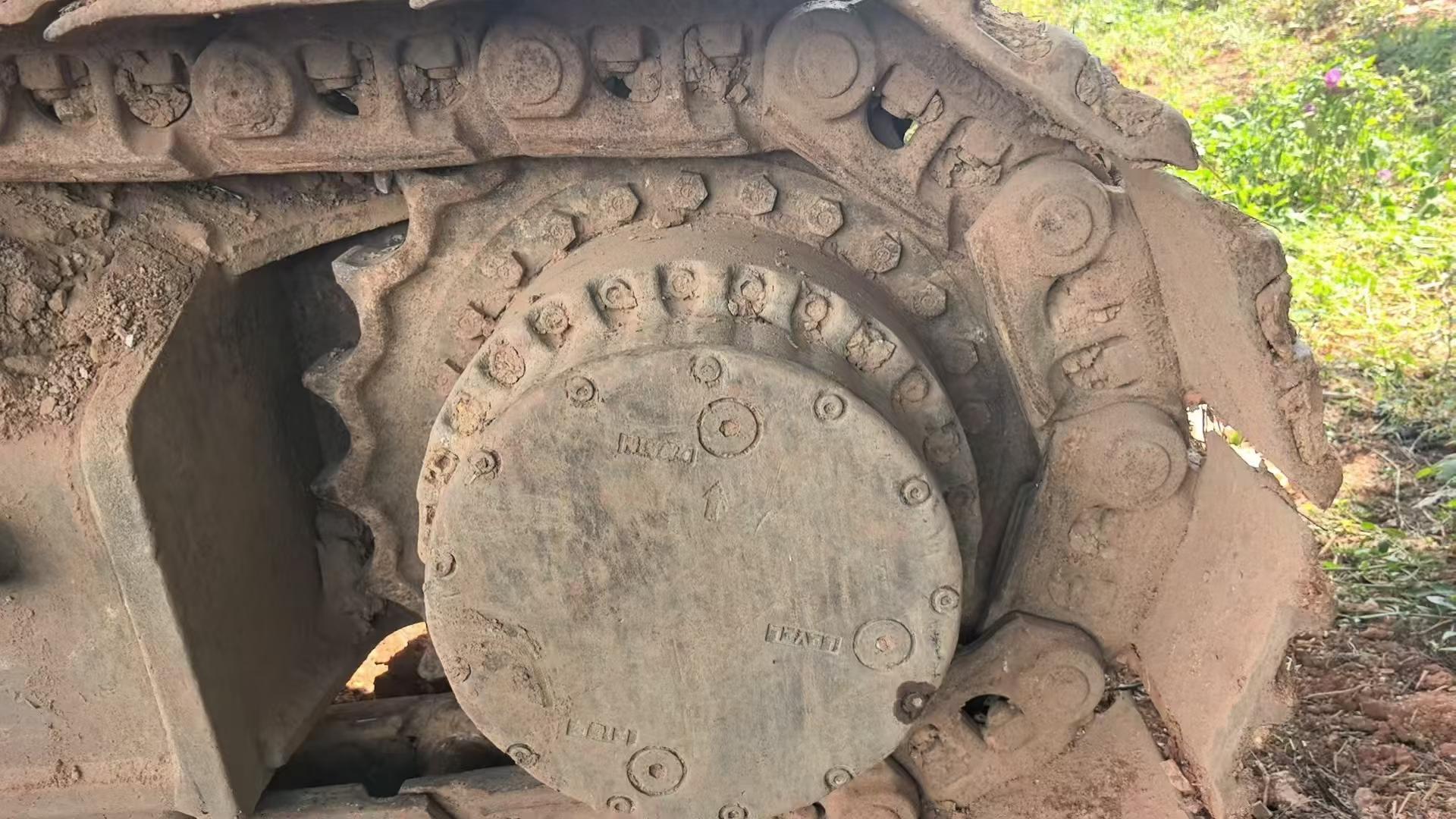

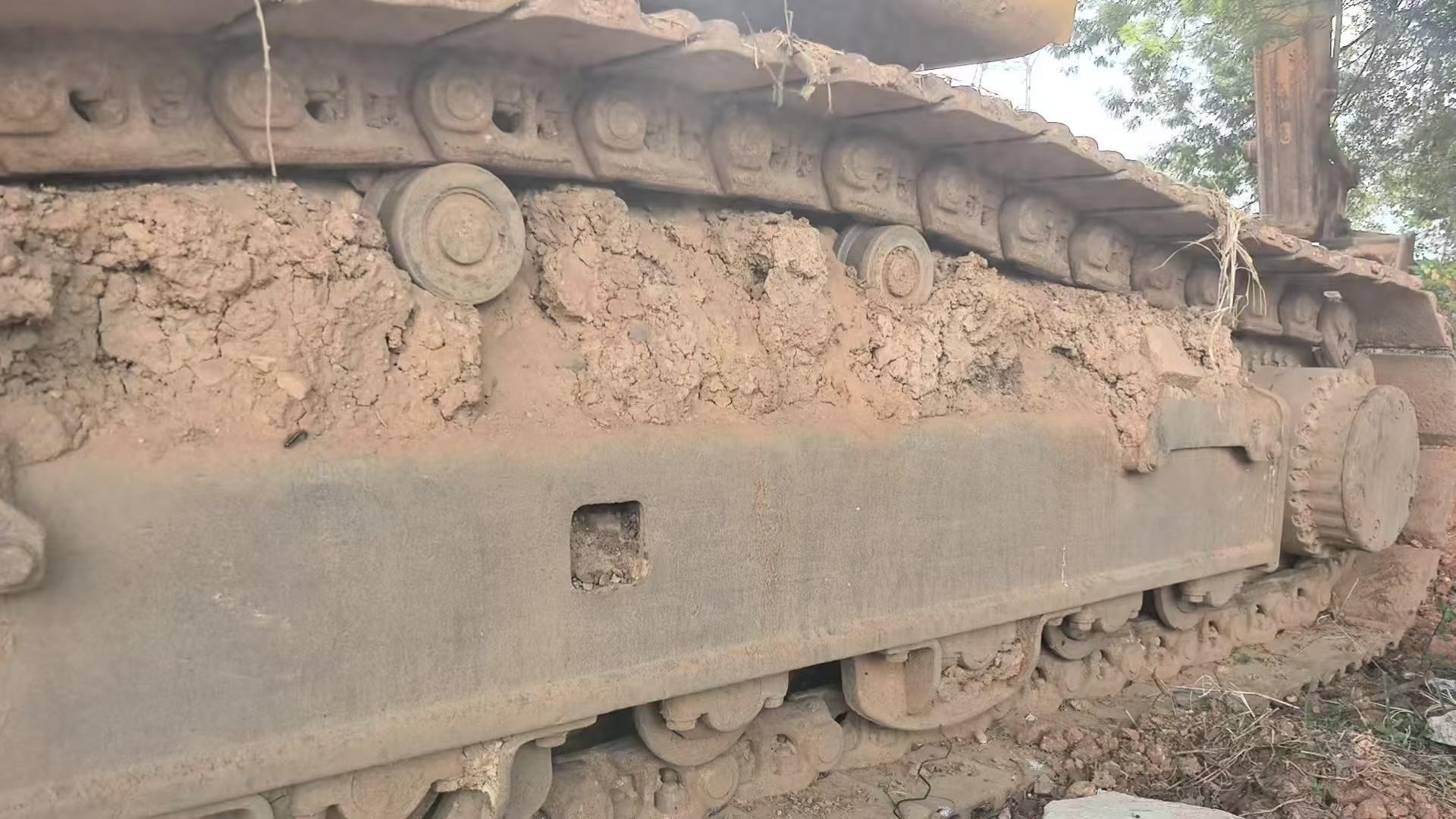

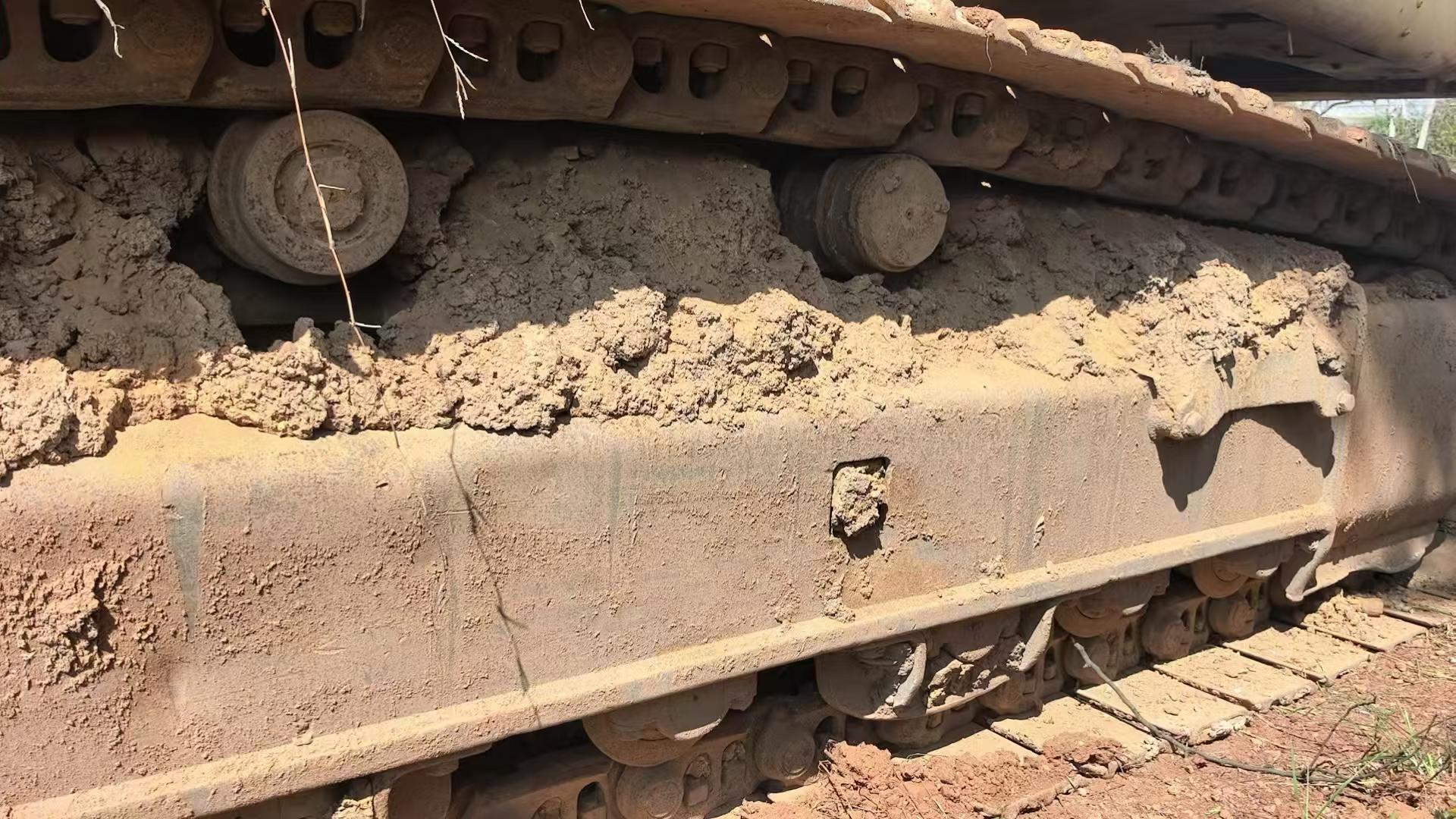

- Condition: Good undercarriage and performance systems
- Current Location: Yunnan Province, China
This excavator is available for inspection and suitable for buyers seeking dependable used equipment with solid mechanical foundations. Contact us for detailed specifications, service records, and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1162078 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
