Product Description

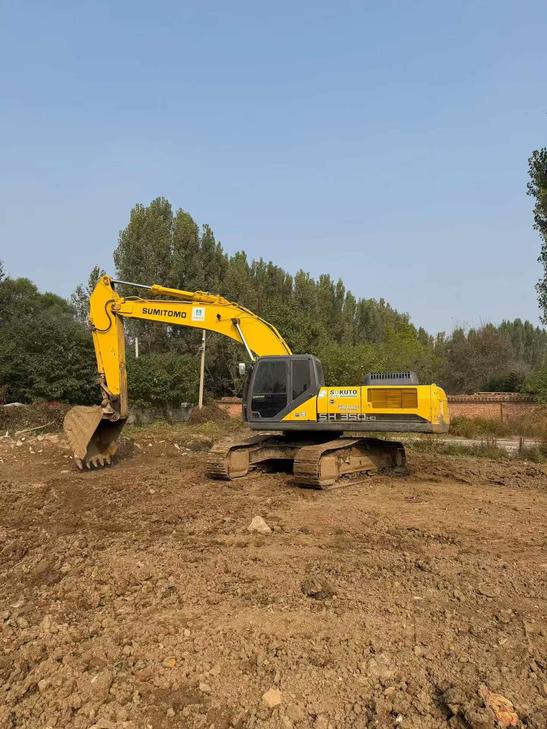

This 2020 Sumitomo SH350-5 excavator from Hebei, China offers reliable performance for earthmoving operations. The machine features original factory configuration with a rotating valve system for enhanced maneuverability on site. With no breaker attachment history, this unit has been dedicated to excavation work throughout its service life.
- Year: 2020
- Model: Sumitomo SH350-5
- Location: Hebei, China
- Condition: Well-maintained with minimal wear
- Configuration: Equipped with swing valve
- Application history: Earthmoving only, no hydraulic breaker use
The undercarriage shows approximately 95% remaining life, while major components demonstrate no oil leakage. Hydraulic systems deliver strong, coordinated performance for demanding excavation tasks. Original paintwork remains intact across the machine, reflecting careful operation and storage. A solid choice for contractors seeking dependable used equipment with verified working condition.
| Specifications | Value |
|---|---|
| No. | 1168996 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
