Product Description

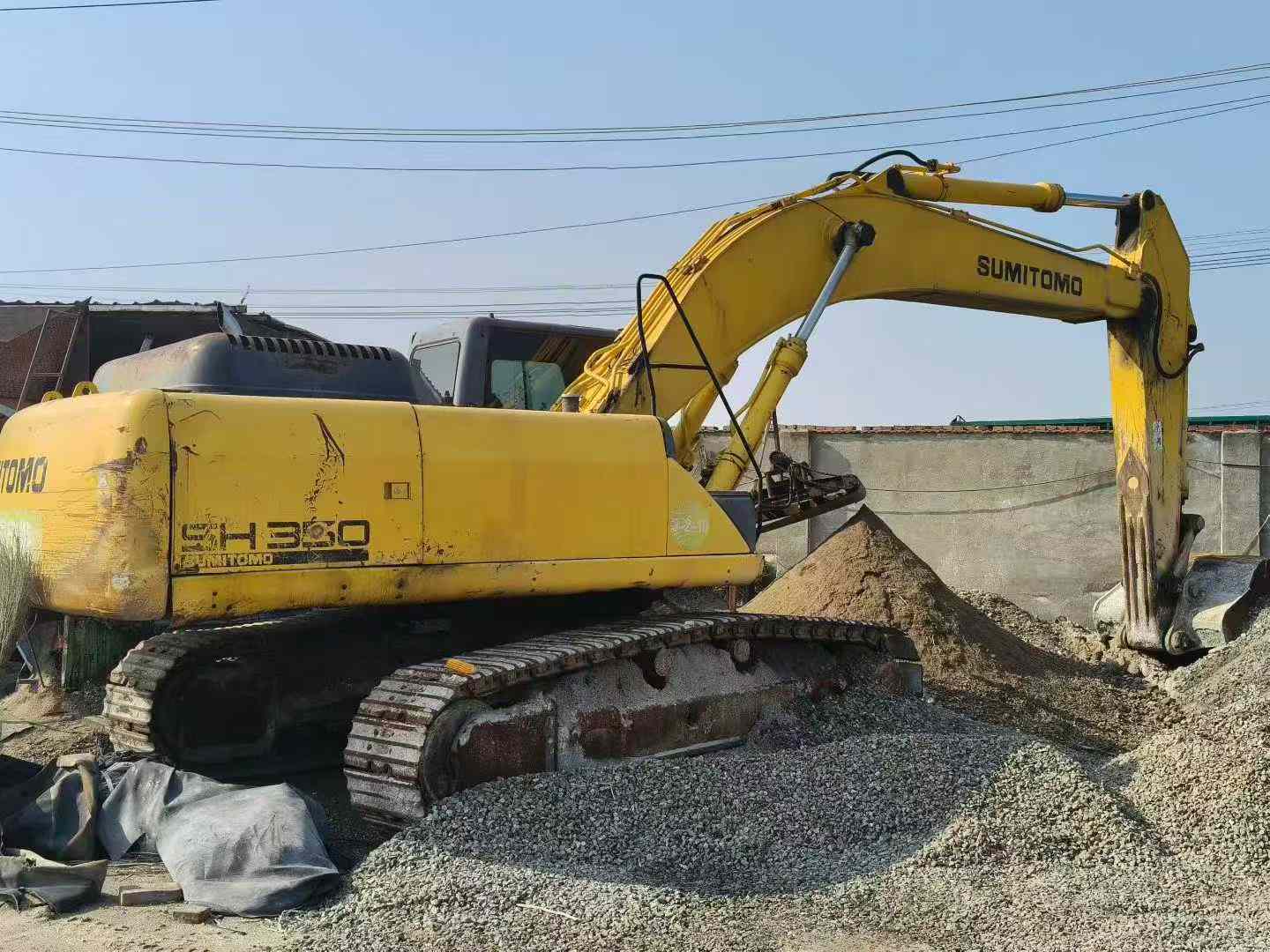

This 2020 Sumitomo SH350-5 hydraulic excavator offers reliable performance for demanding earthmoving and construction applications. Built by Sumitomo, a respected name in heavy equipment manufacturing, this model features a robust operating weight class around 35 tons with a powerful engine designed for fuel efficiency and productivity. The SH350-5 is known for its durable undercarriage, precise hydraulic controls, and operator comfort in extended work cycles.
Currently located in Fujian, China, this machine represents an opportunity to acquire proven Japanese engineering at competitive used equipment pricing. The SH350-5 generation incorporates refined hydraulics for smooth operation and reduced maintenance intervals.
Key features include:
- Approximately 35-ton operating weight class
- Advanced hydraulic system for precision control
- Durable construction for heavy-duty applications
- Fuel-efficient engine design
- Comfortable operator cabin
Ideal for excavation, material handling, and site development projects requiring a mid-sized excavator with Japanese reliability.
| Specifications | Value |
|---|---|
| No. | 1169889 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
