2020 Sumitomo SH350-5

1/9
Buy Sumitomo SH350-5 Used Excavator / 1

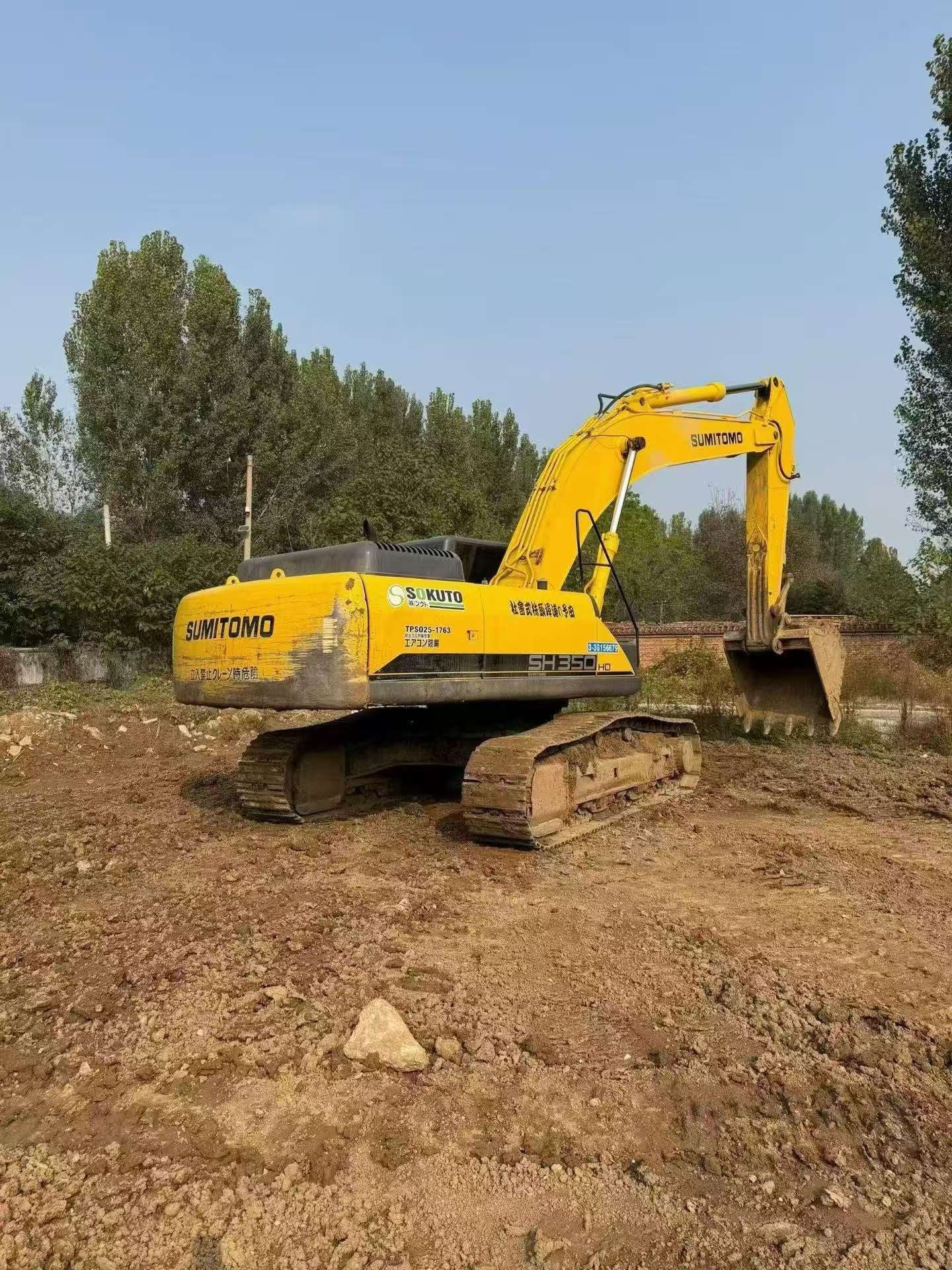

Buy Sumitomo SH350-5 Used Excavator / 2

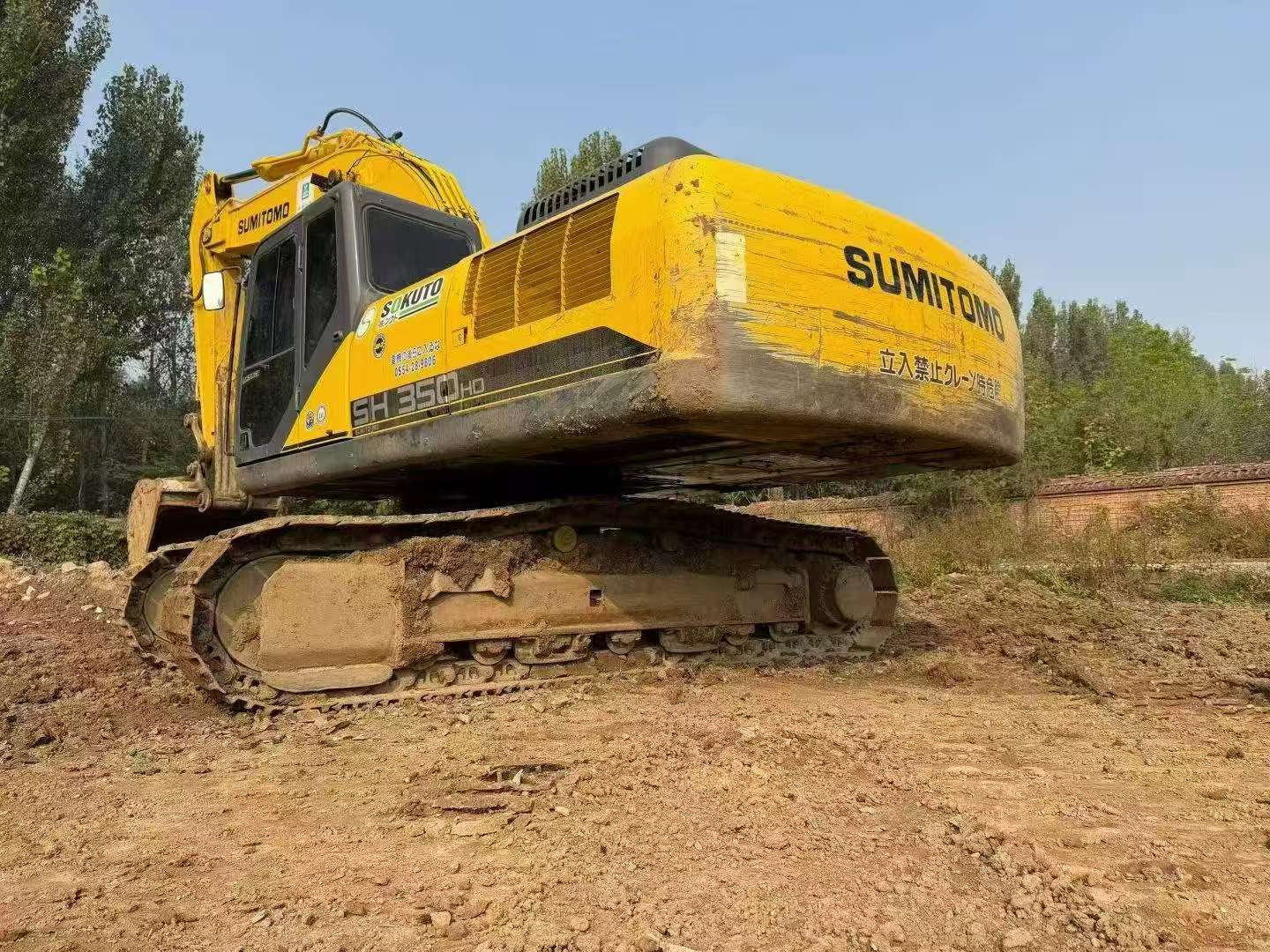

Buy Sumitomo SH350-5 Used Excavator / 3

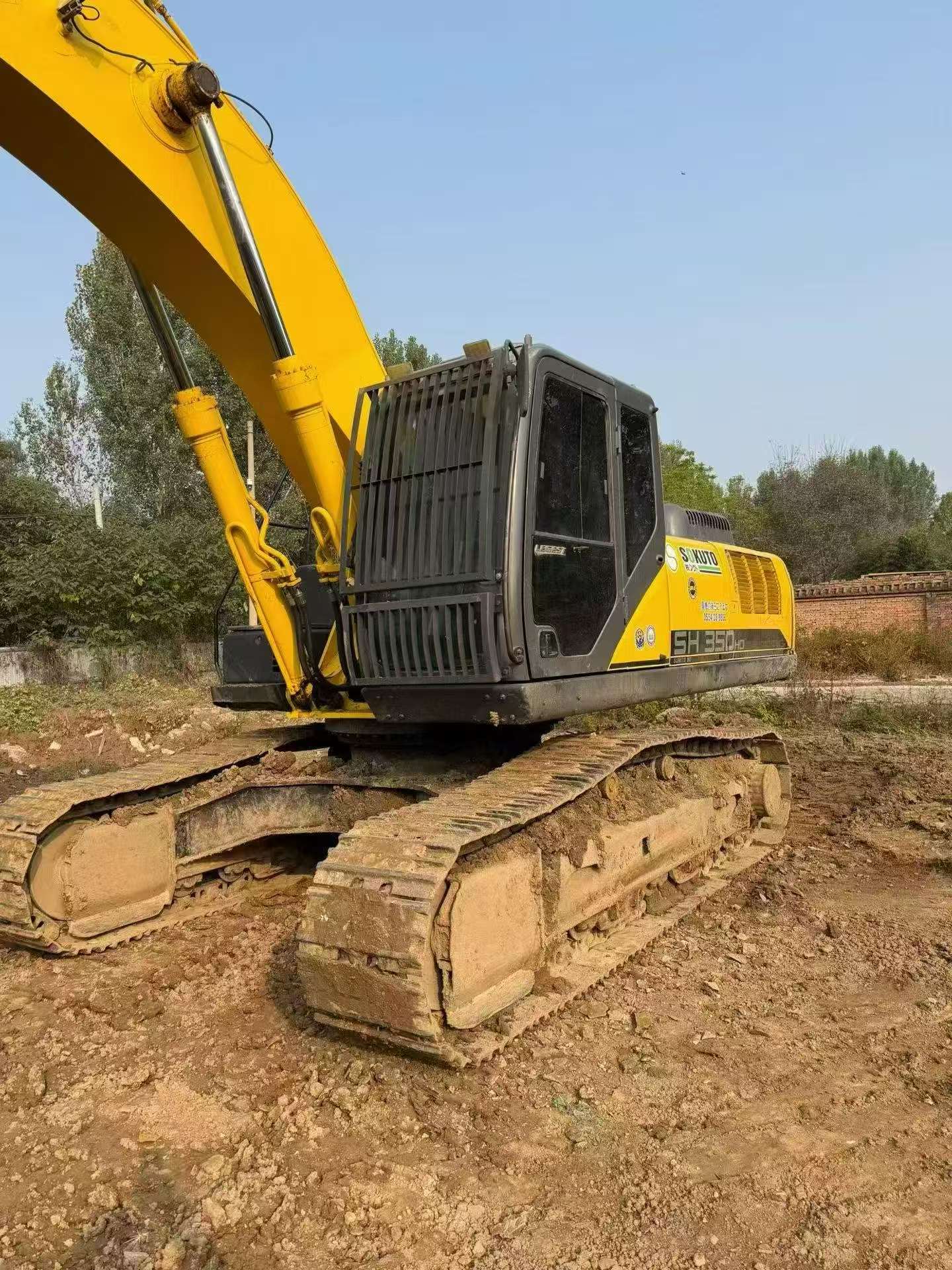

Buy Sumitomo SH350-5 Used Excavator / 4

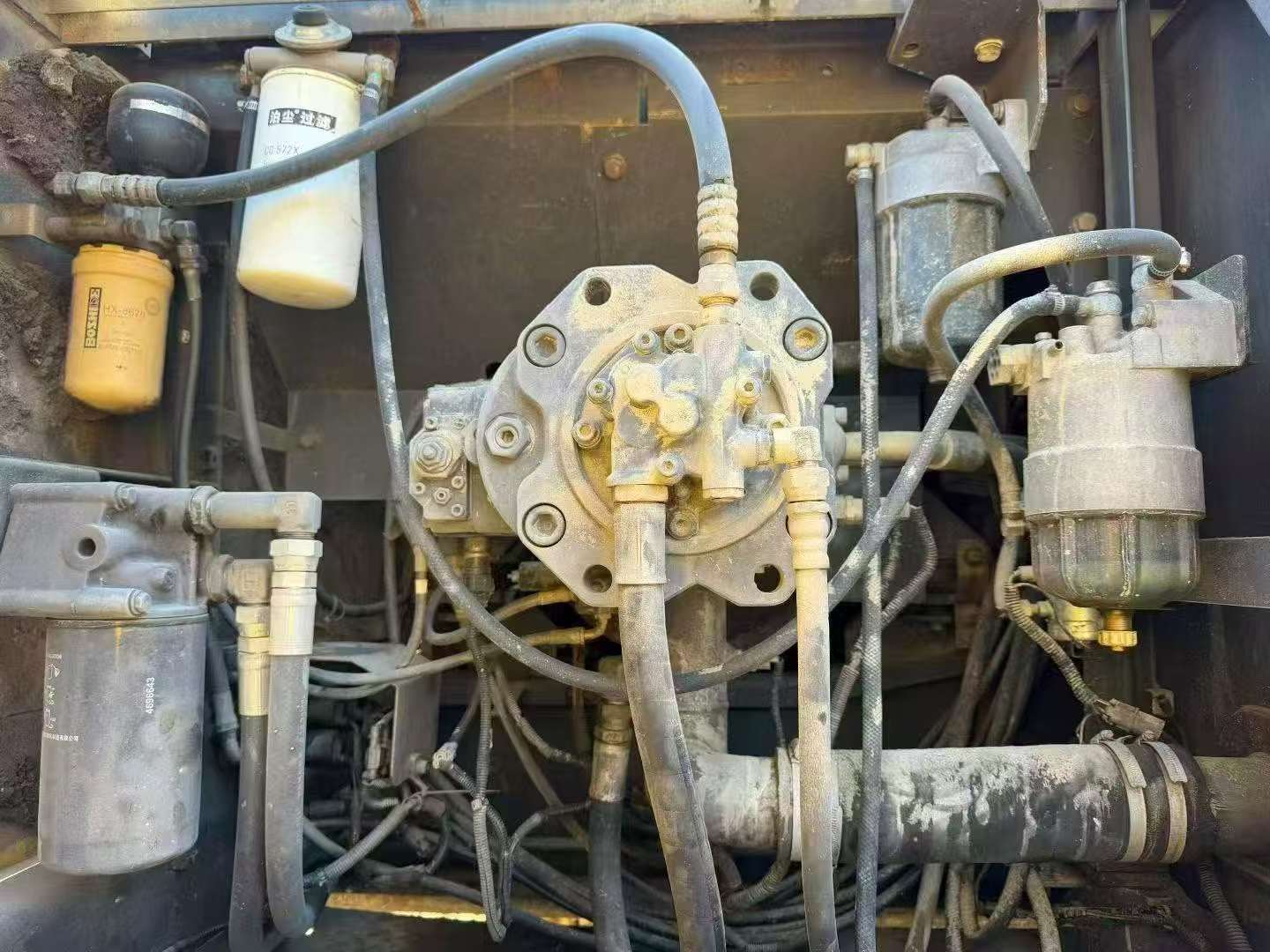

Buy Sumitomo SH350-5 Used Excavator / 5

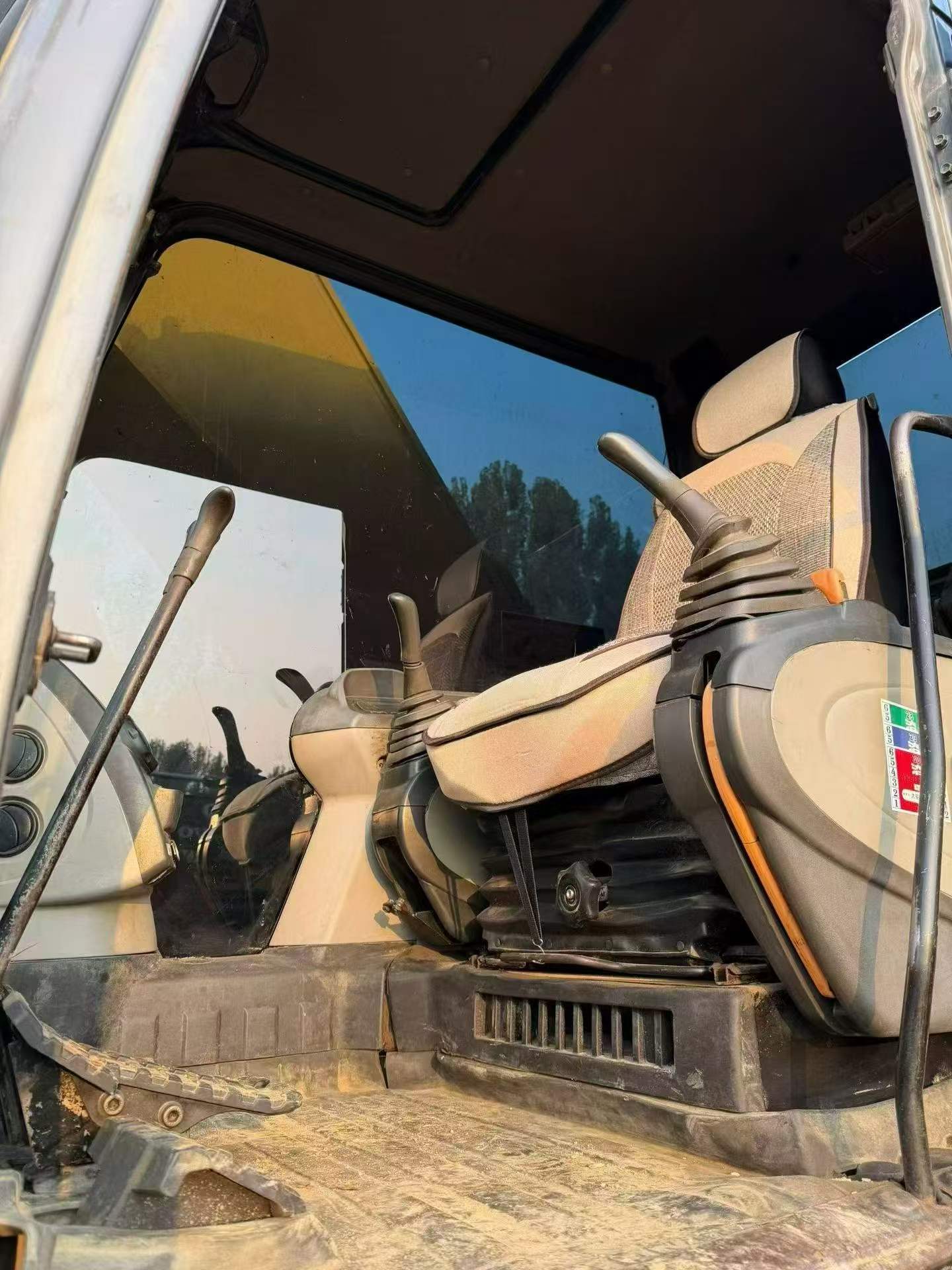

Buy Sumitomo SH350-5 Used Excavator / 6
Buy Sumitomo SH350-5 Used Excavator / 7

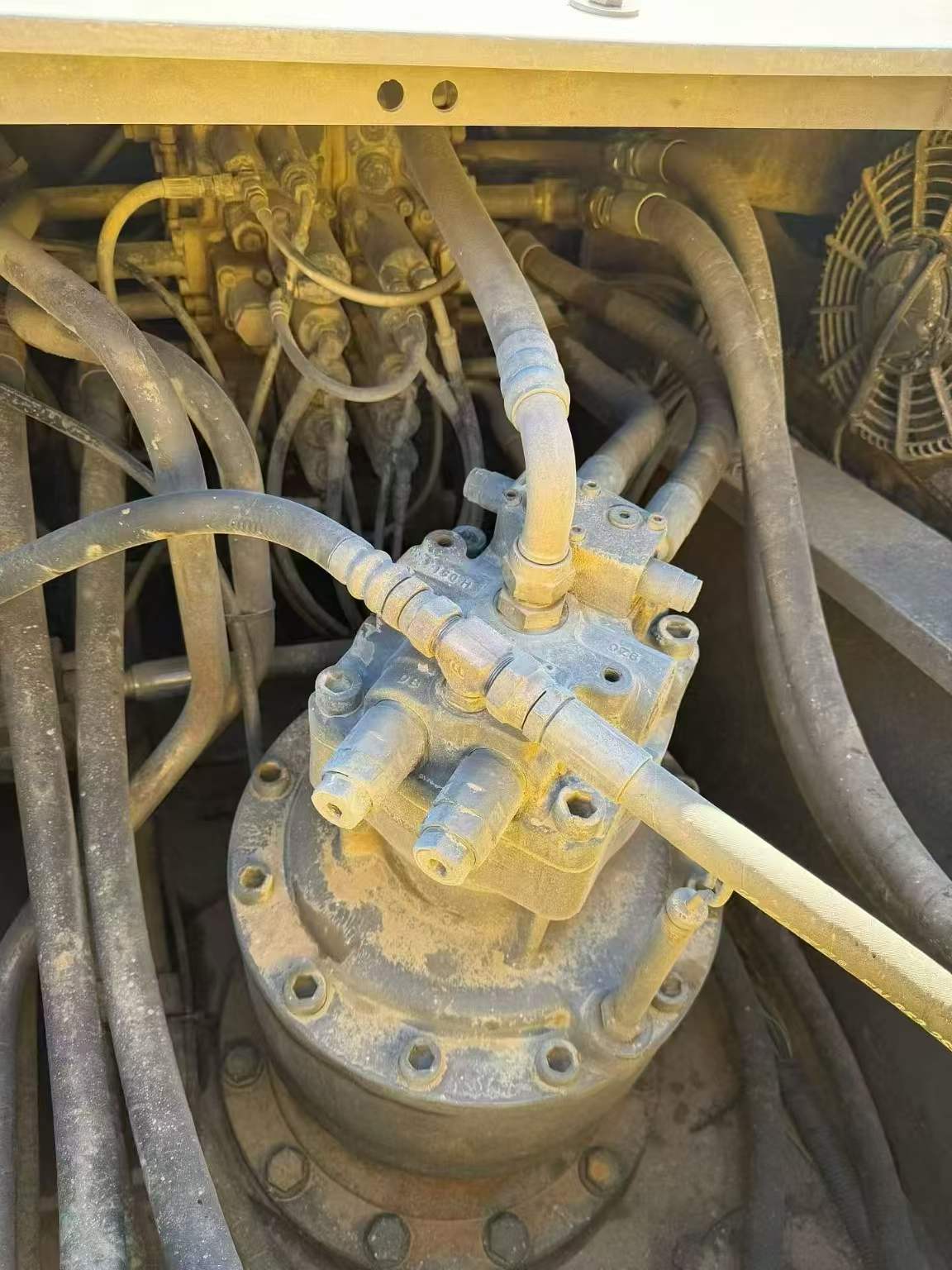

Buy Sumitomo SH350-5 Used Excavator / 8

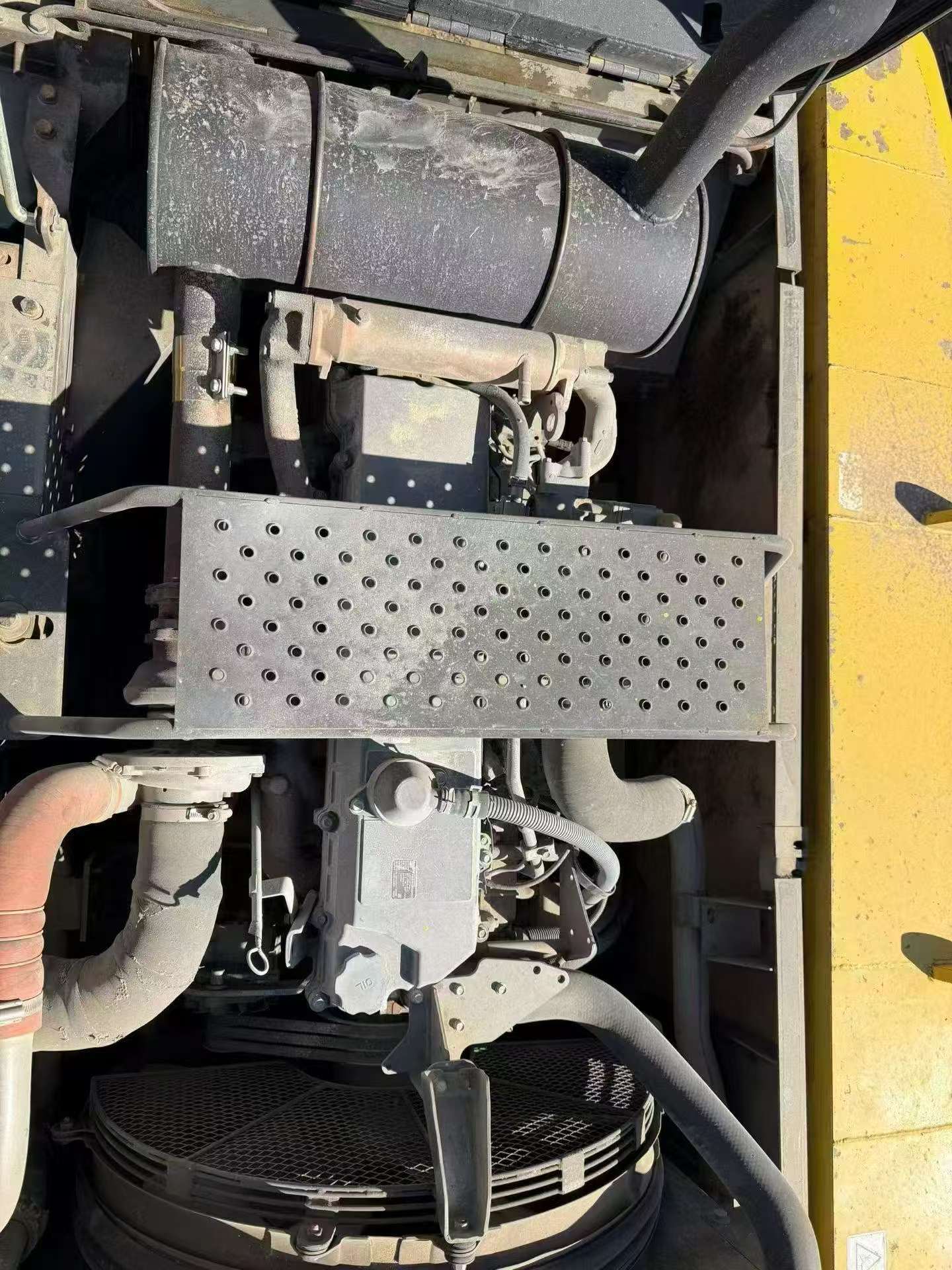

Buy Sumitomo SH350-5 Used Excavator / 9

Product Description

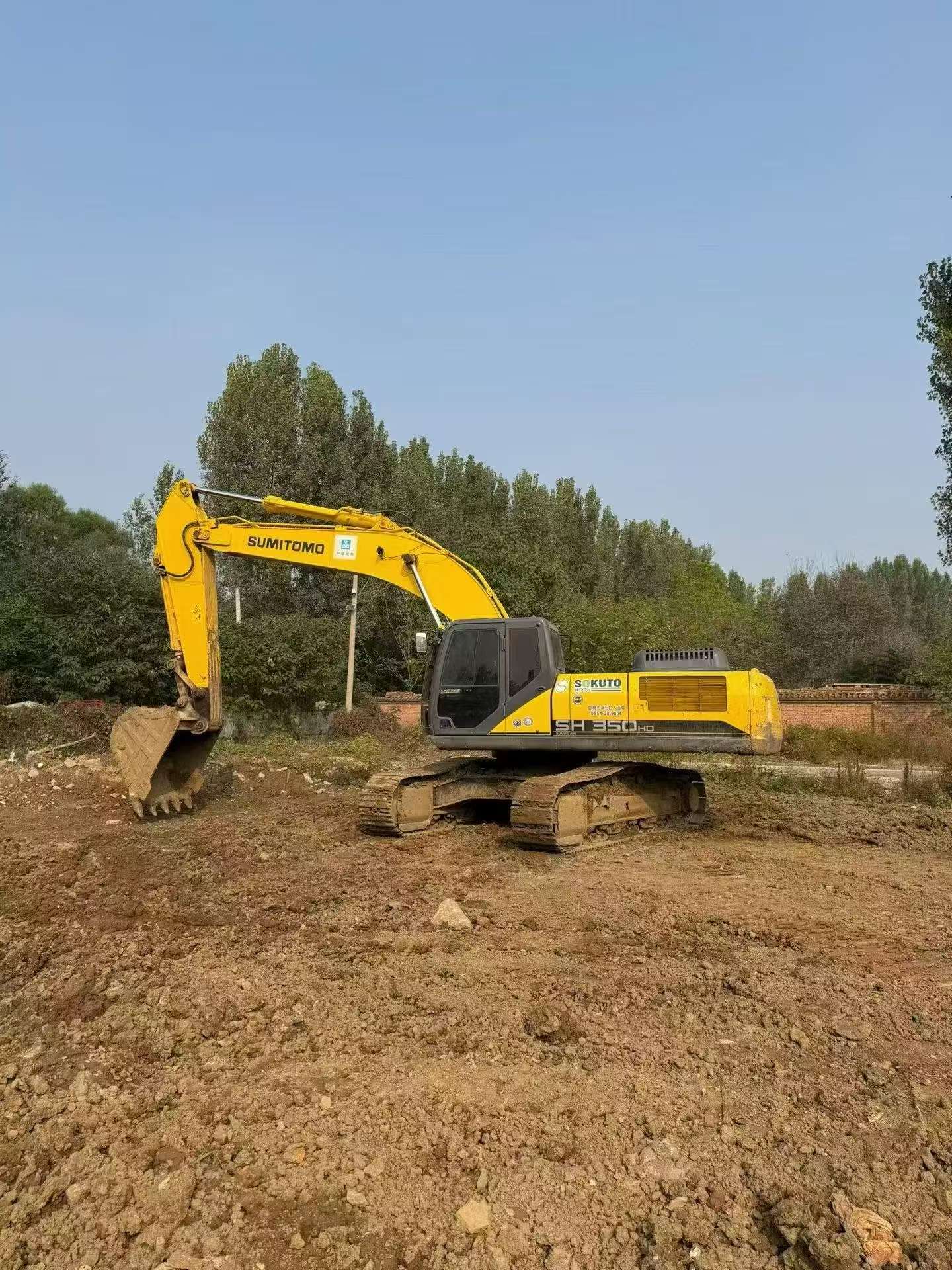

This 2020 Sumitomo SH350-5 hydraulic excavator from Beijing, China represents a premium used machine opportunity for earthmoving operations. Imported to China with verified earthwork-only service history and no hammer attachment use, this unit maintains exceptional original condition. Factory paint remains intact across the entire machine with zero touch-up work required, demonstrating careful operation and proper maintenance protocols.

  • Original swivel valve system for enhanced maneuverability
  • All major components dry with no hydraulic leaks
  • Strong digging force with smooth, coordinated operation

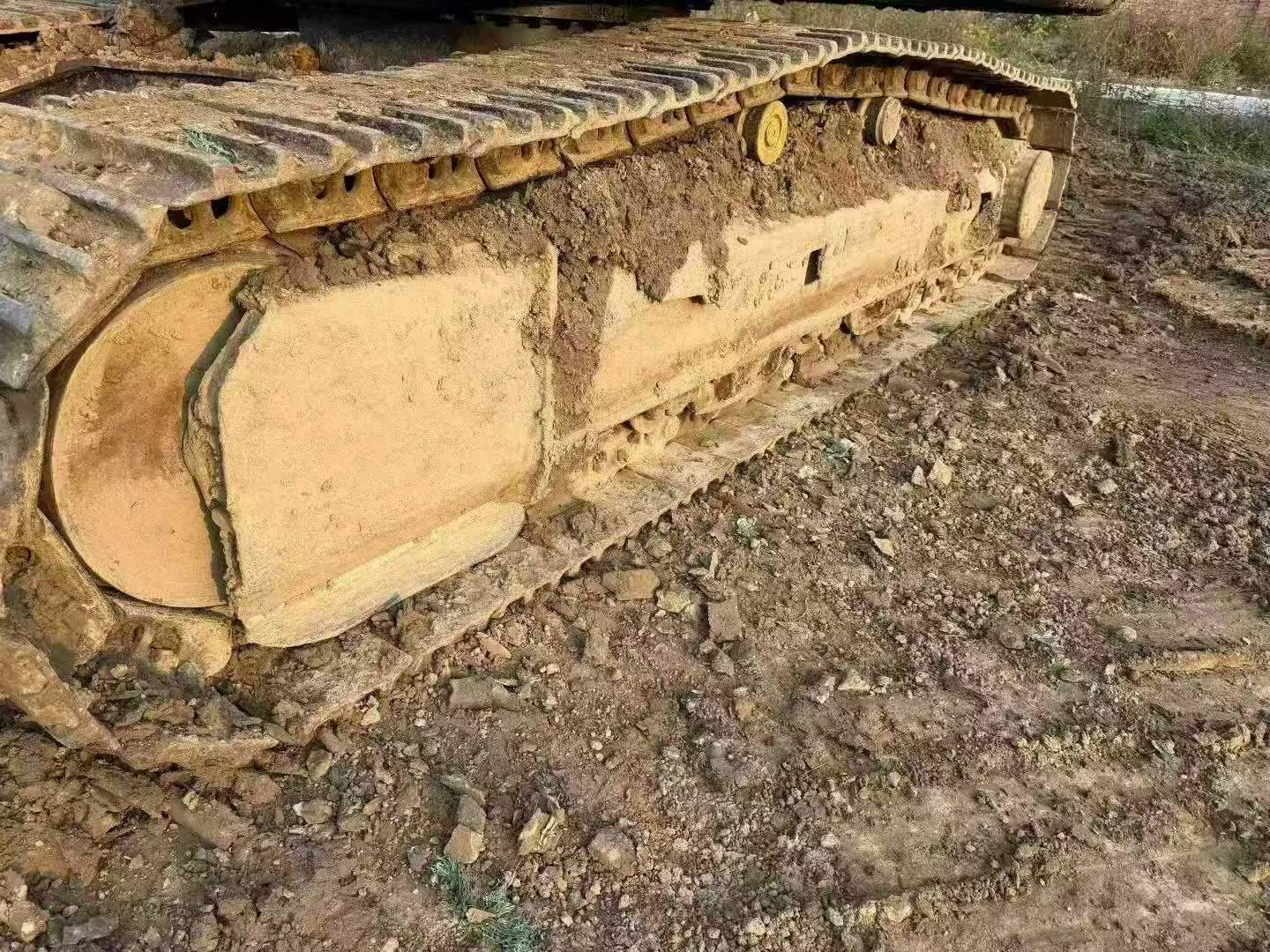

  • Track pads at 95% remaining life
  • Complete mechanical integrity verified

Ideal for contractors requiring reliable performance in excavation, trenching, and material handling applications. This Sumitomo delivers the power and precision expected from Japanese engineering with proven operational history backing its quality assurance.

SpecificationsValue
No.1171257
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1171257

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2020

Location:

Peking China

Pub Date:
