Product Description

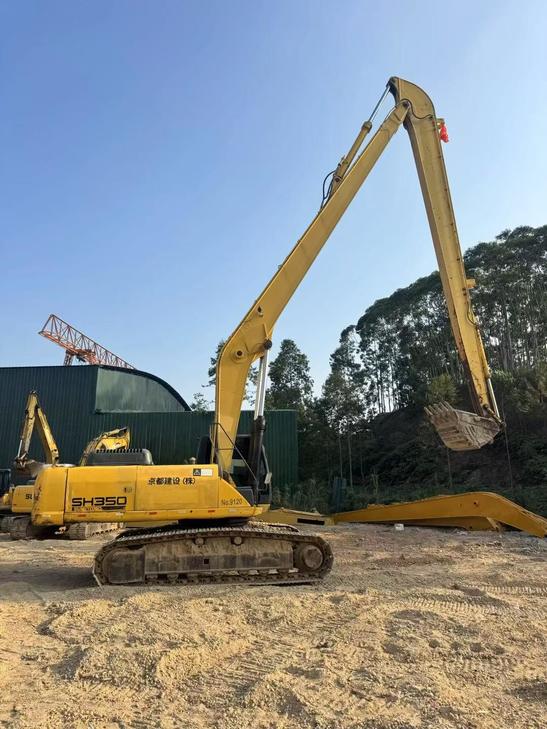

Discover the exceptional 2020 Sumitomo SH350-5, available in Guangdong, China. This robust machine comes equipped with a 23-meter long reach boom, ideal for extensive digging and material handling tasks. It features an original electrical system and air conditioning, ensuring reliable performance and operator comfort. The key components of this excavator are in excellent condition, making it a highly dependable choice for your industrial needs. Priced at over 190,000, this machine is a cost-effective solution that promises to enhance productivity on any job site.
- Year: 2020
- Brand: Sumitomo
- Model: SH350-5
- Location: Guangdong, China
- Features: 23-meter long reach boom, original electrical system, and air conditioning
- Condition: Key components in excellent, dry condition; no need for inspection
| Specifications | Value |
|---|---|
| No. | 1174791 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
