Product Description

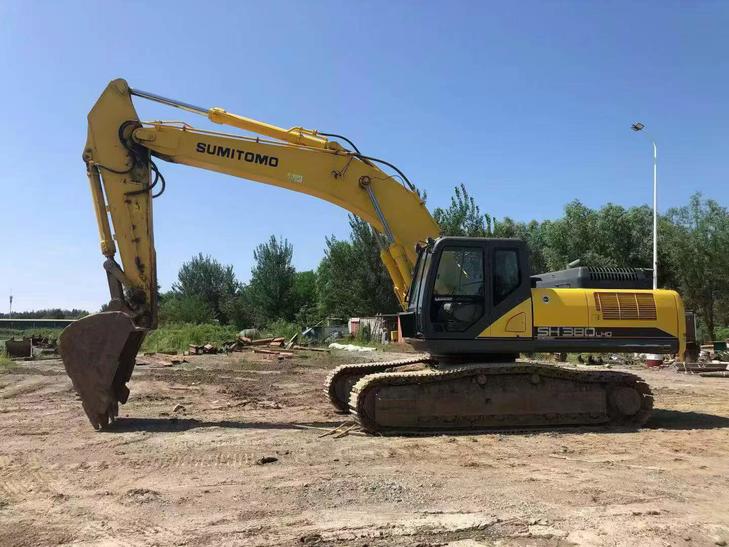

This 2019 Sumitomo SH380-5 hydraulic excavator represents exceptional value in the used heavy equipment market. With approximately 300,000 RMB invested in maintenance and upkeep, this machine has been maintained to premium standards. Currently located in Zhejiang, China, this excavator is ready for immediate deployment in demanding applications including mining, quarrying, and large-scale earthmoving projects.
The SH380-5 features Sumitomo's proven hydraulic system and robust undercarriage designed for extended service life. This unit's well-documented service history and carefully maintained condition make performance concerns minimal. Ideal for contractors seeking reliable production capacity without the premium cost of new equipment.
- Year of Manufacture: 2019
- Operating Class: 38-ton excavator
- Current Location: Zhejiang Province, China
- Condition: Premium maintained unit
- Availability: Ready for inspection and shipment
| Specifications | Value |
|---|---|
| No. | 1173408 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
