Product Description
Used Sumitomo SH380-5 hydraulic excavator available from Zhejiang, China. This 2020 model represents Sumitomo's proven heavy-duty excavator platform designed for demanding earthmoving and construction applications. The machine features track spring tensioning cylinders, essential components for maintaining proper track tension and operational stability during extended jobsite use.
Key features of the SH380-5 series include:
- Operating weight class approximately 38 tons for versatile heavy excavation work
- Fuel-efficient engine technology meeting modern emission standards
- Durable undercarriage system with quality track components
- Spacious operator cabin with ergonomic controls
- Designed for quarrying, mining, and large-scale construction projects

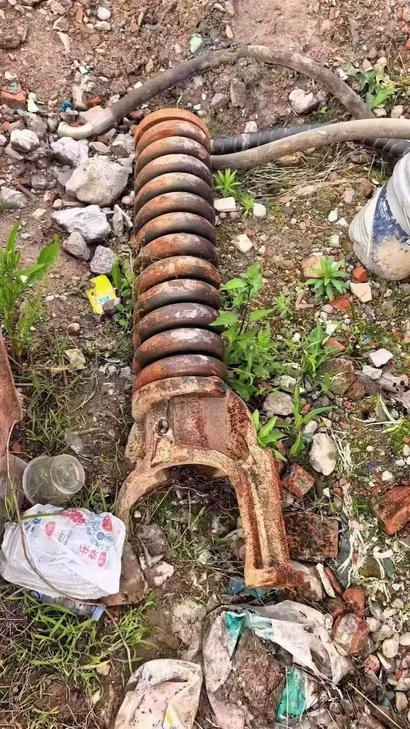

This unit is being sold with its track spring tensioning cylinders in operational condition. Suitable for contractors seeking reliable Japanese-engineered excavation equipment. Contact us for detailed inspection reports, shipping arrangements, and competitive export pricing to your destination.
| Specifications | Value |
|---|---|
| No. | 1080841 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
