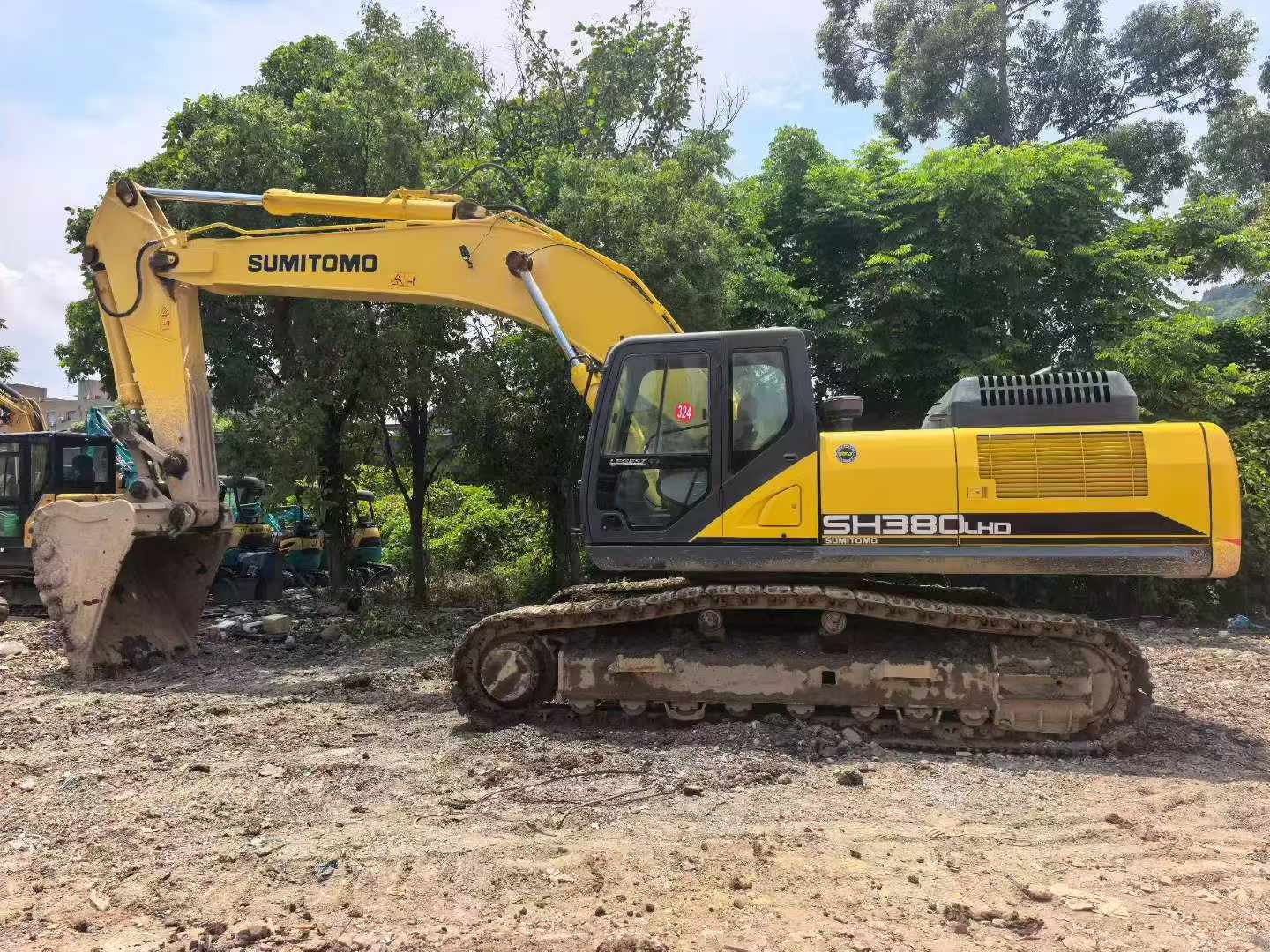

2021 Sumitomo SH380-5

1/9
Buy Sumitomo SH380-5 Used Excavator / 1

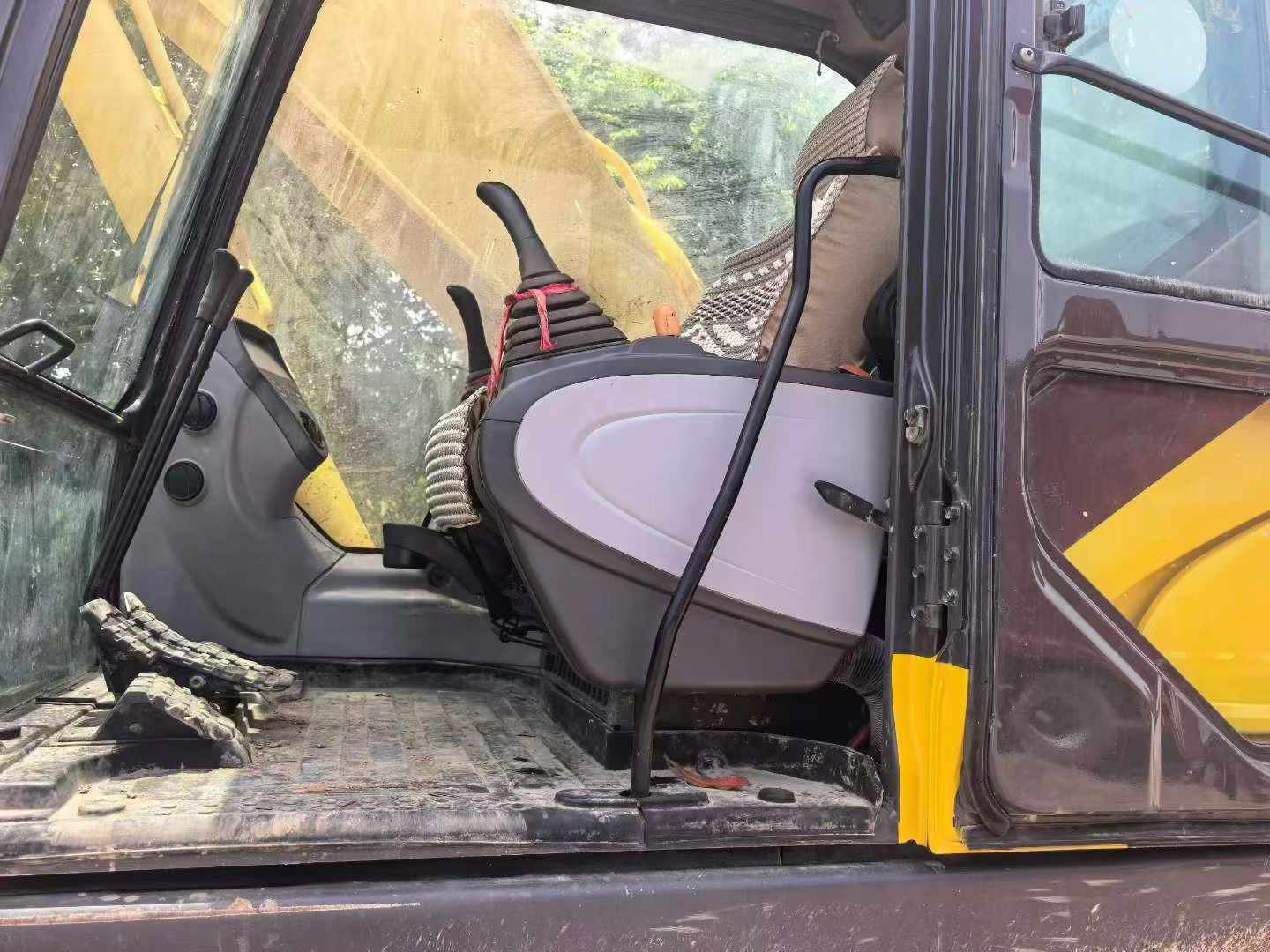

Buy Sumitomo SH380-5 Used Excavator / 2

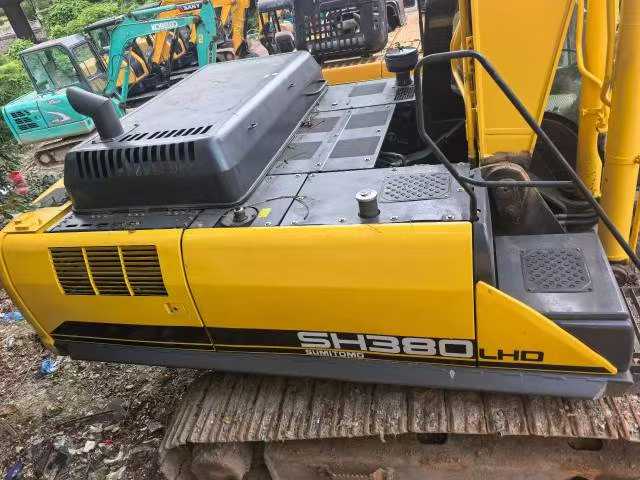

Buy Sumitomo SH380-5 Used Excavator / 3

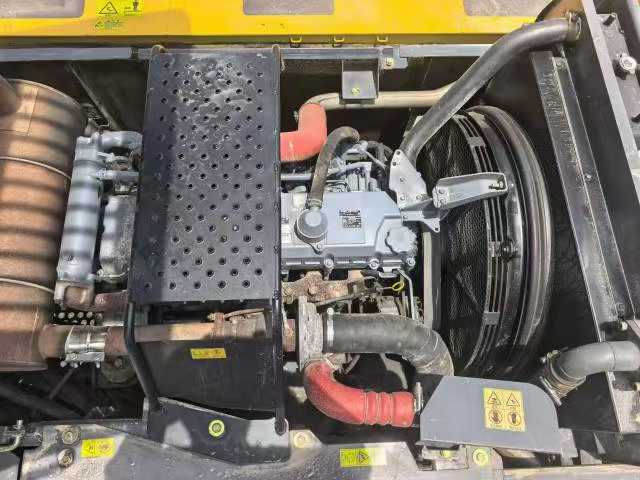

Buy Sumitomo SH380-5 Used Excavator / 4

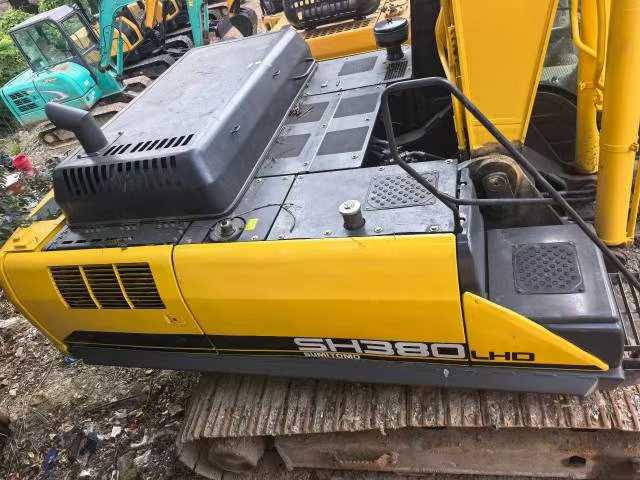

Buy Sumitomo SH380-5 Used Excavator / 5

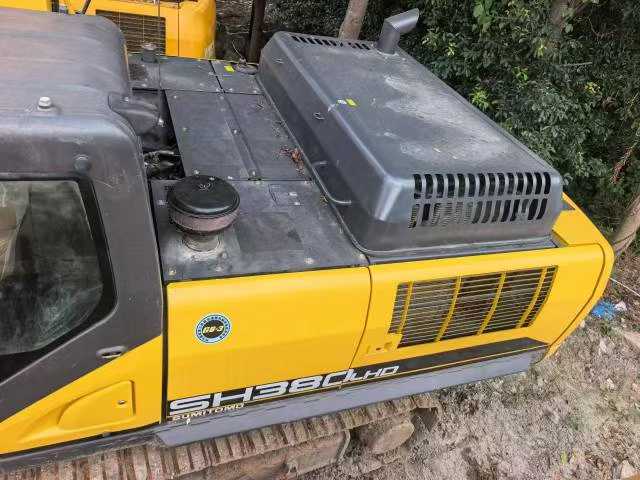

Buy Sumitomo SH380-5 Used Excavator / 6

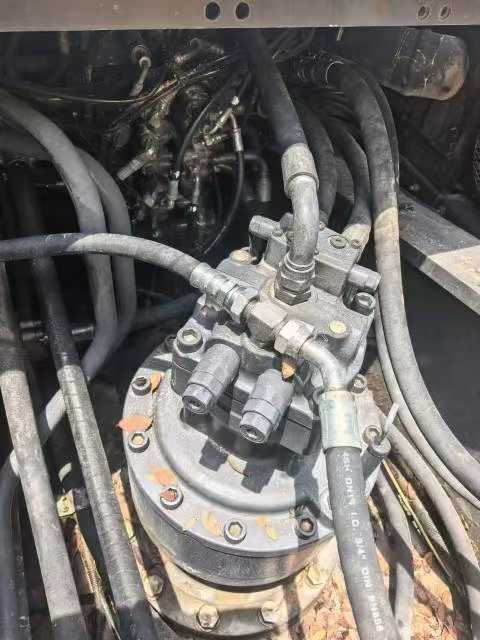

Buy Sumitomo SH380-5 Used Excavator / 7

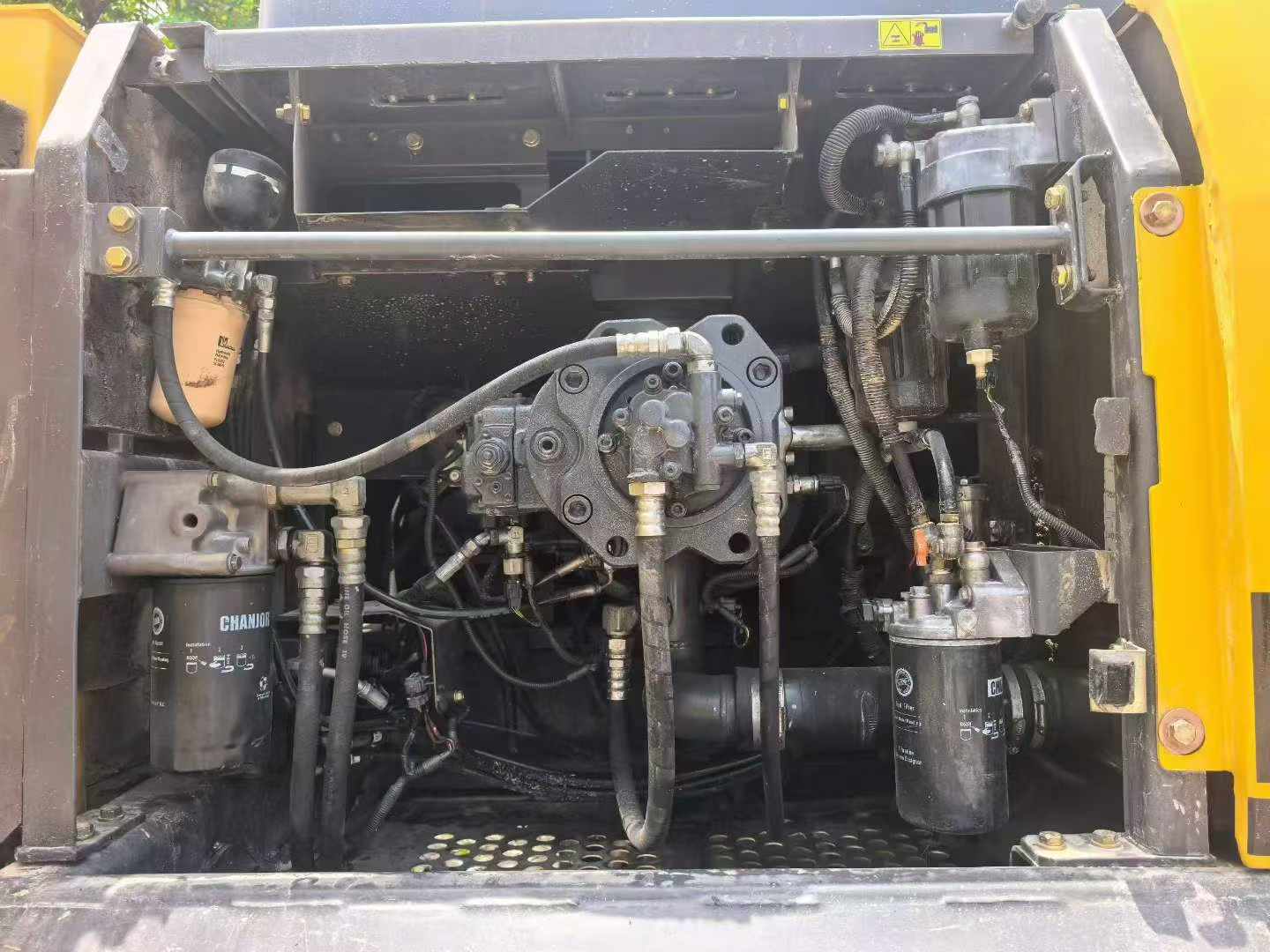

Buy Sumitomo SH380-5 Used Excavator / 8

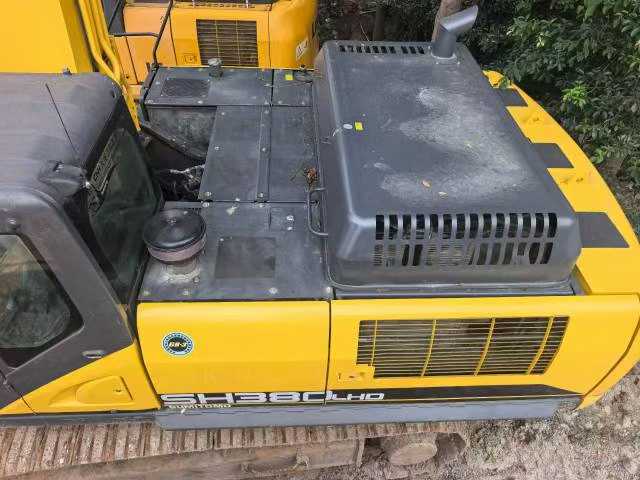

Buy Sumitomo SH380-5 Used Excavator / 9

Product Description

This 2021 Sumitomo SH380-5 hydraulic excavator represents proven Japanese engineering in the large excavator class. Built by Sumitomo Heavy Industries, the SH380-5 delivers reliable performance for demanding excavation, loading, and demolition applications. Currently located in Zhejiang, China, this machine offers buyers access to Sumitomo's reputation for durability and fuel efficiency in the 38-ton category.

  • Year of Manufacture: 2021
  • Model: SH380-5
  • Operating Weight Class: Approximately 38 metric tons
  • Application: Heavy excavation, material handling, infrastructure projects
  • Current Location: Zhejiang Province, China

The SH380-5 features Sumitomo's signature hydraulic system design for smooth operation and responsive control. Suitable for contractors and equipment fleet operators seeking dependable production capacity. Inspection and shipping arrangements available upon request.

SpecificationsValue
No.1168311
Tonnage (tons)38
Working weight (kg)36600
Bucket capacity (m³)1.8
Boom length (mm)6400
Rod length (mm)3200
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AH-6HK1X
Rated power (kw/rpm)202/2000
Displacement (L)7.790
Ground specific pressure (Kpa)68
Rotation speed (rpm)9.8
Climbing ability (%)70% (35°)
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Type of walking hydraulic motorVariable capacity piston pump
Main pump typeVariable capacity piston pump
Working Hydraulic Circuit (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)175
Hydraulic System (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4980
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1168311

Brand Name:

Sumitomo

Model Number:

SH380-5

Year:

2021

Location:

Zhejiang China

Pub Date:
