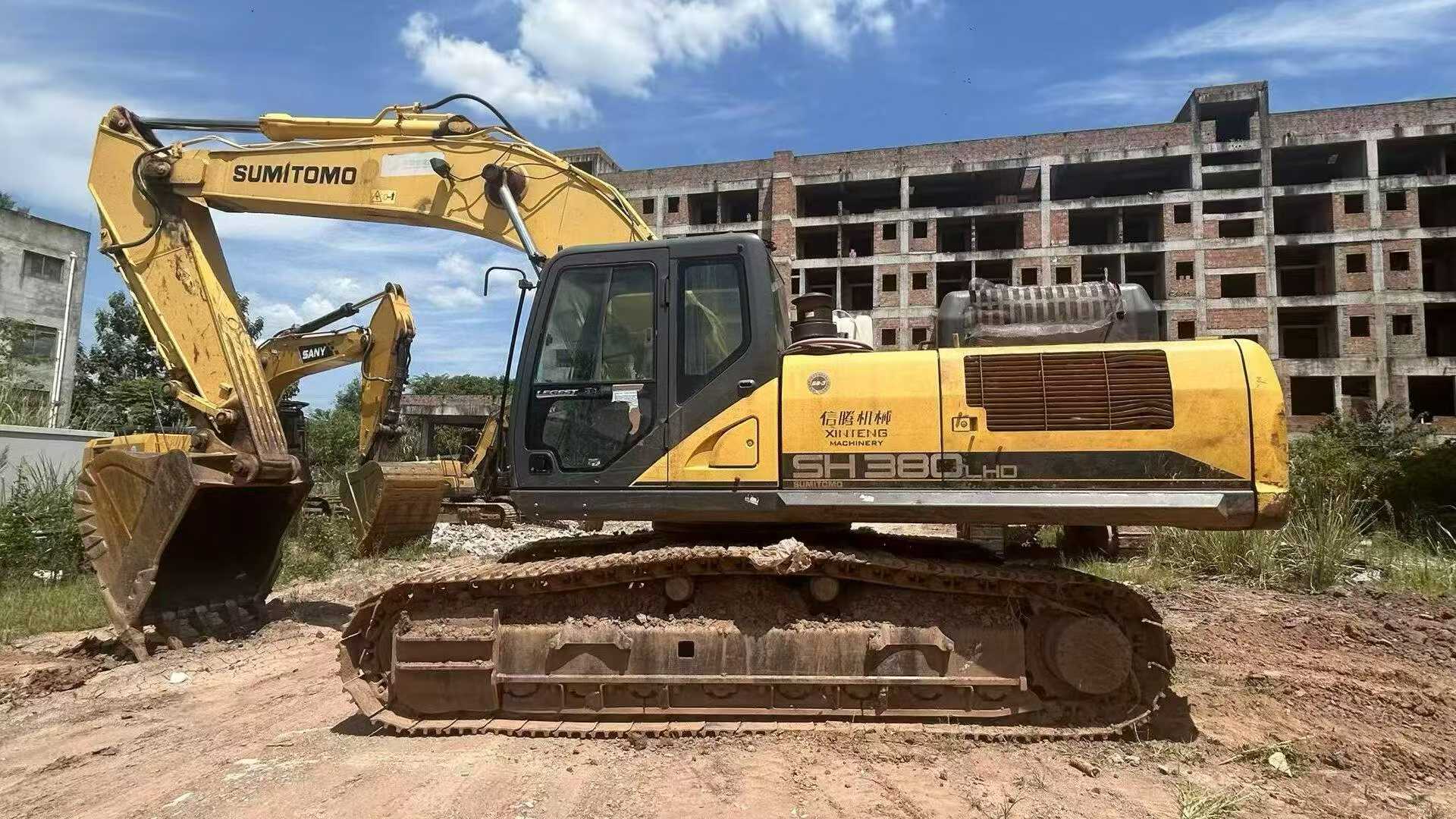

2018 Sumitomo SH380LHD-6

1/7
Buy Sumitomo SH380LHD-6 Used Excavator / 1
Buy Sumitomo SH380LHD-6 Used Excavator / 2
Buy Sumitomo SH380LHD-6 Used Excavator / 3
Buy Sumitomo SH380LHD-6 Used Excavator / 4
Buy Sumitomo SH380LHD-6 Used Excavator / 5
Buy Sumitomo SH380LHD-6 Used Excavator / 6
Buy Sumitomo SH380LHD-6 Used Excavator / 7

Product Description

Discover the reliability and efficiency of the 2018 Sumitomo SH380LHD-6, available for immediate purchase in Fujian, China. This machine, with a history of single ownership, has been meticulously maintained, ensuring it remains in excellent working condition. Designed for durability and high performance, the SH380LHD-6 is ideal for a variety of heavy-duty applications, from construction to mining. Its robust design and powerful engine make it a versatile addition to any fleet, capable of handling demanding tasks with ease.

  • Year: 2018
  • Brand: Sumitomo
  • Model: SH380LHD-6
  • Location: Fujian, China
  • Condition: Used, well-maintained
SpecificationsValue
No.1129397
Tonnage (tons)38
Working weight (kg)37500
Bucket capacity (m³)1.6-2.0
Boom length (mm)6400
Rod length (mm)3200
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

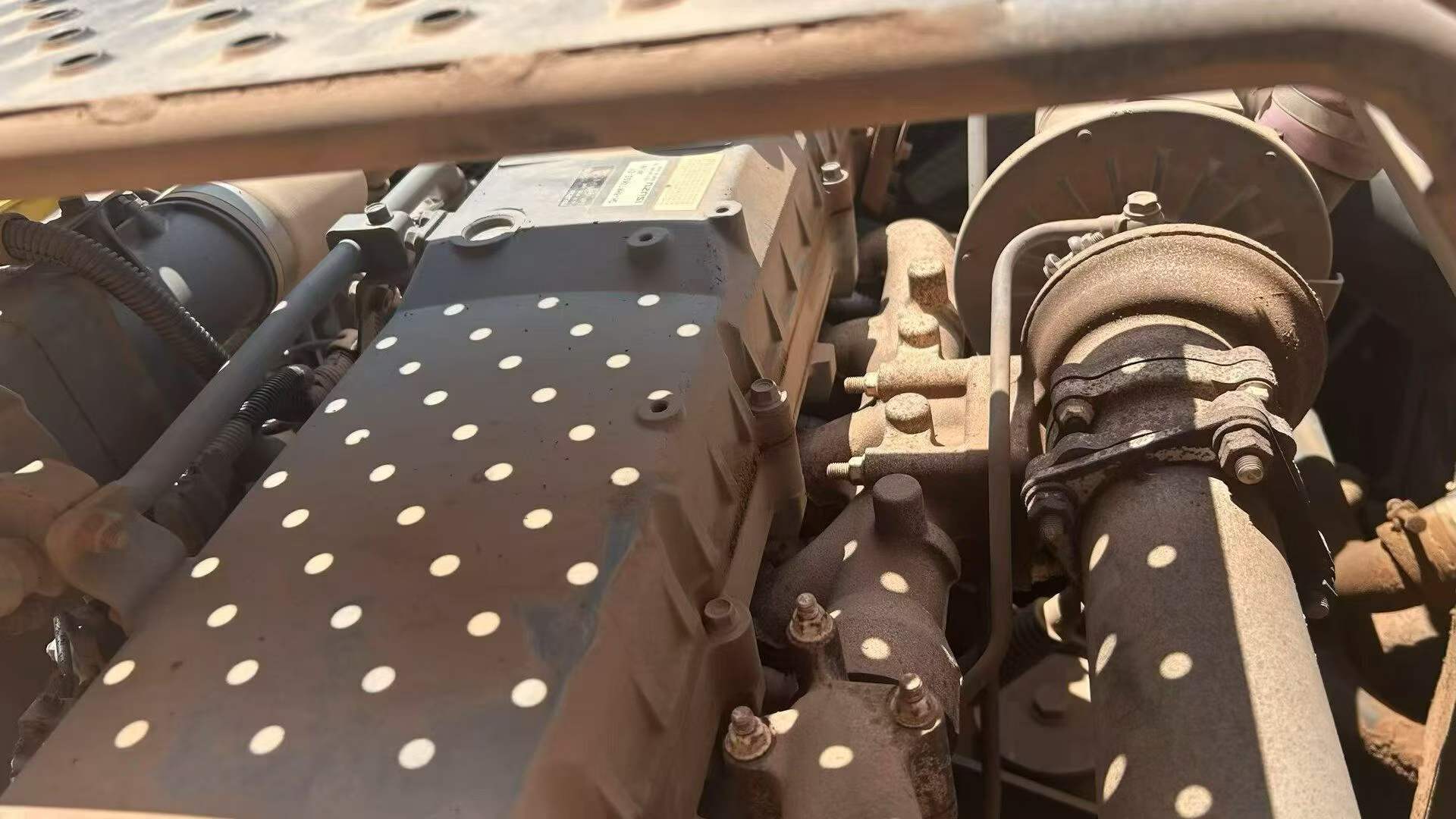

Engine typeIsuzu GH-6HK1X
Rated power (kw/rpm)200/2000
Displacement (L)7.79
Ground specific pressure (Kpa)70
Rotation speed (rpm)10
Climbing ability (%)70
Bucket digging force (kN)232
Rod digging force (kN)165
Travel speed (km/h)3.4/5.4
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)175
Hydraulic System (L)350
Total transport length (mm)11140
Total transport width (mm)3200
Total transport height (mm)3420
Counterweight ground clearance (mm)1200
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3550
Total track length (mm)4980
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1129397

Brand Name:

Sumitomo

Model Number:

SH380LHD-6

Year:

2018

Location:

Fujian China

Pub Date
