2019 Sumitomo SH480-5

1/6

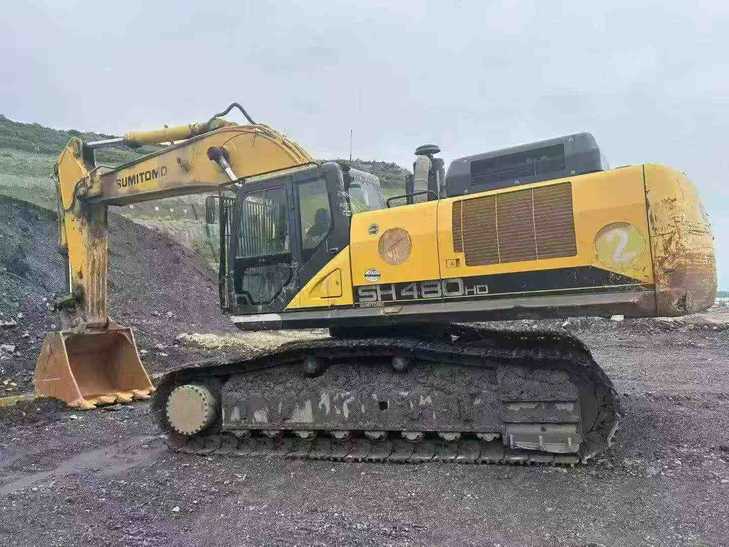

Buy Sumitomo SH480-5 Used Excavator / 1
Buy Sumitomo SH480-5 Used Excavator / 2
Buy Sumitomo SH480-5 Used Excavator / 3
Buy Sumitomo SH480-5 Used Excavator / 4
Buy Sumitomo SH480-5 Used Excavator / 5
Buy Sumitomo SH480-5 Used Excavator / 6

Product Description

This 2019 Sumitomo SH480-5 hydraulic excavator represents a reliable solution for large-scale earthmoving and construction projects. Currently located in Sichuan, China, this machine offers robust performance backed by Sumitomo's reputation for engineering excellence in the heavy equipment sector.

The SH480-5 model features advanced hydraulic systems designed for optimal fuel efficiency and productivity in demanding applications. With its substantial operating weight class, this excavator is well-suited for mining operations, infrastructure development, and high-volume excavation work.

Key features include:

  • Year of manufacture: 2019
  • Low operating hours for model year
  • Proven Sumitomo build quality and durability
  • Available for immediate inspection in Sichuan, China
  • Suitable for quarrying, mining, and heavy construction applications

Contact us for detailed specifications, inspection arrangements, and international shipping options.

SpecificationsValue
No.1096451
Tonnage (tons)48
Working weight (kg)41700
Bucket capacity (m³)2.2-2.4
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)270/1950
Maximum torque (N.m/rpm)98
Ground specific pressure (Kpa)341
Rotation speed (rpm)9
Climbing ability (%)70% (35°)
Bucket digging force (kN)243.3
Rod digging force (kN)221.4
Travel speed (km/h)
Main overflow set pressure (Mpa)31.4/34.3
Rotary hydraulic motor type
Type of walking hydraulic motor
Main pump type
Fuel Tank (L)650
Hydraulic Tank (L)230/460
Total transport length (mm)12070
Total transport width (mm)3350
Total transport height (mm)3720
Counterweight ground clearance (mm)1330
Minimum ground clearance (mm)540
Minimum turning radius of front working device (mm)5030
Back end turning radius (mm)3690
Total track length (mm)5100
Track plate width (mm)600
Total track width (mm)3350
Maximum digging radius (mm)11800
Maximum digging depth (mm)7470
Maximum excavation height (mm)11130
Maximum unloading height (mm)7710
Maximum vertical digging depth (mm)5610
see more

Overview

No.1096451

Brand Name:

Sumitomo

Model Number:

SH480-5

Year:

2019

Location:

Sichuan China

Pub Date
