2020 Sumitomo SH480-5

1/6
Buy Sumitomo SH480-5 Used Excavator / 1

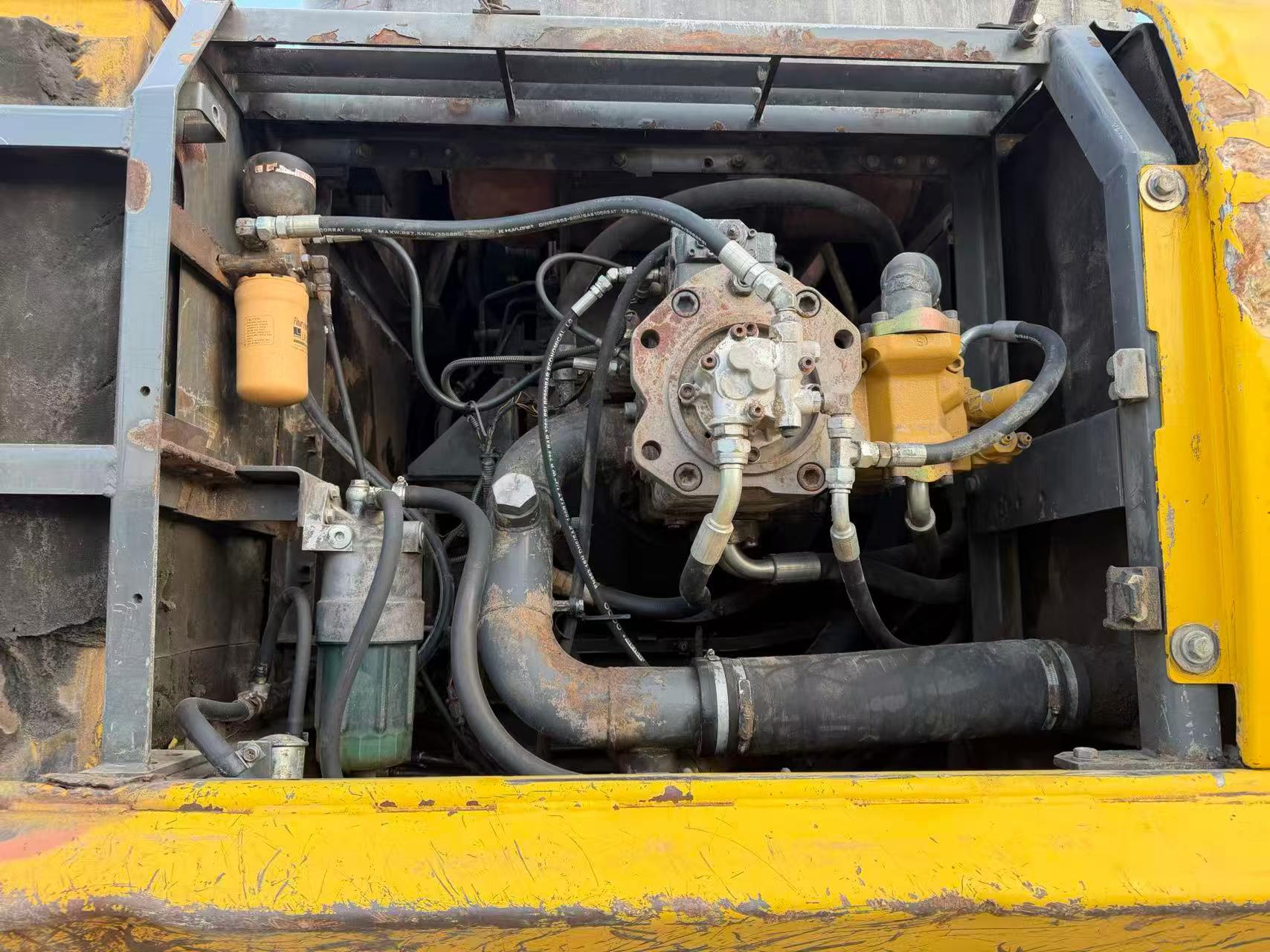

Buy Sumitomo SH480-5 Used Excavator / 2

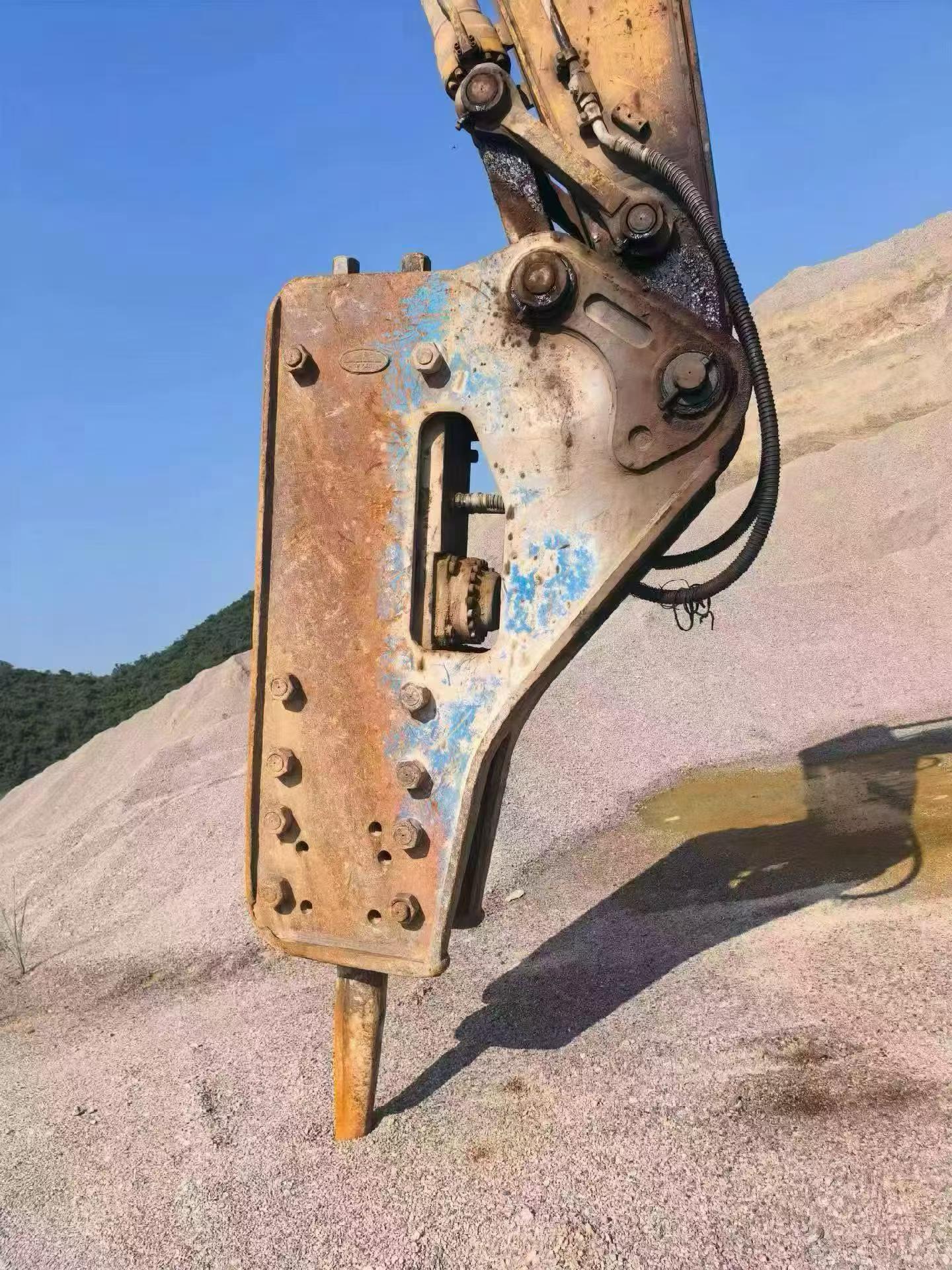

Buy Sumitomo SH480-5 Used Excavator / 3

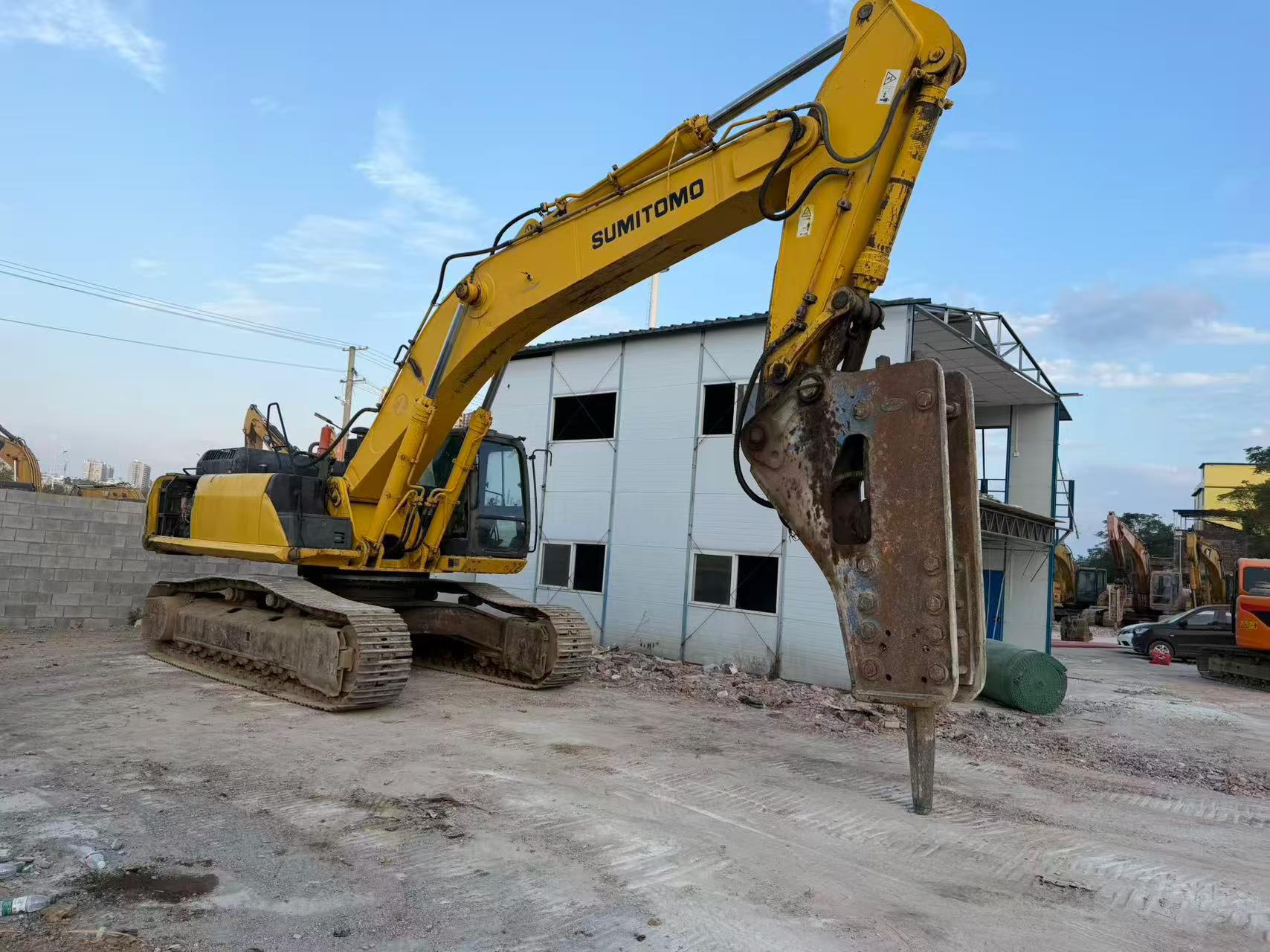

Buy Sumitomo SH480-5 Used Excavator / 4

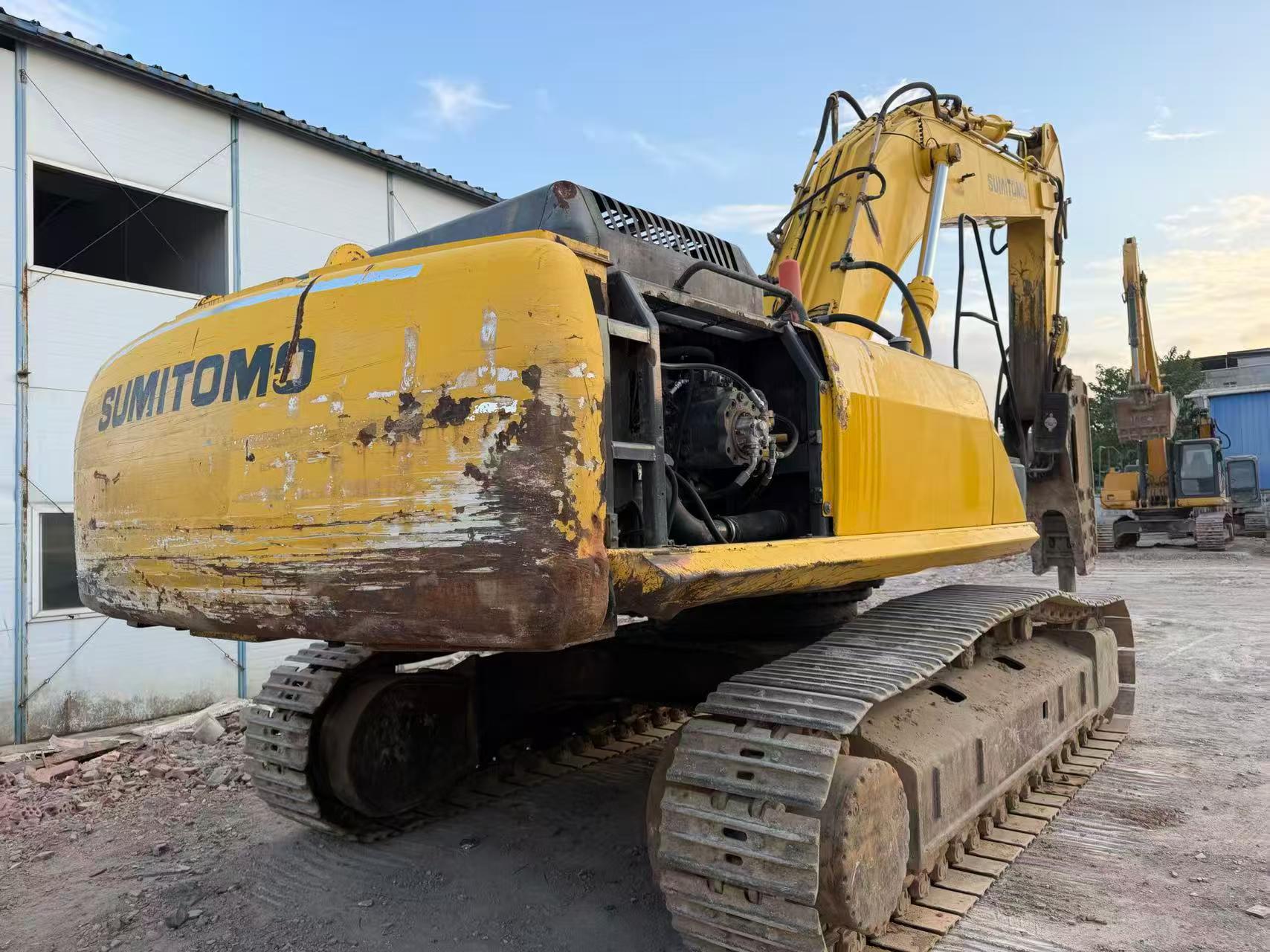

Buy Sumitomo SH480-5 Used Excavator / 5

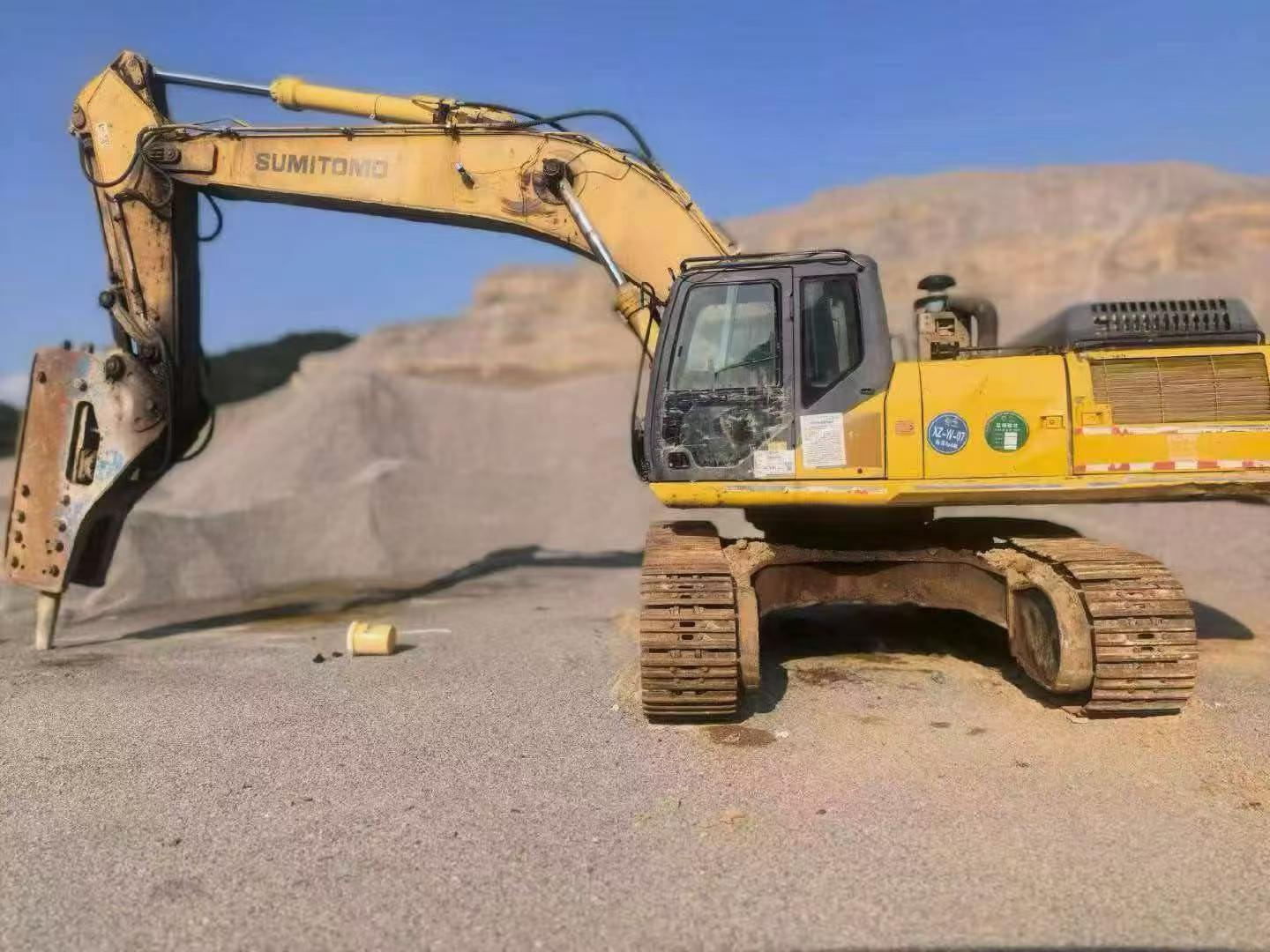

Buy Sumitomo SH480-5 Used Excavator / 6

Product Description

Discover the reliability and performance of the 2020 Sumitomo SH480-5, now available in Guangxi, China. This used excavator, paired with a 195 hammer, is in excellent condition, estimated at 80% new, ensuring it's ready to tackle your most demanding projects. The SH480-5 model is known for its robust design, efficient operation, and durability, making it a preferred choice for construction, mining, and large-scale earthmoving tasks.

  • Year: 2020
  • Brand: Sumitomo
  • Model: SH480-5
  • Location: Guangxi, China
  • Condition: 80% New
  • Equipped with a 195 Hammer
SpecificationsValue
No.1165000
Tonnage (tons)48
Working weight (kg)41700
Bucket capacity (m³)2.2-2.4
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)270/1950
Maximum torque (N.m/rpm)98
Ground specific pressure (Kpa)341
Rotation speed (rpm)9
Climbing ability (%)70% (35°)
Bucket digging force (kN)243.3
Rod digging force (kN)221.4
Travel speed (km/h)
Main overflow set pressure (Mpa)31.4/34.3
Rotary hydraulic motor type
Type of walking hydraulic motor
Main pump type
Fuel Tank (L)650
Hydraulic Tank (L)230/460
Total transport length (mm)12070
Total transport width (mm)3350
Total transport height (mm)3720
Counterweight ground clearance (mm)1330
Minimum ground clearance (mm)540
Minimum turning radius of front working device (mm)5030
Back end turning radius (mm)3690
Total track length (mm)5100
Track plate width (mm)600
Total track width (mm)3350
Maximum digging radius (mm)11800
Maximum digging depth (mm)7470
Maximum excavation height (mm)11130
Maximum unloading height (mm)7710
Maximum vertical digging depth (mm)5610
see more

Overview

No.1165000

Brand Name:

Sumitomo

Model Number:

SH480-5

Year:

2020

Location:

Guangxi China

Pub Date:
