Product Description

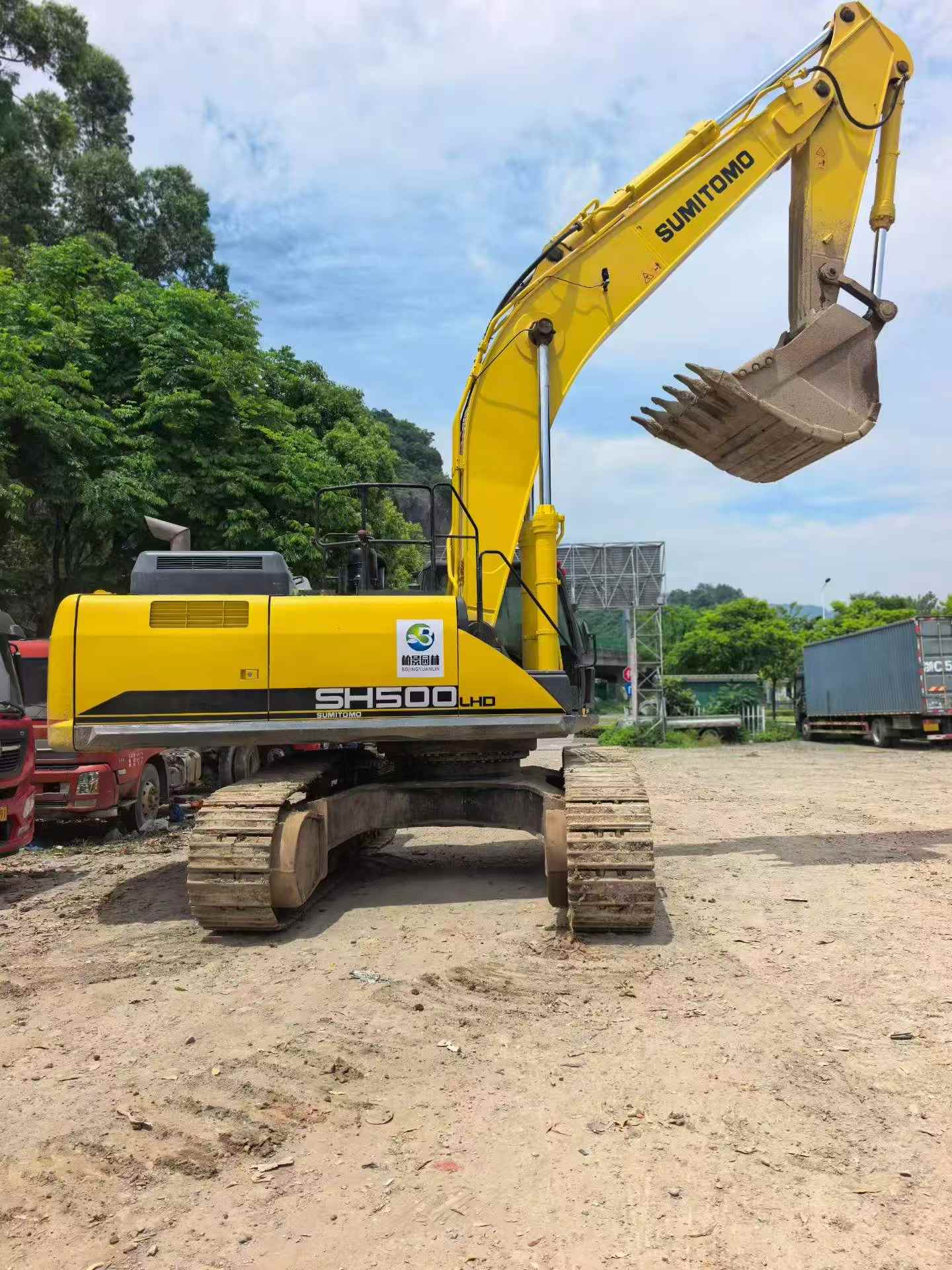

Built for operators who demand precision and control, this 2022 Sumitomo SH500LHD-6 delivers 50-ton performance with exceptional stability and sightlines. Powered by a 270 kW engine, it generates 274 kN bucket digging force and 251 kN arm force, tackling dense material with confidence. The spacious cabin offers panoramic visibility across a 10,920 mm working radius, while intuitive hydraulic controls and a 9.0 rpm swing speed enable smooth, responsive positioning. Ground pressure remains low at 85 kPa, protecting soft terrain without sacrificing traction on 70% grades. Dual travel speeds (5.3 / 3.2 km/h) and a tight 3,730 mm rear turning radius enhance maneuverability on confined sites. Hydraulic and fuel capacities (460 L system, 650 L tank) support extended shifts, and the reinforced undercarriage ensures consistent tracking under load. Currently located in Zhejiang, China, this machine combines joint-venture engineering with operator-focused ergonomics for demanding earthmoving and demolition applications.

SpecificationsValue
No.1097417
Tonnage (tons)50
Working weight (kg)50000
Bucket capacity (m³)2.8-3.0
Boom length (mm)6550
Rod length (mm)2500
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)270.0/2000
Displacement (L)9.839
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.0
Climbing ability (%)70
Bucket digging force (kN)274
Rod digging force (kN)251
Travel speed (km/h)5.3 / 3.2
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Fuel Tank (L)650
Hydraulic Tank (L)230
Hydraulic System (L)460
Total transport length (mm)11680
Total transport width (mm)3350
Total transport height (mm)3770
Counterweight ground clearance (mm)1330
Minimum ground clearance (mm)535
Minimum turning radius of front working device (mm)4800
Back end turning radius (mm)3730
Total track length (mm)5450
Track plate width (mm)600
Total track width (mm)3350
Maximum digging radius (mm)10920
Maximum digging depth (mm)6600
Maximum excavation height (mm)10560
Maximum unloading height (mm)7080
Maximum vertical digging depth (mm)4030
