2022 Sumitomo SH500LHD-6

1/9

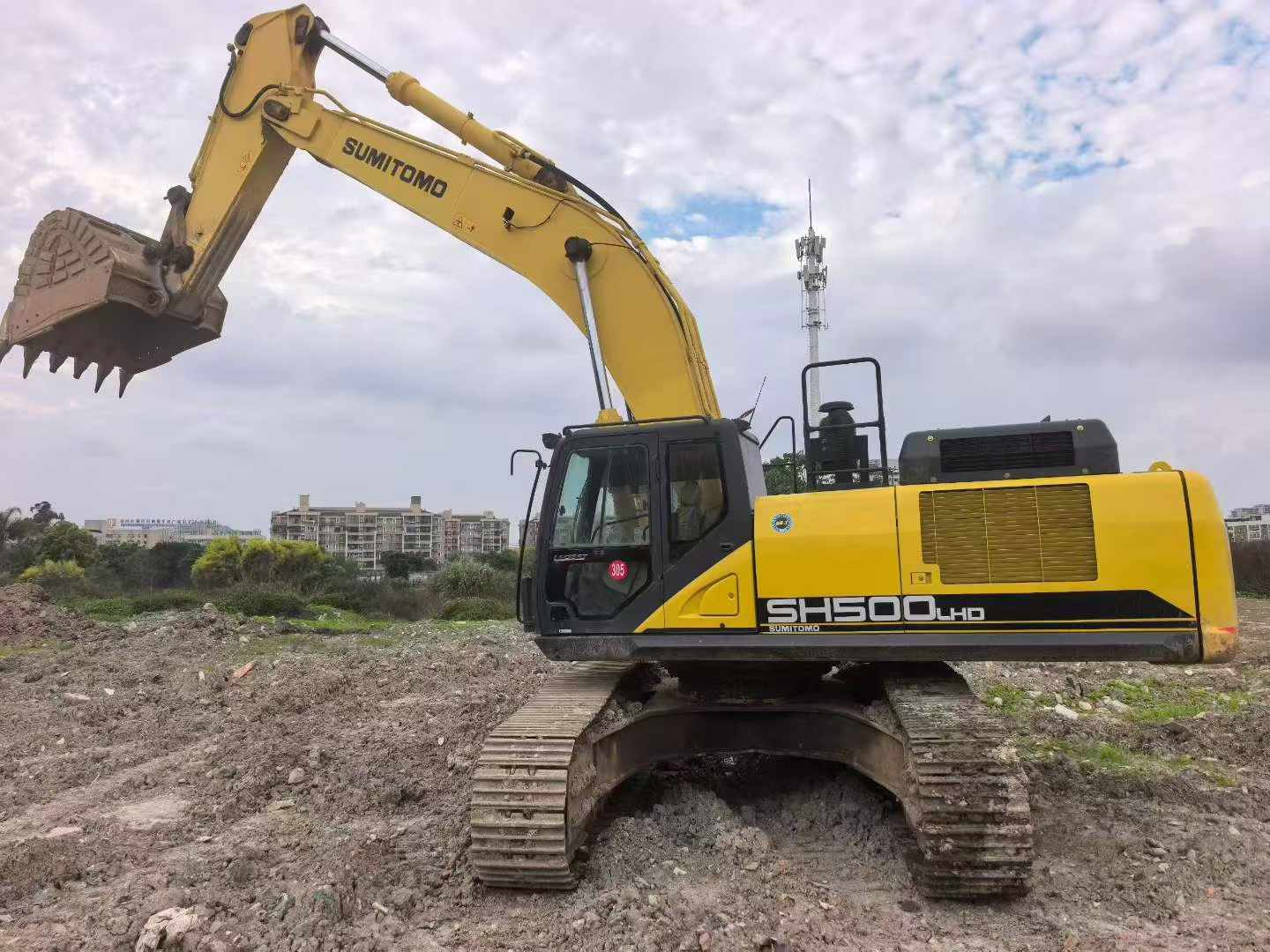

Buy Sumitomo SH500LHD-6 Used Excavator / 1

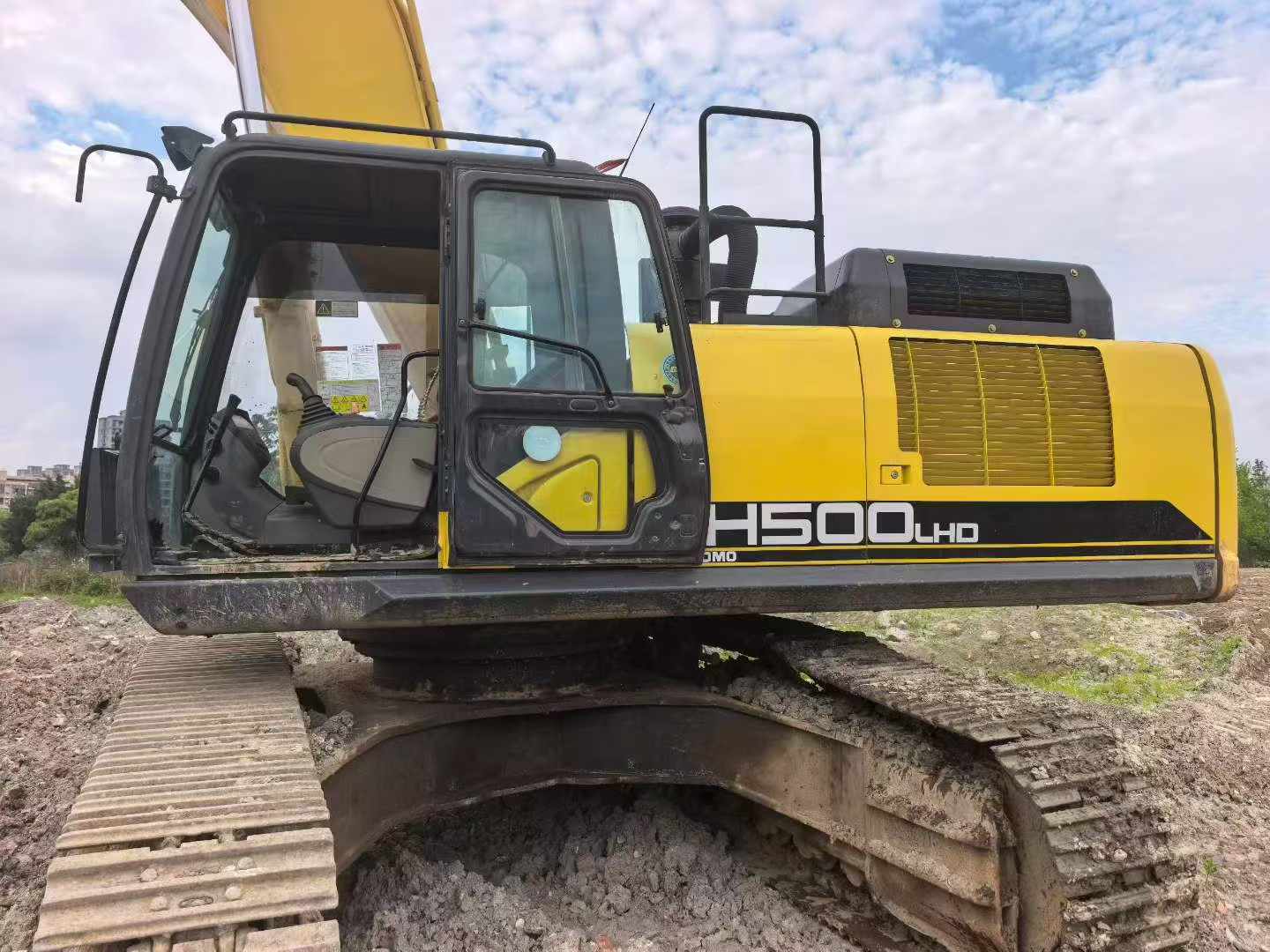

Buy Sumitomo SH500LHD-6 Used Excavator / 2

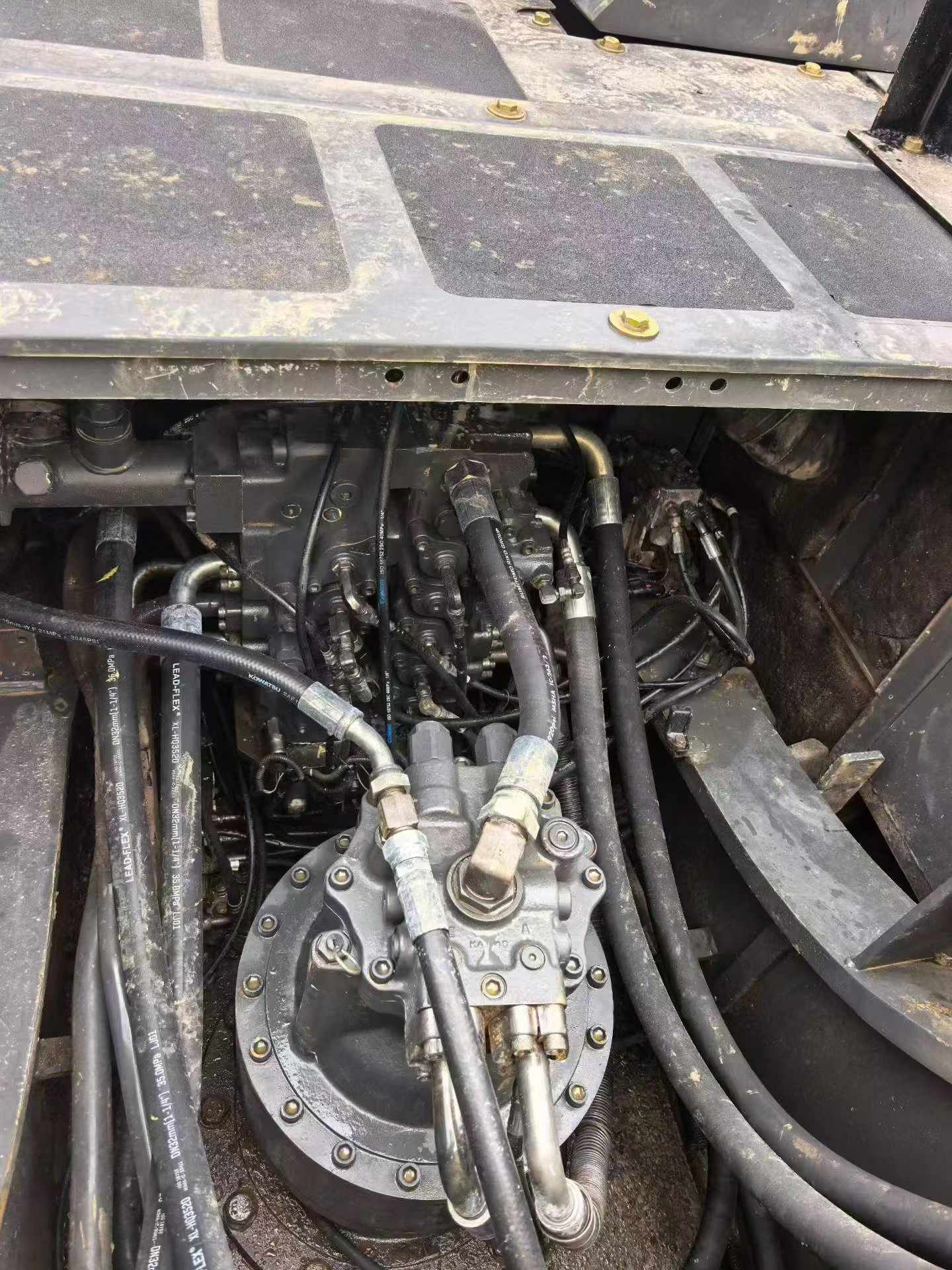

Buy Sumitomo SH500LHD-6 Used Excavator / 3

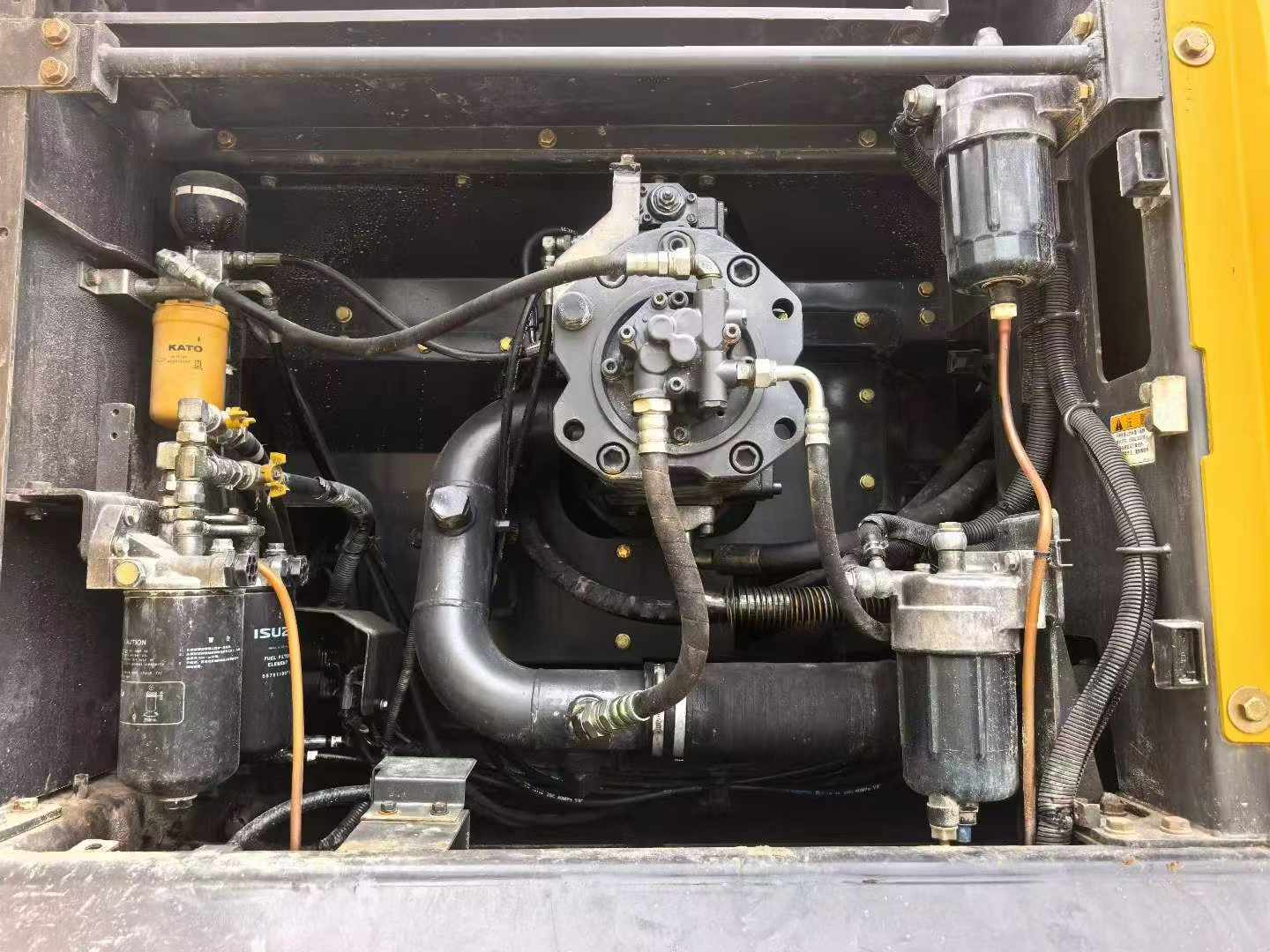

Buy Sumitomo SH500LHD-6 Used Excavator / 4

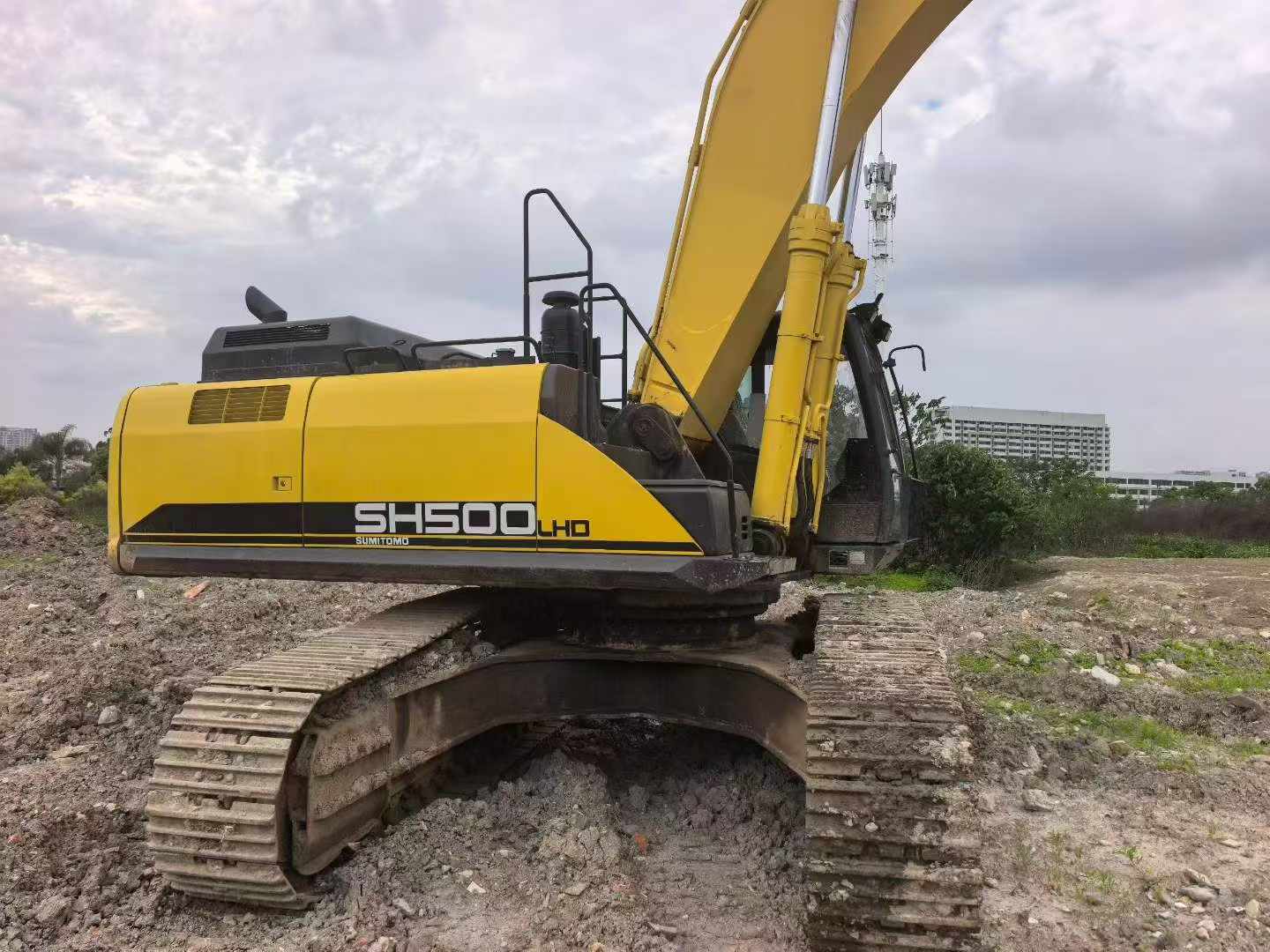

Buy Sumitomo SH500LHD-6 Used Excavator / 5

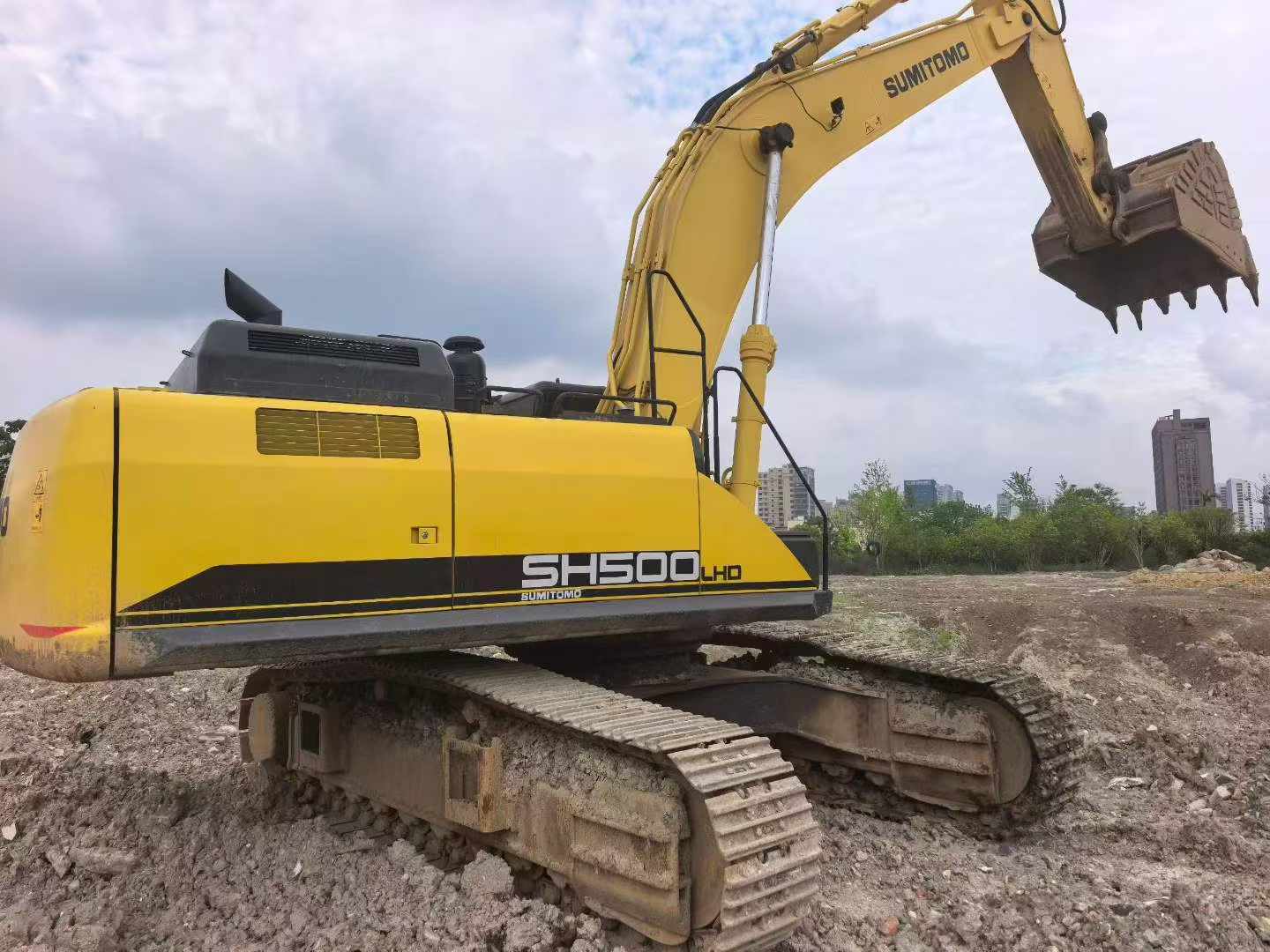

Buy Sumitomo SH500LHD-6 Used Excavator / 6

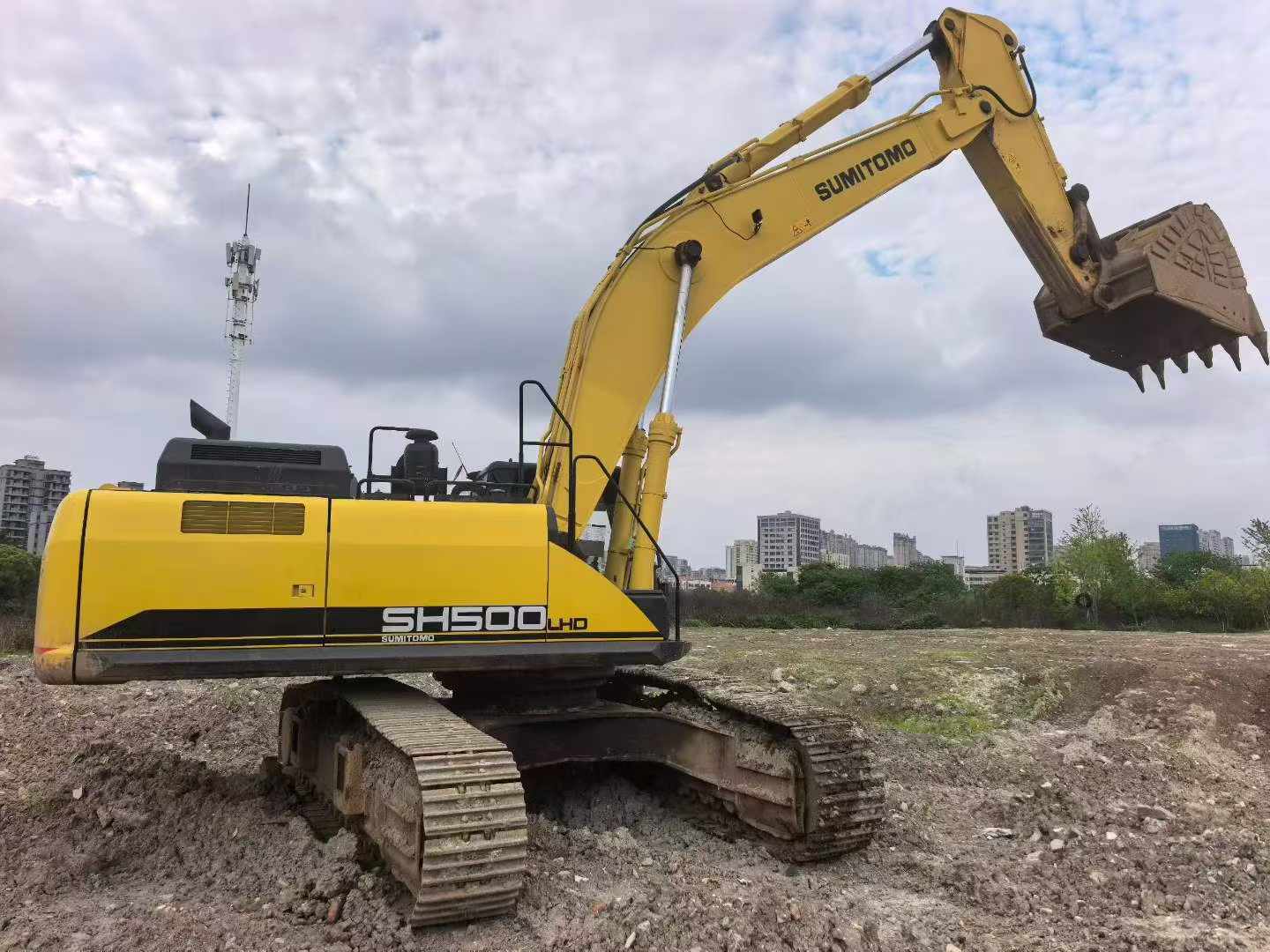

Buy Sumitomo SH500LHD-6 Used Excavator / 7
Buy Sumitomo SH500LHD-6 Used Excavator / 8

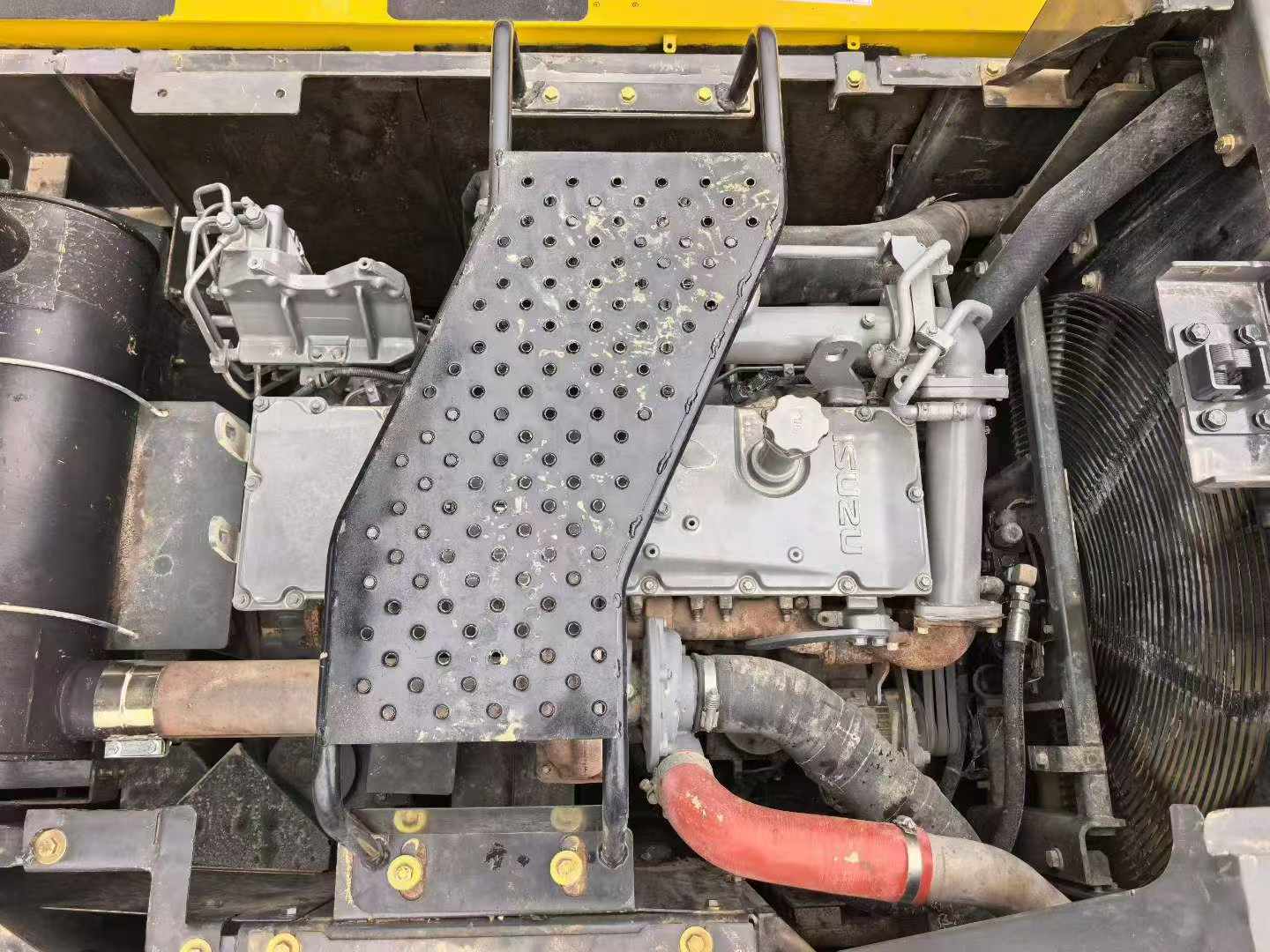

Buy Sumitomo SH500LHD-6 Used Excavator / 9

Product Description

This 2022 Sumitomo SH500LHD-6 hydraulic excavator represents a premium opportunity for heavy construction and mining operations. With minimal operating hours since its recent manufacture, this machine delivers the reliability and performance Sumitomo is known for in the large excavator segment.

The SH500LHD-6 features Sumitomo's proven hydraulic system, designed for demanding applications requiring substantial digging force and reach. Currently located in Zhejiang, China, this unit is well-suited for infrastructure projects, quarrying, and large-scale earthmoving operations.

  • Year: 2022
  • Model: SH500LHD-6
  • Condition: Low hours, well-maintained
  • Location: Zhejiang Province, China
  • Application: Heavy excavation, mining, infrastructure

Inspection and shipping arrangements can be coordinated. Contact us for detailed machine history and current specifications.

SpecificationsValue
No.1156163
Tonnage (tons)50
Working weight (kg)50000
Bucket capacity (m³)2.8-3.0
Boom length (mm)6550
Rod length (mm)2500
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)270.0/2000
Displacement (L)9.839
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.0
Climbing ability (%)70
Bucket digging force (kN)274
Rod digging force (kN)251
Travel speed (km/h)5.3 / 3.2
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Fuel Tank (L)650
Hydraulic Tank (L)230
Hydraulic System (L)460
Total transport length (mm)11680
Total transport width (mm)3350
Total transport height (mm)3770
Counterweight ground clearance (mm)1330
Minimum ground clearance (mm)535
Minimum turning radius of front working device (mm)4800
Back end turning radius (mm)3730
Total track length (mm)5450
Track plate width (mm)600
Total track width (mm)3350
Maximum digging radius (mm)10920
Maximum digging depth (mm)6600
Maximum excavation height (mm)10560
Maximum unloading height (mm)7080
Maximum vertical digging depth (mm)4030
see more

Overview

No.1156163

Brand Name:

Sumitomo

Model Number:

SH500LHD-6

Year:

2022

Location:

Zhejiang China

Pub Date:
