Product Description

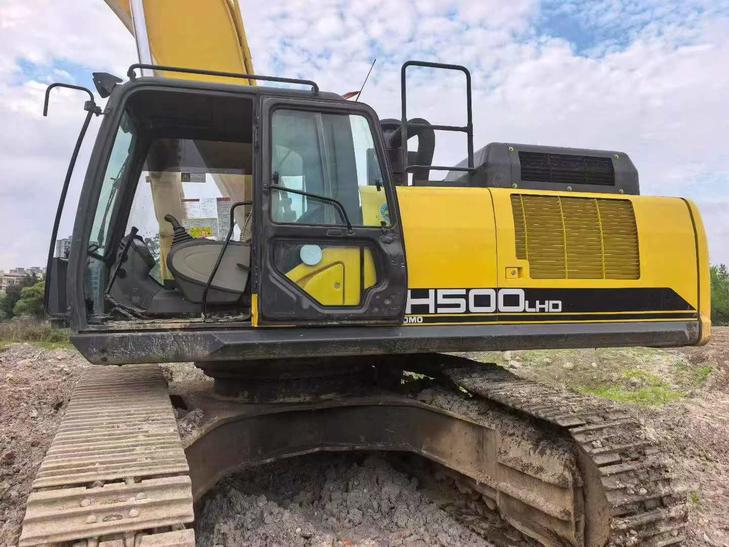

This 2022 Sumitomo SH500LHD-6 hydraulic excavator represents a premium addition to any heavy construction or mining fleet. With minimal operating hours since manufacture, this machine delivers the reliability and performance Sumitomo is known for in the large excavator segment. The SH500LHD-6 features robust hydraulic systems, fuel-efficient engine technology, and operator-focused cabin design for extended productivity on demanding jobsites.
Currently located in Zhejiang, China, this unit is well-suited for:
- Large-scale earthmoving and excavation projects
- Mining and quarry operations
- Infrastructure development
- Heavy demolition applications
The machine's low-hour status and recent manufacture year minimize downtime risk and maintenance requirements. Available for inspection by appointment. Complete service records and export documentation can be arranged to facilitate international delivery.
| Specifications | Value |
|---|---|
| No. | 1162630 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 50000 |
| Bucket capacity (m³) | 2.8-3.0 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 270.0/2000 |
| Displacement (L) | 9.839 |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 274 |
| Rod digging force (kN) | 251 |
| Travel speed (km/h) | 5.3 / 3.2 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230 |
| Hydraulic System (L) | 460 |
| Total transport length (mm) | 11680 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3770 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 535 |
| Minimum turning radius of front working device (mm) | 4800 |
| Back end turning radius (mm) | 3730 |
| Total track length (mm) | 5450 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 10560 |
| Maximum unloading height (mm) | 7080 |
| Maximum vertical digging depth (mm) | 4030 |
Overview
No.1162630
Brand Name:
SumitomoModel Number:
SH500LHD-6Year:
2022
Location:
Zhejiang China
Pub Date:
