2020 Sumitomo SH700LHD-5

1/9

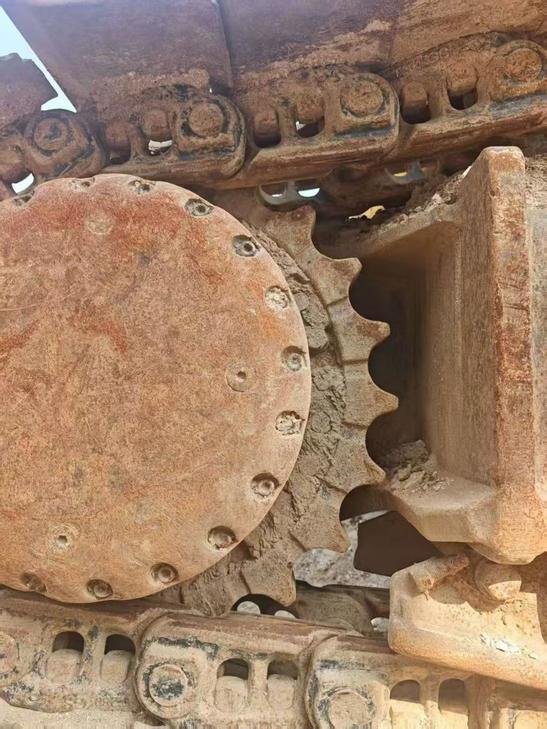

Buy Sumitomo SH700LHD-5 Used Excavator / 1
Buy Sumitomo SH700LHD-5 Used Excavator / 2
Buy Sumitomo SH700LHD-5 Used Excavator / 3
Buy Sumitomo SH700LHD-5 Used Excavator / 4
Buy Sumitomo SH700LHD-5 Used Excavator / 5
Buy Sumitomo SH700LHD-5 Used Excavator / 6
Buy Sumitomo SH700LHD-5 Used Excavator / 7
Buy Sumitomo SH700LHD-5 Used Excavator / 8
Buy Sumitomo SH700LHD-5 Used Excavator / 9

Product Description

Discover the robust and reliable 2020 Sumitomo SH700LHD-5, a versatile heavy machine currently available in Hunan, China. This unit is equipped with both a hammer and bucket, making it ideal for a variety of demanding tasks. The SH700LHD-5 is designed to deliver high performance and efficiency, ensuring that your projects are completed on time and to the highest standards. Detailed images and specifications are available upon request, providing you with a comprehensive view of the machine's condition and capabilities.

  • Year: 2020
  • Brand: Sumitomo
  • Model: SH700LHD-5
  • Location: Hunan, China
  • Equipped with hammer and bucket
SpecificationsValue
No.1175259
Tonnage (tons)70
Working weight (kg)68100
Bucket capacity (m³)2.9
Boom length (mm)7700
Rod length (mm)3550
Country of originXiamen (in Fujian Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AH-6xyss
Rated power (kw/rpm)345/1800
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)15.7
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)100
Rotation speed (rpm)6.5
Climbing ability (%)70/35 °
Bucket digging force (kN)
Rod digging force (kN)
Travel speed (km/h)3.0/4.1
Main overflow set pressure (Mpa)
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Hydraulic crushing pipeline is standardis
Main pump type
Fuel Tank (L)900
Hydraulic Tank (L)310
Total transport length (mm)13290
Total transport width (mm)4140
Total transport height (mm)4300
Full cab height (mm)3480
Counterweight ground clearance (mm)1510
Minimum ground clearance (mm)825
Minimum turning radius of front working device (mm)5810
Back end turning radius (mm)4000
Total track length (mm)5880
Track gauge (mm)4700
Track plate width (mm)650
Total track width (mm)3990
Track ground length (mm)4700
Maximum digging radius (mm)13160
Maximum digging depth (mm)8400
Maximum excavation height (mm)11920
Maximum unloading height (mm)8020
Maximum vertical digging depth (mm)6870
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
see more

Overview

No.1175259

Brand Name:

Sumitomo

Model Number:

SH700LHD-5

Year:

2020

Location:

Hunan China

Pub Date:

Are you interested in this machine?

Please contact us
