Product Description

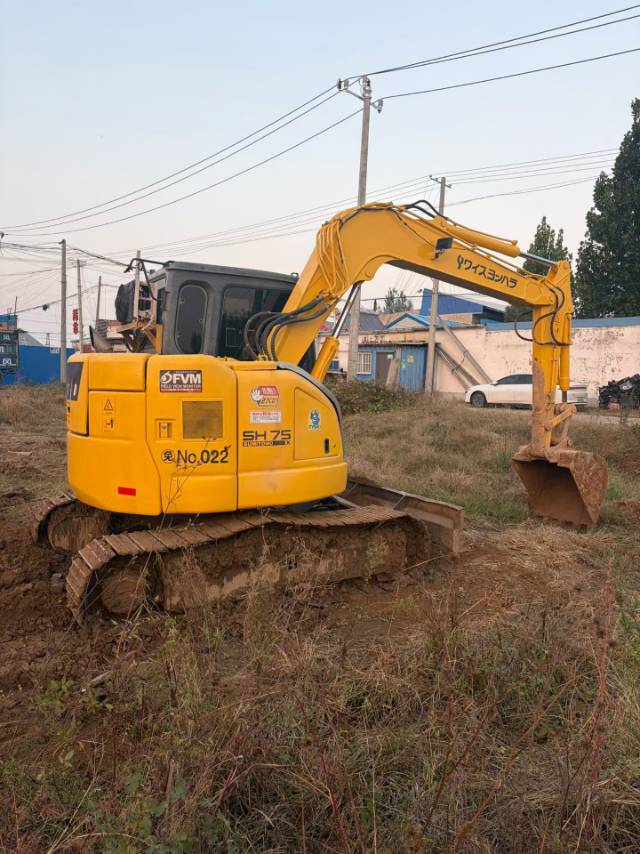

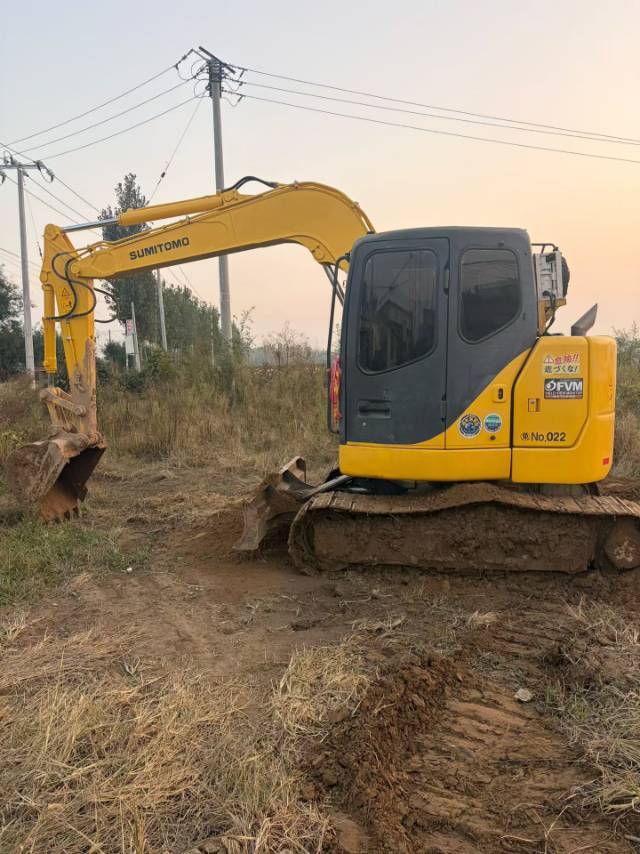

This 2021 Sumitomo SH75X-3B excavator represents a reliable solution for contractors seeking proven Japanese engineering. Powered by an Isuzu engine, this 7.5-ton class machine delivers consistent performance across demanding applications. The SH75X-3B features Sumitomo's reputation for hydraulic efficiency and operator comfort, making it suitable for utility work, landscaping, and general construction projects.
Currently located in Shandong, China, this unit maintains good working condition with well-preserved mechanical systems. The compact dimensions allow access to confined jobsites while providing sufficient digging depth and reach for productive daily operations.
- Year: 2021
- Manufacturer: Sumitomo
- Model: SH75X-3B

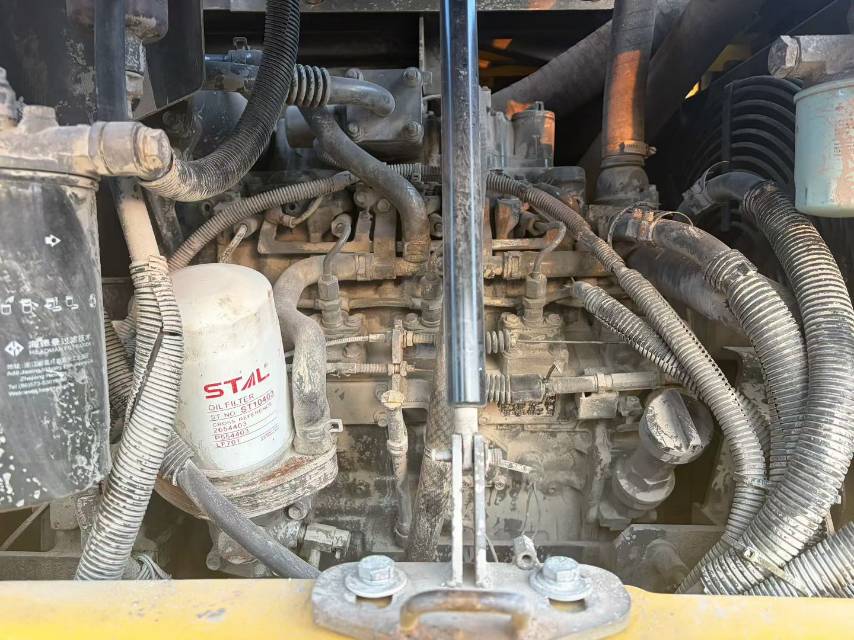

- Engine: Isuzu
- Location: Shandong, China
- Operating Weight Class: ~7.5 tons
This excavator offers an opportunity to acquire quality Japanese construction equipment at competitive pricing. Inspection welcomed for serious buyers.
| Specifications | Value |
|---|---|
| No. | 1168062 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7330(7750) |
| Bucket capacity (m³) | 0.28 |
| Boom length (mm) | 3870 |
| Rod length (mm) | 1710 / 2120 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 40/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Working form | Four-stroke, direct injection, turbocharged and air-cooled diesel engine |
| Ground specific pressure (Kpa) | 35 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 56.9 |
| Rod digging force (kN) | 38.3 |
| Travel speed (km/h) | 3.3/5.1 |
| Main overflow set pressure (Mpa) | 29.4 |

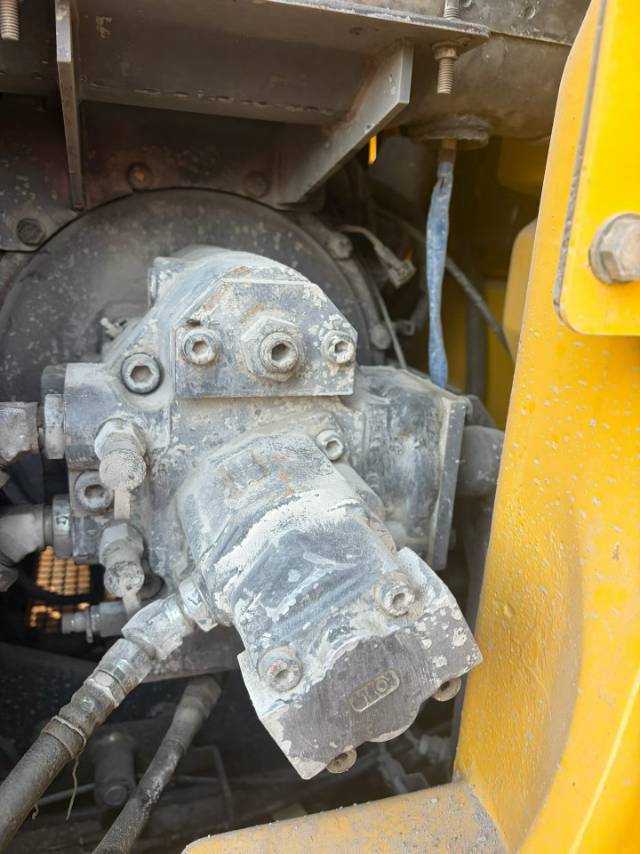

| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 85-665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 95-797 |
| Boom cylinders - Number × diameter × stroke (mm) | 110-911 |
| Fuel Tank (L) | 100 |
| Hydraulic Tank (L) | 97.3 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 10.2 |
| Total transport length (mm) | 5915 / 5910 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2700 / 2950 |
| Full cab height (mm) | 2700 |
| Counterweight ground clearance (mm) | 745 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1785 |
| Back end turning radius (mm) | 1235 |

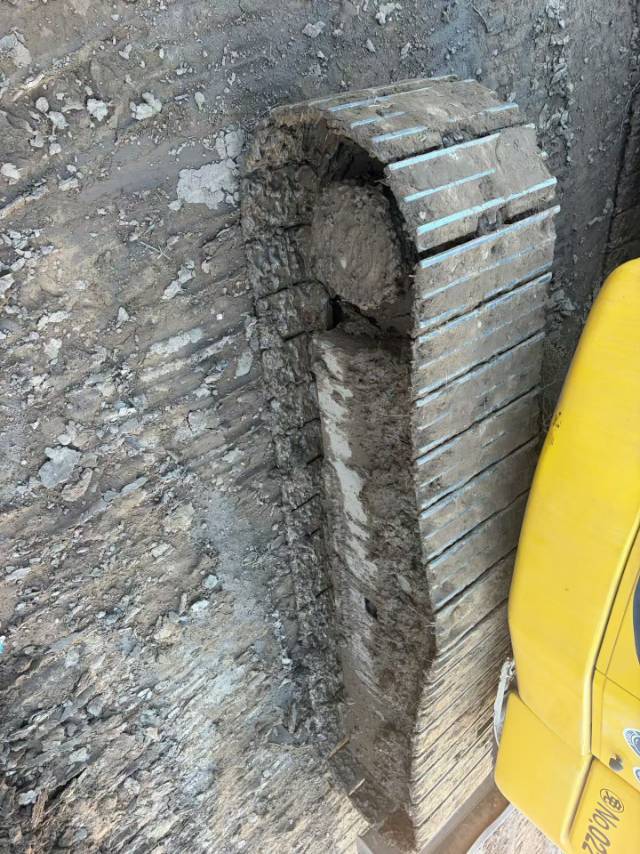

| Total track length (mm) | 2845 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6520 / 6900 |
| Maximum digging depth (mm) | 4140 / 4540 |
| Maximum excavation height (mm) | 7330 / 7620 |
| Maximum unloading height (mm) | 5250 / 5540 |
| Maximum vertical digging depth (mm) | 3640 / 4100 |
| Maximum excavation radius of stop surface (mm) | 6390 |
| Maximum effective digging depth (mm) | 3805 |
