Product Description

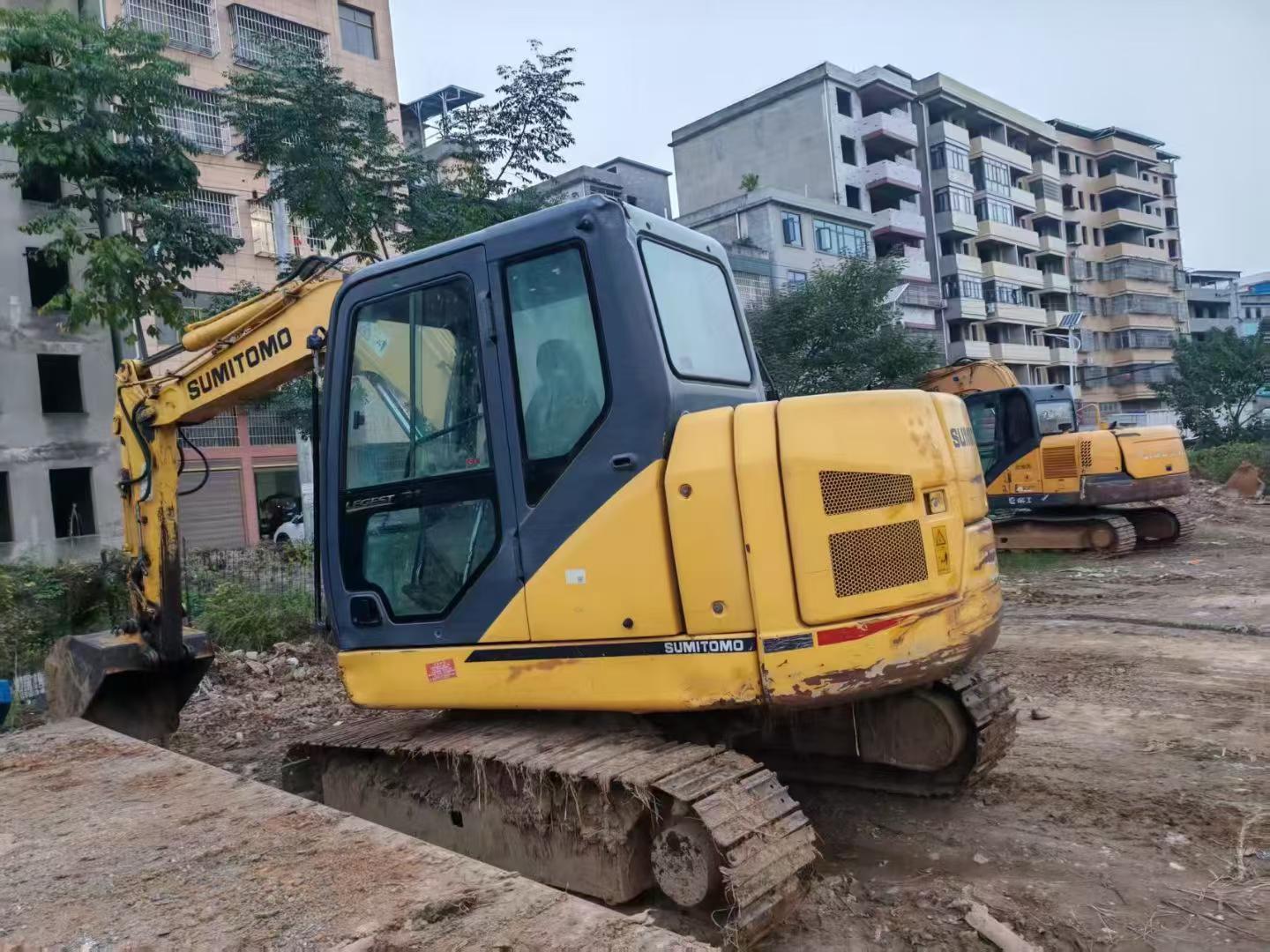

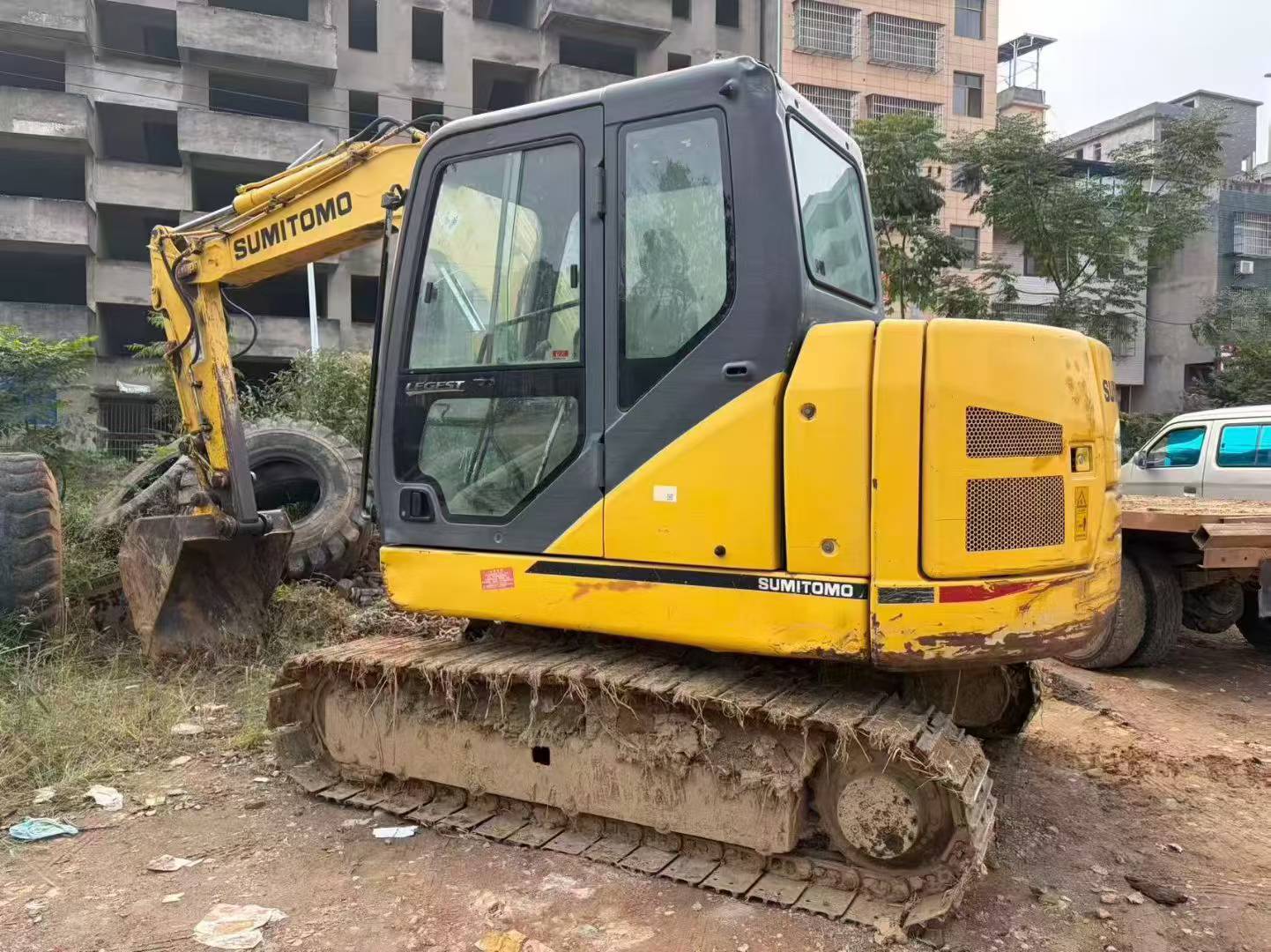

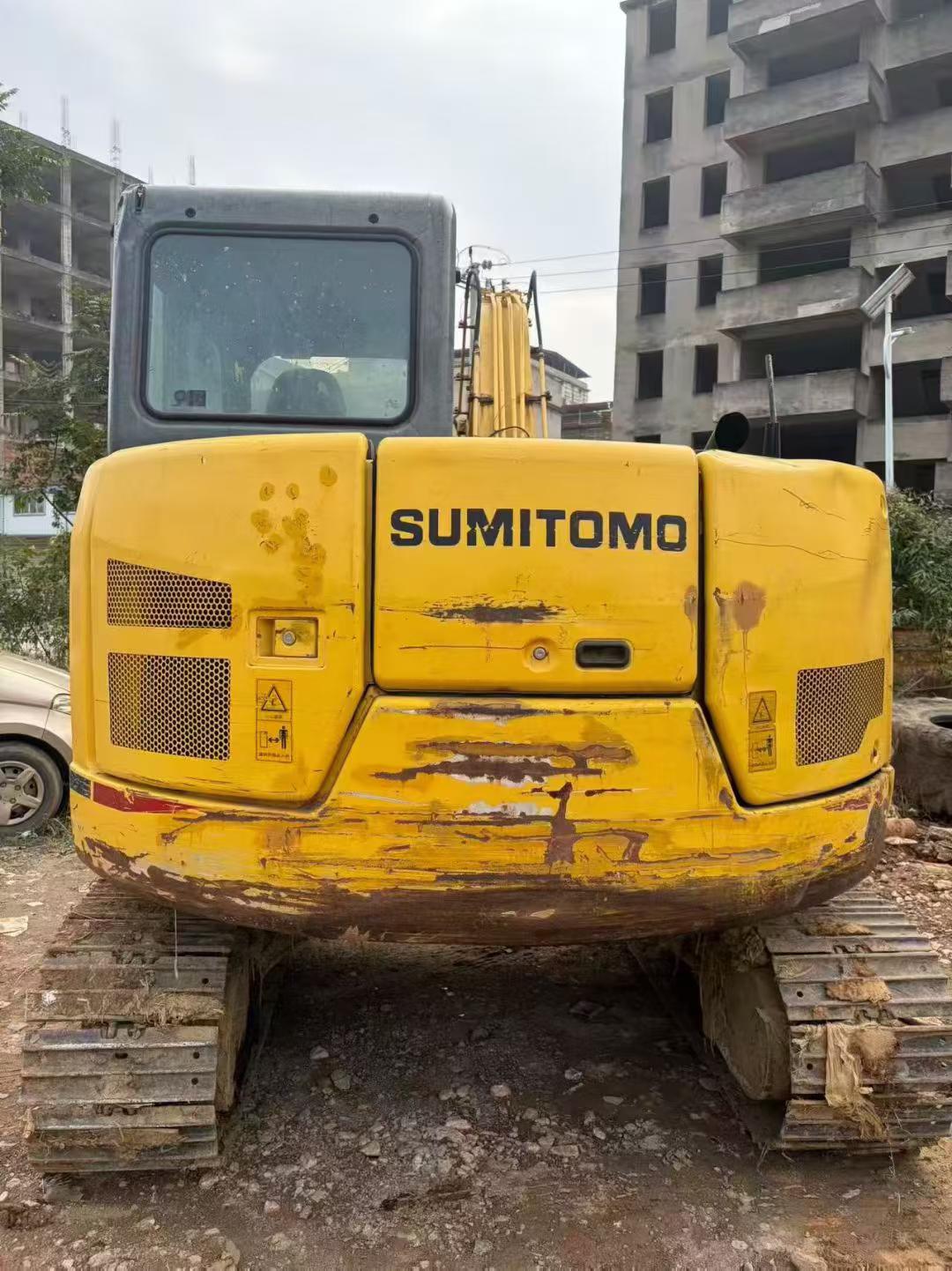

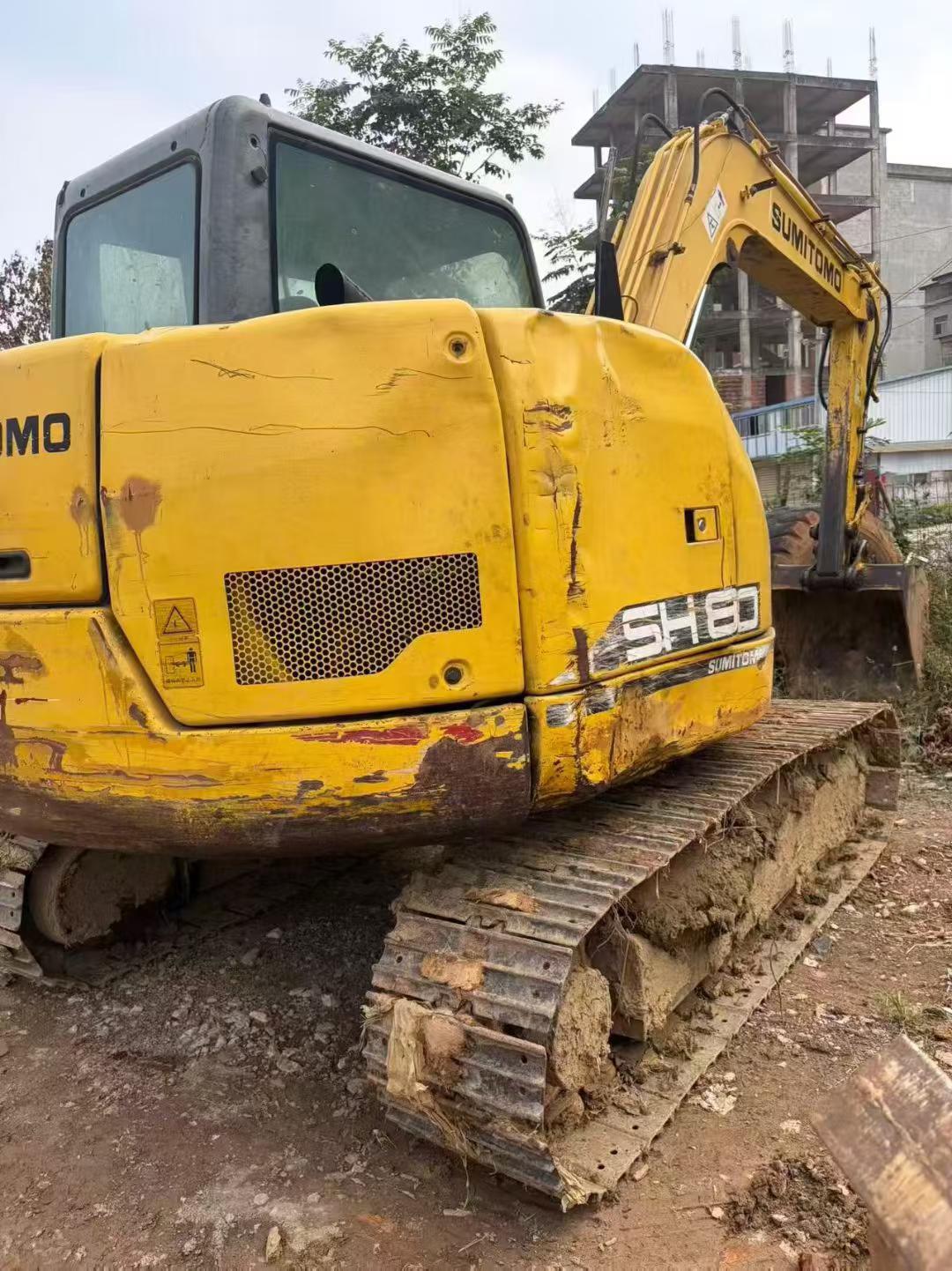

This 2014 Sumitomo SH80-6 hydraulic excavator offers reliable performance for mid-sized construction and excavation projects. With over 50,000 operating hours, this machine has been consistently maintained and remains operational. Currently located in Hunan, China, it is available for immediate inspection and purchase.
The SH80-6 model features Sumitomo's proven hydraulic system and robust undercarriage design, making it suitable for urban construction, trenching, and general earthmoving applications. The 8-ton class excavator provides a practical balance of digging force and maneuverability in confined job sites.
- Year of Manufacture: 2014
- Model: Sumitomo SH80-6
- Operating Hours: 50,000+
- Location: Hunan Province, China
- Condition: Used, operational
Contact us to schedule an inspection or request additional documentation on this Sumitomo excavator.
| Specifications | Value |
|---|---|
| No. | 1168838 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

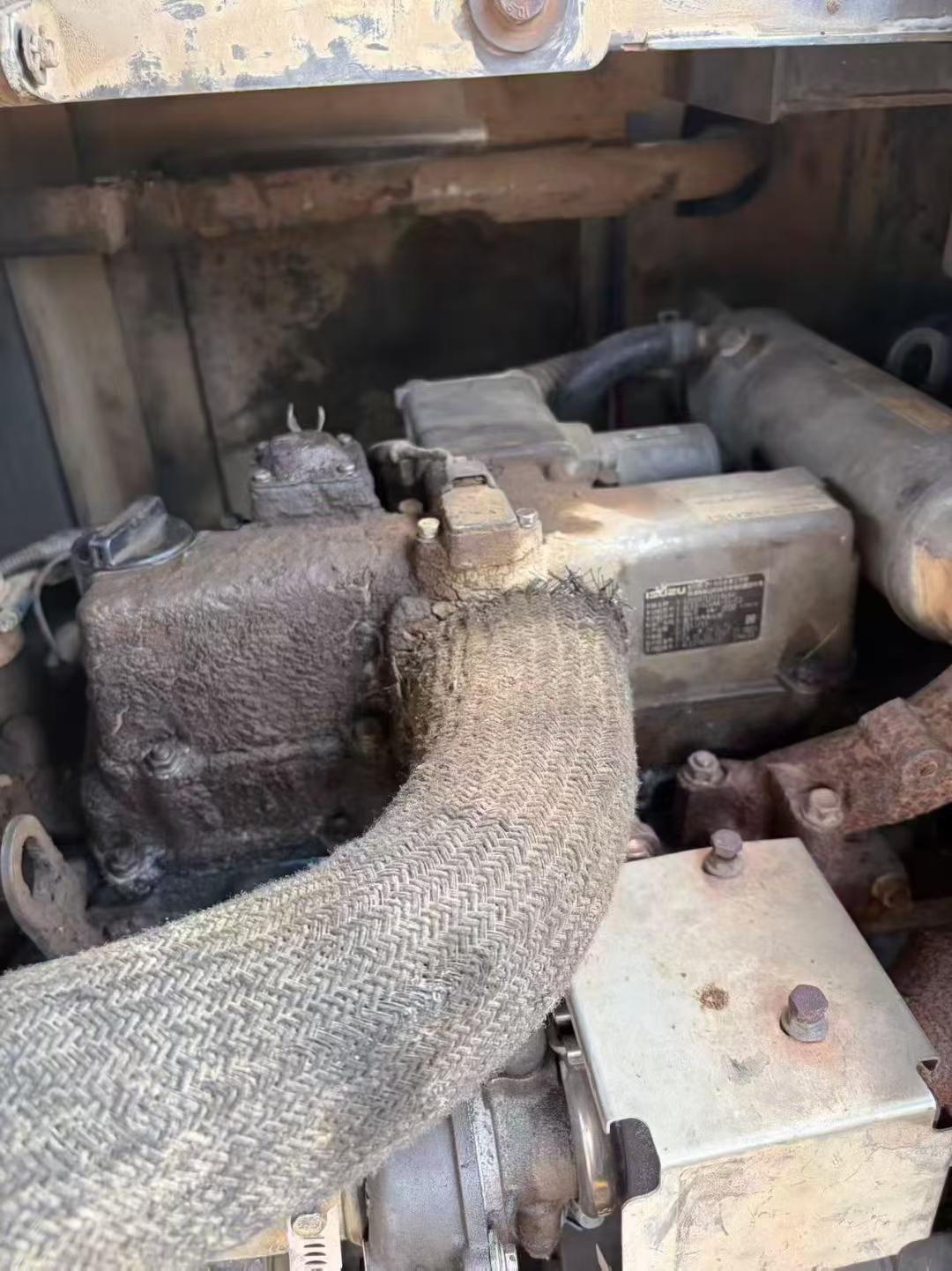

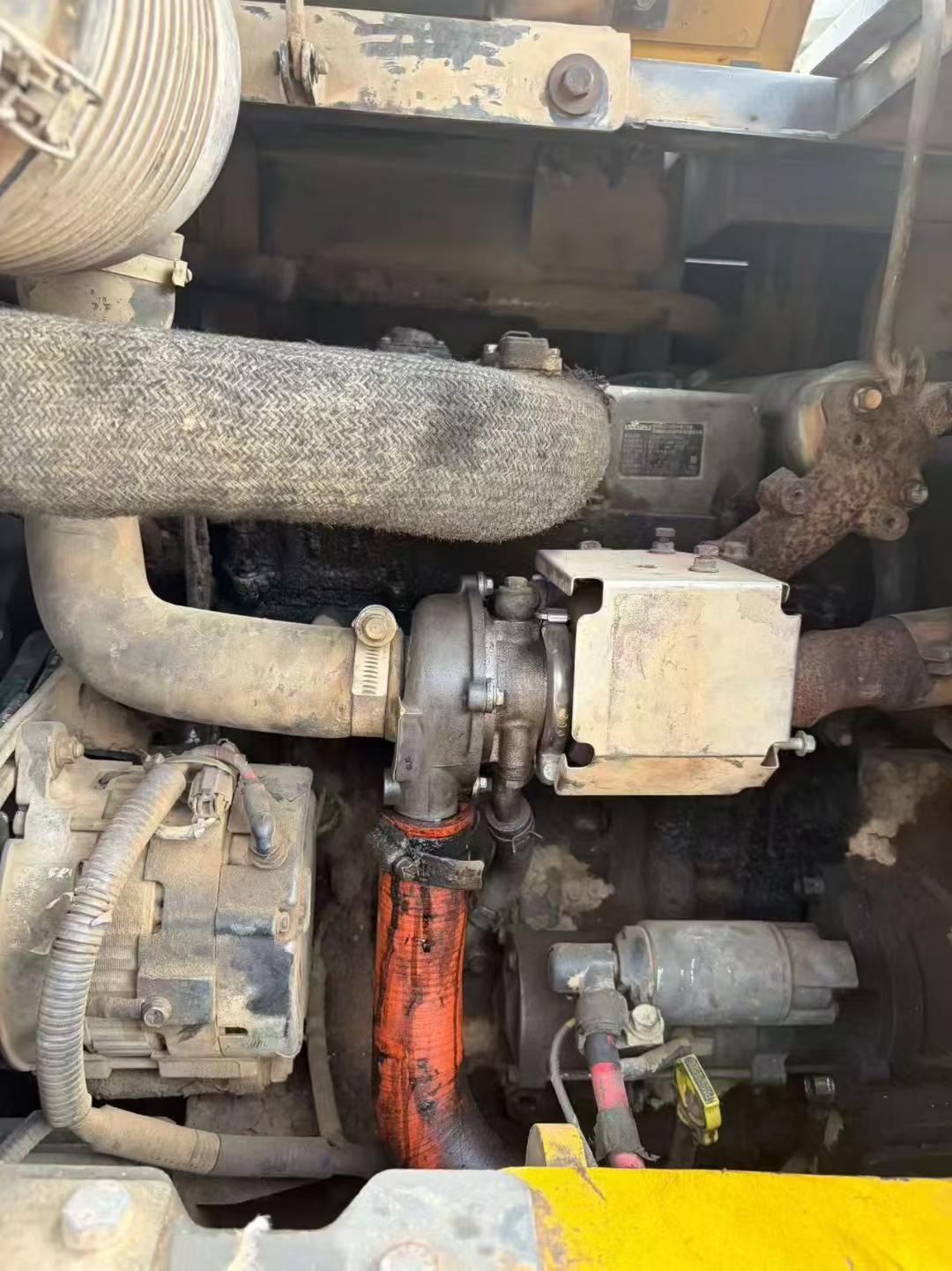

| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
