Product Description

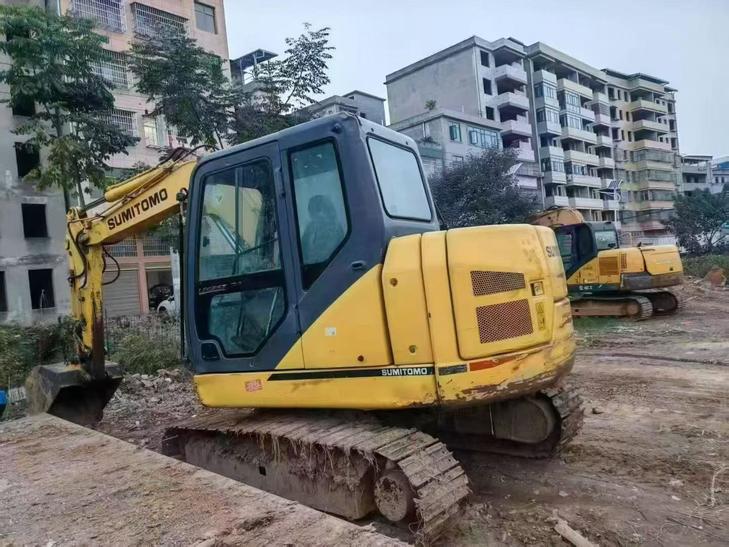

This 2014 Sumitomo SH80-6 hydraulic excavator offers reliable performance for medium-duty construction and excavation projects. With approximately 4,000 operating hours, this 8-ton class machine demonstrates the durability and efficiency Sumitomo is known for in the compact excavator segment. Currently located in Hunan, China, this unit is available for immediate inspection and export.
The SH80-6 features Sumitomo's proven hydraulic system design, delivering smooth operation and fuel efficiency. Its compact footprint makes it ideal for urban construction sites, utility work, and landscaping applications where maneuverability is essential.
- Operating weight: Approximately 8 tons
- Year of manufacture: 2014
- Operating hours: ~4,000
- Current location: Hunan Province, China
- Condition: Used, operational
Contact us for detailed inspection reports, additional photographs, and shipping arrangements to your destination port.
| Specifications | Value |
|---|---|
| No. | 1174210 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
