Product Description

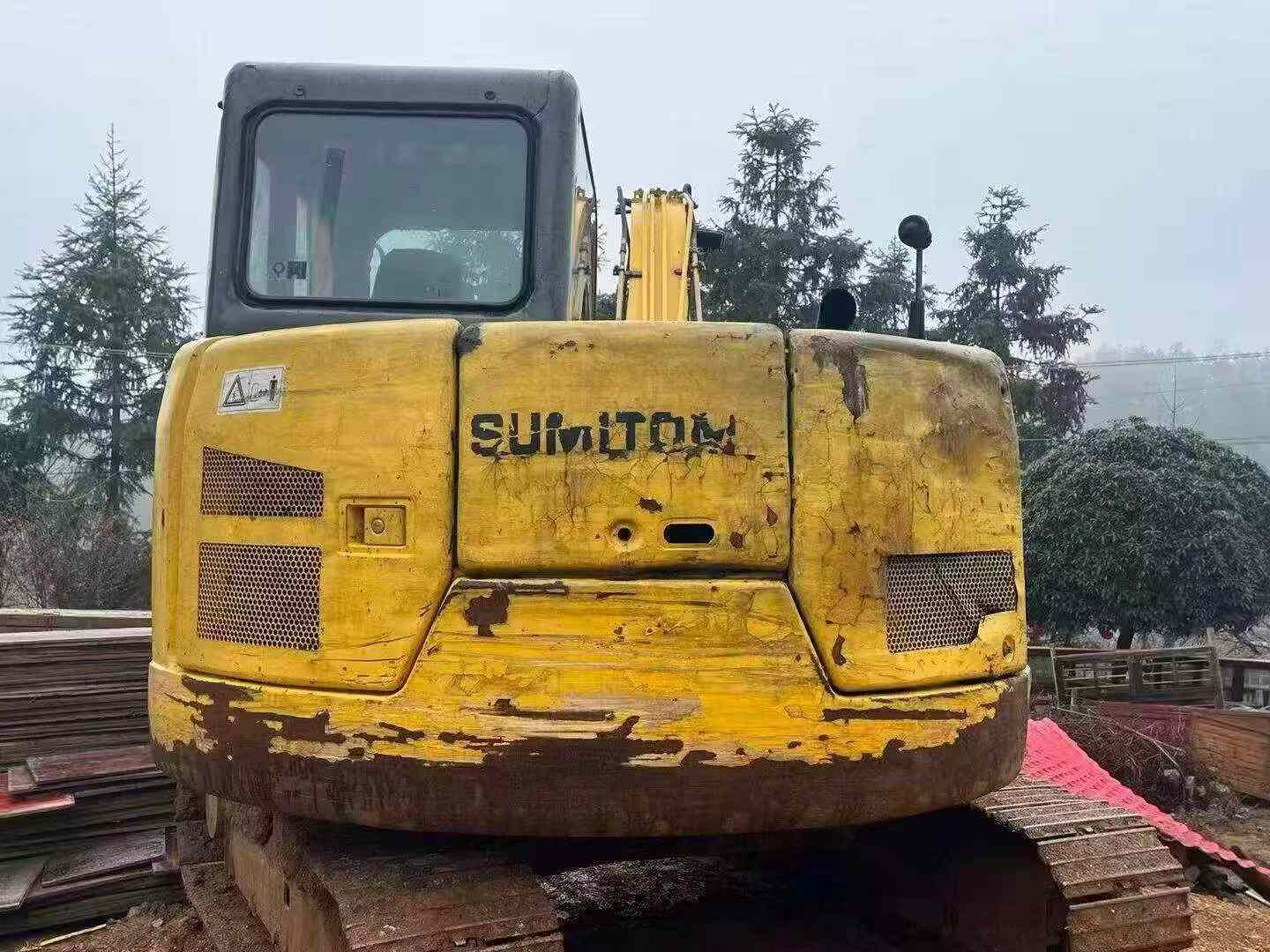

With a working weight of 7,460 kg and an 8-ton capacity, the 2016 Sumitomo SH80-6 excavator stands as a reliable choice for your construction needs. Powered by an Isuzu AU-4LE2X engine, this model delivers a rated power of 40 kW at 2000 rpm, ensuring efficient performance. Equipped with a 0.38 m³ bucket, it provides robust digging forces: 56.4 kN for the bucket and 39.3 kN for the rod, making it ideal for demanding tasks.
- Parts availability is extensive, supporting long-term maintenance and reducing downtime.
- Resale value remains strong, thanks to Sumitomo's reputation for durability and reliability.
- Travel speeds of 5.1 km/h and 3.2 km/h, combined with a minimum turning radius of 1980 mm, enhance maneuverability on various terrains.
- Fuel and hydraulic systems are well-proportioned, with a 120 L fuel tank and 96 L total hydraulic system, ensuring sustained operation.
Located in 四川泸州, this excavator is ready to meet your project demands with the assurance of a trusted brand.
| Specifications | Value |
|---|---|
| No. | 1020446 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

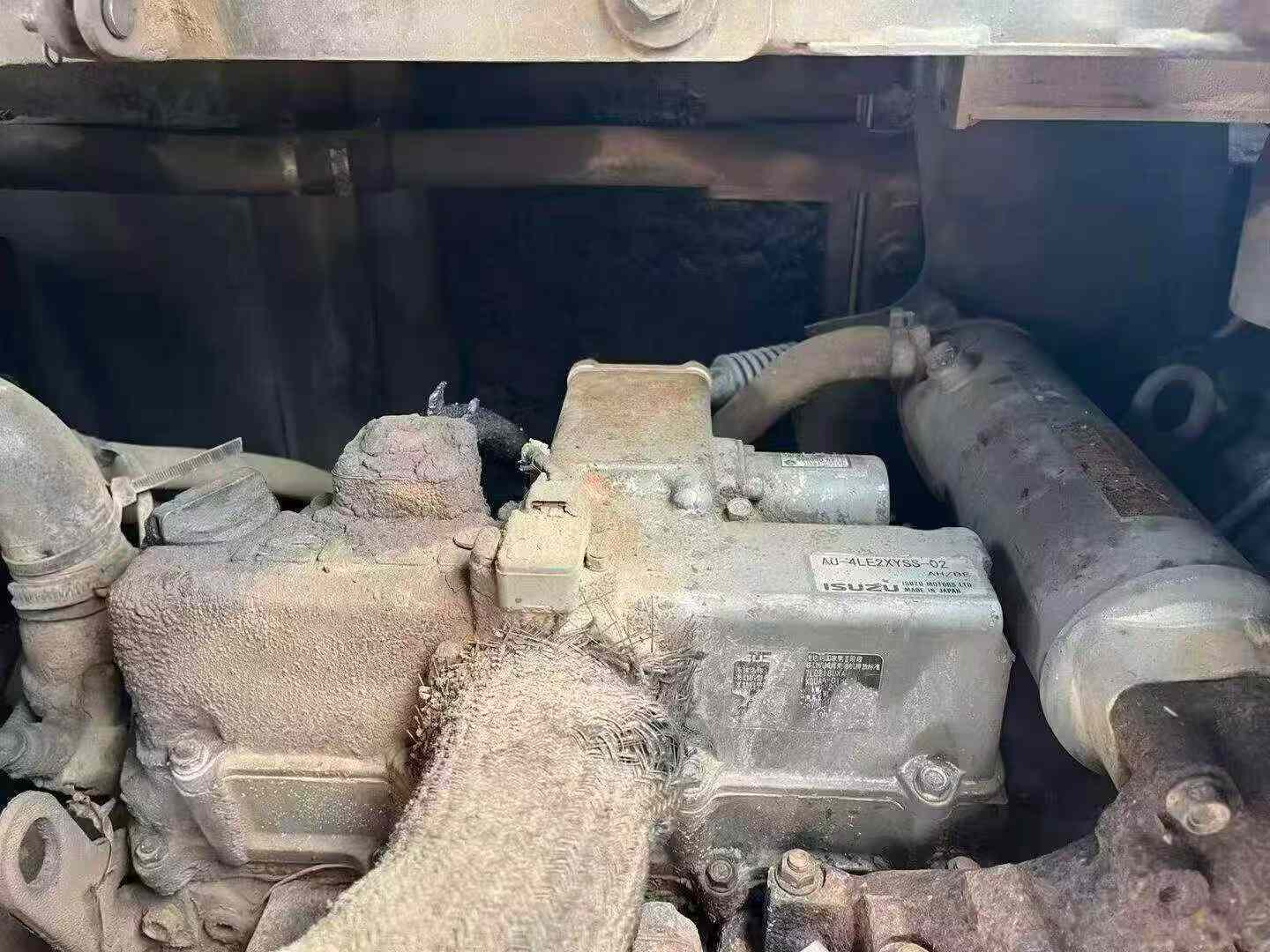

| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
