Product Description

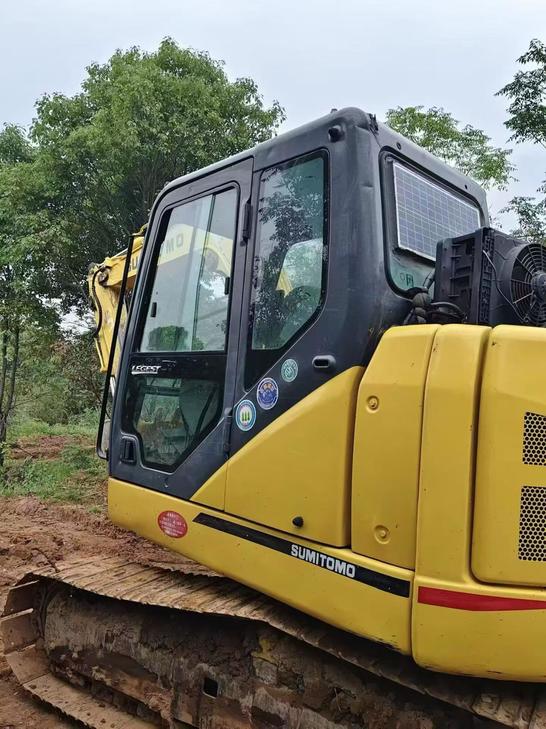

This 2016 Sumitomo SH80-6 hydraulic excavator represents a well-maintained mid-size machine currently located in Jiangxi, China. With approximately 8 years of operational history, this unit demonstrates the reliability and build quality characteristic of Sumitomo's construction equipment.
The excavator features original bodywork in good cosmetic condition, with all major components—engine, hydraulic pump, and main valve—operating within specifications. The undercarriage shows proper maintenance with serviceable track assemblies and rollers. Hydraulic systems are reportedly free from significant leaks, and the machine delivers strong digging and lifting performance suitable for construction, demolition, and earthmoving applications.
- Operating weight class: 8 tons
- Original exterior panels maintained
- Functional hydraulic systems
- Sound undercarriage condition
- Ready for immediate deployment
Ideal for contractors seeking a dependable compact excavator with proven Sumitomo engineering at competitive used equipment pricing.
| Specifications | Value |
|---|---|
| No. | 1077363 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
