Product Description

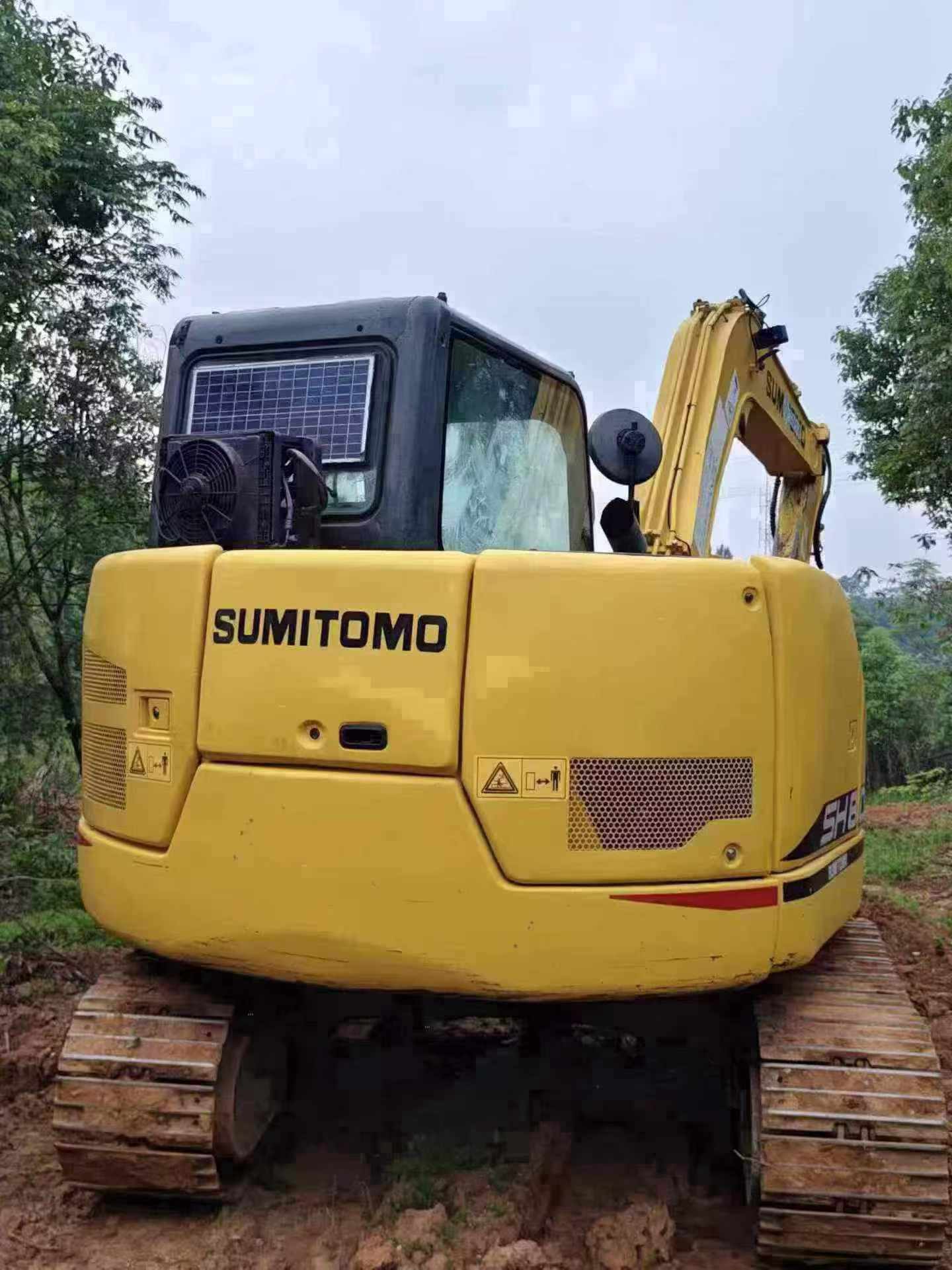

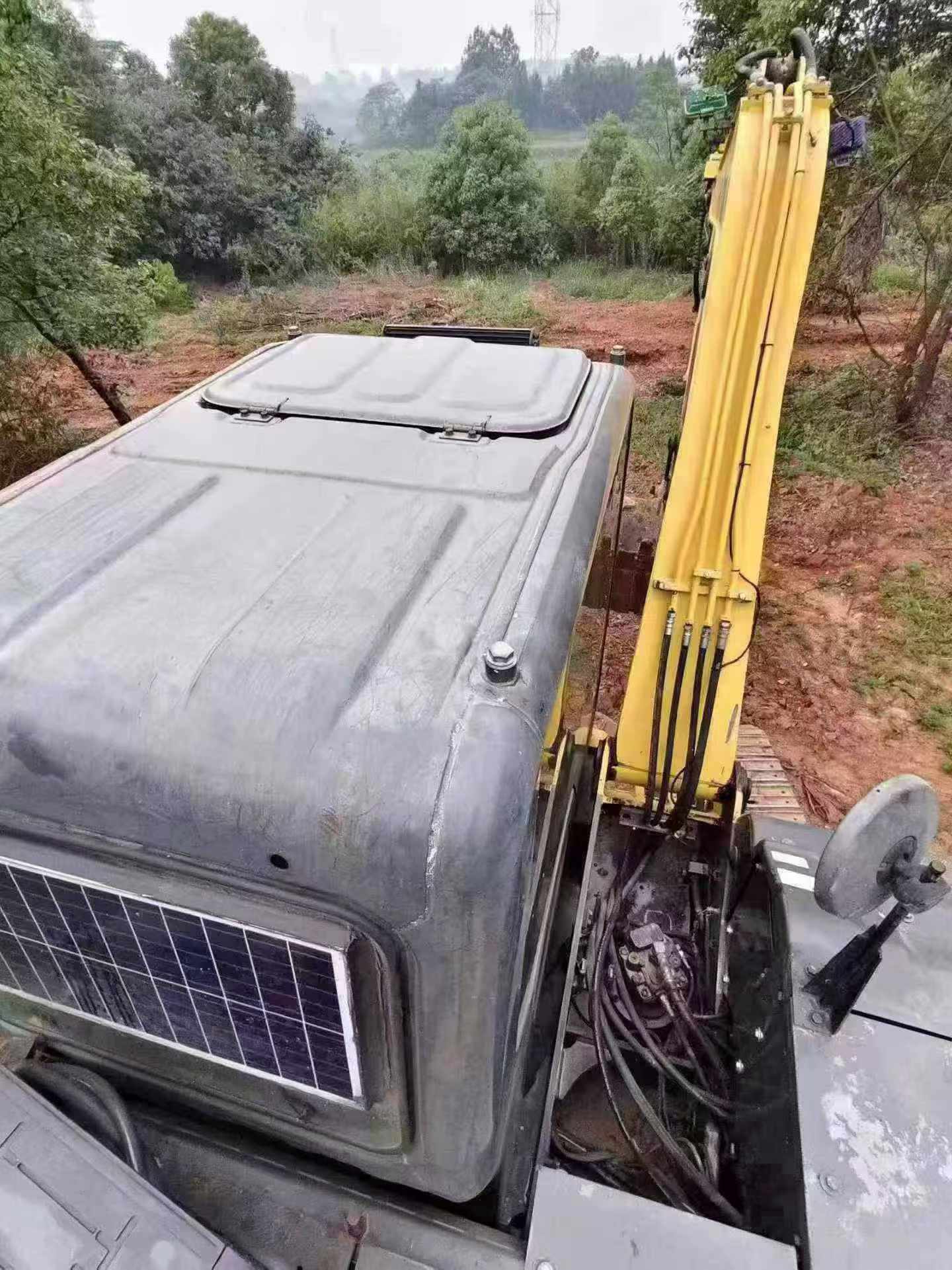

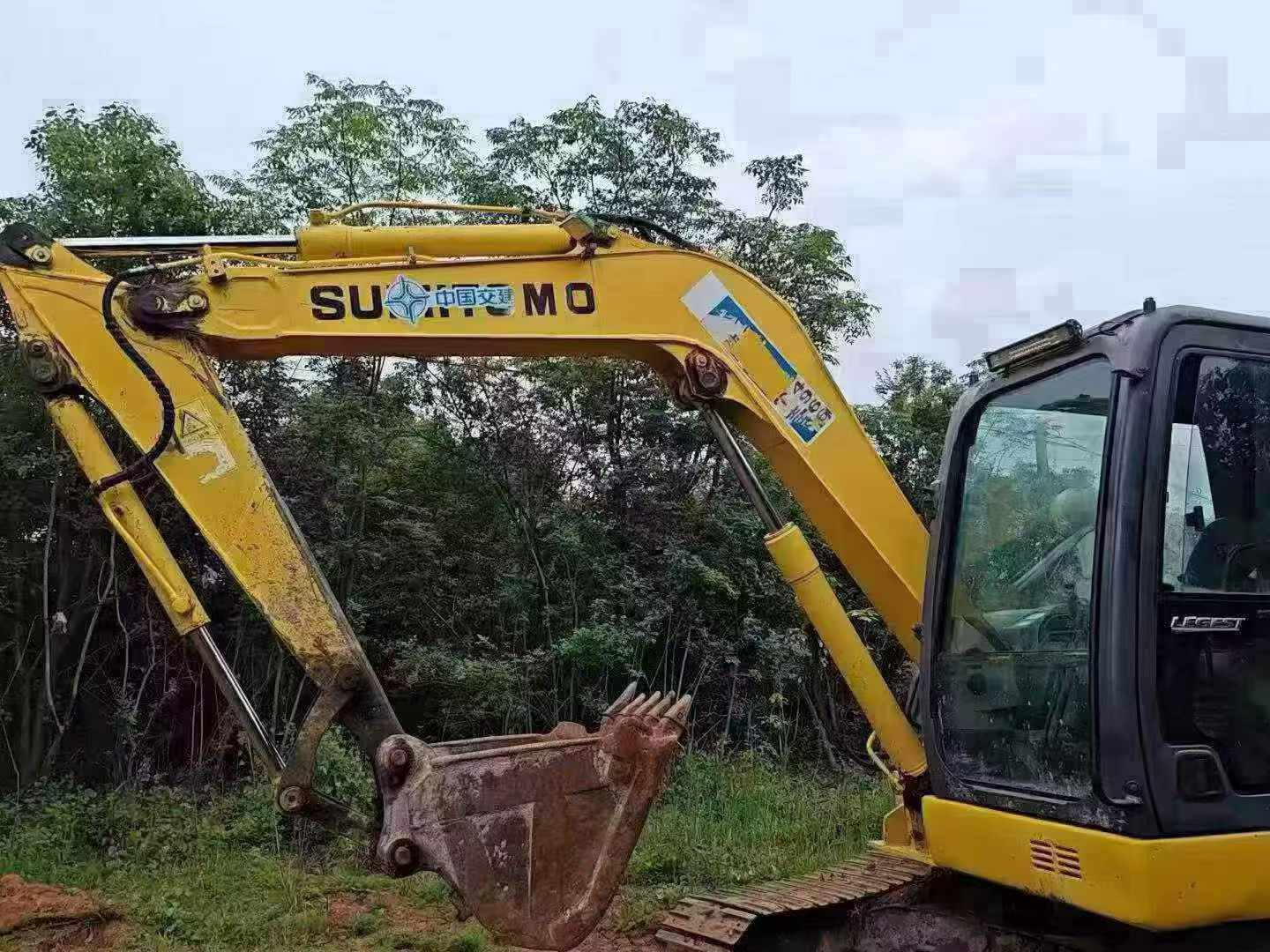

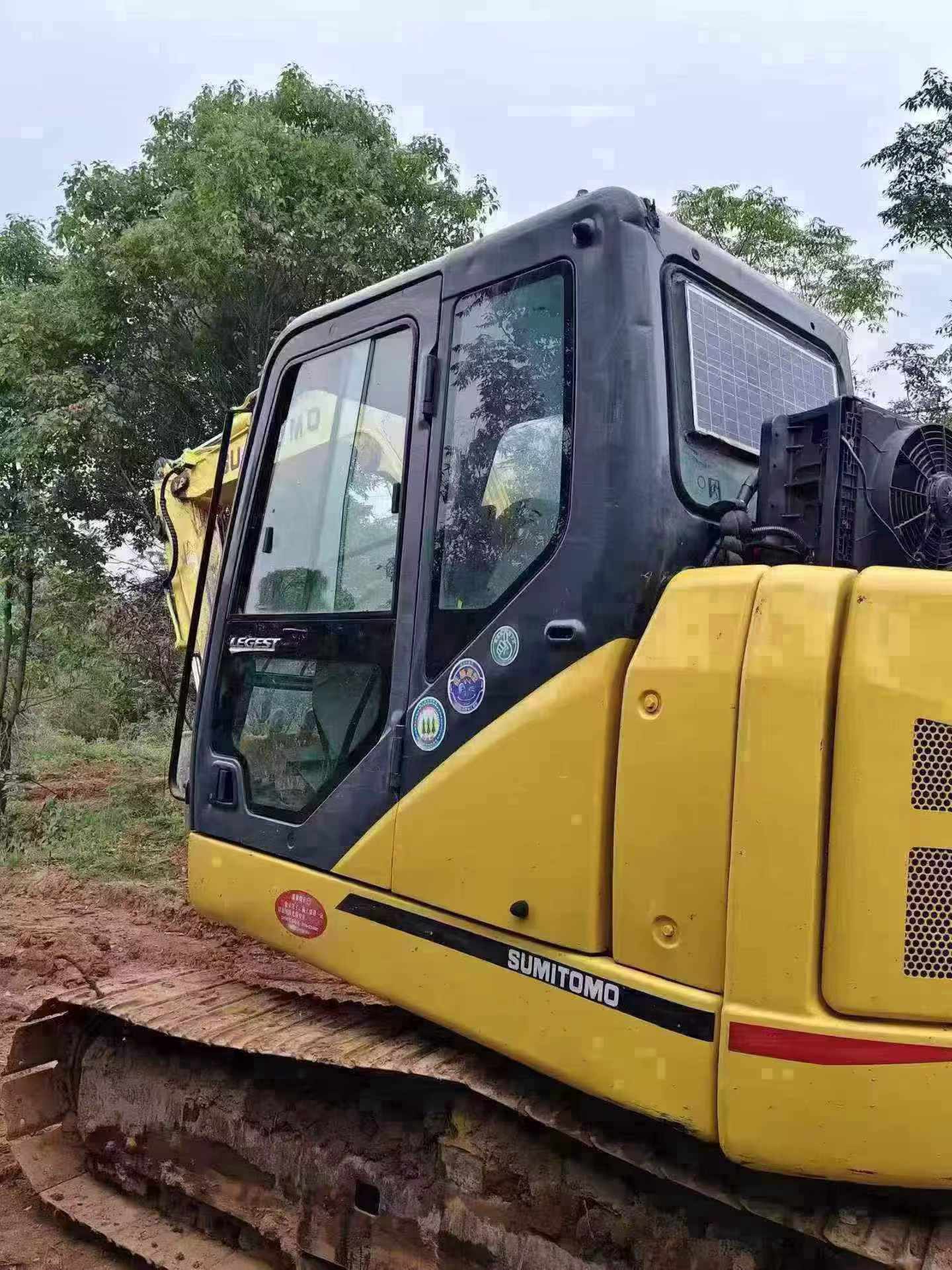

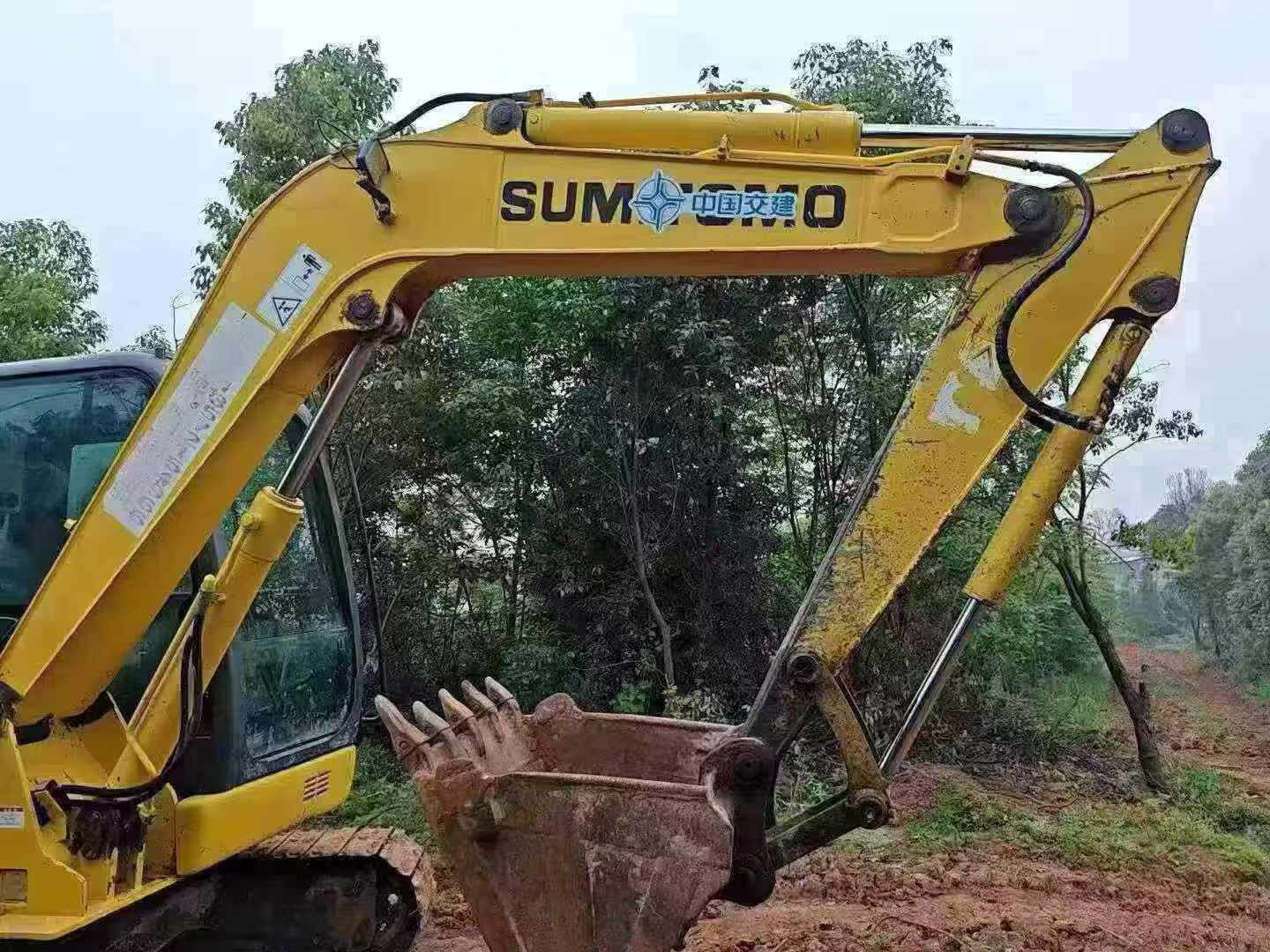

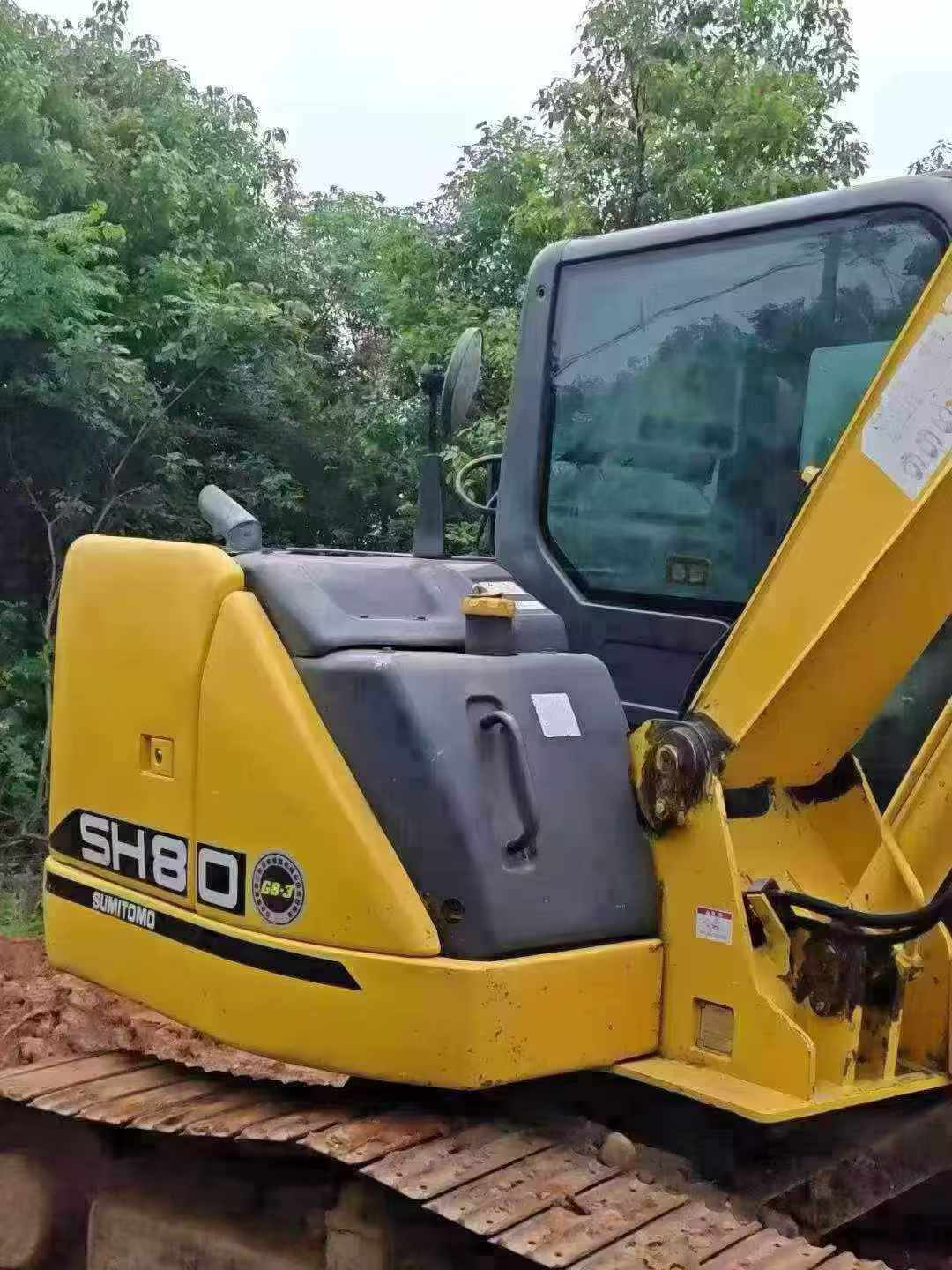

This 2016 Sumitomo SH80-6 hydraulic excavator represents a well-maintained mid-size machine suitable for construction, earthmoving, and utility applications. Currently located in Jiangxi, China, this unit showcases original factory bodywork with minimal cosmetic wear, reflecting careful operation throughout its service life.
Key attributes include:

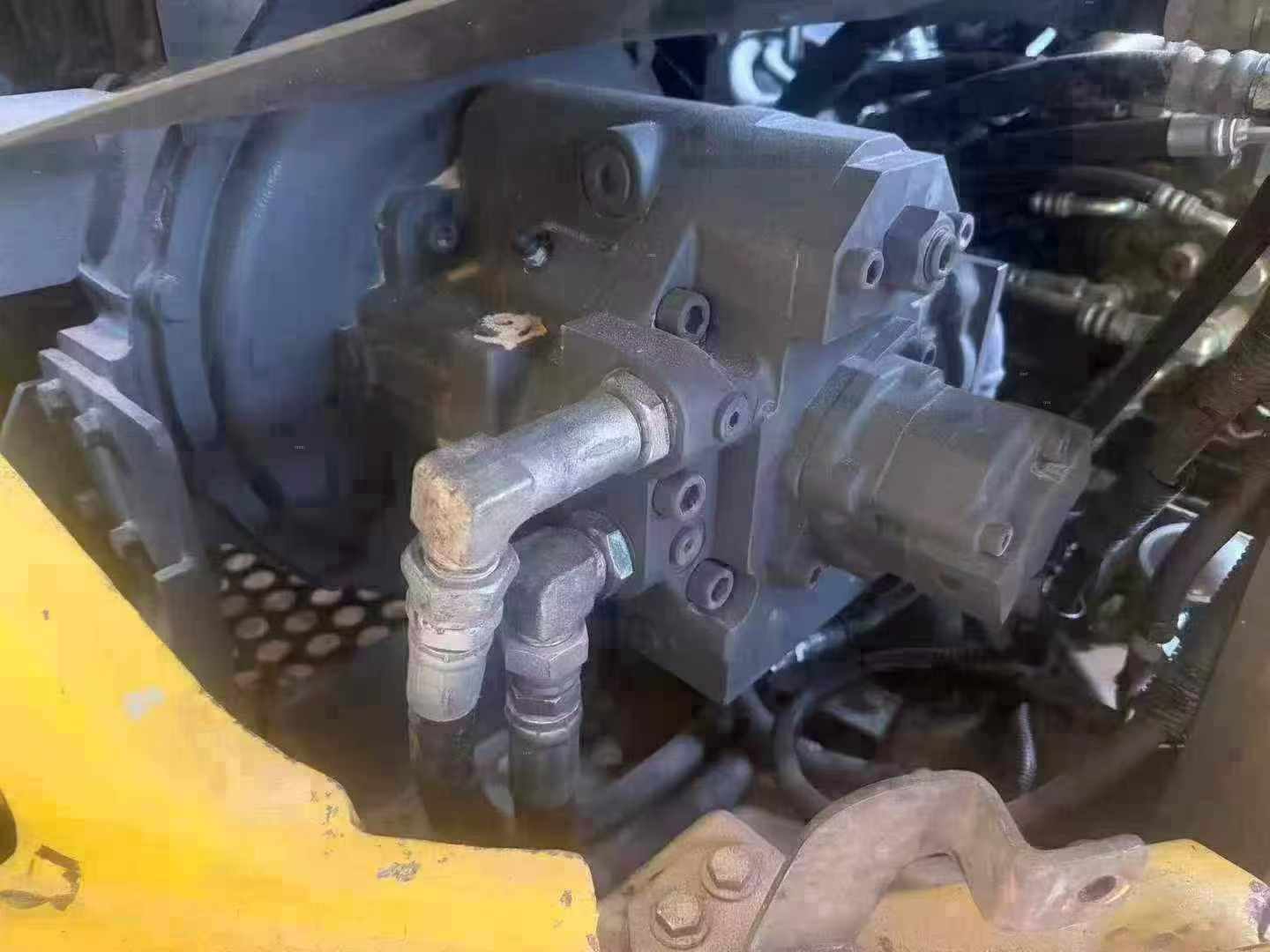

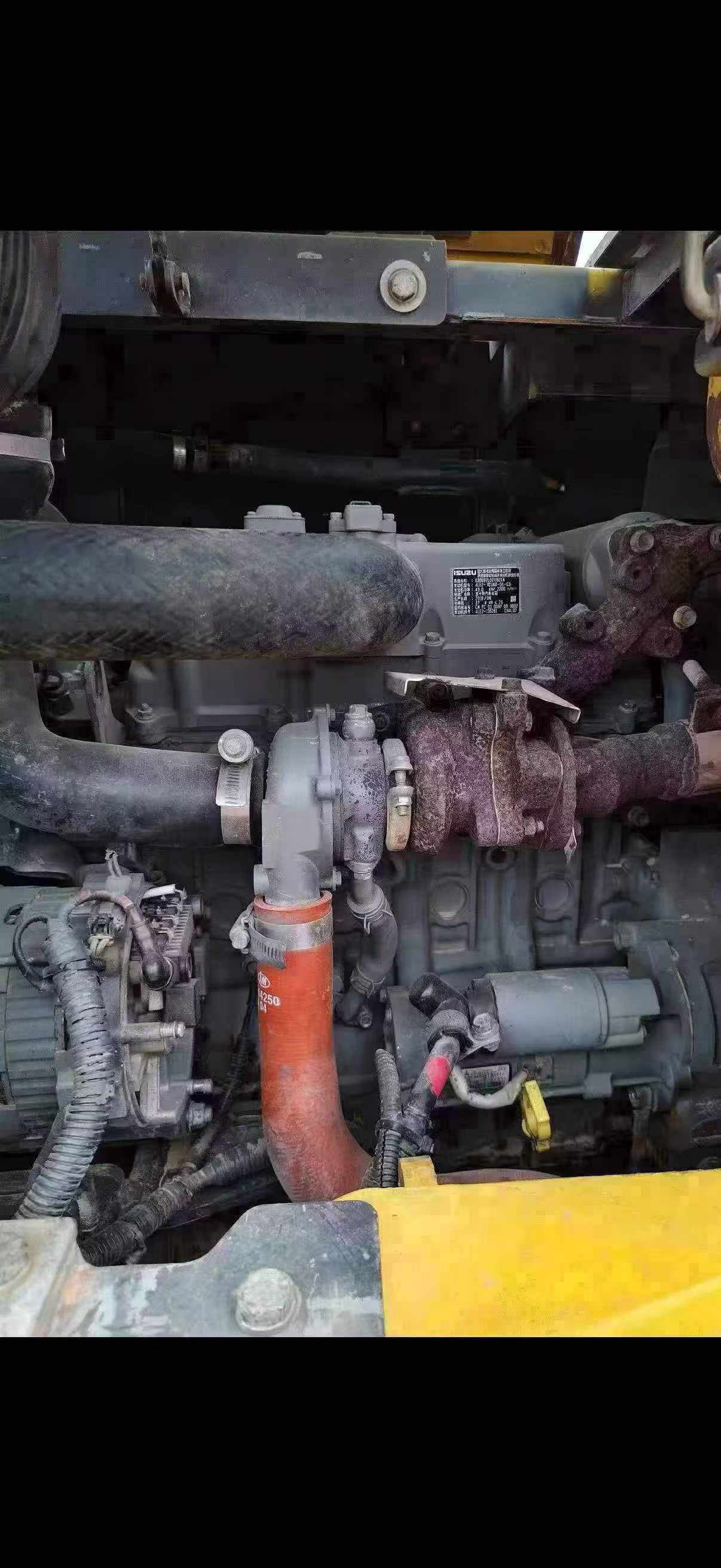

- Engine, hydraulic pump, and main components in excellent working condition
- No oil leakage from critical systems
- Undercarriage showing strong remaining life
- Reliable performance across operational parameters

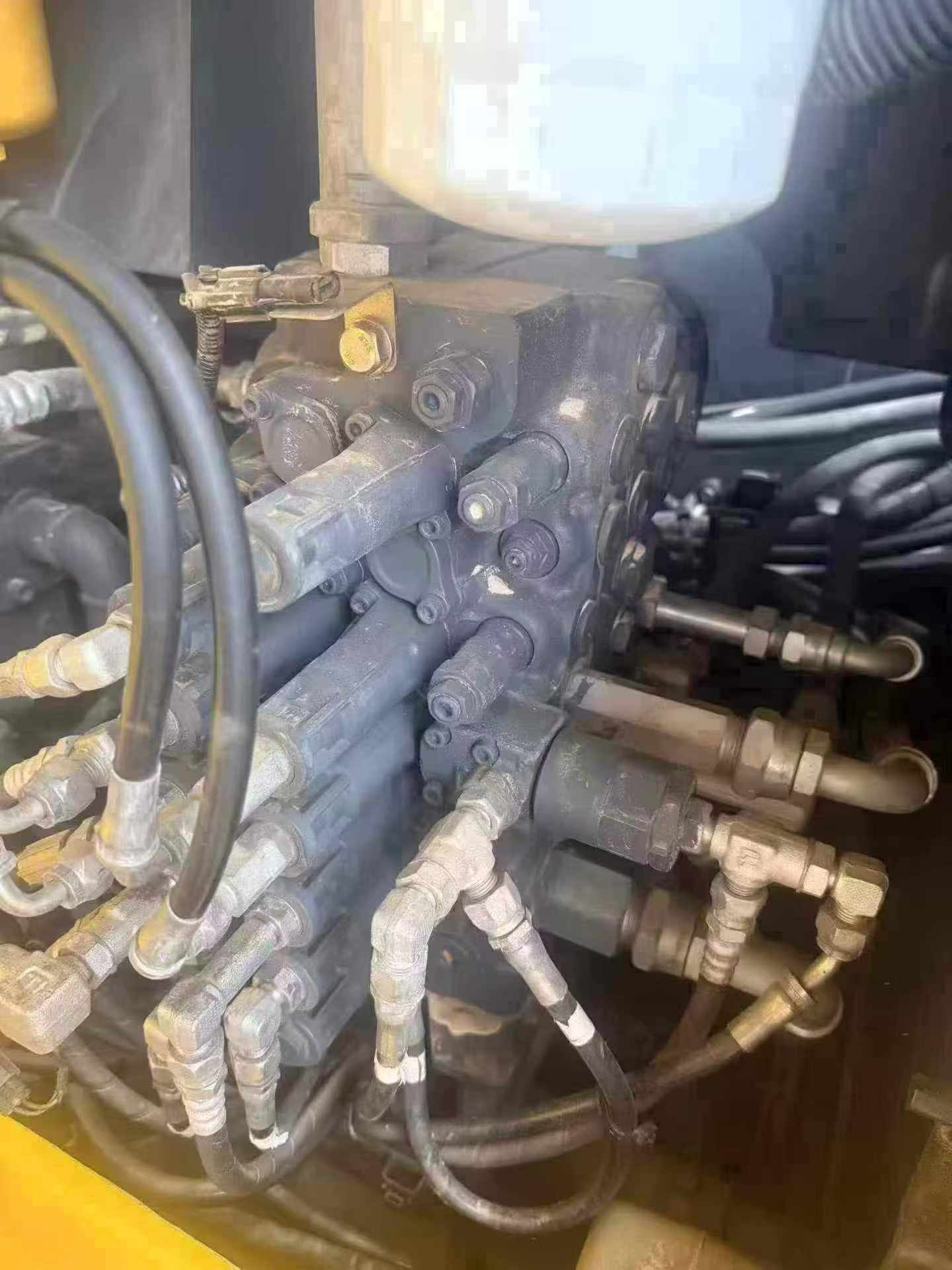

- Responsive hydraulic controls suitable for precision work
The SH80-6 is known for its 8-ton operating weight class, fuel efficiency, and versatility in confined job sites. This particular unit has been serviced regularly and demonstrates the durability expected from Sumitomo's engineering standards. Ideal for contractors seeking dependable equipment with proven performance history.
| Specifications | Value |
|---|---|
| No. | 1162985 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
