Product Description

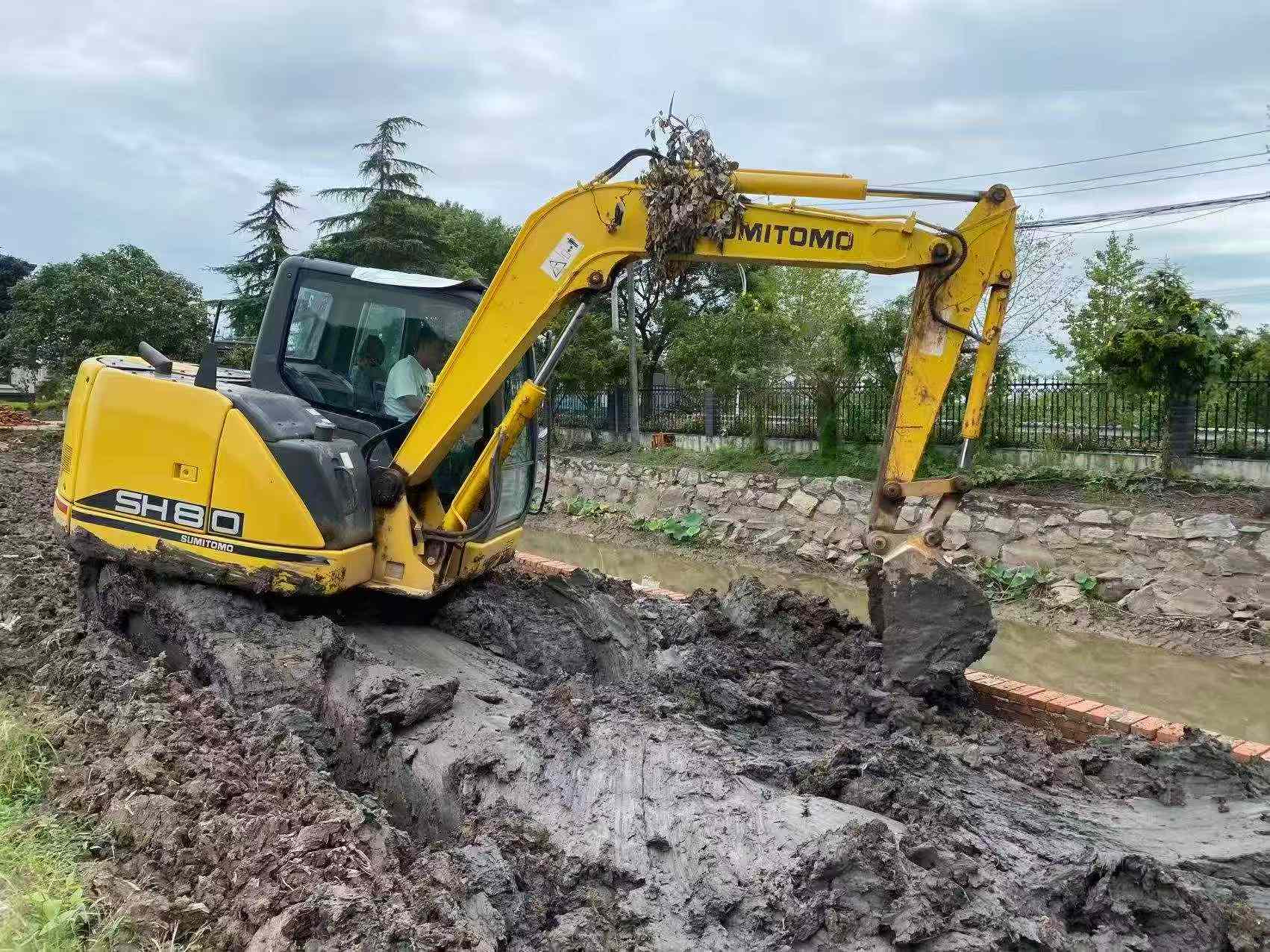

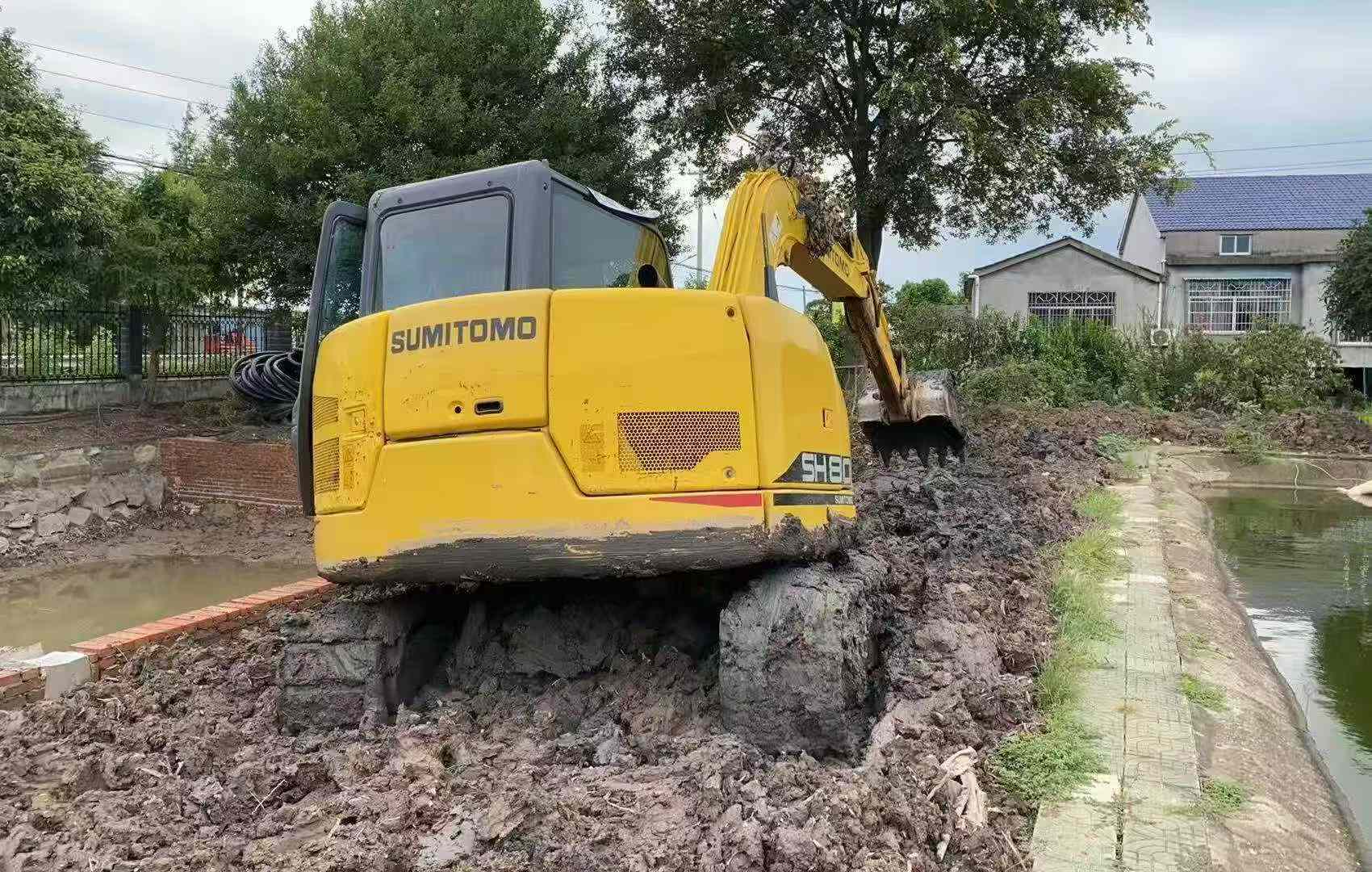

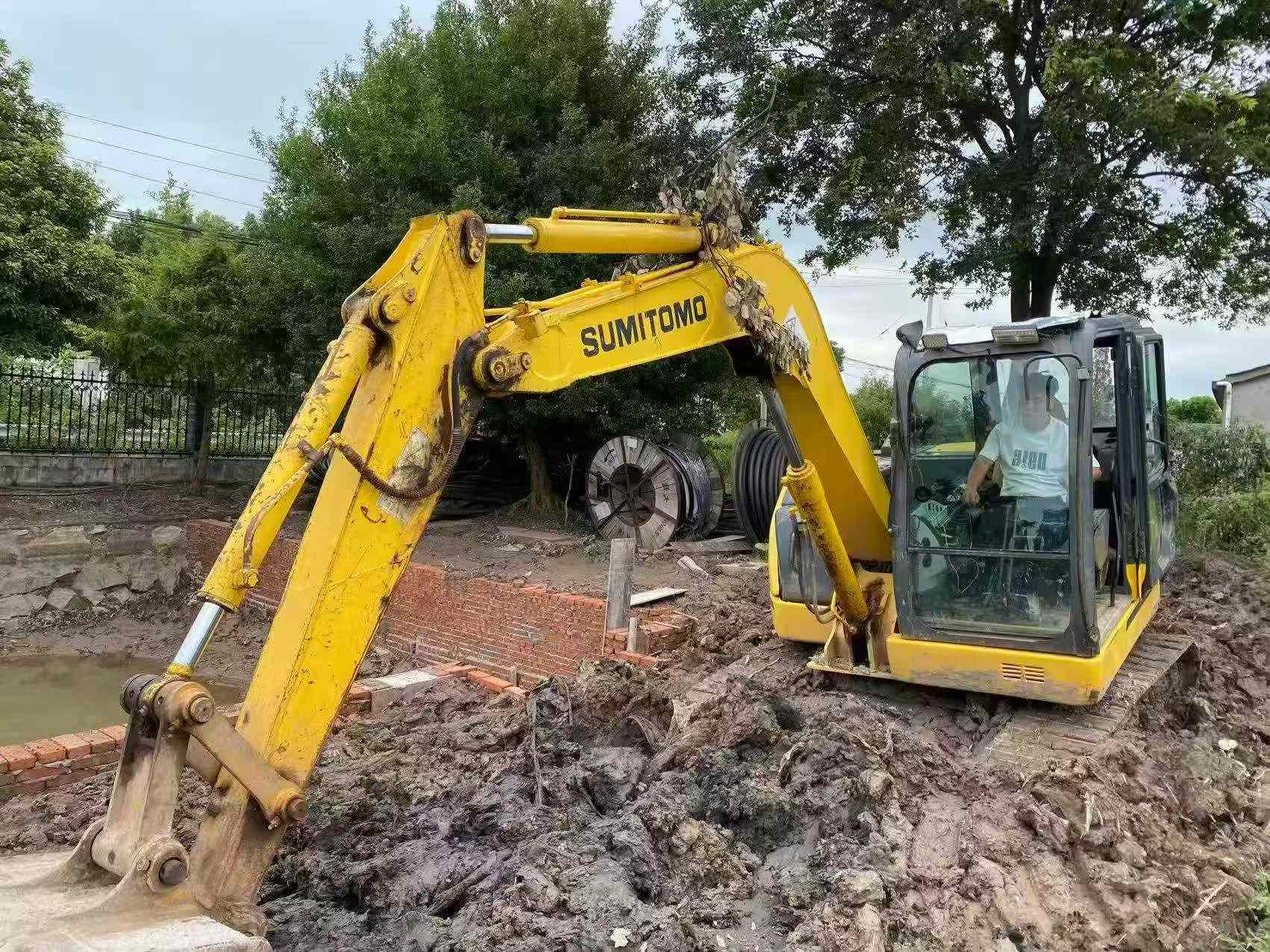

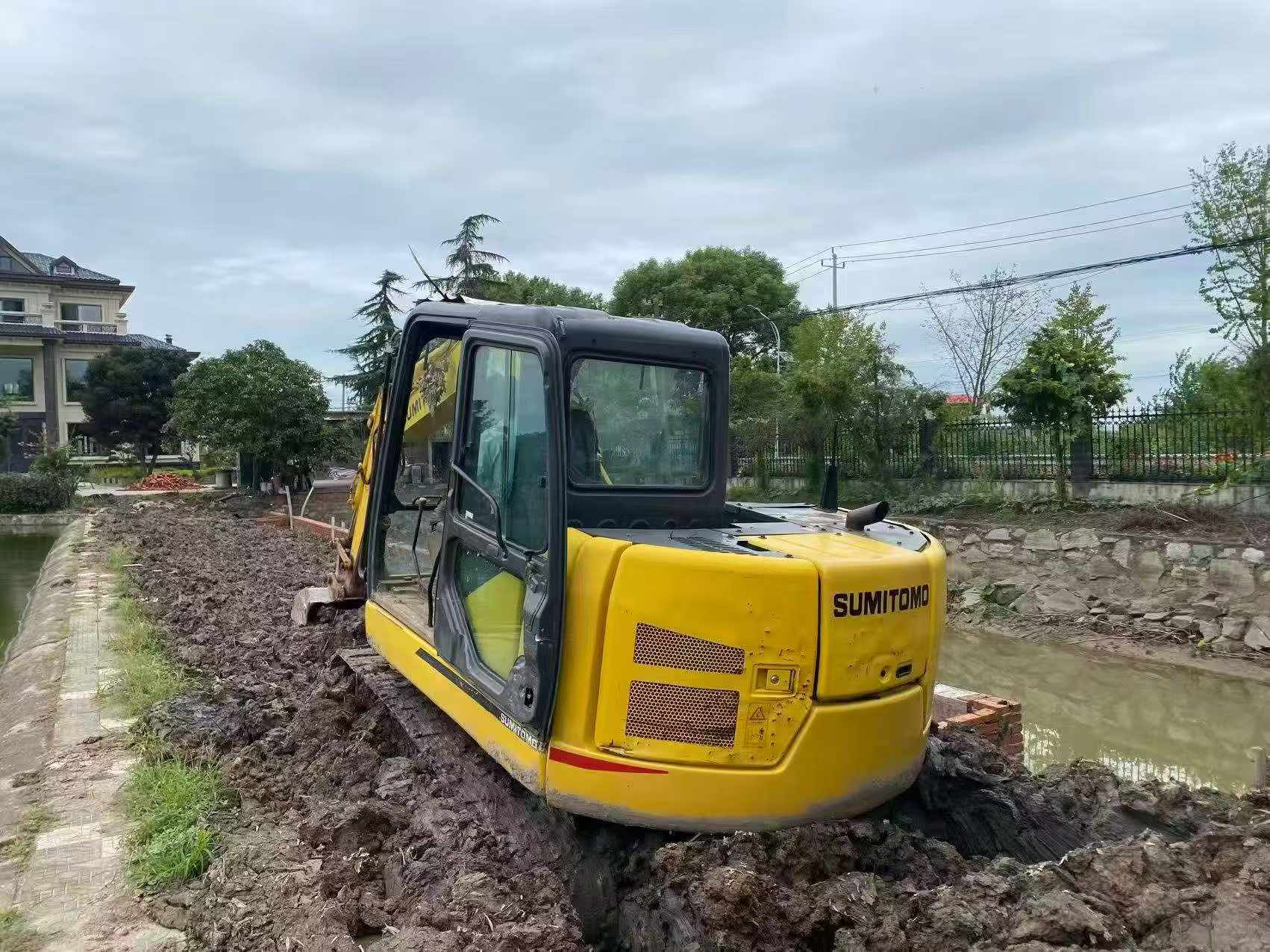

Built to endure the demands of real jobsites, this 2017 Sumitomo SH80-6 mini excavator stands as proof that quality construction withstands the test of time. Powered by a reliable Isuzu AU-4LE2X engine producing 40 kW at 2,000 RPM, this proven workhorse delivers consistent performance across a wide range of earthmoving applications. Currently available in Hunan, China, it is ready for domestic or international deployment.
- Operating Weight: 7,460 kg (8-ton class)
- Bucket Capacity: 0.38 m³ backhoe bucket

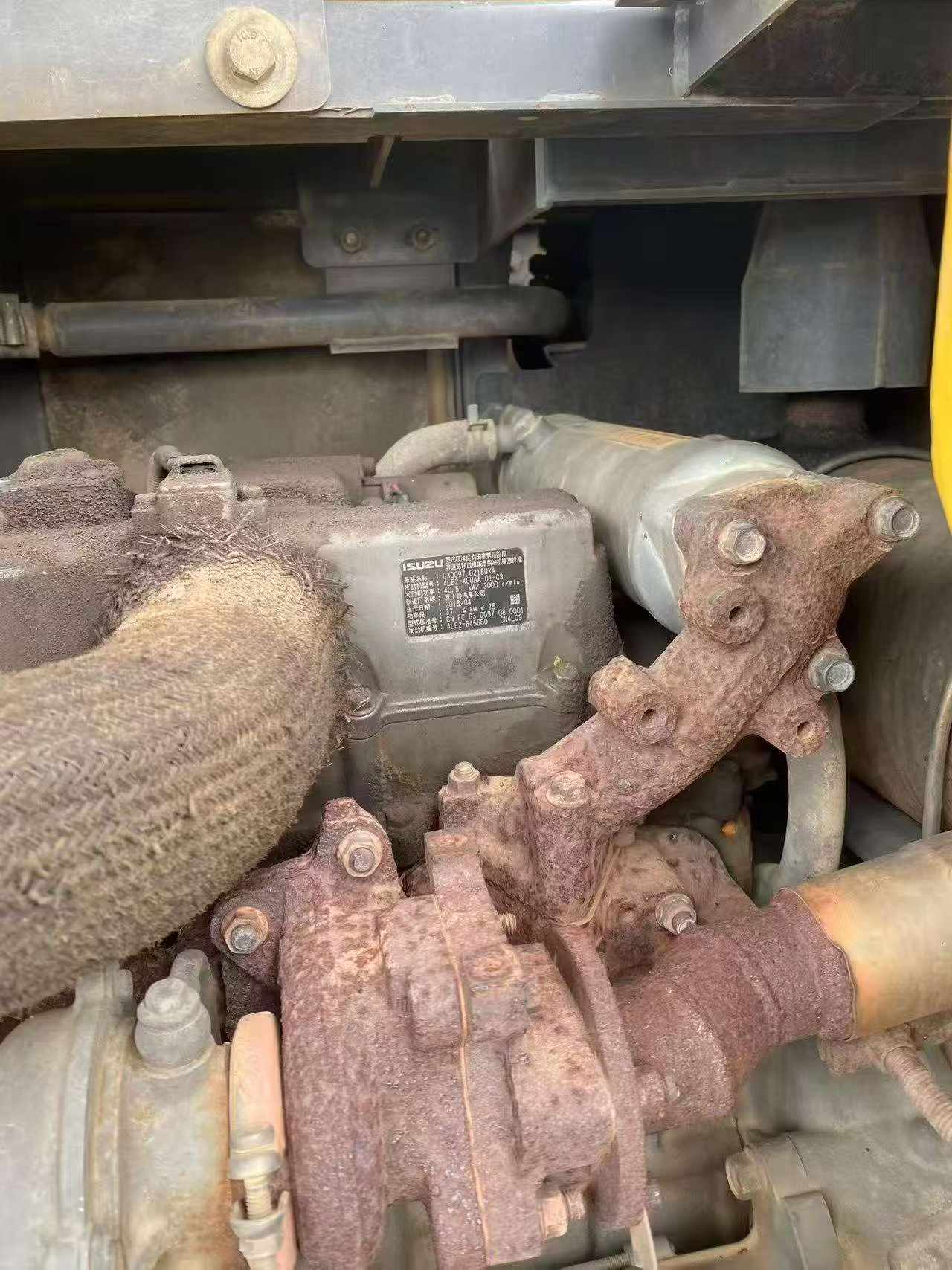

- Engine: Isuzu AU-4LE2X — 40 kW / 2,000 RPM, 2.179L displacement
- Bucket Digging Force: 56.4 kN | Rod Digging Force: 39.3 kN
- Maximum Digging Depth: 4,050 mm
- Maximum Digging Radius: 6,460 mm
- Travel Speed: 5.1 / 3.2 km/h
- Hydraulic System Pressure: 29.4 MPa
- Track Plate Width: 450 mm for stable ground contact
- Fuel Tank: 120 L for extended operational cycles
Years of field-proven reliability make this SH80-6 a dependable asset for contractors who demand durability without compromise. Compact dimensions and a 1,750 mm rear turning radius ensure confident performance even in confined work environments.
| Specifications | Value |
|---|---|
| No. | 1139965 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
