Product Description

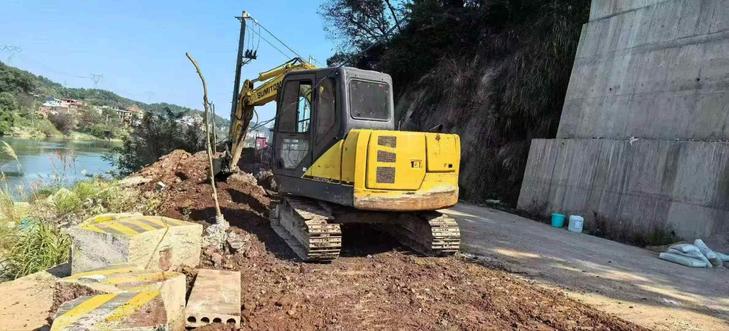

This 2017 Sumitomo SH80-6 hydraulic excavator offers reliable performance for mid-sized construction and earthmoving applications. Currently located in Sichuan, China, this unit represents an opportunity to acquire Japanese-engineered equipment at a competitive price point in the used machinery market.
The SH80-6 series is recognized for its 8-ton operating weight class, combining maneuverability with productive digging capabilities. Sumitomo's engineering emphasizes fuel efficiency and operator comfort, making this model suitable for contractors seeking dependable equipment for residential construction, utility work, and general excavation projects.
- Year of Manufacture: 2017
- Model: Sumitomo SH80-6
- Current Location: Sichuan Province, China
- Condition: Used
Contact us for additional machine history, current operating hours, and detailed inspection reports. Shipping arrangements and export documentation can be coordinated to your destination.
| Specifications | Value |
|---|---|
| No. | 1162864 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
