Product Description
This 2020 Sumitomo SH80-6 hydraulic excavator is offered from our yard in Zhejiang, China, and fills a practical slot for contractors who want solid digging performance without the transport cost of a larger machine.
The Sumitomo SH series has a long-standing reputation in the Chinese market for smooth hydraulic response and economical operation, and the SH80-6 carries that into an 8-tonne-class package suited to utility work, trenching, site clearance and general earthmoving.
- Year: 2020
- Brand and model: Sumitomo SH80-6
- Class: 8-tonne hydraulic excavator
- Location: Zhejiang, China

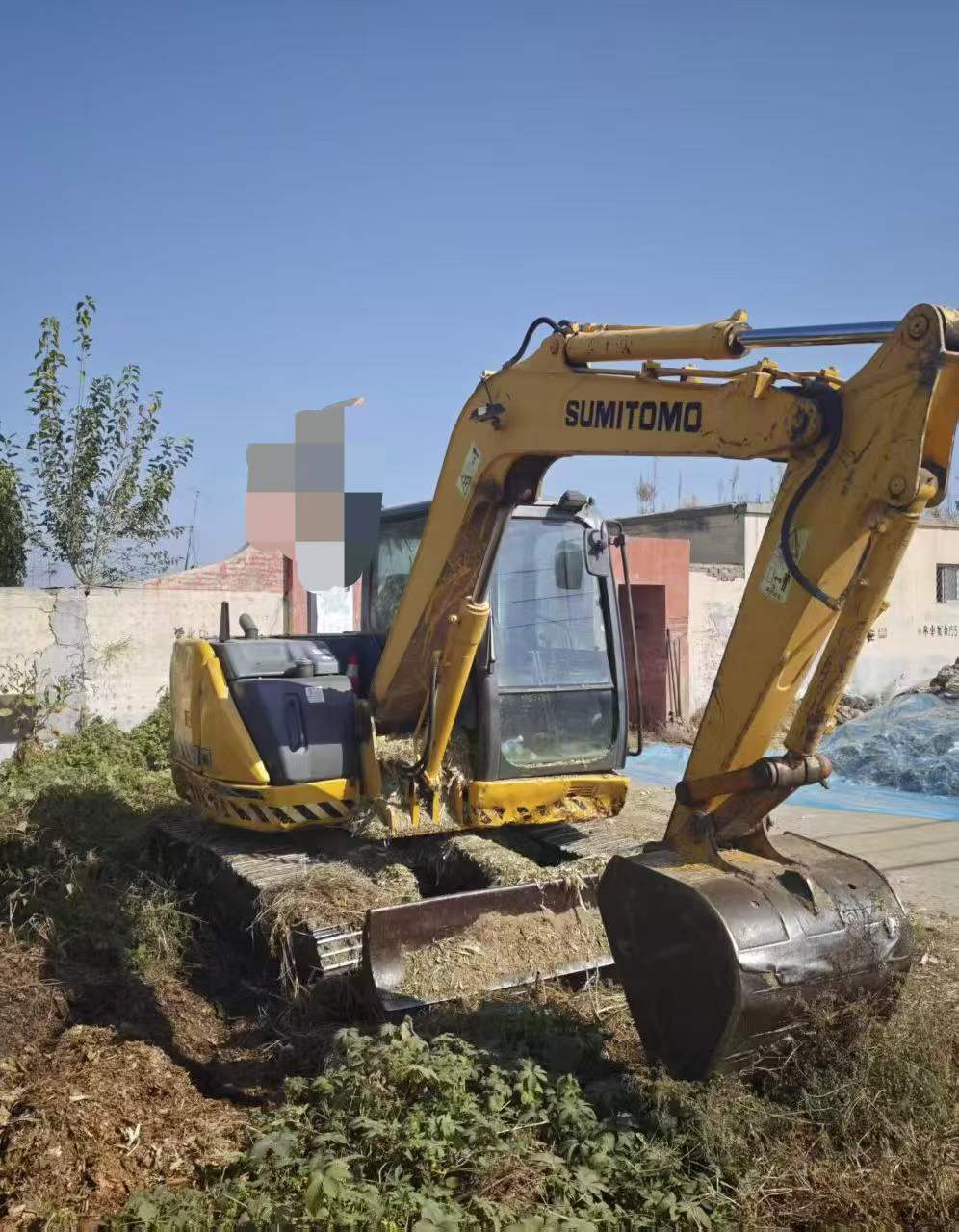

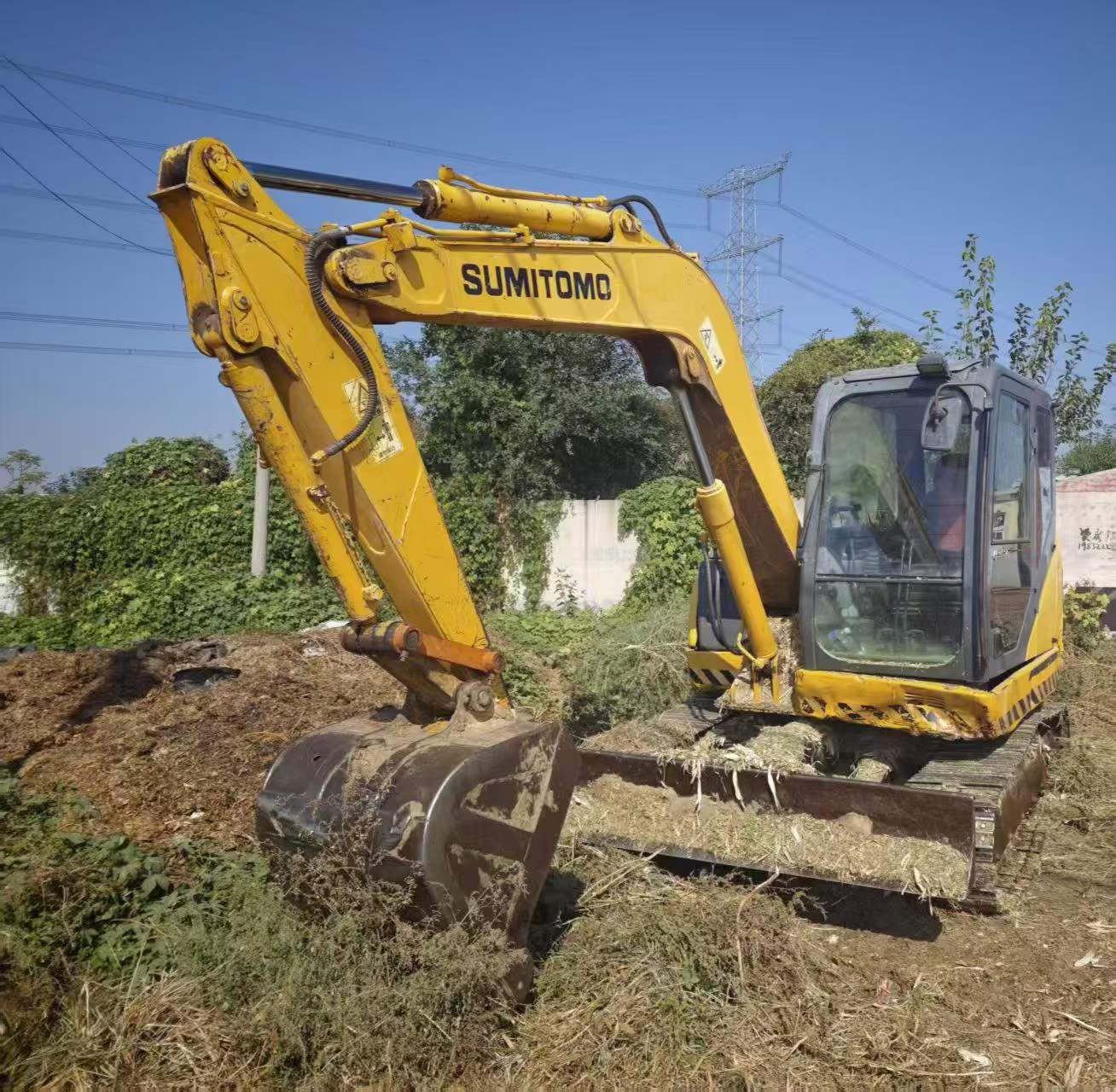

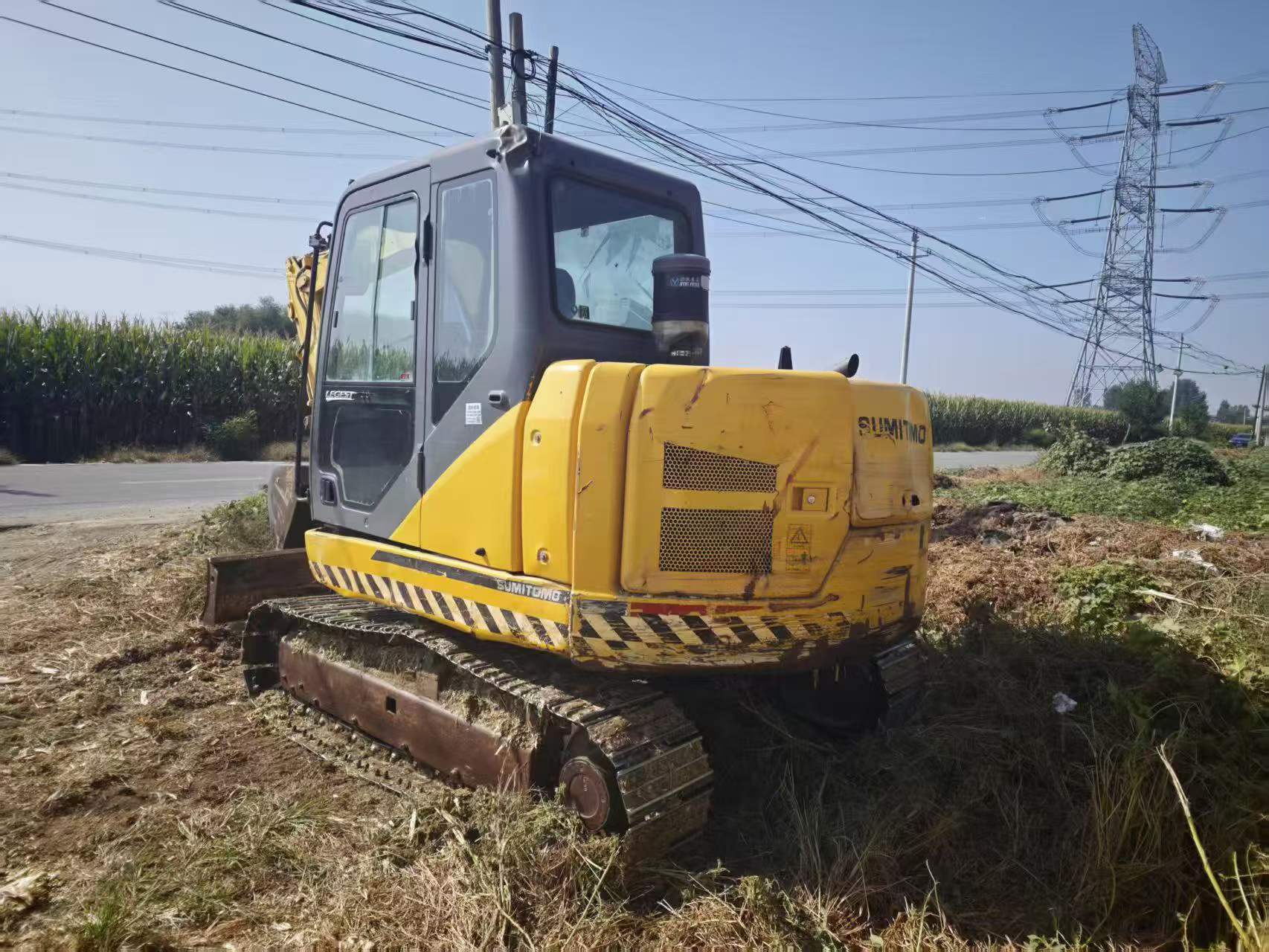

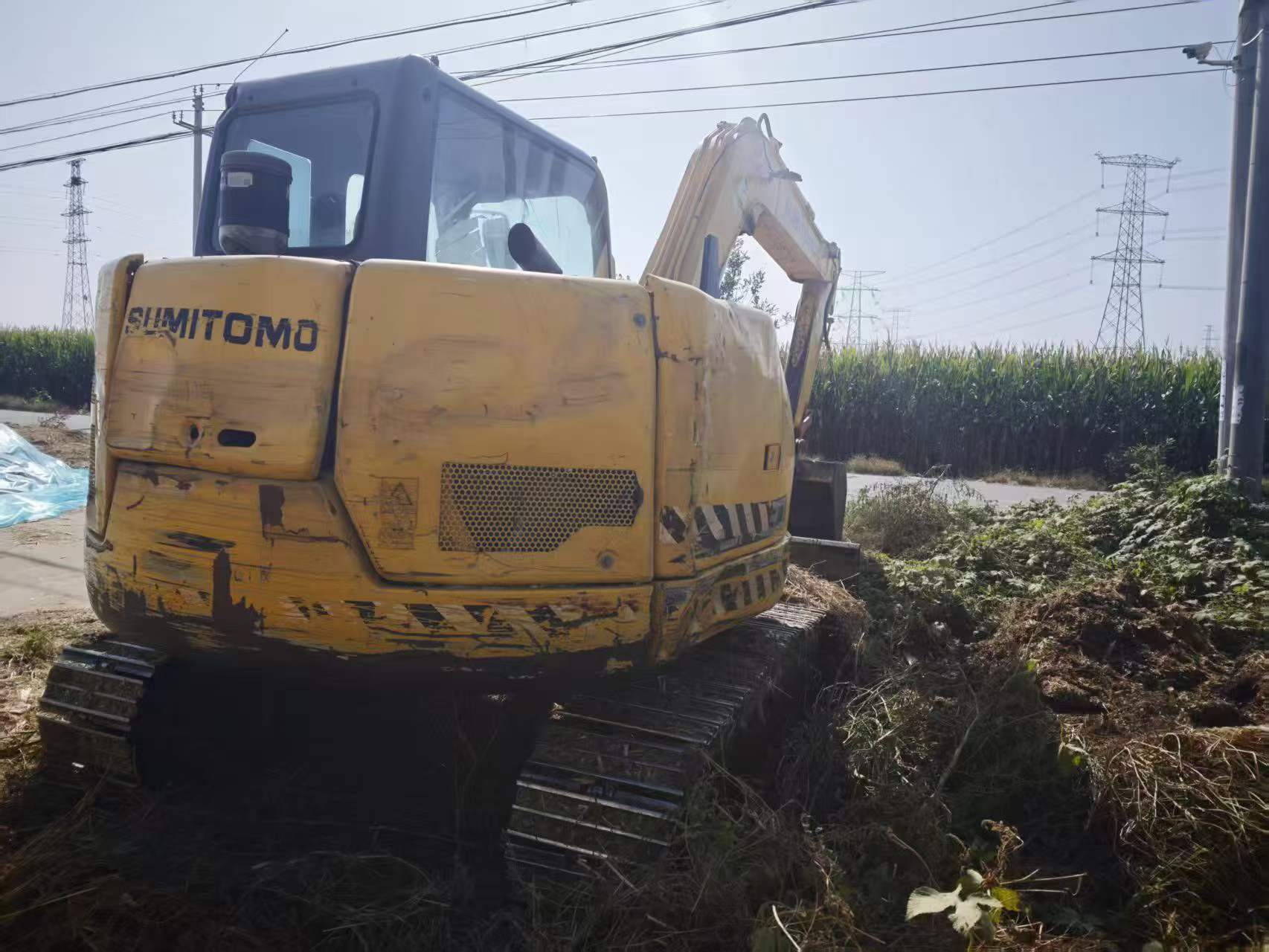

- Configuration: standard boom, bucket, cab and undercarriage as pictured
The unit is available for inspection in Zhejiang and can be quoted for container or flat-rack shipment to your nearest port. Detailed photographs, a running video and current hour-meter readings are supplied on request so you can assess condition before committing. Contact us for availability, pricing and shipping terms.
| Specifications | Value |
|---|---|
| No. | 1157336 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

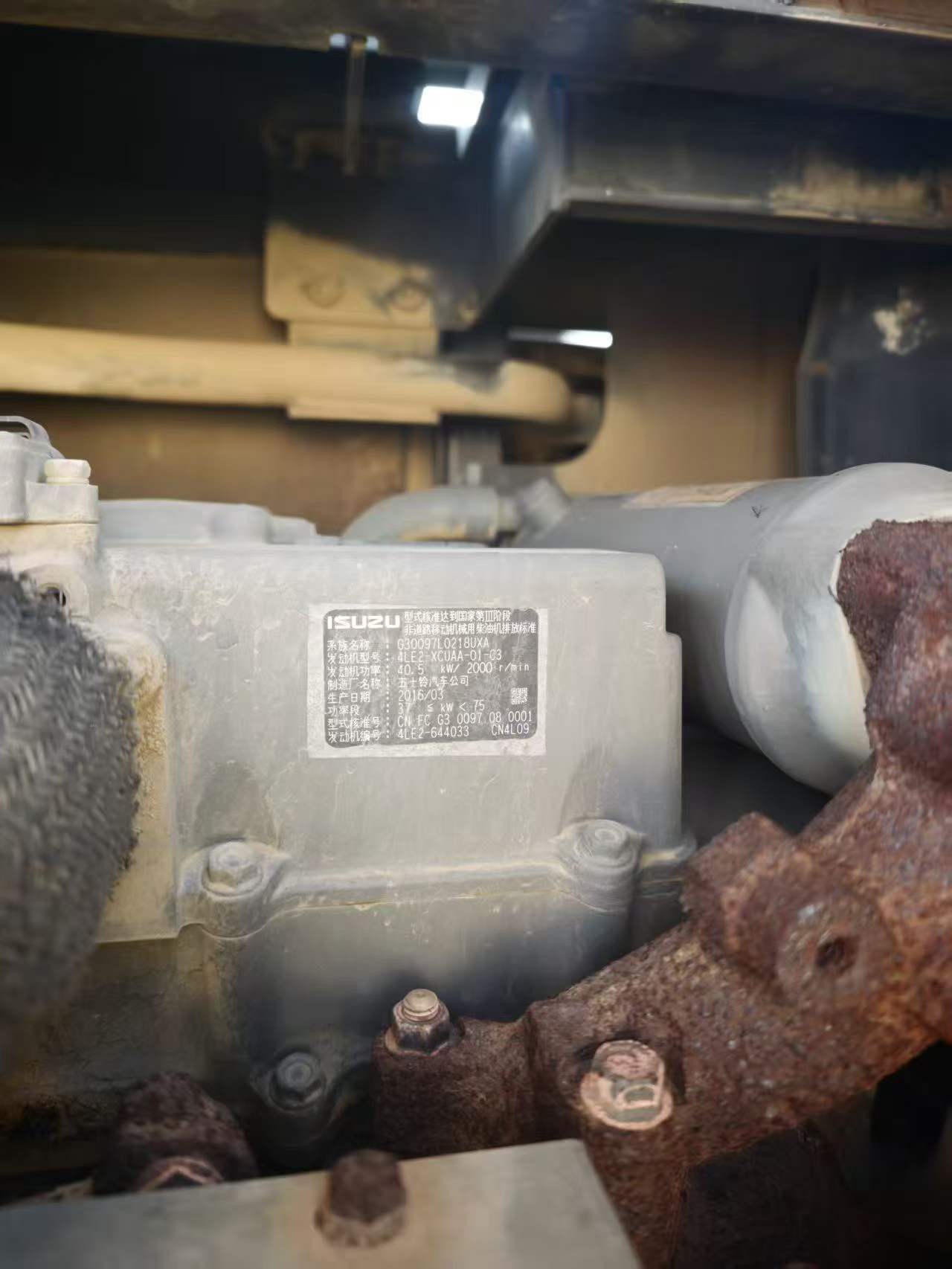

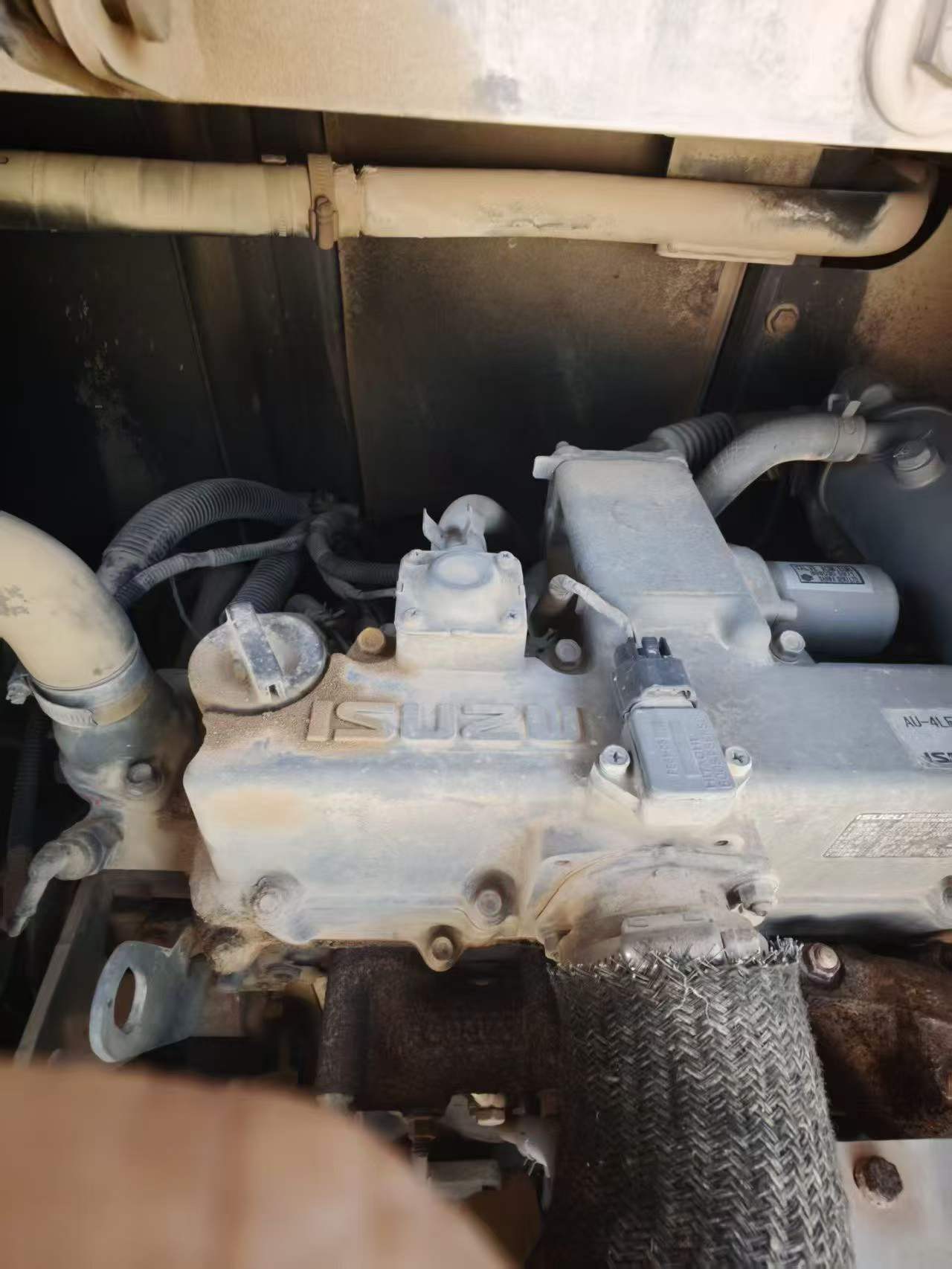

| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
