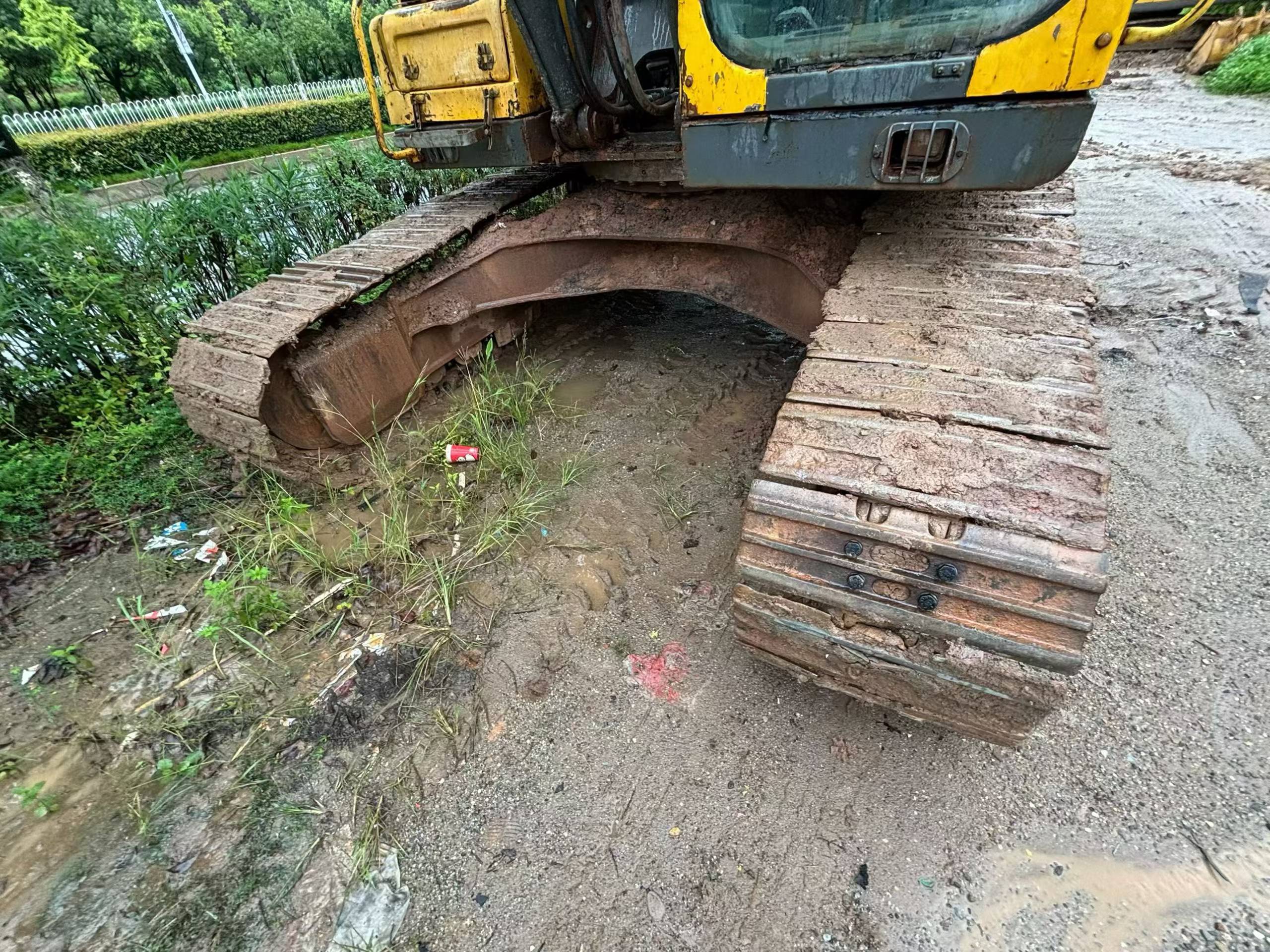

Buy Volvo Used Excavator / 4
Buy Volvo Used Excavator / 5
Buy Volvo Used Excavator / 6
Buy Volvo Used Excavator / 7
Buy Volvo Used Excavator / 8
Buy Volvo Used Excavator / 9

Product Description

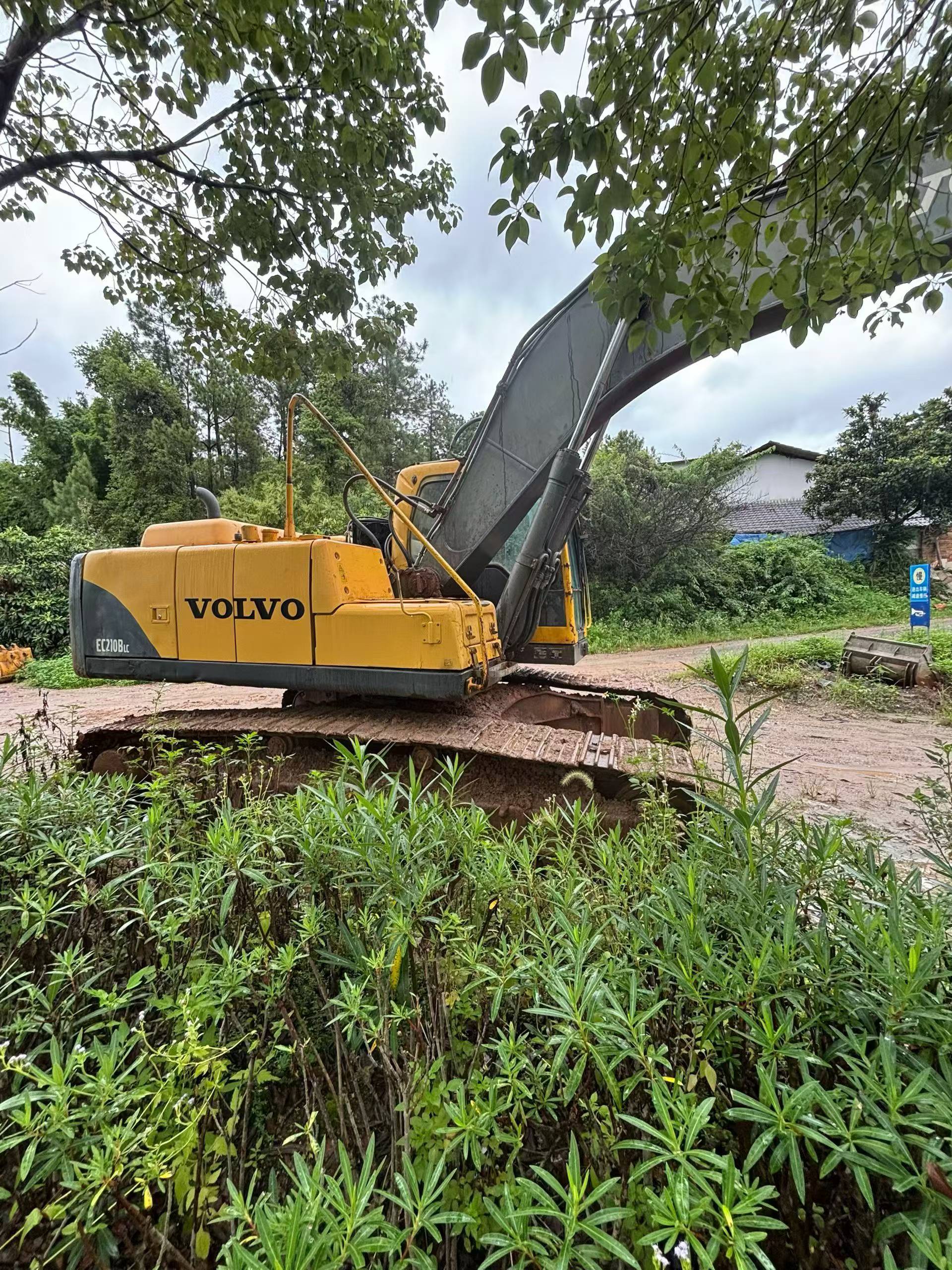

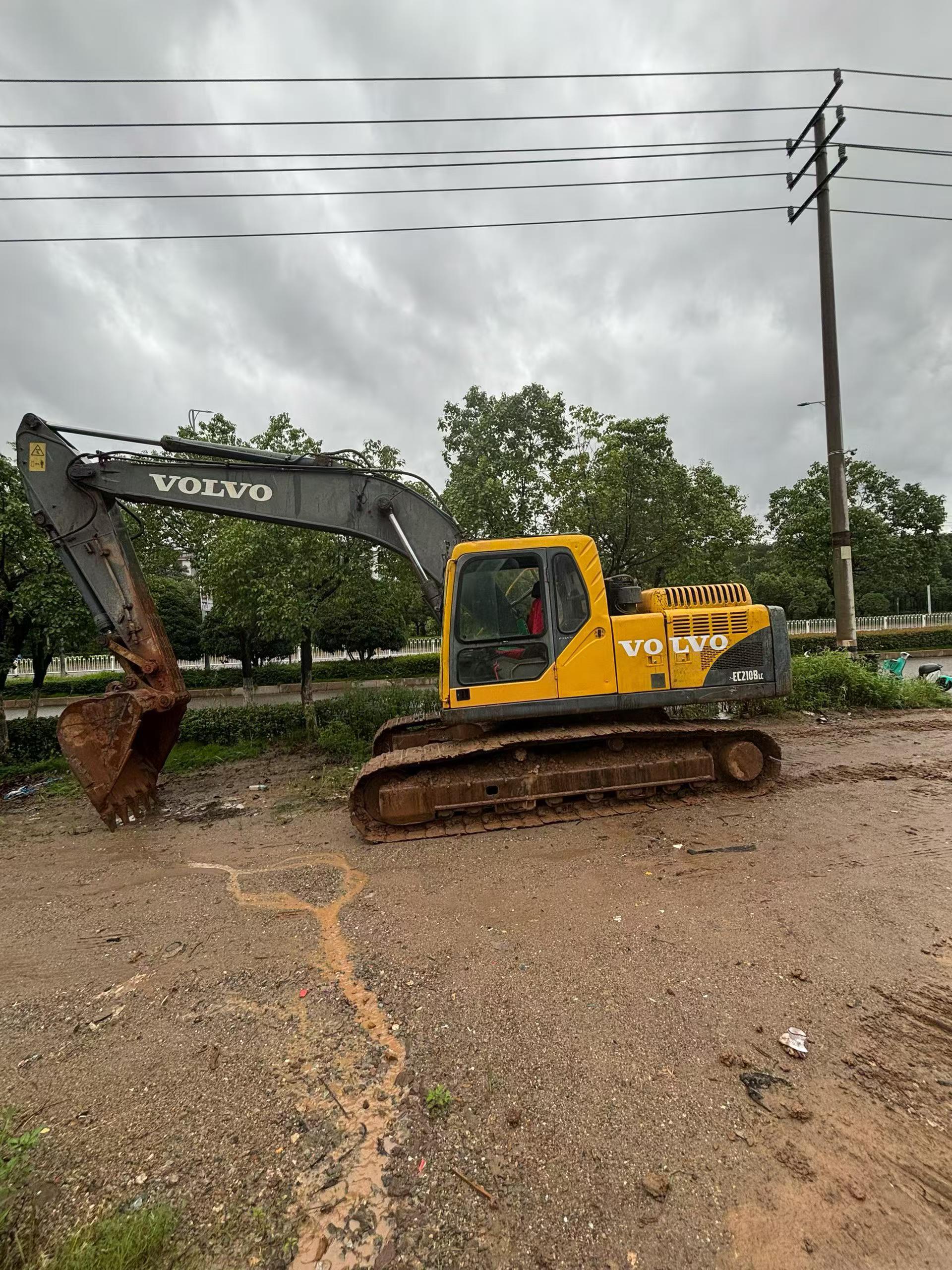

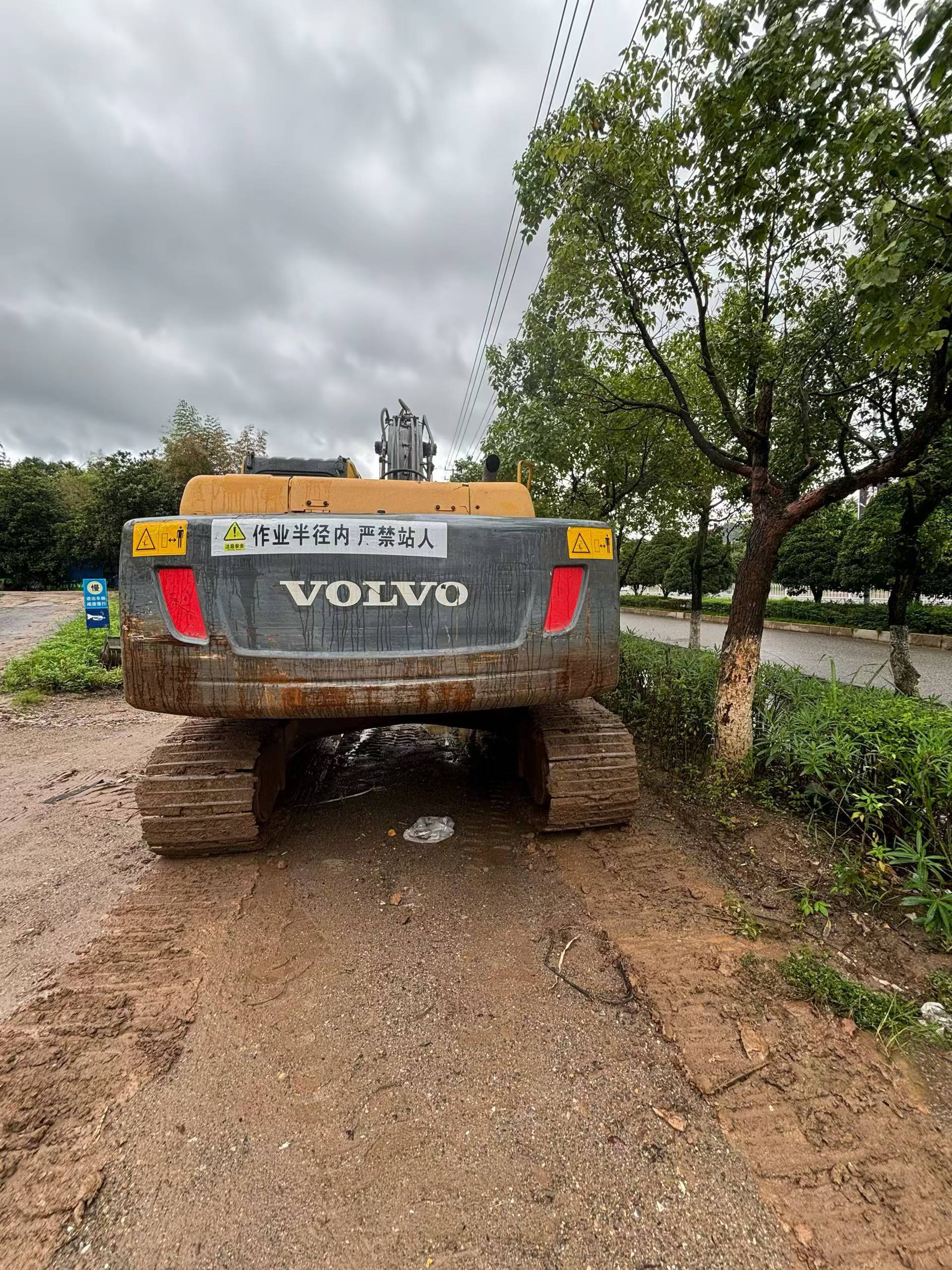

This 2014 Volvo EC210 excavator is currently located in Hunan, China and available for immediate sale. The machine has been well-maintained and remains in good operational condition, with all major systems verified and ready for demonstration upon request.

  • Year: 2014
  • Make: Volvo
  • Model: EC210
  • Location: Hunan Province, China
  • Condition: Good working order
  • Inspection: Available for on-site testing

This unit represents a competitive opportunity for contractors and equipment dealers seeking reliable excavation equipment at an attractive price point. The seller is motivated and pricing reflects current market conditions. Interested parties are encouraged to arrange inspection and trial operation to verify machine performance and suitability for their operational requirements.

SpecificationsValue
No.1138997
Tonnage (tons)12
Working weight (kg)12230 - 14170
Bucket capacity (m³)0.2 - 0.52
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

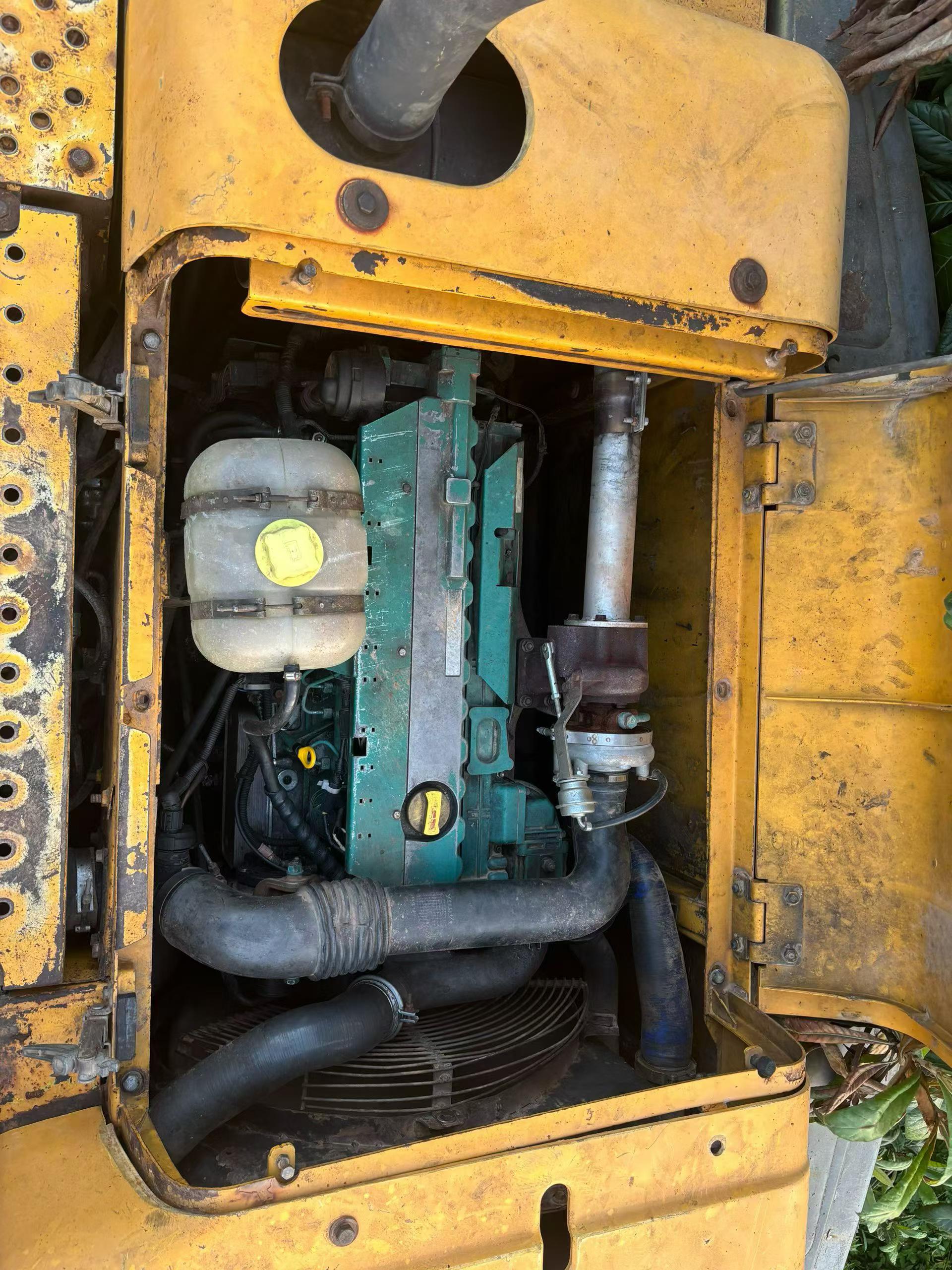

Engine typeVolvo D3.8E
Rated power (kw/rpm)73.3/2200
Cylinder diameter × stroke (mm)100*120
Maximum torque (N.m)369.5/1500
Number of cylinders (PCS)4
Displacement (L)3.77
Working formIn-line 4-cylinder water-cooled diesel engine
Rotation speed (rpm)11.2
Climbing ability (%)70
Maximum tractive force (kN)119
Travel speed (km/h)2.9/5.2
Turning torque (Nm)30.2
Main overflow set pressure (Mpa)32.4/ 34.3
Maximum flow of main pump (l/min)2 x 118
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)24.5

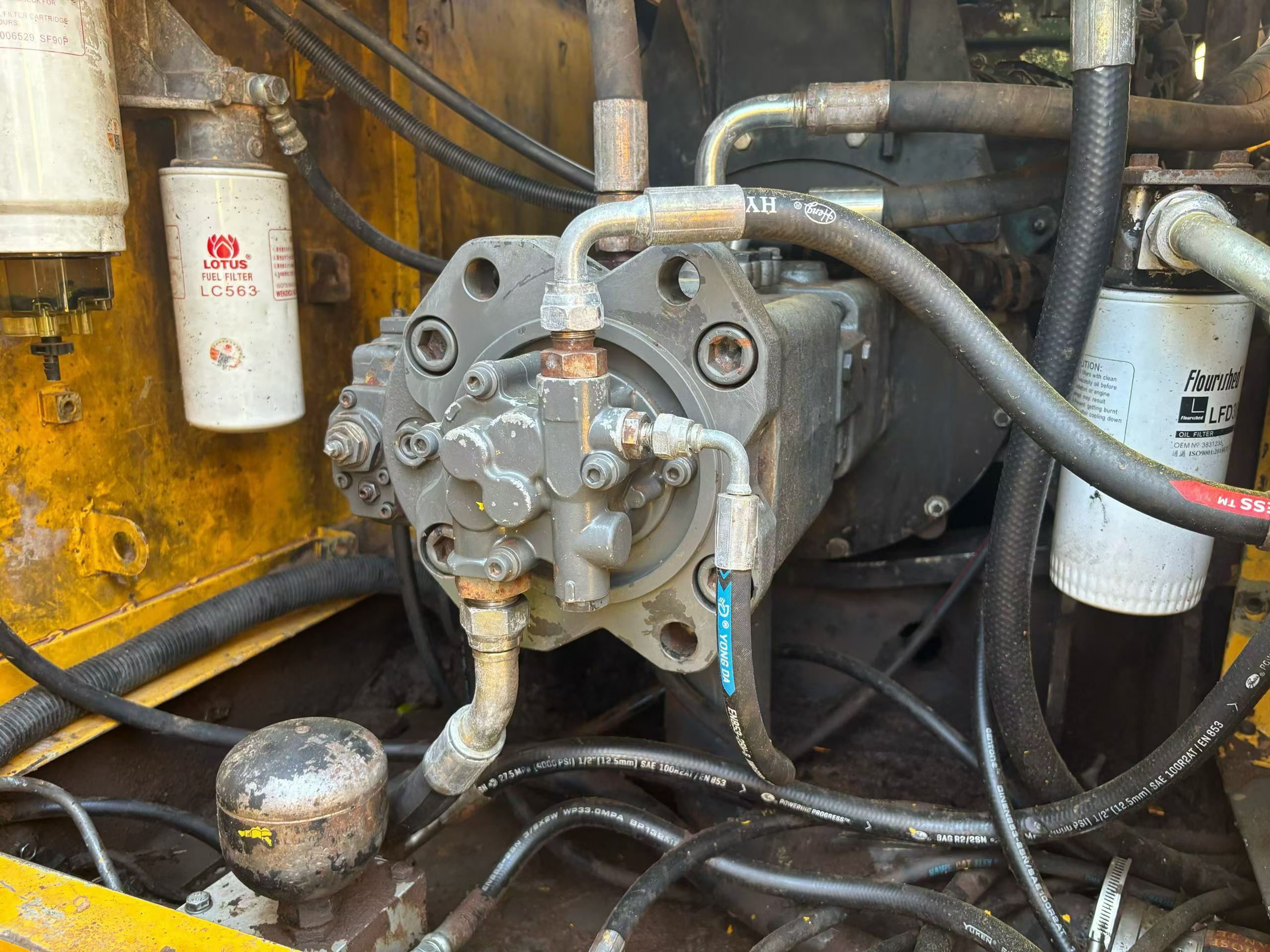

Main pump typeVariable axial piston pump
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1*100 x 865
Bucket rod cylinders - Number × diameter × stroke (mm)1*120 x 1 045
Boom cylinders - Number × diameter × stroke (mm)2*105 x 980
Pilot pump typeGear pump
Fuel Tank (L)250
Hydraulic Tank (L)85
Engine Oil changes (L)13.2
Coolant (L)22.3
Hydraulic System (L)230
Total transport length (mm)7720
Total transport width (mm)2490
Total transport height (mm)2800
Full cab height (mm)2800
Counterweight ground clearance (mm)920
Minimum ground clearance (mm)436
Onboard width (mm)2490
Total track length (mm)3580
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2870
Number of sprockets (single side) (each)2 x 1
Number of wheels (single side) (each)2 x 6
Maximum digging radius (mm)7960
Maximum digging depth (mm)5130
Maximum excavation height (mm)8160
Maximum unloading height (mm)5790
Maximum vertical digging depth (mm)4580
Maximum excavation radius of stop surface (mm)7820
